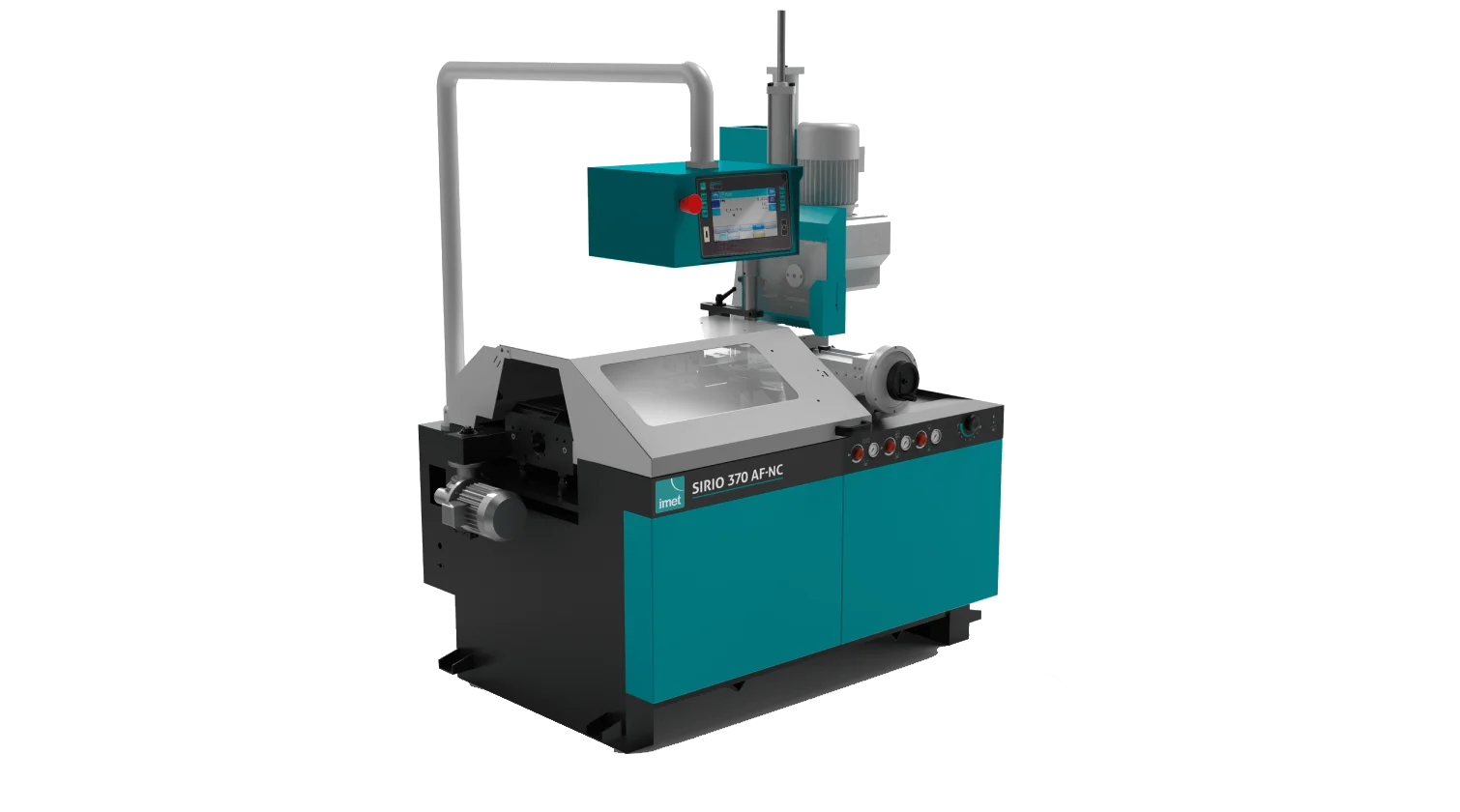

SIRIO 370 AF - automatic vertical miter saw for high-strength steel

General

PRECISION VERTICAL AUTOMATION

The SIRIO AF platform is engineered to combine structural mass with advanced electronic feeding.

Cast Iron Dovetail Structure: All models are built with a rigid, vertical dovetail structure in cast iron. The large contact surface between the machine head and the frame eliminates vibrations and binding, significantly increasing cutting accuracy and blade life.
NC Axis Management (AF-NC): The NC version uses an electric motor with an encoder for the feeder, managing automatic blade thickness calculation and stroke repetitions through a centralized CNC.
High-Precision Feeding: Both models feature a pneumatic feeding carriage with a 520 mm (20.47 in) maximum single stroke. The feeder is mounted on a floating plate to facilitate the advancement of bars that are not perfectly straight.

Control HMI:
- AF-E: Features an electronic control panel for setting pieces (1-9999), stroke repetitions, and blade positioning, paired with a manual handwheel positioner for length setting.
- AF-NC: Equipped with a 7" touch screen interface to manage up to 99 programs and 30 different lengths on the same bar, including self-diagnosis.
Vertical Descent Control: The cutting head features hydraulic control for the lowering speed rate to ensure optimized penetration into hard materials.
Rapid Frontal Clamping: All models include a pneumatic front vice mounted on adjustable guides with rapid transversal sliding and locking.
Integrated Support: The feeder includes a superior roller to ease movement and support multiple bars simultaneously on the same plate.
Blade Maintenance: A standard nylon blade cleaning brush is included on all models to protect the cutting edge and maintain efficiency.
Mitering Precision: Positioning is secured by an adjustable easy-stops system at 0° and 45° with a graded scale for other angles.

Max Round Cutting Capacity (0°): 4.72 in (120 mm)
Max Square Cutting Capacity (0°): 3.93 in (100 mm)
Max Rectangular Capacity (0°): 7.08 in×3.93 in (180×100 mm)
Miter Capacity (60° Left): Round: 4.33 in (110 mm) / Square: 3.54 in (90 mm)
Solid Material Capacity (C45): 1.57 in (40 mm)
Blade Diameter: 14.56 in (370 mm)
Feeder Single Stroke: 20.47 in (520 mm) / Optional 1200 mm on NC
Minimum Remnant: 6.69 in (170 mm)
Blade Speed (Standard): 15/30 rpm (17/70 rpm on NC VFD)
Blade Motor Power: 2.0/2.9 HP (1.5/2.2 kW) / NC: 4 HP (3 kW)
Machine Weight: AF-E: 1,565 lbs (710 kg)

ESC Variable Speed (AF-E): Inverter to expand speed to 15/70 rpm or double-speed device for 30/140 rpm.
Industry 4.0 Ready (SAWfactory): Remote monitoring, assistance, and programming software via ethernet/modem (NC only).
Longer Feeder (NC Only): Single-stroke extension to 47.24 in (1200 mm).
Minimal Lubrication System: Air-oil micro-mist system with a 0.34 gal (1.3 L) tank.
V-Jaws: Cast iron jaws for bundles and round bars up to 3.34 in (85 mm).
Supplementary Guides (NC Only): For small diameters (10 mm to 20 mm) compatible with barloaders.
