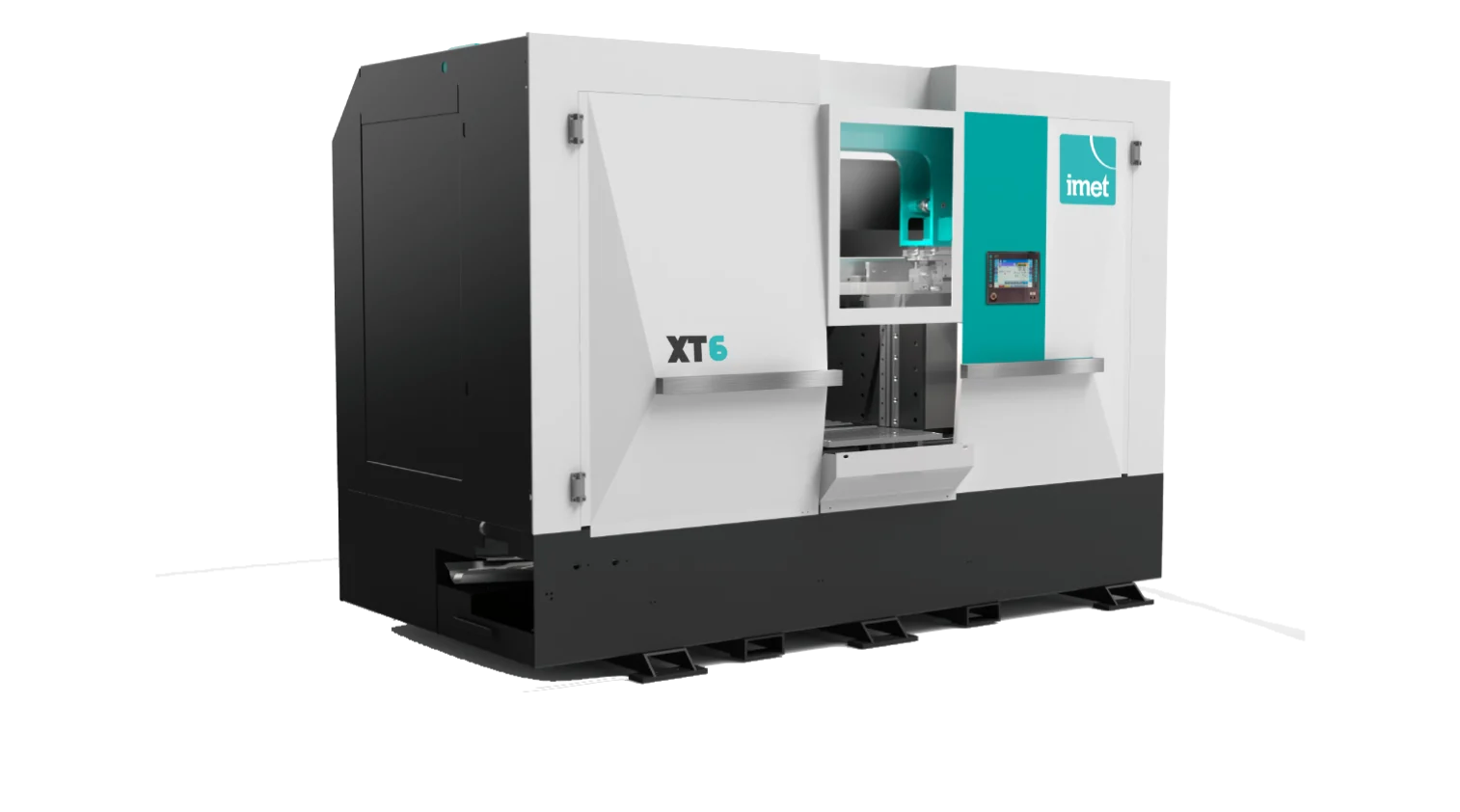

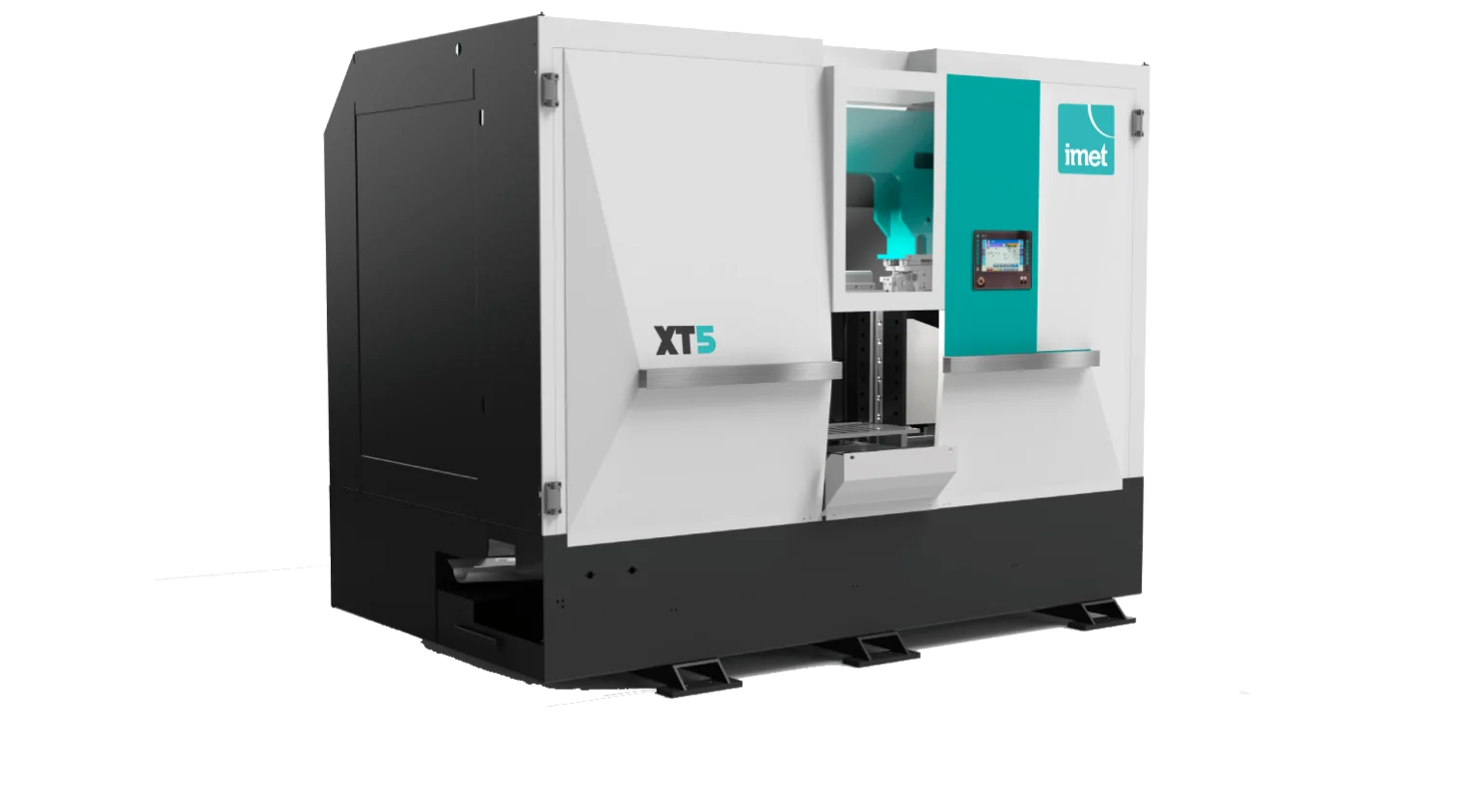

The IMET XT Series consists of the XT4, XT5, and XT6, representing the most advanced automatic double column bandsaw for mass production available today. Designed for heavy industrial applications, these machines are engineered for the high-volume processing of steel and metal solids up to 560 mm (22.04 in). The series features an award-winning ADI Design Index aesthetic combined with a 10″ touch screen CNC system that manages over 1200 material presets to optimize every cut.
General
TECHNOLOGY MODULE: THE PINNACLE OF SAWING PRECISION
The XT Series integrates brushless technology and rigid structural engineering to deliver unmatched cutting efficiency.
- Double Structure Sawframe: The sawframe features an electrowelded double structure with large thickness to eliminate vibrations, bindings, and noise during the heaviest cutting processes.
- Brushless Downfeed System: Sawframe movement is perfectly balanced and driven by a high-performance brushless motor with a low-backlash planetary gearbox and recirculating ballscrew for extreme descent precision.
- Advanced Feeding System: The integrated 500 mm (20 in) single-stroke feeder utilizes a brushless motor with a rack and pinion system and a floating plate to facilitate the loading of non-rectilinear bars.
- Innovative Detach System: At the end of the cut, the feeder backs off slightly to detach the blade from the material before the bow rises, significantly reducing friction and extending blade life.
Features
- 10" Touch Screen HMI: A user-friendly CNC interface providing access to a library of over 1200 materials and the ability to store 90 cutting programs.
- Unique 4-Jaw Vise System: Features four independent jaws that open to reduce friction. Users can choose between a 4-jaw setup for maximum stability (standard for WIDIA blades) or a 2-jaw setup to reduce remnant to just 30 mm(1.18 in).
- IMET Sense Technology: Optimizes cycle times by utilizing a fast-approach mode until the blade is within 10 mm of the material, then automatically switching to the programmed cutting parameters.
- High Energy Efficiency: The innovative hydraulic unit reduces power consumption by up to 80% compared to traditional units, using only 3 kW/h per day.
- User Safety & Access: All moving parts are protected by a full carter system with safety microswitches. Large doors provide full access to all internal components for easy maintenance.
- Precision Blade Guides: Hydraulically-driven hard metal pads with cemented, rectified lateral rolls and a Widia-ring bearing ensure perfect alignment.
Technical Data
| XT4 | XT5 | XT6 | |
| Cutting Capacity | |||
| Round | 360 mm (14.17") | 460 mm (18.11") | 560 mm (22.05") |
| Square | 360 mm (14.17") | 460 mm (18.11") | 560 mm (22.05") |
| Rectangular | 360 x 360 mm (14.17" x 14.17") | 460 x 460 mm (18.11" x 18.11") | 520 x 550 mm (20.47" x 21.65") |
| Bundle Cutting Capacity | |||
| Maximum | 350 x 350 mm (13.78" x 13.78") | 450 x 450 mm (17.72" x 17.72") | 550 x 520 mm (21.65" x 20.47") |
| Minimum | 90 x 10 mm (3.54" x 0.39") | 90 x 10 mm (3.54" x 0.39") | 90 x 10 mm (3.54" x 0.39") |
| Remnant with Bundle | 210 mm (8.27") | 210 mm (8.27") | 210 mm (8.27") |
| Operational Specs | |||
| Minimum Remnant | 60 mm (2.36") [Opt. 30 mm (1.18")] | 60 mm (2.36") [Opt. 30 mm (1.18")] | 60 mm (2.36") [Opt. 30 mm (1.18")] |
| Minimum Cutting Diameter | 20 mm (0.79") | 20 mm (0.79") | 20 mm (0.79") |
| Minimum Cutting Length | 10 mm (0.39") | 10 mm (0.39") | 10 mm (0.39") |
| Mechanical Specs | |||
| Blade Size (L x H x T) | 5900 x 41 x 1.3 mm (232.28" x 1.61" x 0.05")* | 6120 x 54 x 1.3 mm (240.95" x 2.13" x 0.05")* | 7320 x 54 x 1.6 mm (288.19" x 2.13" x 0.06")* |
| Blade Motor Power | 5.5 kW (7.4 HP) | 5.5 kW (7.4 HP) | 7.5 kW (10.1 HP) |
| Blade Speed | 15 – 150 m/min (49 – 492 ft/min) | 15 – 150 m/min (49 – 492 ft/min) | 15 – 150 m/min (49 – 492 ft/min) |
| Feeder Single Stroke | 500 mm (19.69") | 500 mm (19.69") | 500 mm (19.69") |
| Blade Tension | 2452 bar (35,558 PSI) | 2452 / 2648 bar (35,558 / 38,403 PSI) | 2648 bar (38,403 PSI) |
| Hydraulic & Cooling | |||
| Hydraulic Unit Power | 2.2 kW (3.0 HP) | 2.2 kW (3.0 HP) | 3 kW (4.0 HP) |
| Hydraulic Tank Capacity | 25 L (6.6 gal) | 25 L (6.6 gal) | 25 L (6.6 gal) |
| Coolant Tank Capacity | 100 L (26.4 gal) | 100 L (26.4 gal) | 160 L (42.3 gal) |
| Physical Dimensions | |||
| Working Table Height | 870 mm (34.25") | 870 mm (34.25") | 870 mm (34.25") |
| Chips Conveyor Height | 420 mm (16.54") | 420 mm (16.54") | 420 mm (16.54") |
| Net Weight | 3500 kg (7,716 lbs) | 4300 kg (9,480 lbs) | 5300 kg (11,684 lbs) |
| *Optional blade height of 41 mm (1.61") and thickness of 1.3 mm (0.05") available |
Standard Equipment
- Bimetal bandsaw blade.
- 10" Touch screen CNC with material library.
- Motorized chip conveyor (420 mm height).
- Integrated brushless feeder with roller table.
- Hydraulic blade tensioning system with software monitoring.
- Sump pump for collecting tank cleaning.
- LED work area lighting.
Optionals
- Industry 4.0 Ready (SAWfactory): Remote management software for PC (SAWprogram) and web app for cross-device production monitoring.
- Deluxe Kit: Includes blade deviation control for perfect tolerances and the Smart Start system for automatic first-cut positioning.
- Bundle Cutting Device: Specialized clamping with vertical pressors for both feeder and fixed vices (Remnant: 210 mm).
- Minimal Lubrication System: Air-oil micro-mist system with a 0.79 gal (3 L) tank.
- Supplementary Chip Conveyors: Increased height (930 mm) or carpet-style conveyors for either side of the machine.
- Extended Feeder Length: Customizable feeder stroke beyond the standard 550 mm.
