An advanced, professional-grade tube laser optimized for high-capacity production, featuring industry-leading material yield with a remnant length as short as 0.78″.
General

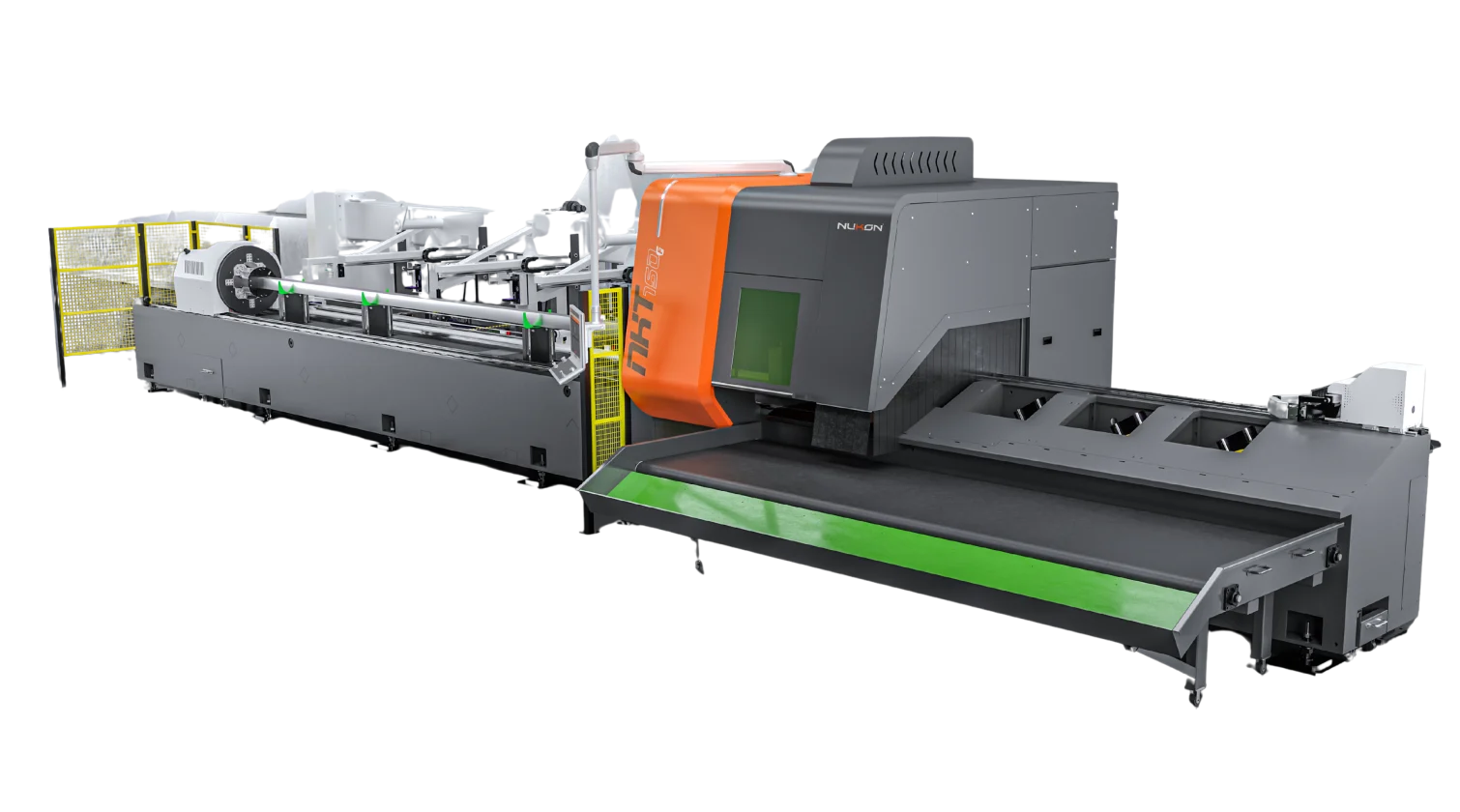

The Nukon NK-T160 is the premier choice for high-volume manufacturing where material efficiency and precision are paramount. It is capable of handling larger profiles up to Ø 8.90" and can be configured with feed lengths up to 26.24'. The T160 is specifically designed to minimize waste; while the standard remnant is 3.15", the bevel-equipped model can achieve an ultra-short remnant of just 0.78". Integrated waste conveyors and automatic material handling options make this machine a true production powerhouse.
Features
- Extreme Material Yield: Optimized to reduce material waste to a mere 0.78" remnant length when configured for bevel cutting.
- High-Capacity Feed: Supports extended feeding lengths of up to 26.24' for processing large industrial stock.
- Automated Waste Management: Features an integrated waste parts conveyor to keep the workspace clear during continuous operation.
- 3D Geometry Excellence: Expertly handles complex structural profiles with advanced auto-centering and seam detection sensors.
Technical Data
NK-T160
| Parameter | Metric Value | Imperial Value |
| Resonator Power | 2 kW / 3 kW / 4 kW | 2.7 hp / 4.0 hp / 5.4 hp |
| Max. Outer Circle Diameter | Ø 226 mm | 8.90" |
| Max. Pipe Diameter | Ø 226 mm | 8.90" |
| Max. Square Profile Size | 160 mm | 6.30" |
| Max. Rectangular Profile Size | 200 x 100 mm | 7.87" x 3.93" |
| Feed Length | 6500 mm / 8000 mm* | 21.32' / 26.24'* |
| Max. Loading Weight | 35 kg/m | 23.5 lbs/ft |
| Remnant Length | 80 mm / 20 mm (Bevel)* | 3.15" / 0.78" (Bevel)* |
| Control Panel | 21" Multi-Touch Screen | 21" Multi-Touch Screen |
| Machine Weight | 23,000 kg | 50,706 lbs |
Cutting Capacity
3D LASER MAX CUTTING THICKNESSES
| Material | 2 kW | 3 kW | 4 kW |
| Mild Steel | 8 mm / 0.32" | 10 mm / 0.39" | 12 mm / 0.47" |
| Stainless Steel | 6 mm / 0.23" | 8 mm / 0.32" | 10 mm / 0.39" |
| Aluminum | 5 mm / 0.19" | 8 mm / 0.32" | 10 mm / 0.39" |
| Brass | 3 mm / 0.11" | 5 mm / 0.19" | 6 mm / 0.23" |
| Copper | 3 mm / 0.11" | 5 mm / 0.19" | 6 mm / 0.23" |
Optionals
- Weld Seam Detection
- Auto Centering
- L and U Profile Processing
- Bevel Cutting
- Waste Parts Conveyor
