Designed for maximum productivity with a robust body structure and flexible production dimensions, the Cross series meets all industrial requirements for high-power laser cutting.
General

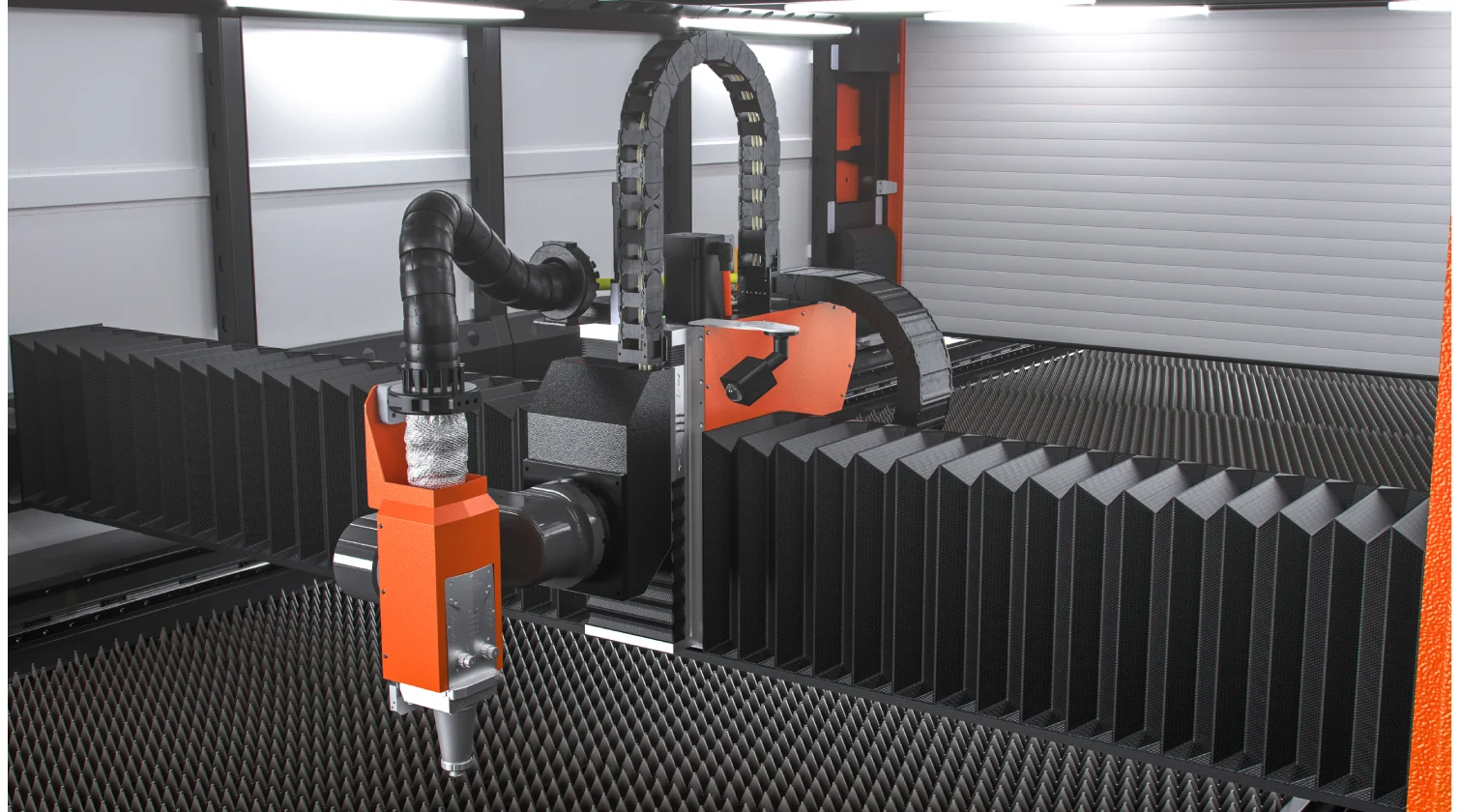

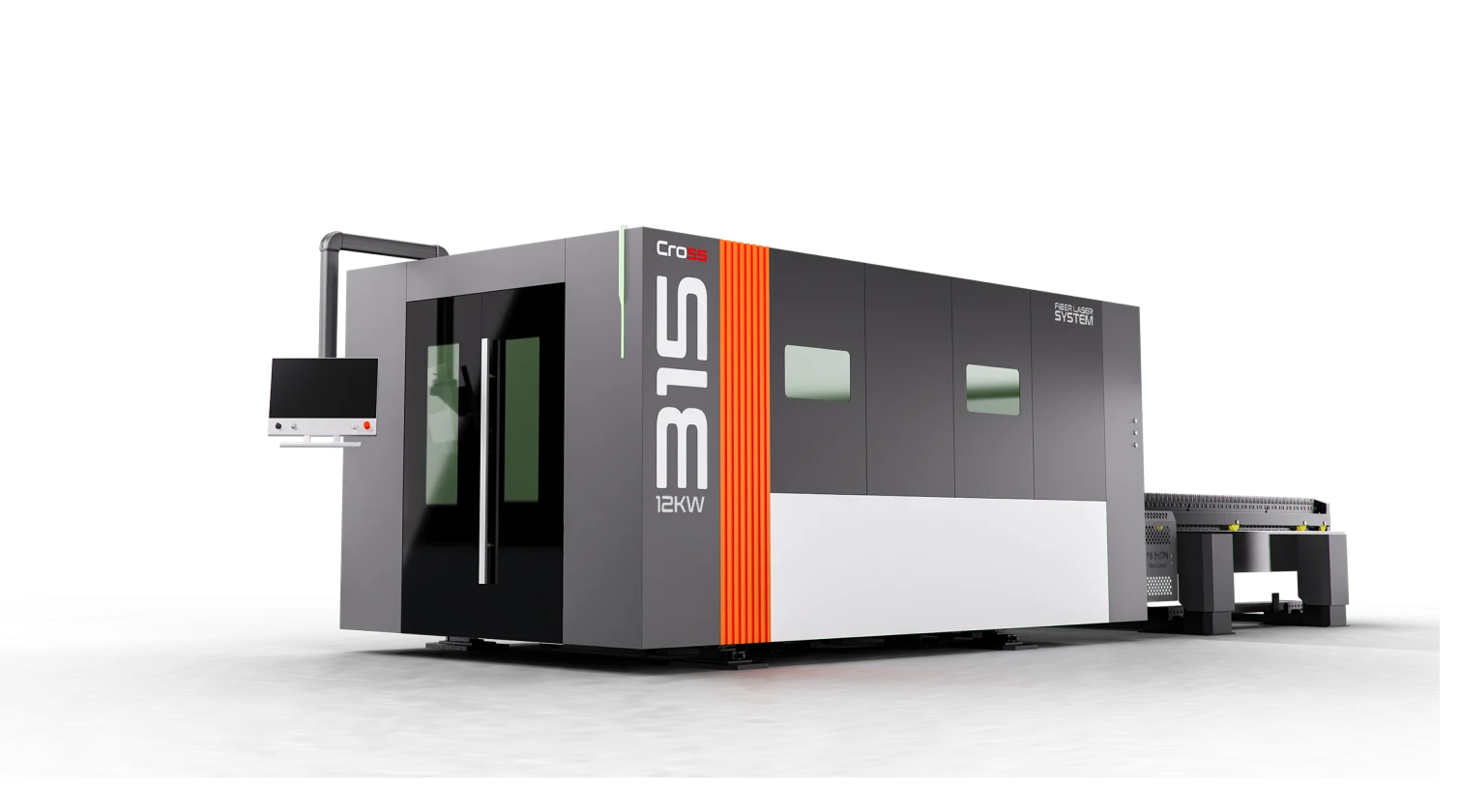

The Nukon CROSS Series is the definitive choice for businesses requiring high-duty 24/7 production. Available with power options up to 30 kW, this series is engineered to process massive sheets with absolute stability. Whether processing standard sheets on the Cross 315 or extreme lengths on the Cross 830, the series emphasizes throughput and quality. Advanced technological integrations like PlusCut for thick materials and Bevel cutting for welding preparation allow this machine to maximize efficiency in any heavy industrial environment.
Features
- High Power Capability: Fully compatible with laser power options up to 30 kW for extreme material thicknesses.
- Bevel Cutting Technology: Optional head allows for vertical and angled cuts up to ±52° for flawless weld-ready edges.
- PlusCut Technology: Specifically designed for thick carbon steel to ensure cleaner, faster cuts.
- Automatic Nozzle Changer: Streamlines production by automatically performing nozzle changes for different materials and thicknesses.
- Automation Ready: Fully compatible with Tower and Lift automation systems for operator-free production.
Technical Data
CROSS SERIES
| Parameter | CROSS 315 | CROSS 420 | CROSS 620 | CROSS 825 | CROSS 830 |
| Sheet Dimensions | 1530 x 3050 mm
5' x 10' |
2030 x 4050 mm
6.6' x 13.2' |
2030 x 6050 mm
6.6' x 19.8' |
2530 x 8050 mm
8.3' x 26.4' |
3050 x 8050 mm
10' x 26.4' |
| Resonator Power | 4 – 30 kW
5.4 – 40.2 hp |
4 – 30 kW
5.4 – 40.2 hp |
4 – 30 kW
5.4 – 40.2 hp |
4 – 30 kW
5.4 – 40.2 hp |
4 – 30 kW
5.4 – 40.2 hp |
| X-Axis Travel | 3050 mm
10' |
4050 mm
13.29' |
6050 mm
19.85' |
8050 mm
26.41' |
8050 mm
26.41' |
| Y-Axis Travel | 1530 mm
5' |
2030 mm
6.66' |
2030 mm
6.66' |
2530 mm
8.30' |
3050 mm
10' |
| Z-Axis Travel | 145 mm
5.7" |
145 mm
5.7" |
145 mm
5.7" |
145 mm
5.7" |
145 mm
5.7" |
| Working Table Height | 985 mm
38.77" |
985 mm
38.77" |
955 mm
37.59" |
955 mm
37.59" |
955 mm
37.59" |
| Max Loading Capacity | 2000 kg
4409 lbs |
6000 kg
13277 lbs |
3500 kg
7716 lbs |
7800 kg
17196 lbs |
8300 kg
18298 lbs |
| Positioning System | Servo / Rack & Pinion | Servo / Rack & Pinion | Servo / Rack & Pinion | Servo / Rack & Pinion | Servo / Rack & Pinion |
| Acceleration | 17 m/s²
55.8 ft/s² |
15 m/s²
49.2 ft/s² |
15 m/s²
49.2 ft/s² |
15 m/s²
49.2 ft/s² |
15 m/s²
49.2 ft/s² |
| Axis Speed (Simult.) | 140 m/min
5511"/min |
140 m/min
5511"/min |
140 m/min
5511"/min |
140 m/min
5511"/min |
140 m/min
5511"/min |
| Positioning Accuracy * | ±0.1 mm
±0.0039" |
±0.1 mm
±0.0039" |
±0.1 mm
±0.0039" |
±0.1 mm
±0.0039" |
±0.1 mm
±0.0039" |
| Shuttle Table Time | 27 s | 35s | 45s | 65 s | 65 s |
| Controller | 21.5" Multi-Touch | 21.5" Multi-Touch | 21.5" Multi-Touch | 21.5" Multi-Touch | 21.5" Multi-Touch |
| Assist Gas (O2/N2) | 15 / 25 Bar | 15 / 25 Bar | 15 / 25 Bar | 15 / 25 Bar | 15 / 25 Bar |
|
* |
The accuracy that can be achieved depends on variable factors such as workpiece design, heat treatment, dimensions and position in the work area. | ||||
Cutting Capacity
2D LASER MAX CUTTING THICKNESSES
| Material / Power | 4kW | 6kW | 8kW | 12kW | 15kW | 20kW | 30kW |
| Mild Steel | 20mm / .78" | 25mm / .98" | 25mm / .98" | 25mm / .98" | 25mm / .98" | 25mm / .98" | 25mm / .98" |
| Mild Steel (w/PlusCut) | — | — | — | 35mm / 1.38" | 40mm / 1.57" | 45mm / 1.77" | 60mm / 2.36" |
| Stainless Steel | 15mm / .59" | 25mm / .98" | 30mm / 1.18" | 30mm / 1.18" | 35mm / 1.38" | 40mm / 1.57" | 50mm / 1.96" |
| Aluminum | 12mm / .47" | 25mm / .98" | 30mm / 1.18" | 30mm / 1.18" | 40mm / 1.57" | 50mm / 1.96" | 50mm / 1.96" |
| Brass | 8mm / .32" | 15mm / .59" | 15mm / .59" | 20mm / .78" | 20mm / .78" | 20mm / .78" | 20mm / .78" |
| Copper | 8mm / .32" | 10mm / .39" | 12mm / .47" | 12mm / .47" | 15mm / .59" | 20mm / .78" | 20mm / .78" |
| Total Power | 32 kVA | 48 kVA | 65 kVA | 85 kVA | 88 kVA | 115 kVA | 170 kVA |
Optionals
- Air Cutting System
- Nukon Mix Gas System
- CutLine Technology (6kW+)
- Piercing Sensor & Cut Detection
- Automatic Nozzle Changing
- Automatic Nozzle Cleaning
- Linear Motor on X-Axis (Hybrid)
- Bevel Cutting Head (±52°)
- Loading/Unloading Systems
