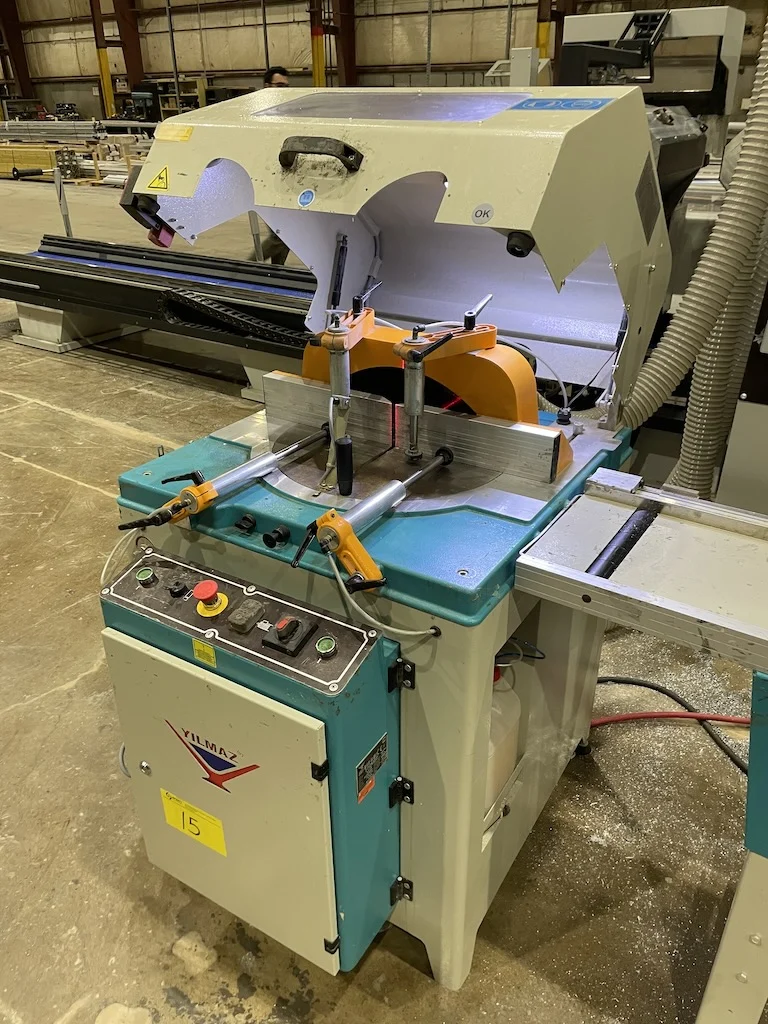

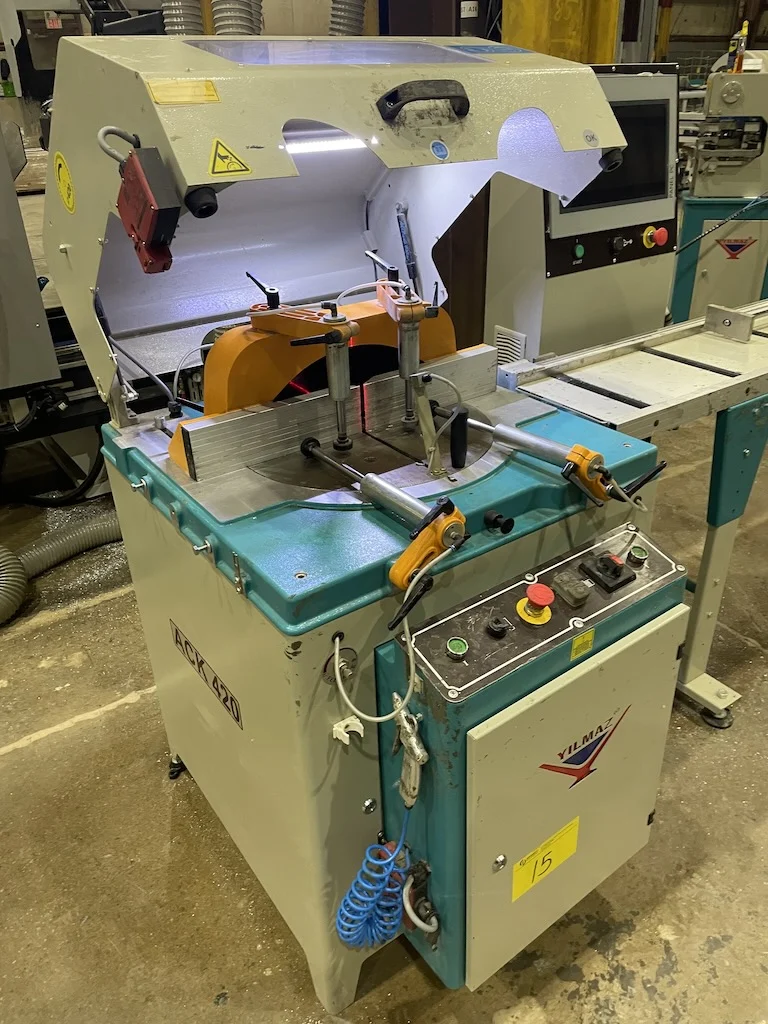

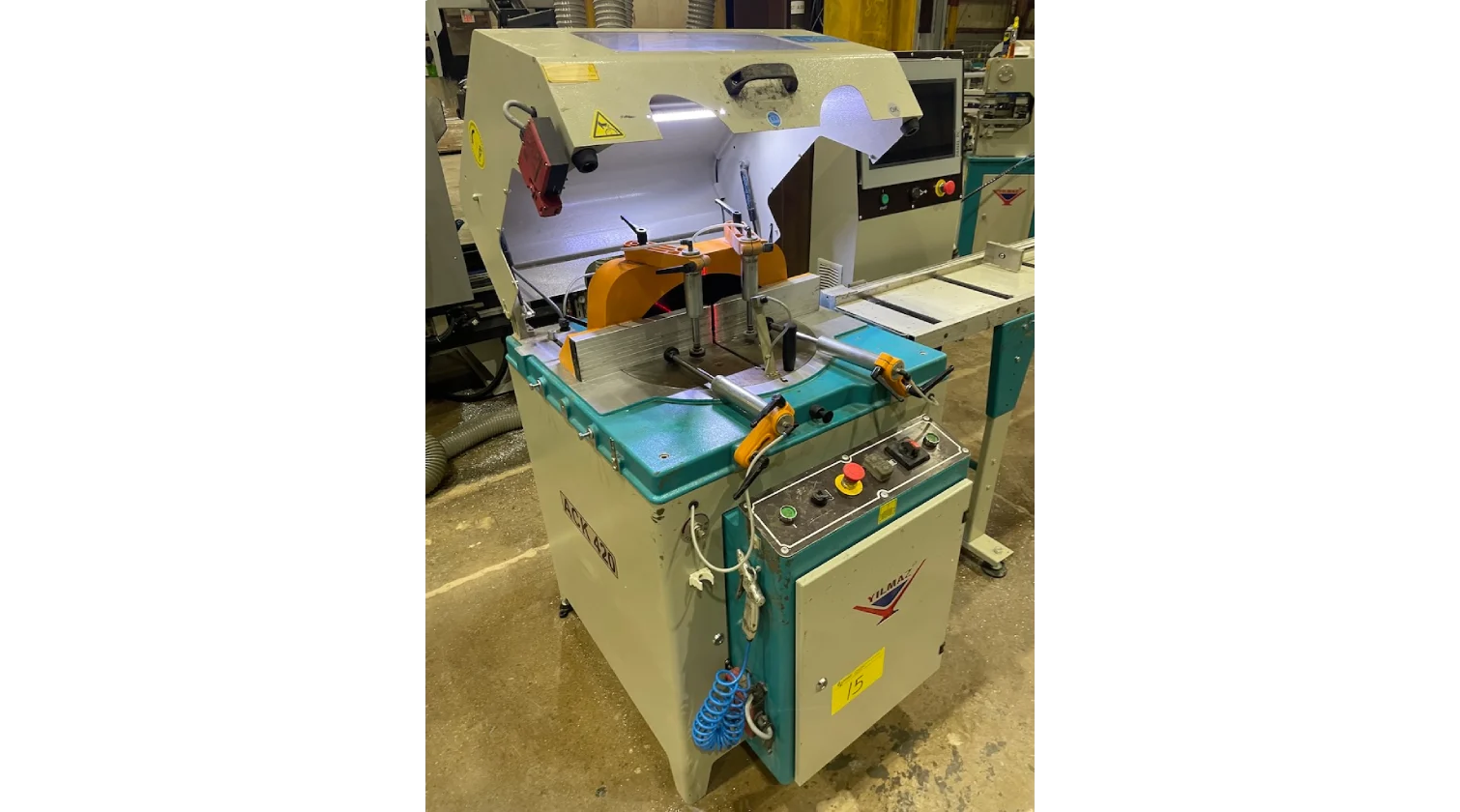

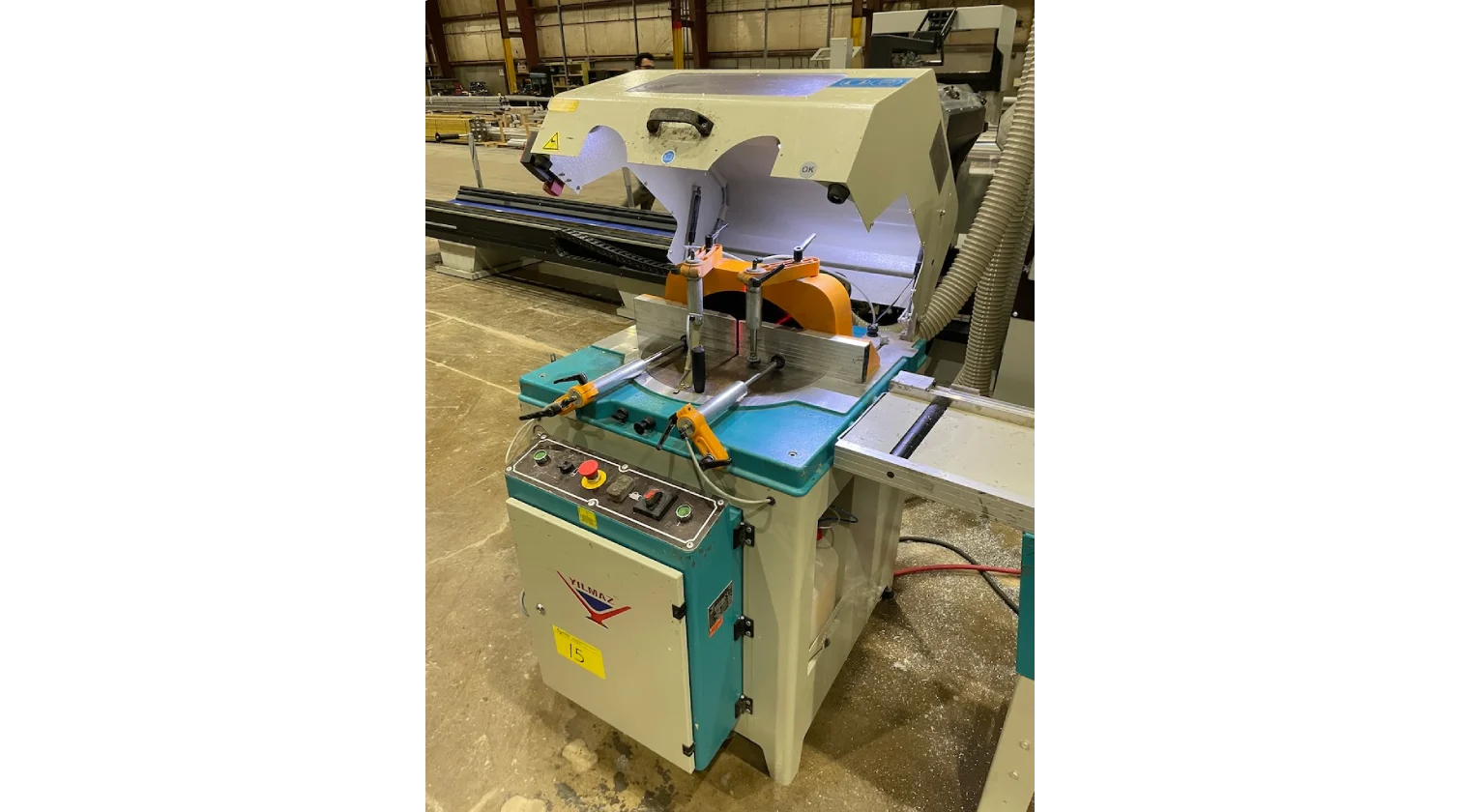

ACK 420 up-cut Miter Saw is designed for straight and miter cutting aluminum and PVC profiles. Blade is raised up by means of a hydro-pneumatic cylinder. Operator holds the two push buttons to raise the the blade up until the cut is completed. As soon as the one or both buttons released, blade will return. Table can be rotated towards both sides for mitre angles down to 15°. Safety hood is operated manually. Machine tested for functionality by INT technicians before being disconnected. Complete with laser line.
MAIN FEATURES
- Ø420 mm (16.5”) saw blade
- 2.2 kW (3 HP), 230 V, 3 phases, 50/60 Hz, 3000 RPM motor
- Two-hand control safe operation
- Pivoting range from -75° left to +75° right
- Location points at 75°, 60°, 45°, 30°, 22.5°, 15°, 0° in both directions (rotating left or right) for accurate and quick adjustment of most common mitre angles
- Intermediate angles are adjusted via friction stop
- Hydro-pneumatic up-raising saw feed
- Infinitely adjustable saw blade feed speed
- Adjustable (forth-back) back fence to optimize cutting capacity
- Interior LED lighting for increased visibility
- Manual opening safety hood with interlock switch
- Safety interlock switch on front access door
- In-feed and out-feed extensions for safety hood to prevent access inside machine during operation
- Easy access for blade change and maintenance from front and back
- Chip extraction ports from top and bottom
- Air consumption: 34 lt./min (7.8 gal/min)
- Air supply pressure: 6-8 bar (87-116 psi)
- CSA inspected and approved
STANDARD EQUIPMENT
- 1 x Ø420mm (16.5”) Saw blade
- Spray saw blade lubrication system
- 2 x vertical pneumatic clamps
- 2 x horizontal pneumatic clamps
- Air gun
