YILMAZ PIM 6509

General

The Yilmaz PIM 6509 delivers advanced, simultaneous operations to maximize productivity in the manufacturing of PVC window and door profiles. Its sophisticated CNC system utilizes an 8-axis servo-controlled motion platform to manage automatic feeding, carrying, positioning, cutting, and transfer of the workpiece.

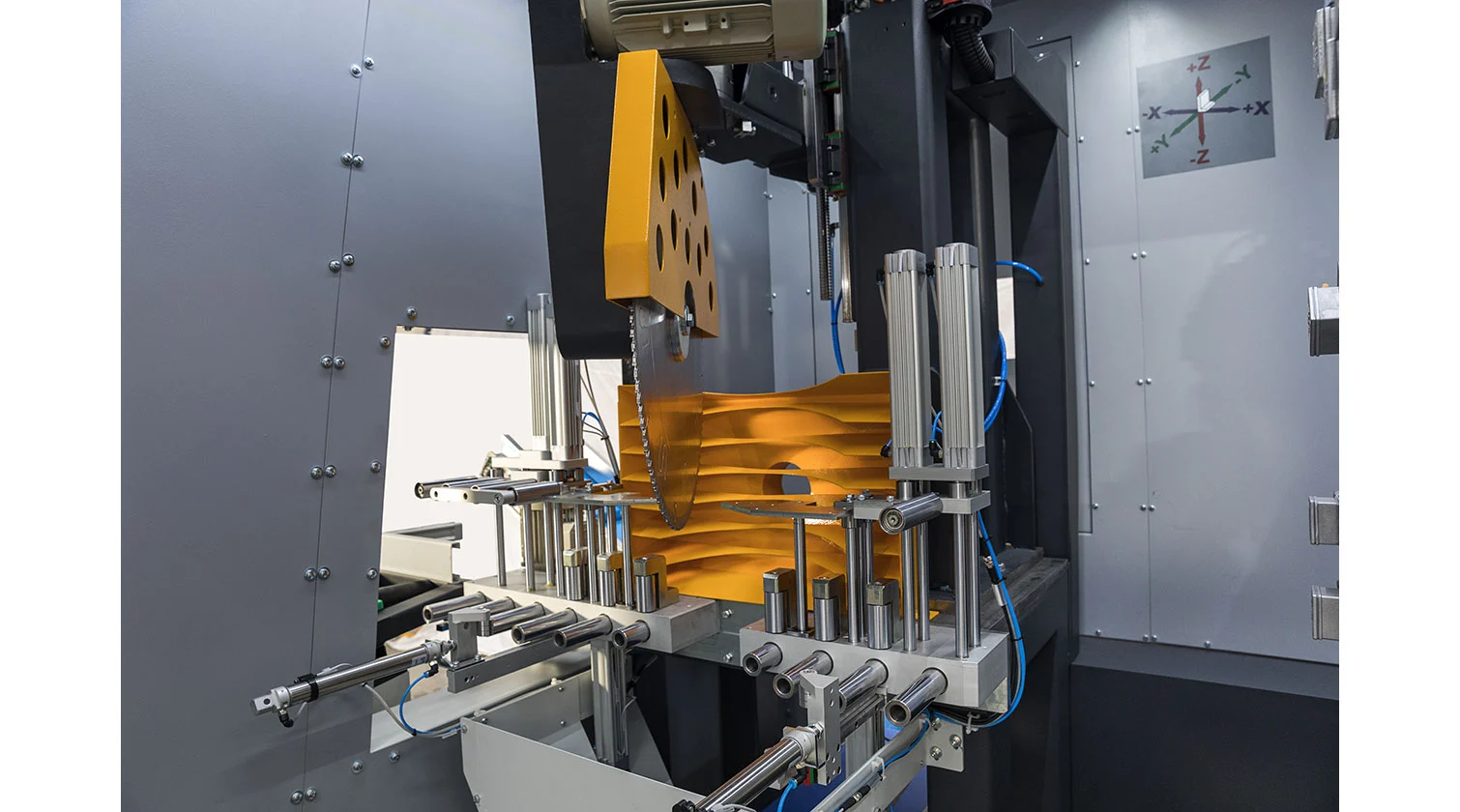

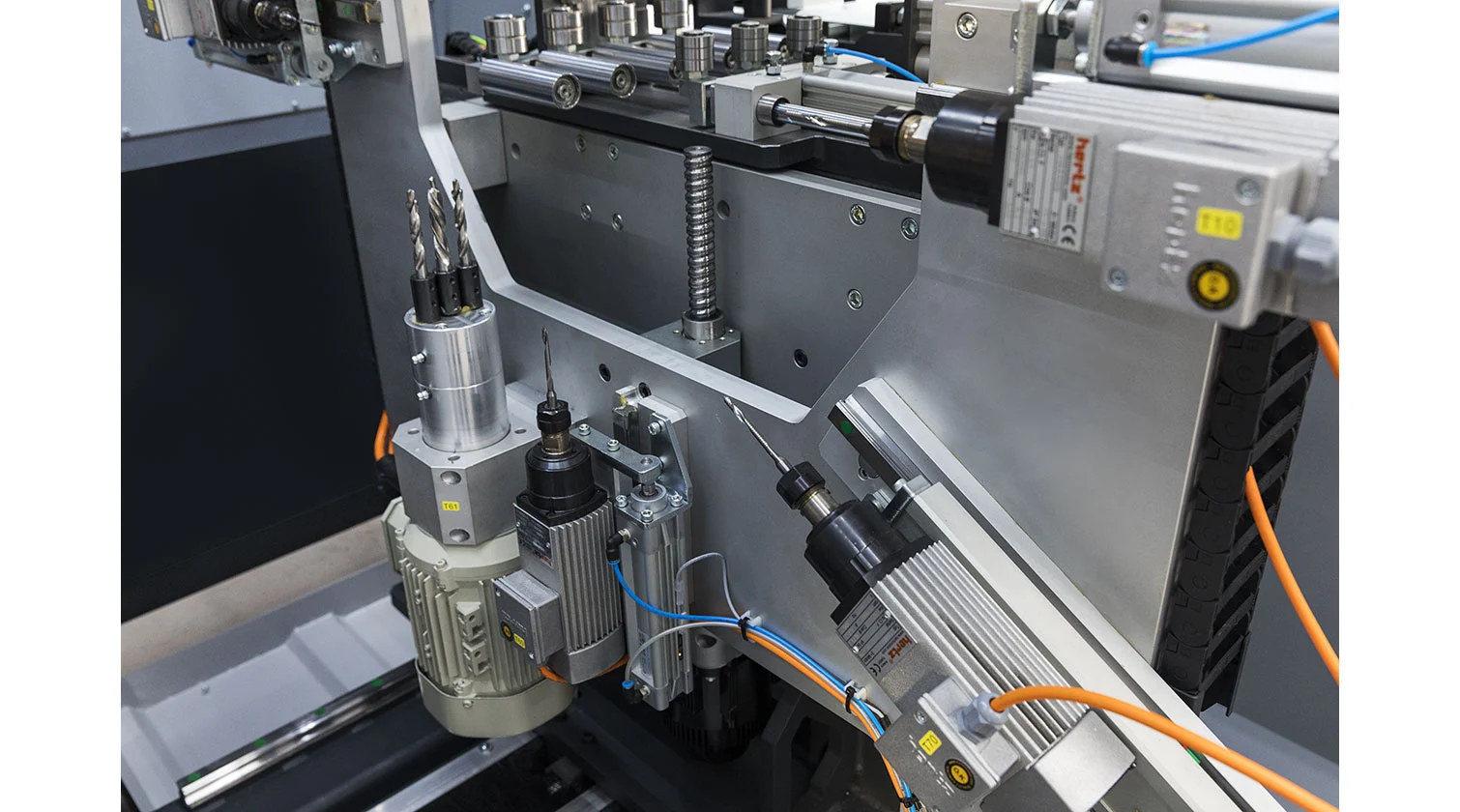

This Cutting and Machining Centre for PVC Windows is capable of performing a wide range of functions, including milling, opening key holes, water slots, hinge holes, handle holes, and marking, across all four sides of the profile. A Ø550 mm servo-controlled saw blade handles the cutting module, rotating precisely between 30° and 150° to produce high-quality angular cuts.

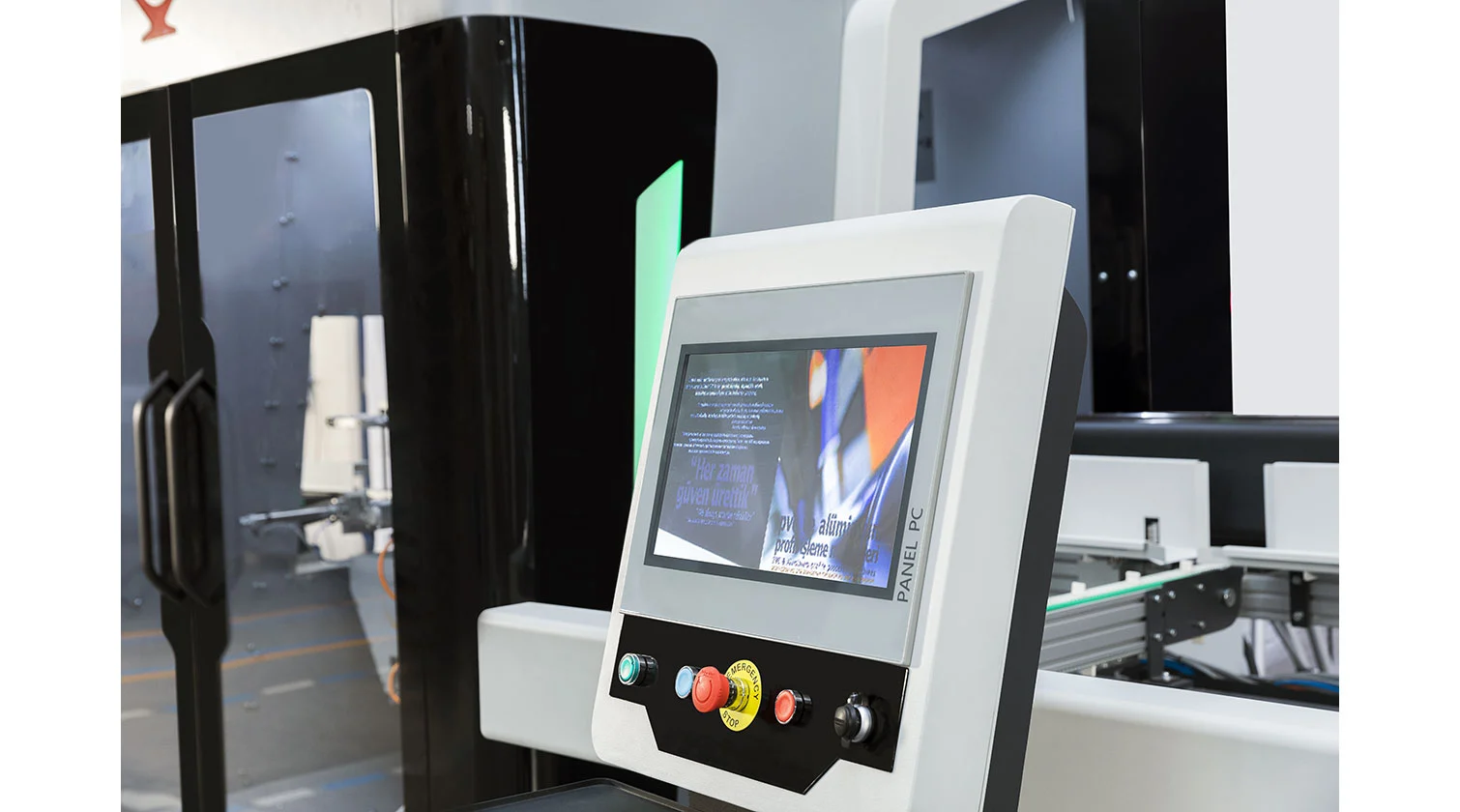

The machine is managed by a Windows-based industrial PC, accessible via a user-friendly interface on a 15.6 inch LCD touch screen. This modern interface is compatible with CAD programs and allows for remote desktop connections for technical support, ensuring smooth operation and minimal downtime. The PIM 6509 is engineered for easy integration with automated downstream equipment, such as CNC welding, corner cleaning, and screwing machines.

Features

• 8-axis CNC servo control system providing high-speed, dynamic motion.

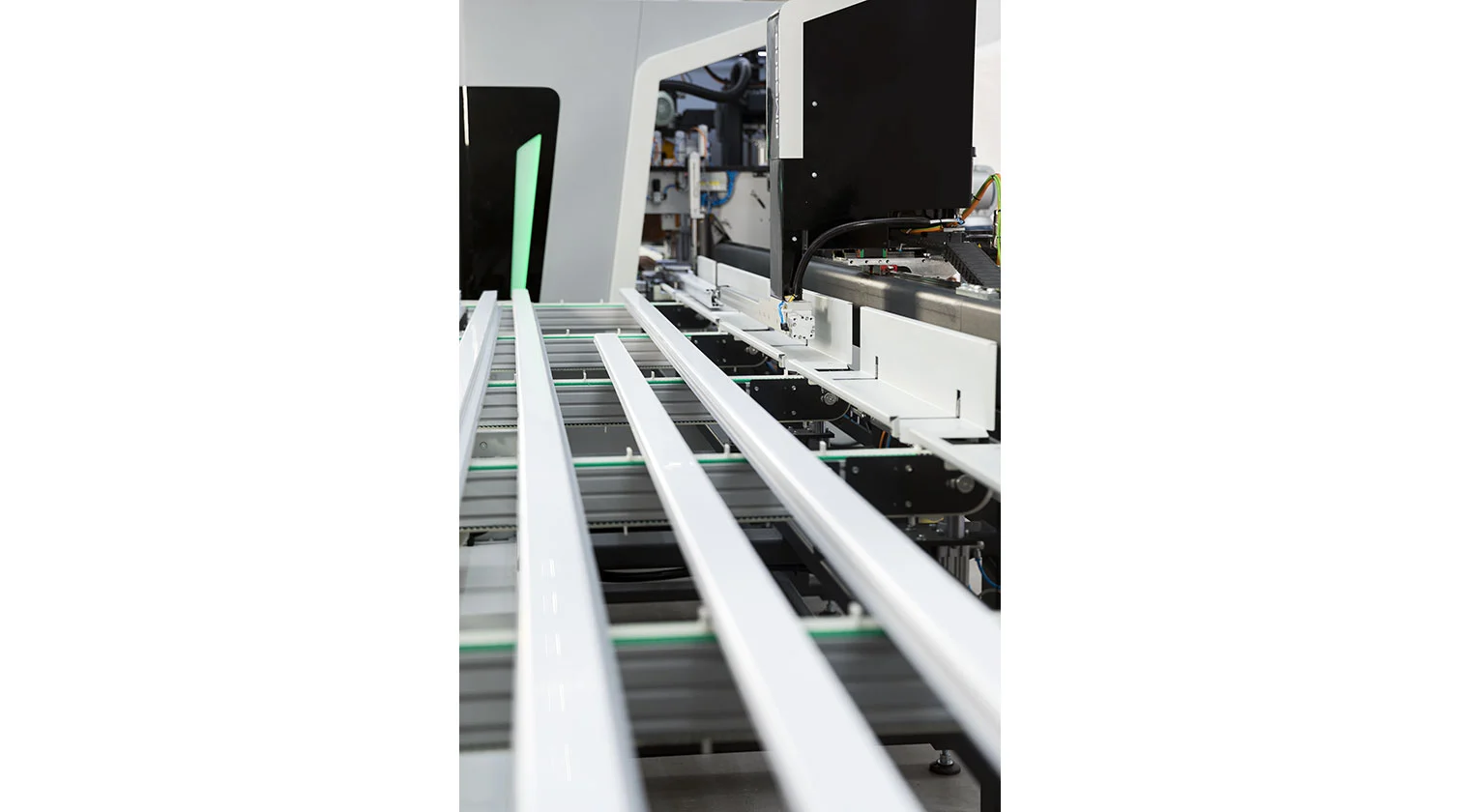

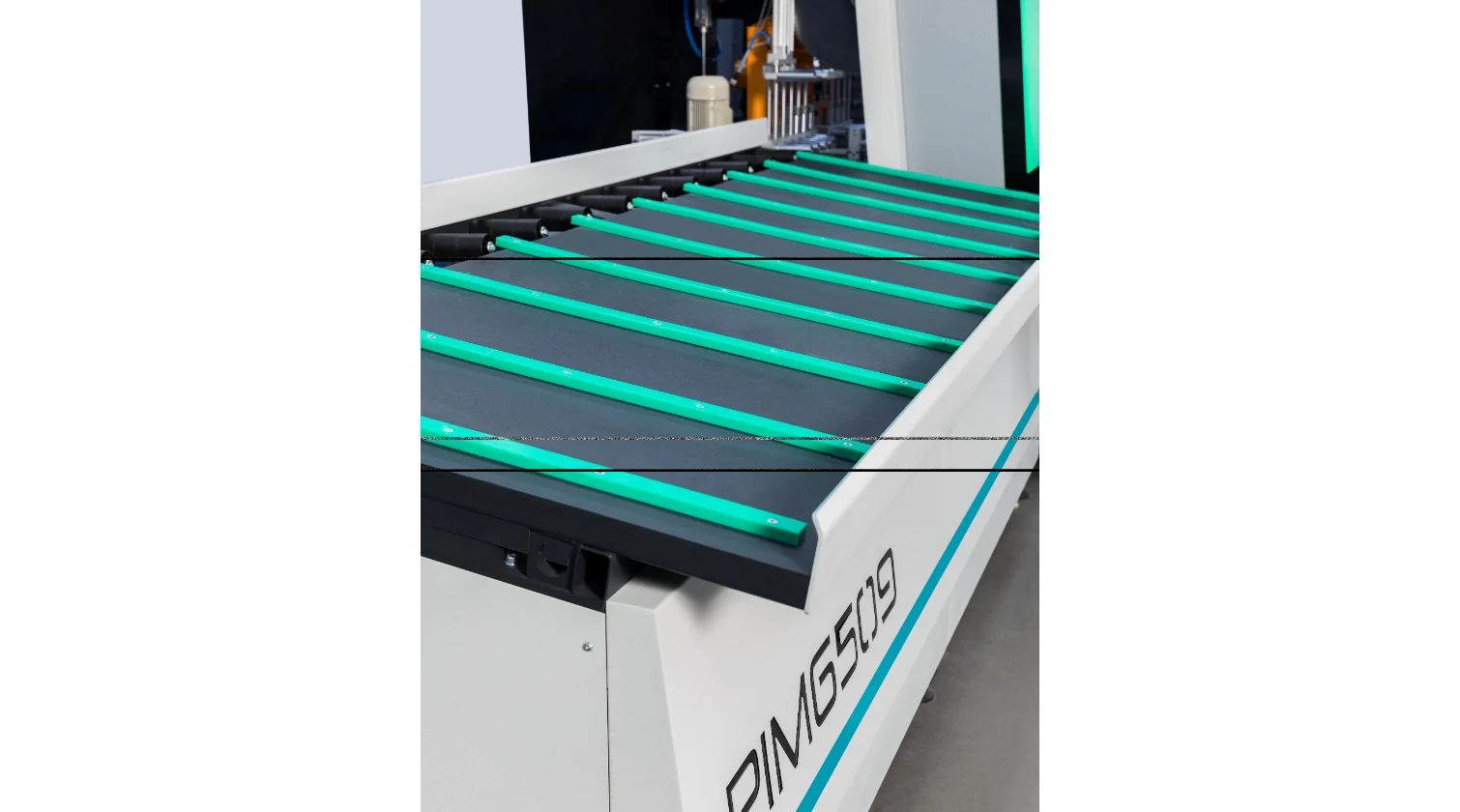

• Fully automated sequence for feeding, carrying, positioning, cutting, and profile transfer.
• Performs simultaneous milling, drilling, and cutting operations for maximum cycle efficiency.

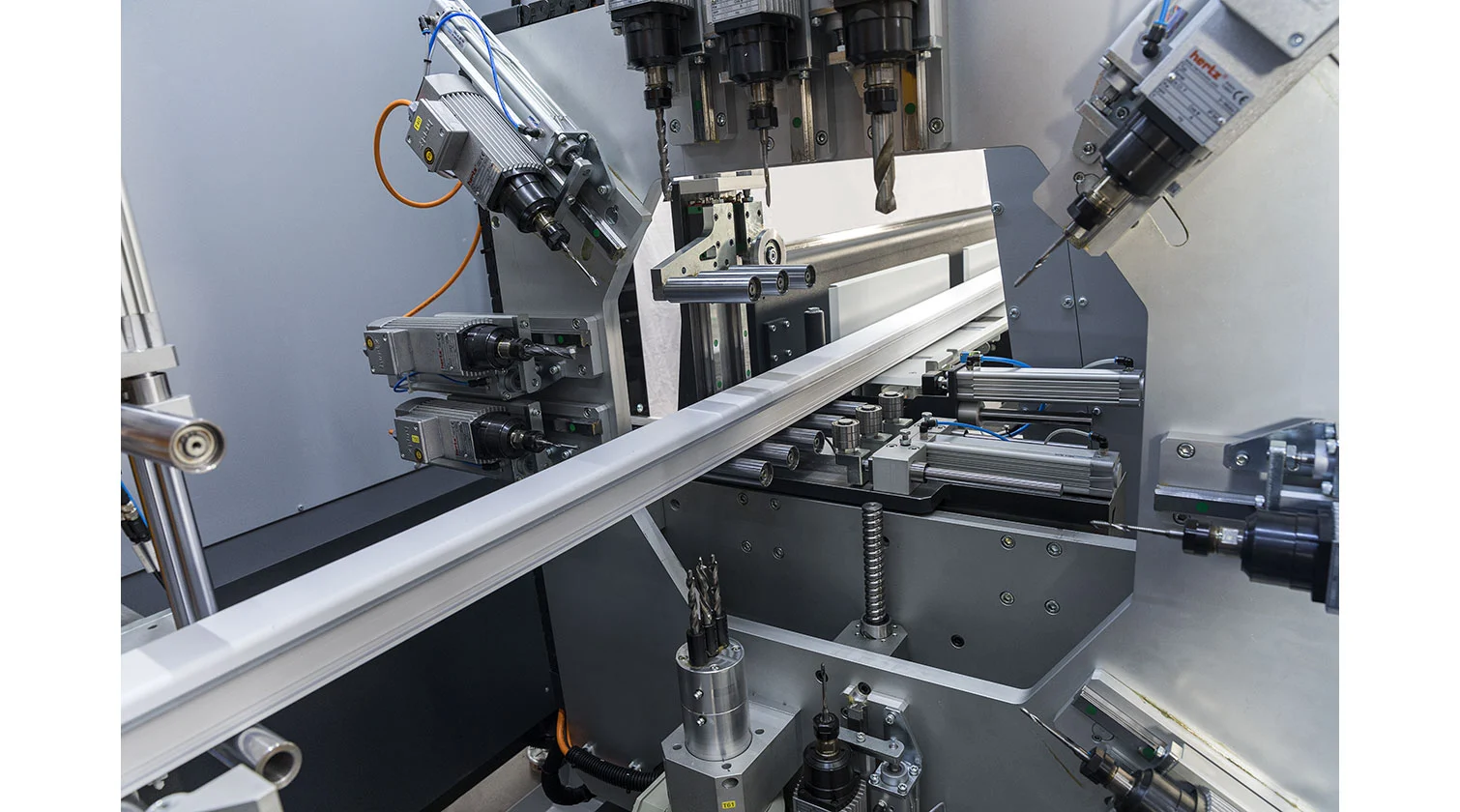

• Automatic processing on four sides of PVC profiles, including key holes, water slots, hinge holes, and handle holes.

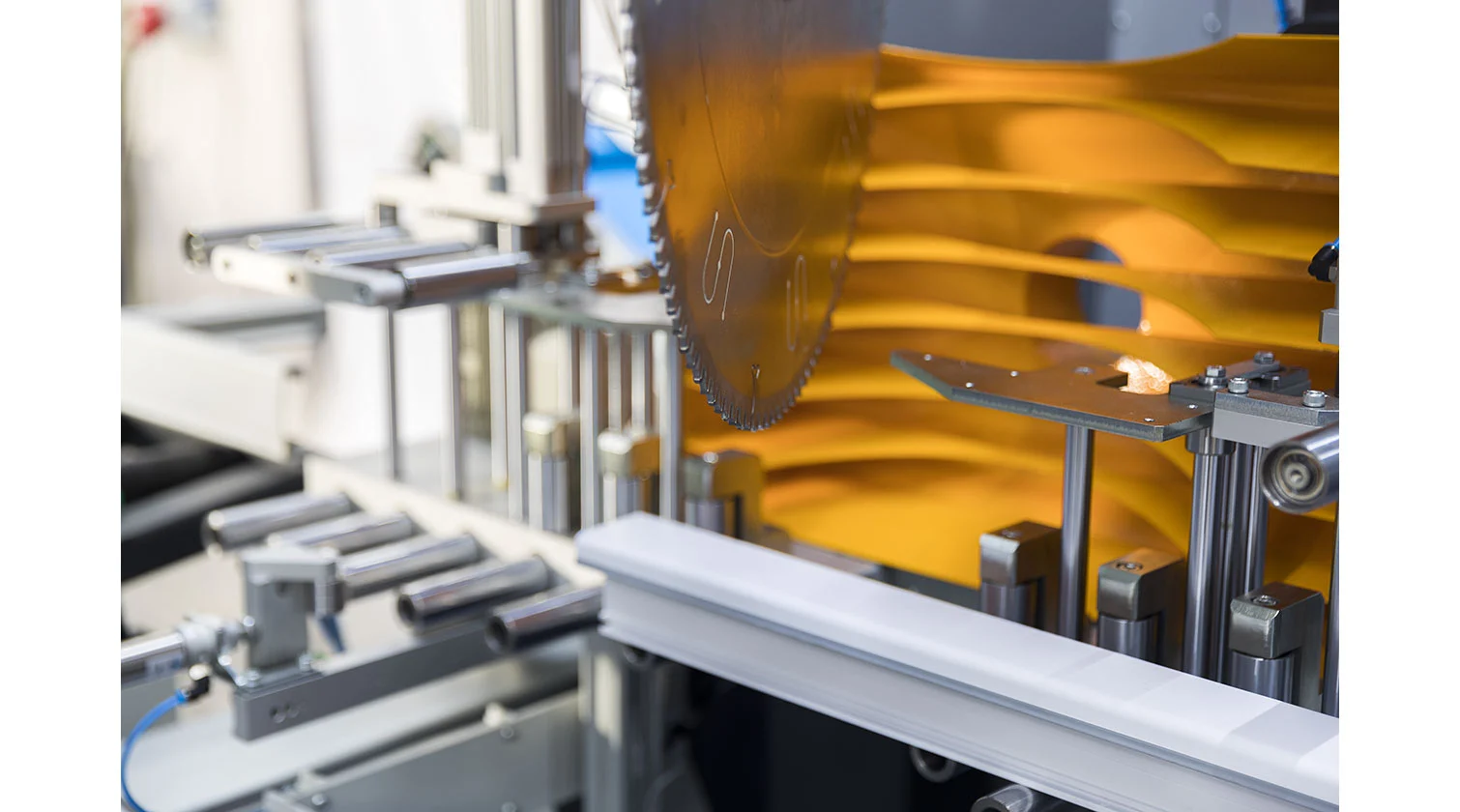

• Equipped with a Ø550 mm servo-controlled down-cutting saw blade with a wide cutting range from 30° to 150°.

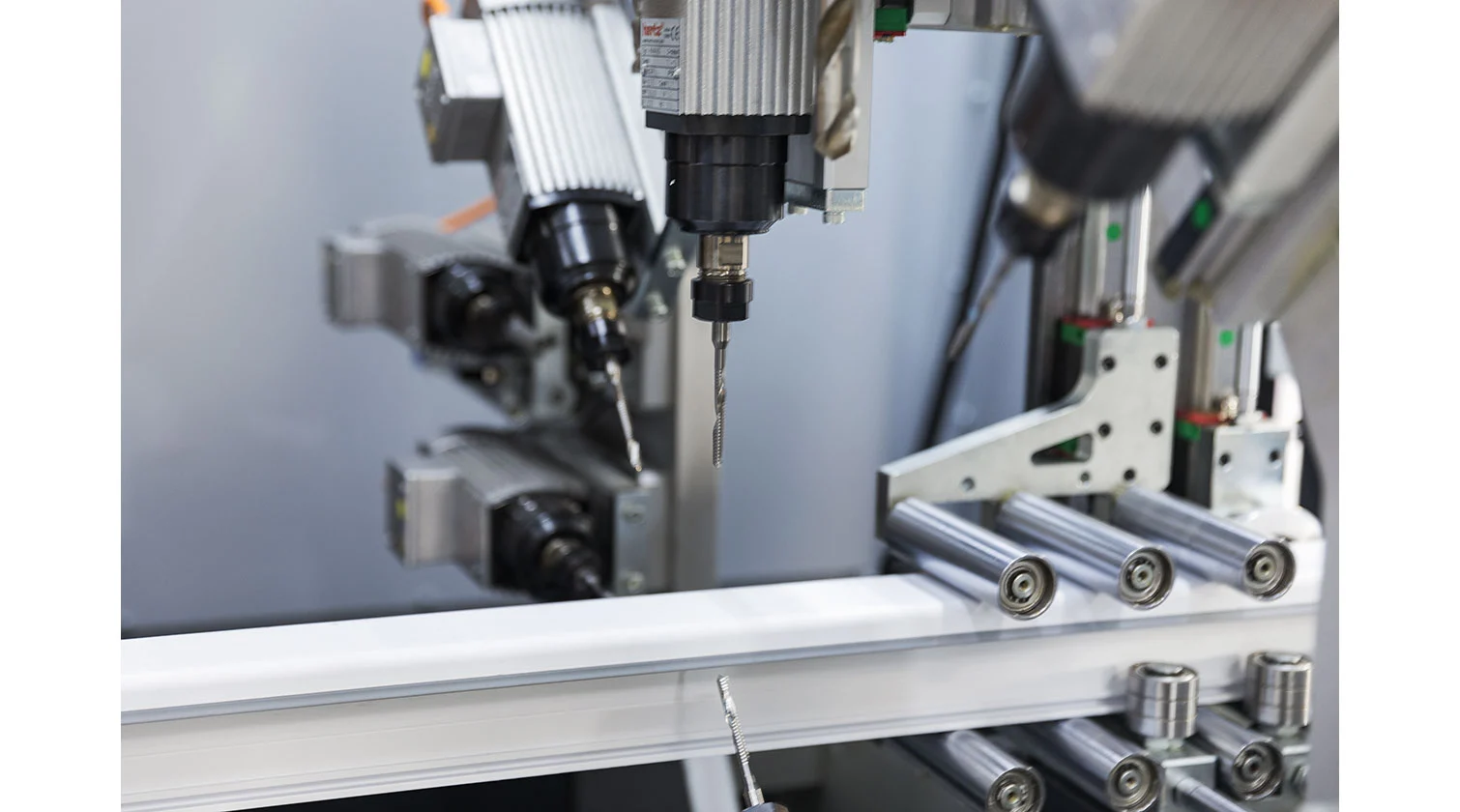

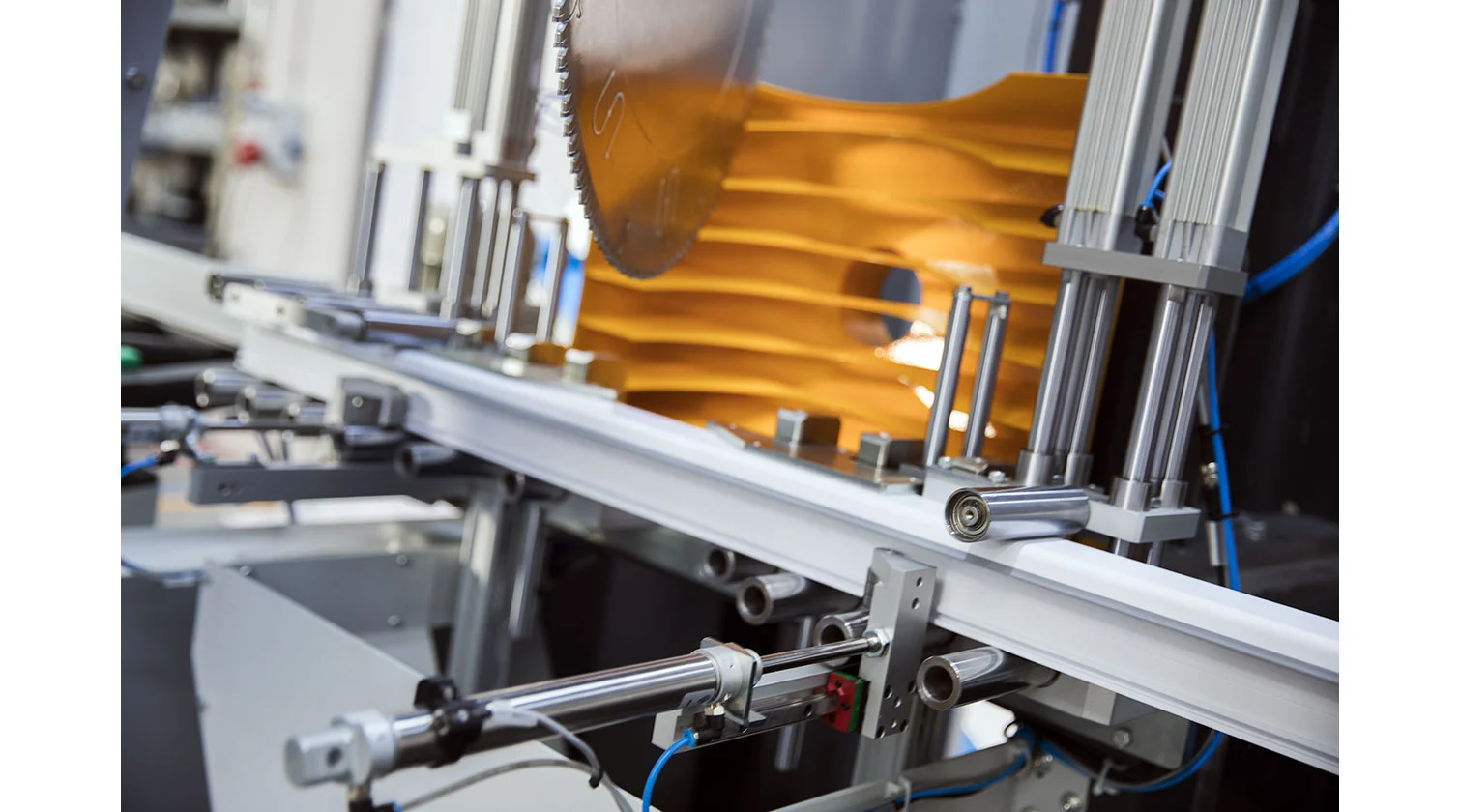

• Pneumatic gripper system ensures accurate positioning of the profile across three axes.
• Windows-based industrial PC with a 15.6 inch LCD touch screen monitor and a user-friendly, CAD-compatible interface.
• Automatic profile recognition and dimension control system for both frame and sash profiles.
• Profile processing capacity of 2,200 to 2,400 running meters per 8 hours.
• Low-pressure control system integrated for saw blade operation safety.

Technical Data

• Total Axis: 8
• Total Power: 17 kW (22.8 HP), 34A
• Electrical Requirements: 400V AC, 3-Phase, 50/60 Hz
• Maximum Profile Length: 6,500 mm (255.9 in)
• Minimum Profile Length: 700 mm (27.6 in)
• Profile Infeed Speed (U-Axis): 100 m/min (328 ft/min)
• Machining Unit Axis Speed (X, Y, Z): 40 m/min (131 ft/min)
• Saw Blade Diameter: 550 mm (21.65 in)
• Saw Blade Bore Diameter: 30 mm (1.18 in)
• Saw Blade Speed: 2,440 RPM
• Cutting Range: 45° to 135°
• Minimum Cutting Length (90° and 45°): 400 mm (15.75 in)
• Max. Machinable Profile Dimensions (W x H): 130×180 mm (5.12×7.09 in)
• Min. Machinable Profile Dimensions (W x H): 40×40 mm (1.57×1.57 in)
• Air Pressure: 6 to 8 bar (87 to 116 psi)
• Air Consumption: 250 L/min (8.83 CFM)
• Net Weight: 3,650 kg (8,046 lbs)
• Machine Dimensions (W x L x H): 2,790×13,440×2,310 mm (109.8×529.1×90.9 in)

Standard Equipment

• Total of 11 tools, consisting of milling and drilling cutters, installed

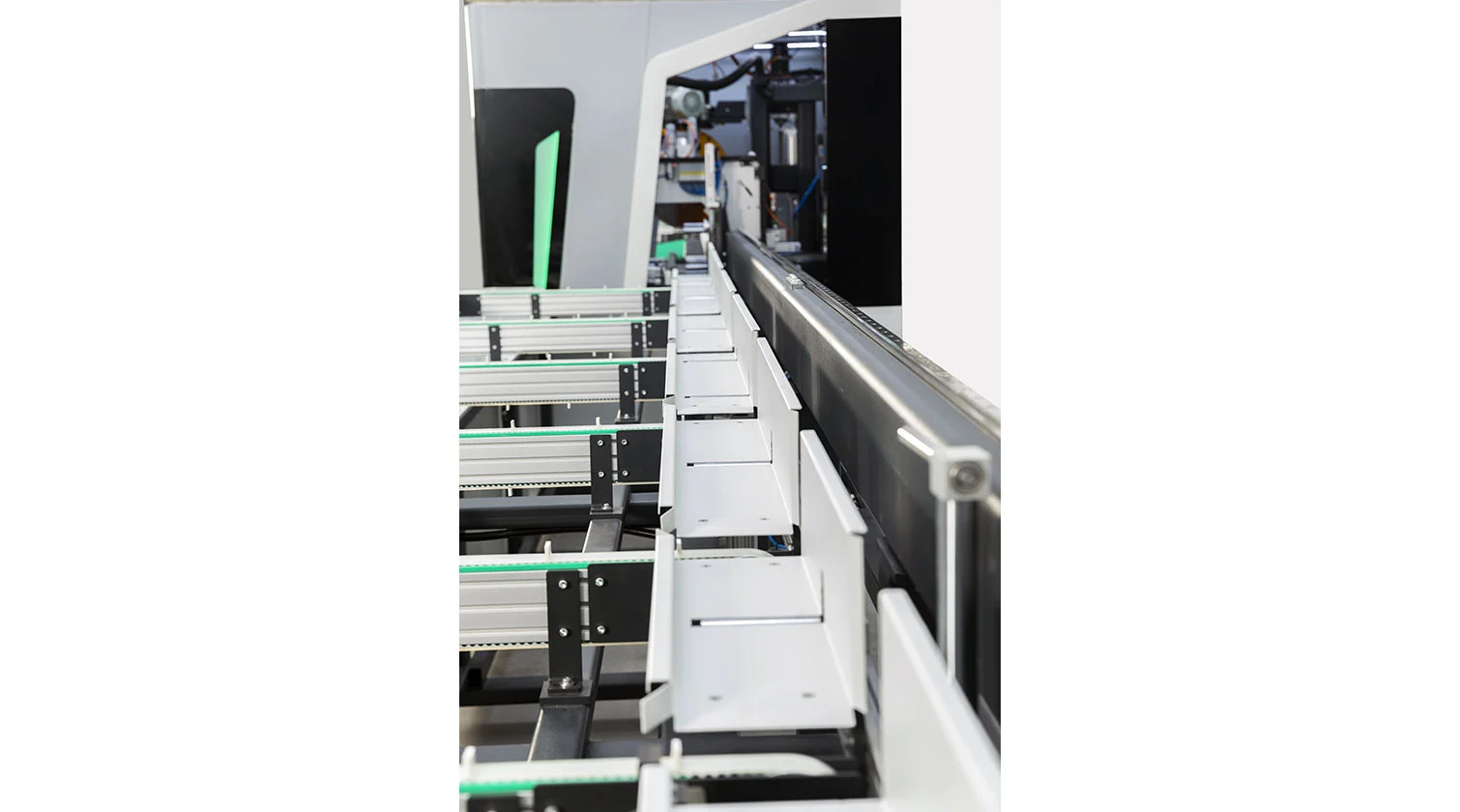

• Automatic loading conveyor unit with capacity for 7 profiles
• Horizontal and vertical pneumatic clamping system for the profile during operation
• Interior LED lighting for the working area
• Keyboard and mouse for PC operation
• Barcode printer
• Automatic lubrication system
• Safety fence enclosure around the entire machine

Optionals

• Spare cutting tools

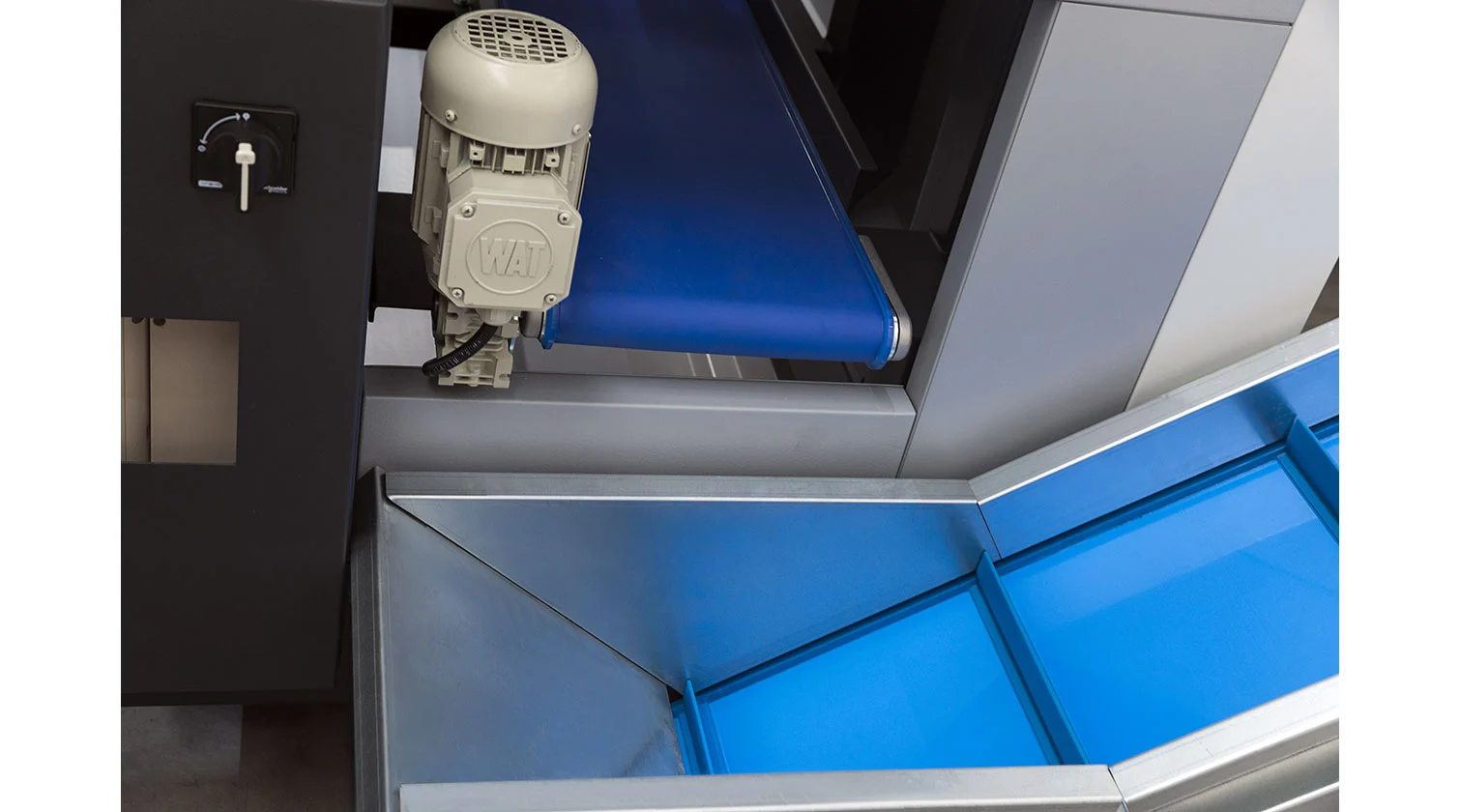

• Chip collector
• Spare Ø550 mm (21.65 in) saw blade
• Inclined chip conveyor
