The Thorwesten MPZ is a compact, high-efficiency PVC Window Fabrication Centre engineered to streamline PVC profile cutting, machining, and reinforcement preparation within one fully automated system. Combining ASZ, PBZ, and a smart transfer table, the MPZ reduces movement, eliminates manual sorting, and dramatically increases throughput—especially in factories where space is limited.
General

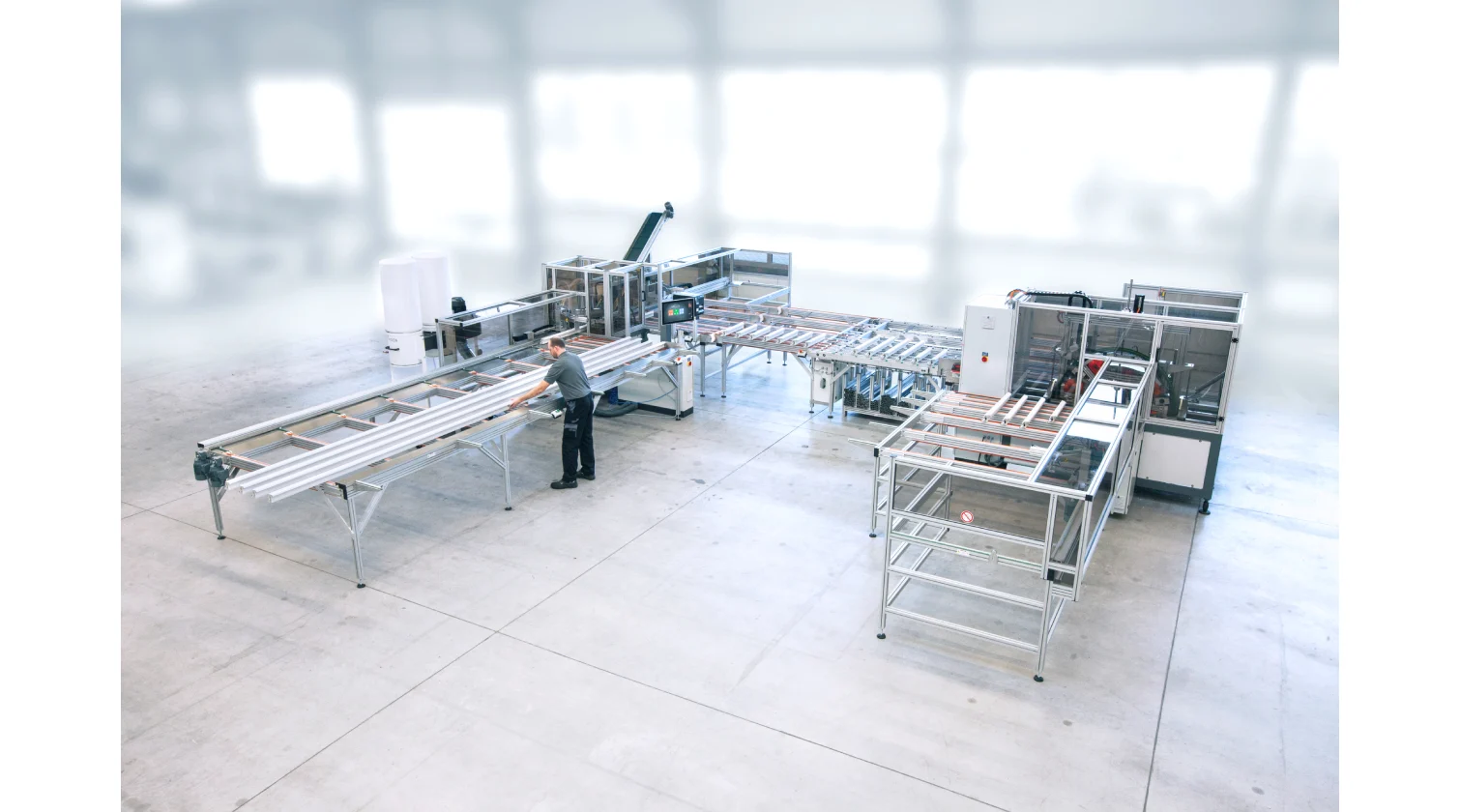

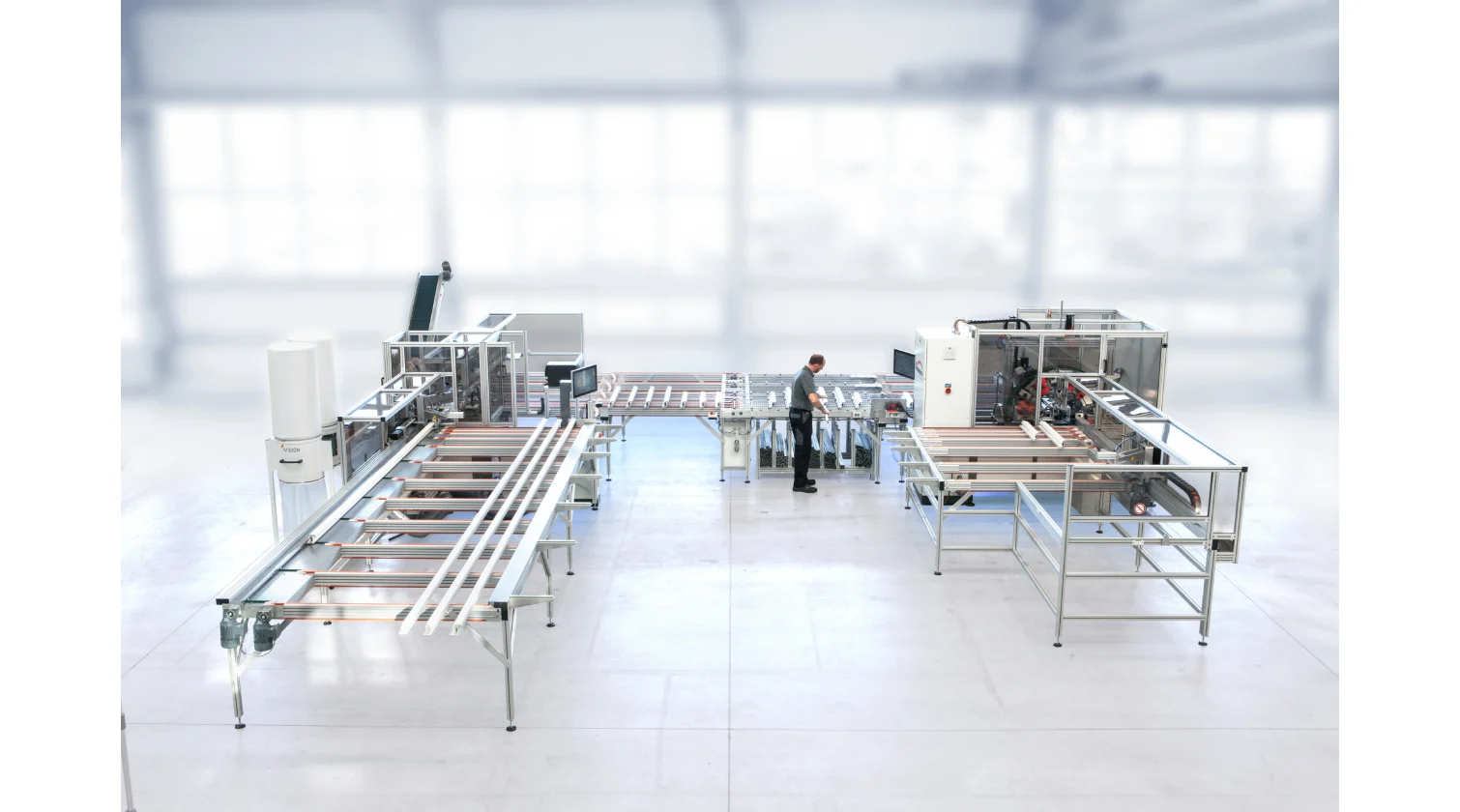

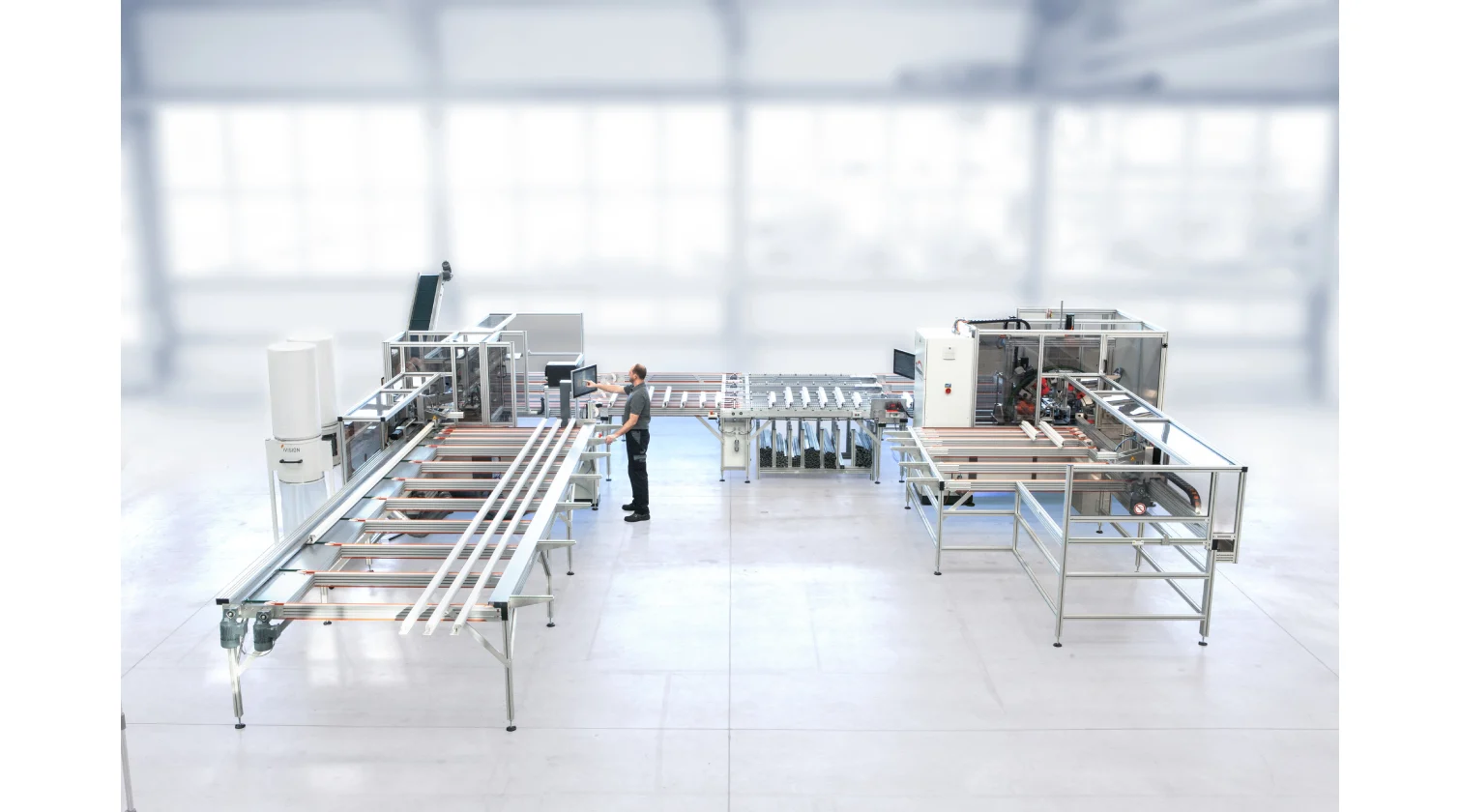

The Thorwesten MPZ is a "U" shaped working cell combined by the PBZ rotary ring type, through feed CNC machining centre and the ASZ cutting centre. The MPZ is designed to be ran by only one operator providing the best cost/efficiency.
The line is composed by an in-feed table where the vinyl lineals are loaded, the ASZ cutting unit, a cross transfer conveyor to apply the bar codes, the PBZ CNC rotary ring turret and an unloading table where the finished parts will be transferred before being moved in a cart or directly in the four point welder.
The PBZ working centre is equipped with 8 milling units mounted on the rotary ring that can turn from 0° to 360° to perform all kinds of machining operations on the PVC profiles including drilling through steel reinforcements.
Features
- Fully modular system combining ASZ + PBZ + VKN
- U-shaped layout with right-hand or left-hand configuration
- Automatic cross-transfer table for profile hand-off

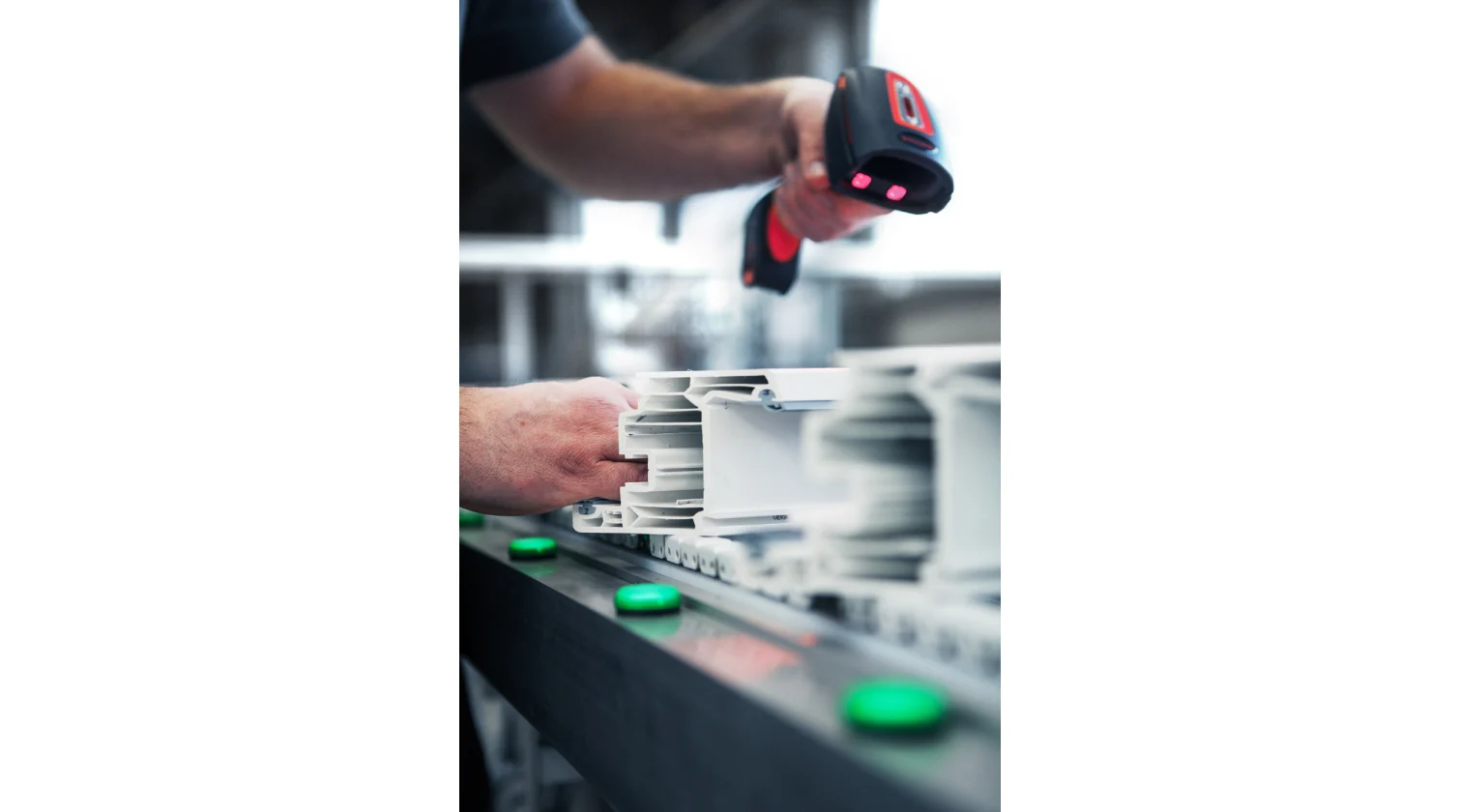

- Integrated barcode scanner for workflow control
- Parallel PVC and steel production with synchronized data exchange
- No manual sorting or predefined sequence required

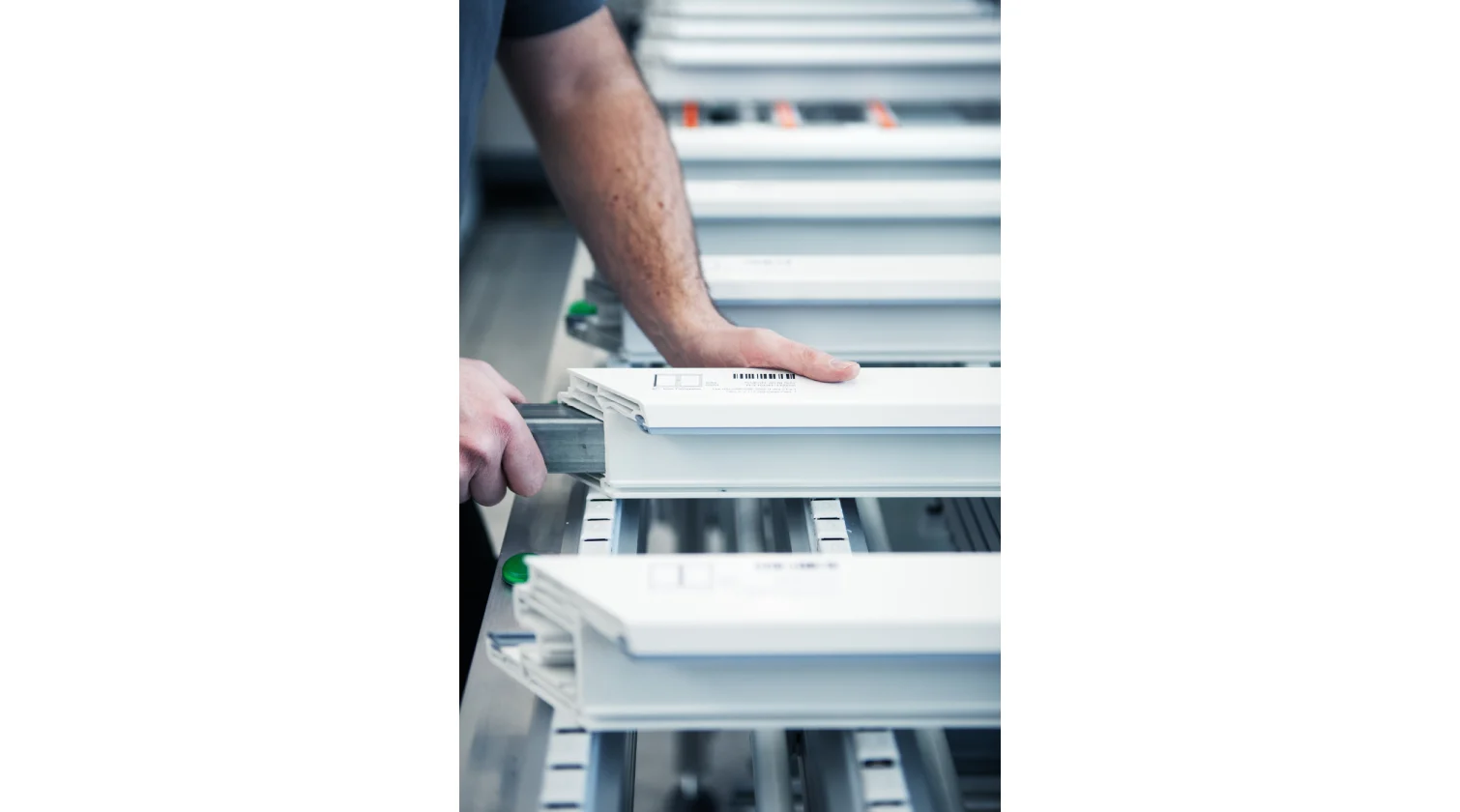

- Operator can insert steel reinforcements directly at the transfer station
- Dynamic clamping system for precise workpiece handling
- Highly compact footprint for maximum output per square meter
- Integrated label printing
- Real-time process monitoring and transparent production data
- Online connectivity + remote service support
- Extended buffer capacity for continuous production
- Reduced machine idle time through intelligent process flow
- Customizable profile-handling solutions
- Designed for single-operator productivity
Technical data
See PBZ and ASZ specs
Standard equipment
See PBZ and ASZ specs
Optionals
- Extended buffering capacity
- Special profile-handling fixtures
- Dynamic clamping upgrade
- Integrated label printer
- Custom VKN lengths or shapes
- Just-in-time steel saw integration kits
- Additional barcode / QR code systems
- Reinforcement automation modules
- Profile-optimization software expansion
- Full digital workflow integration

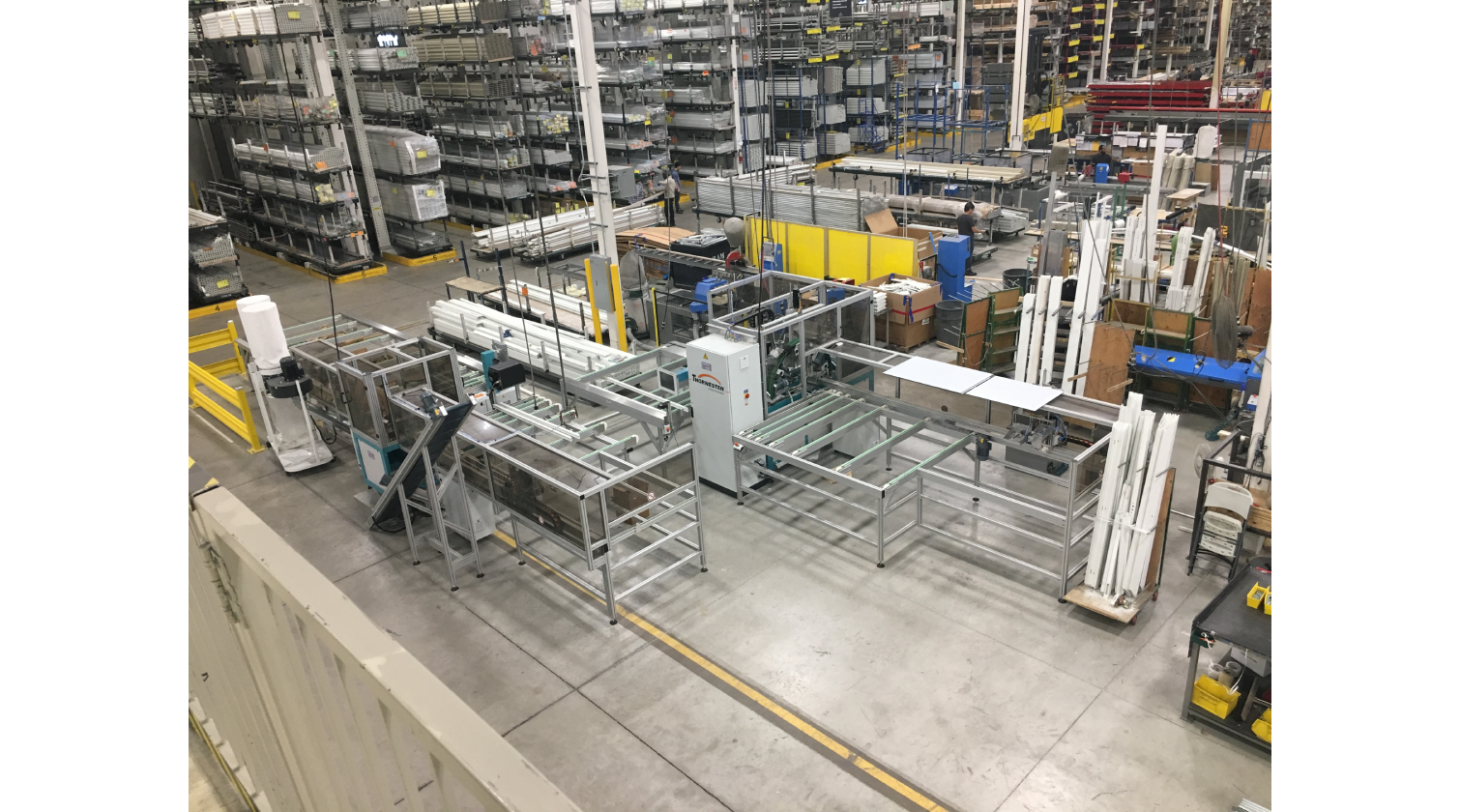

Installations
