The Yilmaz DC 550 is a fully automatic double miter saw designed for the high-precision cutting of aluminum profiles. It features large 550 mm saw blades on servo-controlled cutting heads that tilt both inward to 45° and outward to 22.5°. Controlled by a Windows-based industrial PC with a 15″ touch screen, the DC 550 offers a high degree of automation and network capability, making it a powerful solution for industrial and architectural applications.
General
The Yilmaz DC 550 is a fully automatic double miter saw engineered for precision and productivity. The machine is built on a solid steel base and features a stationary left cutting unit, while the mobile right head is positioned by a servo control system for fast and accurate length setting. The saw is available in 4, 5, and 6-meter versions to accommodate a wide range of profile lengths.
The machine's capabilities stem from its servo-controlled cutting heads, which are equipped with 550 mm saw blades. The heads can automatically and precisely tilt to any angle inward to 45° and outward to 22.5°. A hydro-pneumatic blade feed ensures a smooth, controlled cutting stroke for an excellent finish quality. The entire system is managed by a Windows-based industrial PC with a 15" touch screen, which allows for cut list transfer via USB or network and provides the capability for remote technical support. The DC 550 SKH model further enhances automation with a standard profile height measurement system.
Features
- Servo-controlled tilting of cutting heads both inward to 45° and outward to 22.5°.
- Servo-driven positioning of the mobile cutting head.
- Windows-based industrial PC with 15" touch screen.
- Cutting list transfer via USB and network.
- Remote connection capability for technical support.
- Automatic bar-feeding feature at 90° and 45°.
- Cutting accuracy of +/- 0.2 mm.
- Two-hand safety operation.
Technical Data
- Tilting Range: Inward to 135°, outward to 22.5°
- Saw Blade Diameter: 2 x 550 mm (21.7")
- Motor Power: 3.0 kW (4.0 HP)
- Blade Speed: 2400 RPM
- Max Cutting Length: 4m (13.1’), 5 m (16.4') and 6 m (19.7') Min. Cut at 90°: 400 mm (15.7”)
- Min. Cut at 45°: 580 mm (22.8”)
- Air Pressure: 6-8 Bar (87-116 psi)
Standard Equipment
- 2 x TCT Saw blades Ø 550 mm.
- 4 x horizontal pneumatic clamps.
- 2 x vertical pneumatic clamps.
- Roller conveyor
- 2x pneumatic profile supports.
- Spray saw blade lubrication system.
- Barcode printer.
- Air gun.
Optionals
- Spare Ø 550 mm saw blade.
- Automatic profile height measurement system
- 5 m (16.4'), 6 m (19.7'), and 7 m (23') cutting capacity.
- Short cut system (DKN 60).
- Arrow cut system for mullion profiles (DKN 80).
- Industrial chip collector.
- Chip and off-cut conveyor.

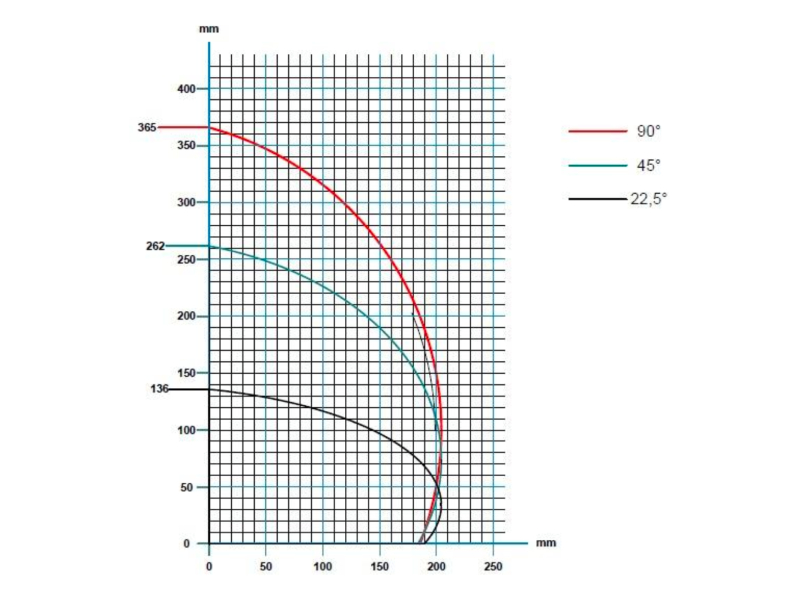

Cutting diagram

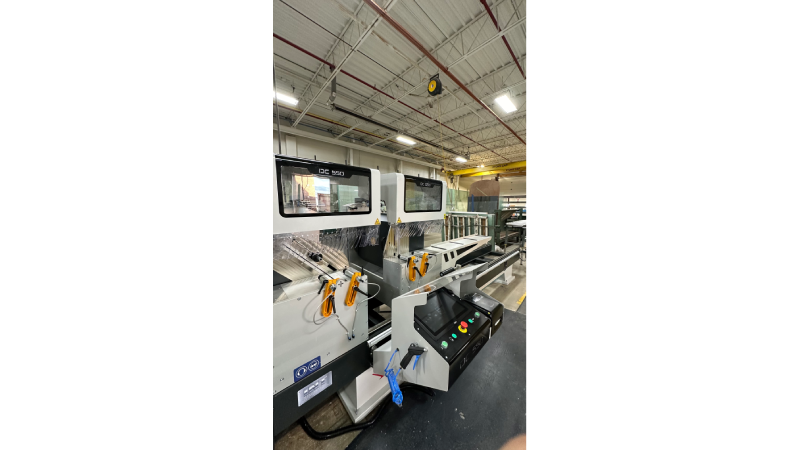

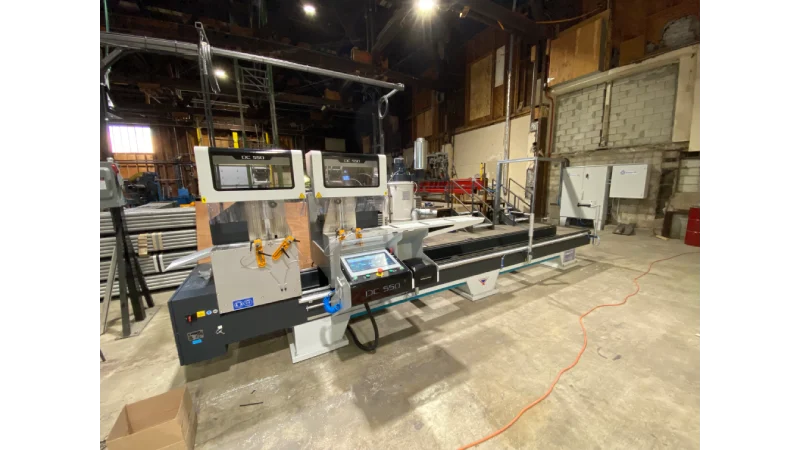

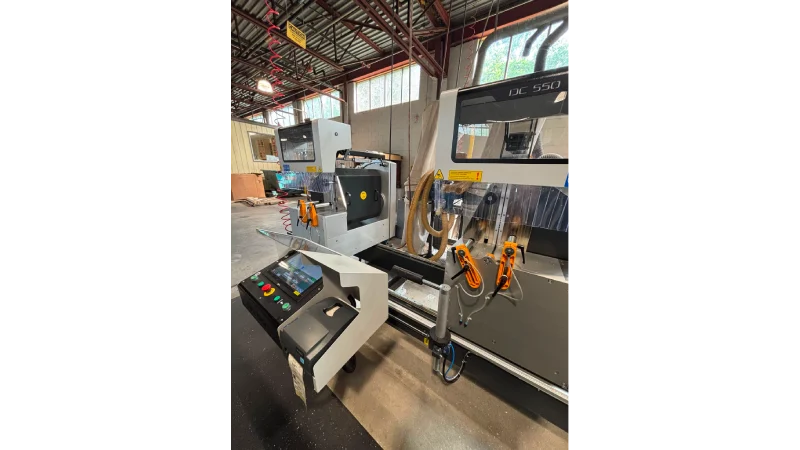

Installations
