MECAL ATLAS

General

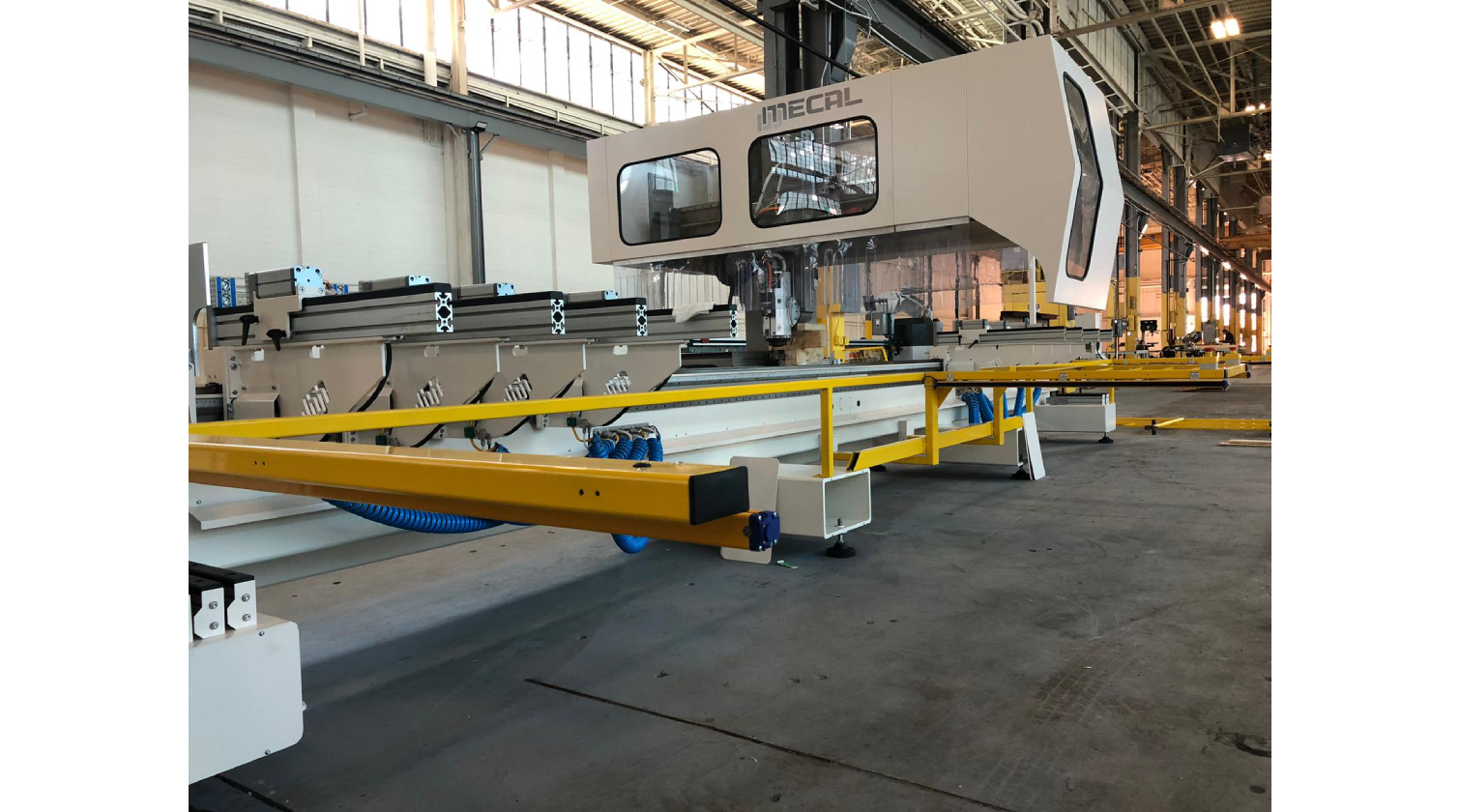

The Mecal Atlas is the definitive 4-Axis Profile Machining Centre for projects that exceed the capacity of standard machines. Purpose-built with an extended working area and wider clamping capabilities, the Atlas is specifically designed to handle the larger extrusions used in curtain wall systems, aluminum doors, and other architectural or industrial components.

Unmatched Configurability: The true strength of the Atlas lies in its exceptional versatility and the ability to tailor it to highly specific production needs. It can be configured in several ways to solve unique challenges:

Panel & Assembled Door Processing: The Atlas can be equipped with an extremely wide clamping capacity and specialized vertical hold-downs, allowing it to securely process flat garage door panels or even fully assembled aluminum doors.

6-Sided Machining: An optional configuration with innovative rotating clamps enables the workpiece to be turned, giving the spindle access to the bottom face of the profile. This allows for true 6-sided machining, completing complex parts in a single cycle.

Custom-Tailored Performance: The Atlas is available with two different automatic clamp positioning systems and numerous options for the spindle, tool magazine capacity, and specialized clamp accessories, ensuring the machine is perfectly matched to your production requirements.

Clamping

To manage its wide range of applications, the Mecal Atlas offers a choice between two advanced automatic clamp positioning systems. The clamps are designed to provide robust and secure holding for everything from standard profiles to oversized curtain wall extrusions and assembled door panels, ensuring precision and stability during complex machining operations.

Programming

Programming the Atlas is handled through the intuitive “Mecal CAD/CAM3D” interface, which simplifies the setup of complex jobs on large or unconventionally shaped parts. An optional STEP/IGES driver "CADLink" is available for seamless integration with third-party 3D design files, streamlining the engineering workflow for any configuration.

Features

• 4-axis servo control with absolute encoders – No axis referencing required.
• Pendulum working capability for single or two pieces per zone, enabled by optional intermediate reference stops
• Choice of automatic clamp positioning systems DPM head-driven or MMI self-motorized
• Supports end-notching operations on either end of the profile with a dedicated disc cutter.

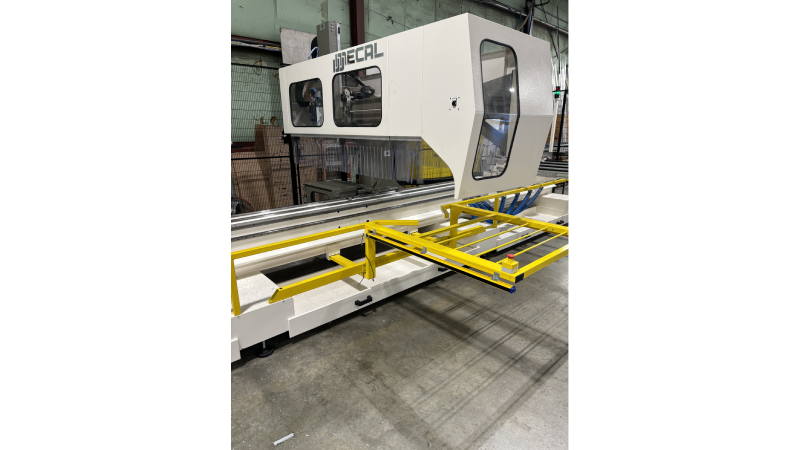

• The machine can be equipped with a specialized large-clamping system, transforming its capabilities to easily process panels, garage doors, and even fully assembled aluminum doors.
• An optional configuration with rotating RVM clamps enables full 6-sided machining, including the bottom face of the profile.
• Pneumatic reference stops ensure consistent positioning and reduce setup time.
• Cantilever mounted tool changer
• Minimum Quantity Lubrication (MQL) provides clean, efficient tool cooling.
• Automatic central lubrication for all guideways and ball screws reduces maintenance.
• Pre-configured for chip trays
• An optional spindle suction hood provides efficient chip and dust extraction, ideal for panel processing.

Technical Data

• Standard Working Length Options:
  • 7,200 mm (23.62 ft)
  • 9,200 mm (30.18 ft)
  • 11,200 mm (36.75 ft)
• Spindle Power: 6 kW / 8.5kW
• Spindle Speed: 18,000 rpm / 24000 rpm
• Tool Holding System: ISO 30 / HSK 63F
• Tool Magazine Capacity: 8 /12 tools, depending on the version
• Clamp Width: 650 mm (25.6”) / 690 mm (27")
• Standard Number of Clamps: 8
• Control Interface: Windows 10 based PC with 18.5” touch screen

Standard Equipment

• Electrospindle: air cooled, ISO30, 18000 rpm, 6 kW
• Magazine with 8 or 12 tools capacity
• 8 x Pneumatic clamps
• 2 x Reference stops

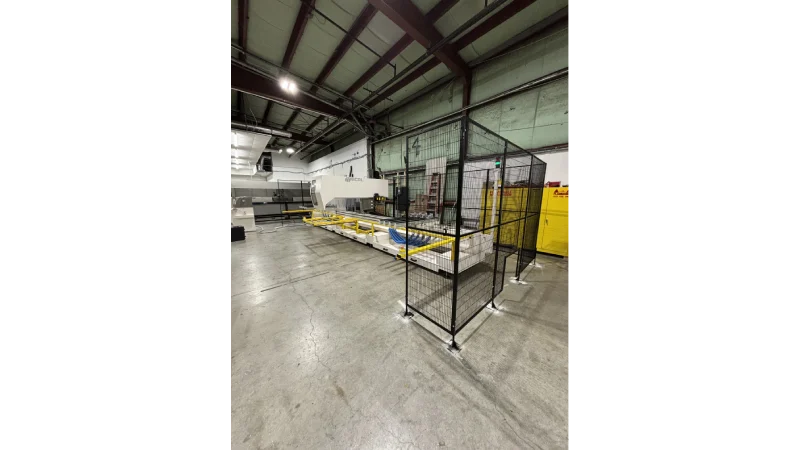

• Safety fence kit and light barrier
• Windows 10 based PC
• CAD/CAM 3D Graphic software with office licence

Optionals

• Upgrade to 8.5kW spindle
• Additional MMI clamp (self-motorized)
• Additional DPM clamps (head-driven)
• Additional RVM clamps (rotating self-motorized)
• Additional tool magazine, 3 seats on cantilever
• Intermediate reference stops
• Tool length measuring probe
• Clamp capacity expansion kit
• Chip bins
• Bar code reader
• Integration with third party software
• CADLink 3D file convertor
• Various aggregates for milling, cutting or tapping
• Tailor-made tool kit
