ILERI TEKNIK V 315X

General

MODEL VARIATIONS

• V 315 HX: Heavy-duty version featuring a more robust gearbox and enhanced structurer for demanding production environments.

Features

• Semiautomatic cycle initiated via a pneumatic foot switch.

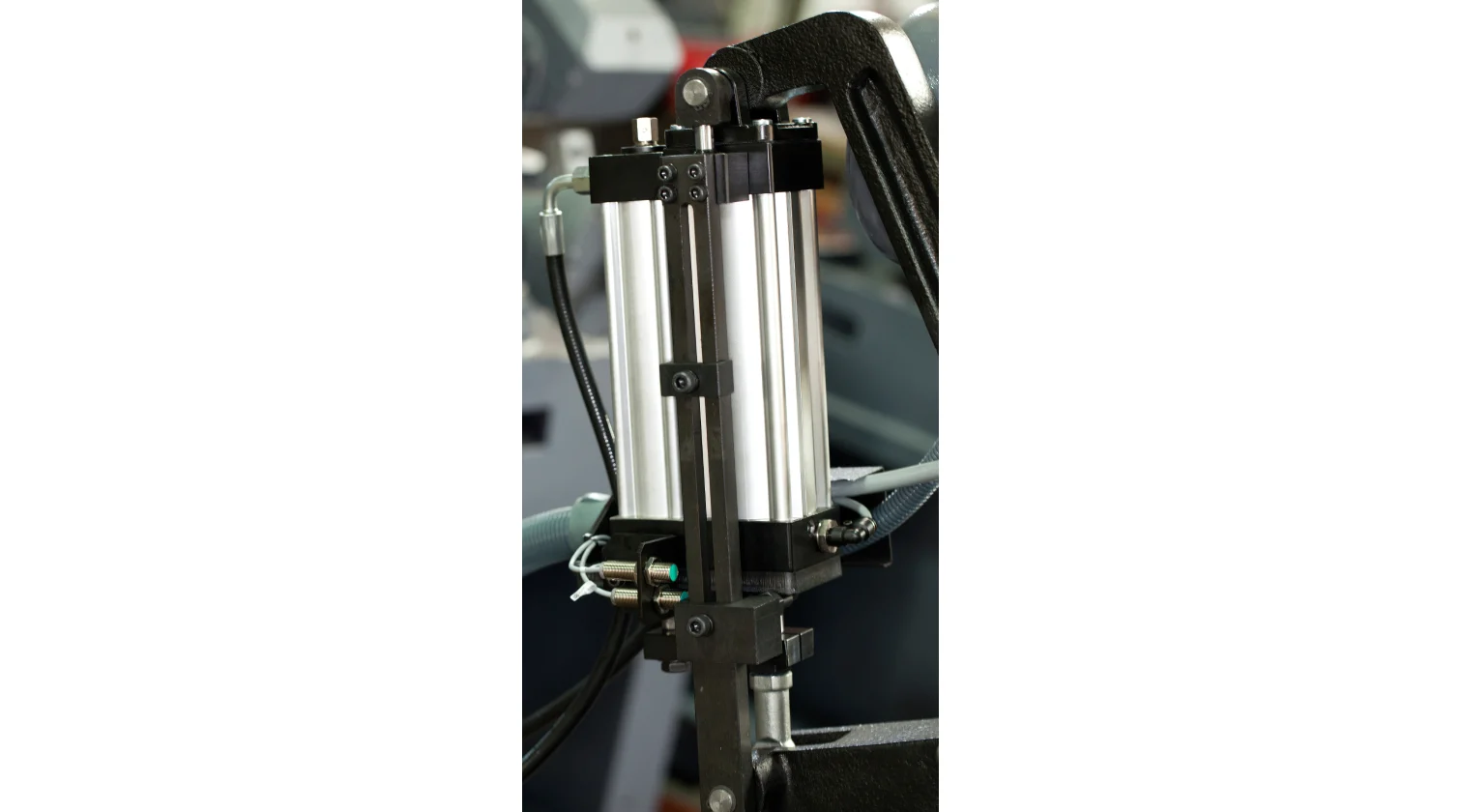

• Hydro-pneumatic saw head feed ensures a smooth and vibration-free descent.
• Adjustable head stroke allows for optimization of the cycle time based on material size.
• Double split vice grips the material on both sides of the blade for clean, burr-free cuts.
• Self-centering vice mechanism automatically aligns the material for the best cutting position.
• Miter capabilities: 45° left to 45° right.
• High-performance gearbox with helical gears for quiet and durable operation.
• Integrated electric coolant pump and large tank for continuous blade cooling.
• Large pedestal base provides maximum stability during heavy-duty operation.

Technical Data

• Blade Diameter: 12.5" (315 mm)
• Motor Power: 1.7 / 2.4 hp (1.3 / 1.8 kW)
• Blade Speed: 45 / 90 rpm
• Max. Vice Opening: 4.7" (120 mm)
• Air Pressure Required: 90 psi (6 bar)
• Adjustable Bar Stop: 20" (500 mm)
• Weight: 550 lbs (250 kg)


  Shape	90°	45°
  Round (Tube)	4" (105 mm)	3.5" (90 mm)
  Square (Tube)	3.35" x 3.35" (85 x 85 mm)	3" x 3" (80 x 80 mm)
  Rectangular (Tube)	4.7" x 2.35" (120 x 60 mm)	3.5" x 2.35" (90 x 60 mm)

Optionals

• Low-speed motor for stainless steel cutting (22/44 rpm).
• Variable blade speed with inverter control.
• Micro-spray (oil mist) lubrication system.
• V-type vice jaws for bundle or profile cutting.
• Laser cutting line indicator.
