The LCS 400 DX is a high-performance double head mitre cut-off saw for steel profiles utilizing a semi-automatic vertical linear action. The system features a fixed right head and a servo-positioned left head, enabling simultaneous miter cuts on both ends of ferrous materials for precision mitre cuts and maximum industrial throughput.
Features
- Semi-automatic vertical action twin-headed configuration.

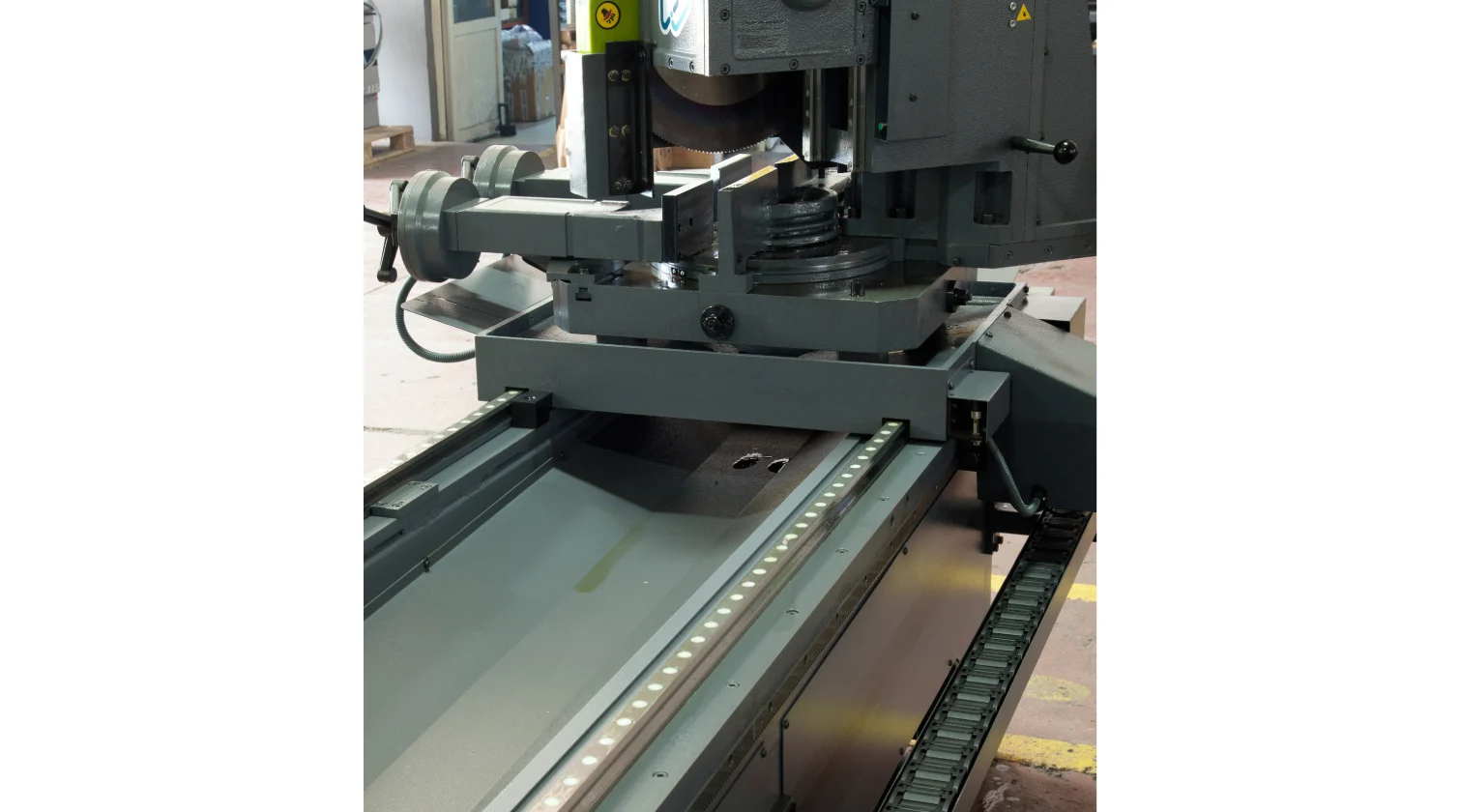

- Right-hand head fixed; left-hand head positioned automatically by servo motor on roller-type linear guideways.
- High-performance heavy-duty gearbox with fully hardened and ground helical gears.

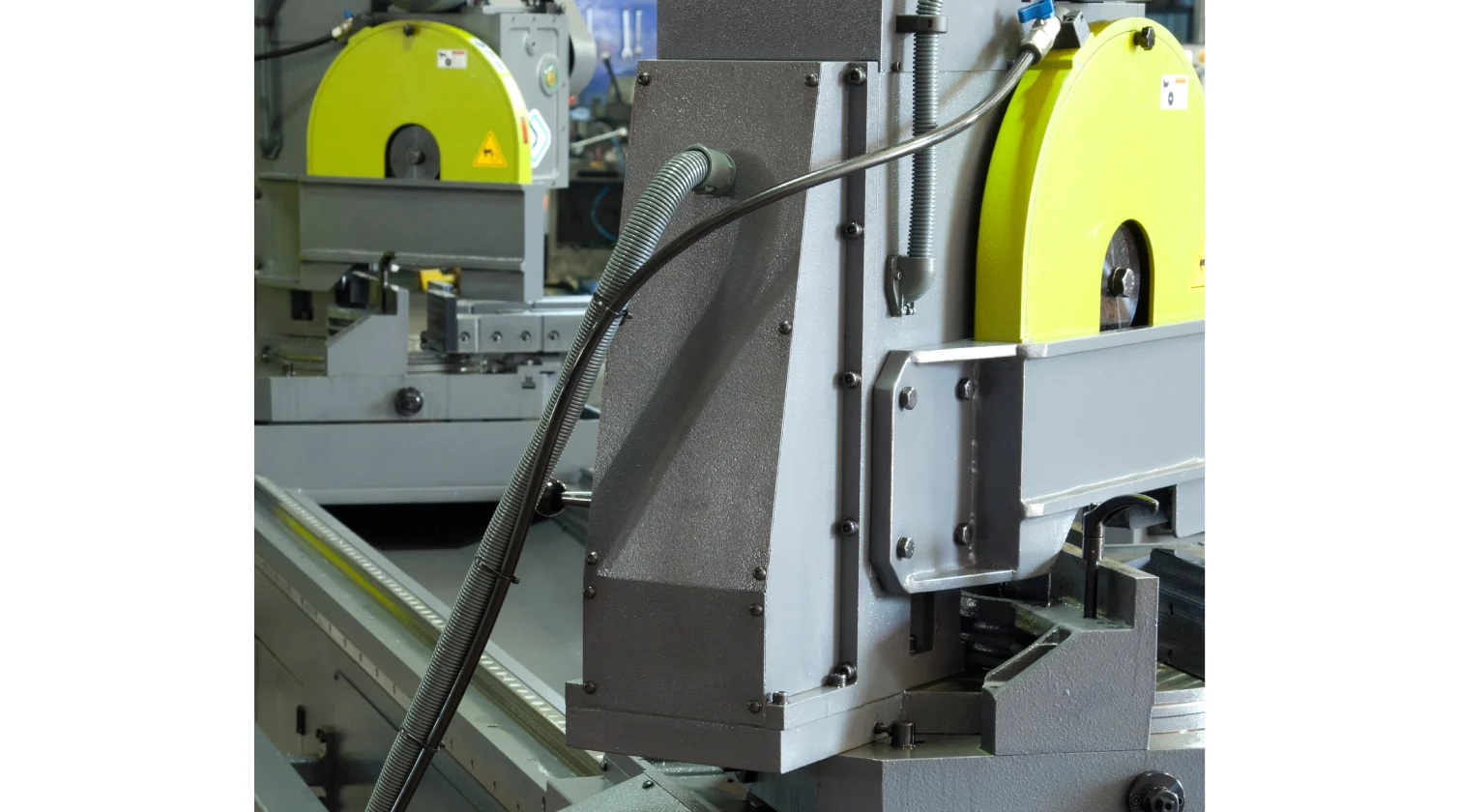

- Saw heads descend on hardened roller-type linear guides.
- Inverter-controlled motors with blade speeds adjustable from 20–60 rpm via control panel.
- PLC-controlled with a color touch screen panel.
- Servo motor and ball screw operation of saw heads for a smooth, optimized descent.
- Positive 0–45° miter for the right head and negative 0–45° miter for the left head.
- Coolant tank with chip collection box and electric pump for lubrication and cooling.
Technical Data
- Blade Diameter: 16" (400 mm)
- Motor Power: 4 hp (3 kW) x 2 heads
- Blade Speed: 20 – 60 rpm (Inverter controlled)
- Cutting Length Range: 27.5" – 118" (700 – 3,000 mm)
- Max. Vice Opening: 7.5" (190 mm)
- Air Pressure Required: 90 psi (6 bar)
- Net Weight: 5,556 lbs (2,520 kg)
- Machine Dimensions: 165" x 47" x 71" (420 x 120 x 180 cm)
| Shape | 90° | ±45° | +60° |
| Round (Tube) | 4.7" (120 mm) | 4.7" (120 mm) | 4.35" (110 mm) |
| Square (Tube) | 4.7" x 4.7" (120 x 120 mm) | 4.35" x 4.35" (110 x 110 mm) | 3.5" x 3.5" (90 x 90 mm) |
| Rectangular (Tube) | 6.3" x 3.5" (160 x 90 mm) | 5.5" x 3.5" (140 x 90 mm) | 3.5" x 3.5" (90 x 90 mm) |
