ILERI TEKNIK DT 315DXS

General

MODEL VARIATIONS

• DT 315DXS: Standard heavy-duty model with automatic horizontal miter rotation.
• DT 315DX: Advanced model featuring ±45° automatic head rotation and ±15° automatic blade tilt controlled by servo motors.

Features

• Semi-automatic miter cutting circular saw designed for fast cutting.

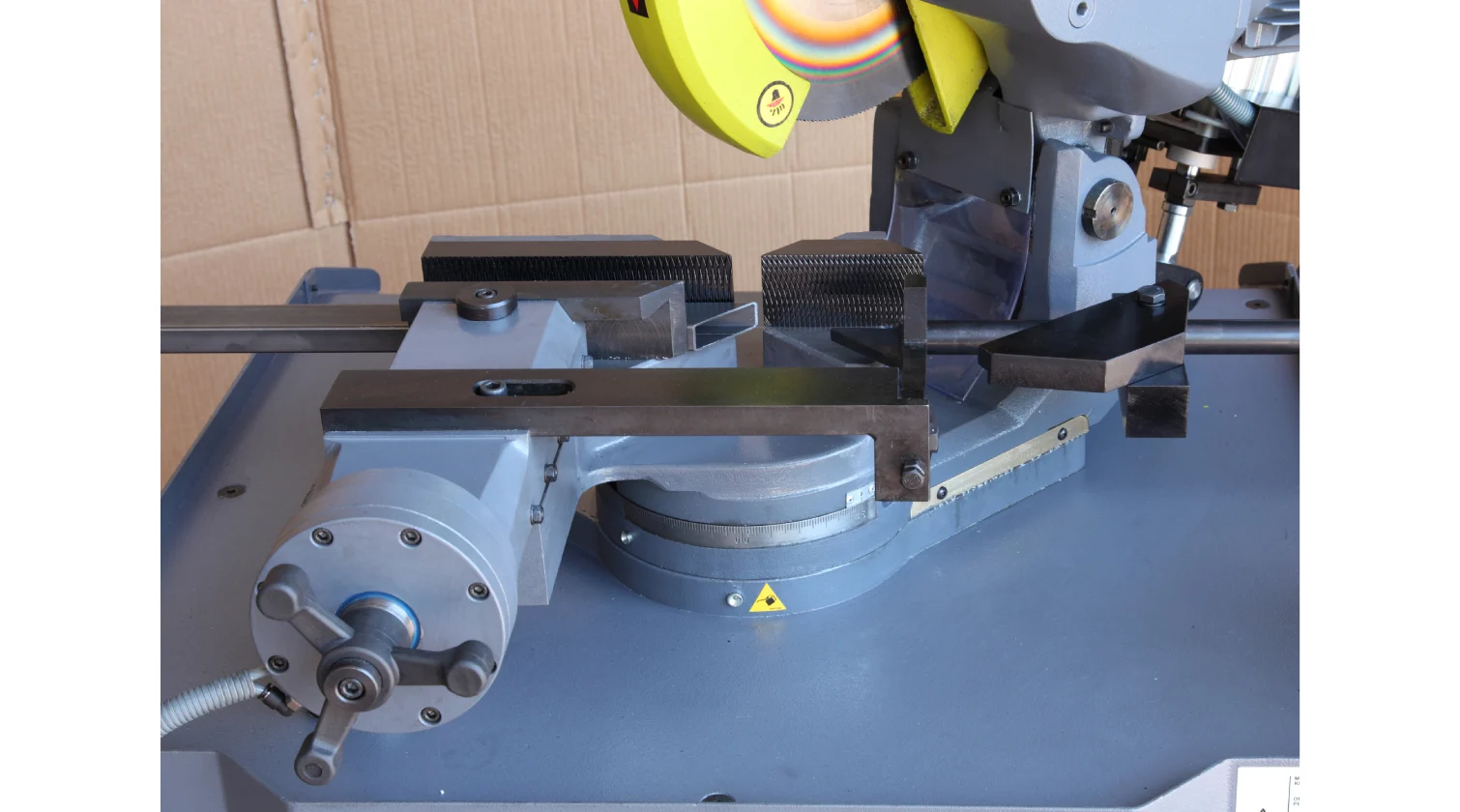

• ±45° Horizontal automatic miter positioning.
• High production rates, ideal for short batch runs.

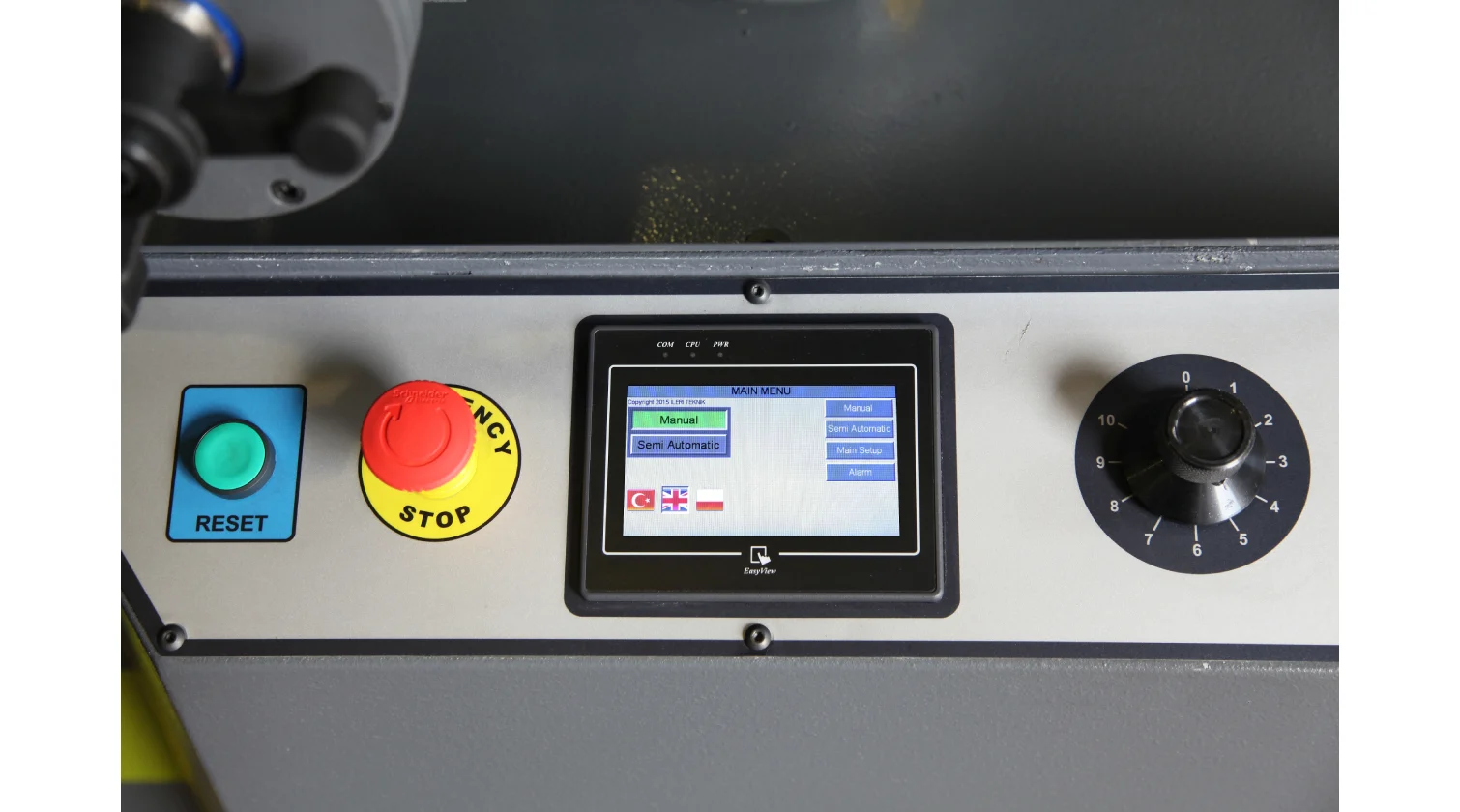

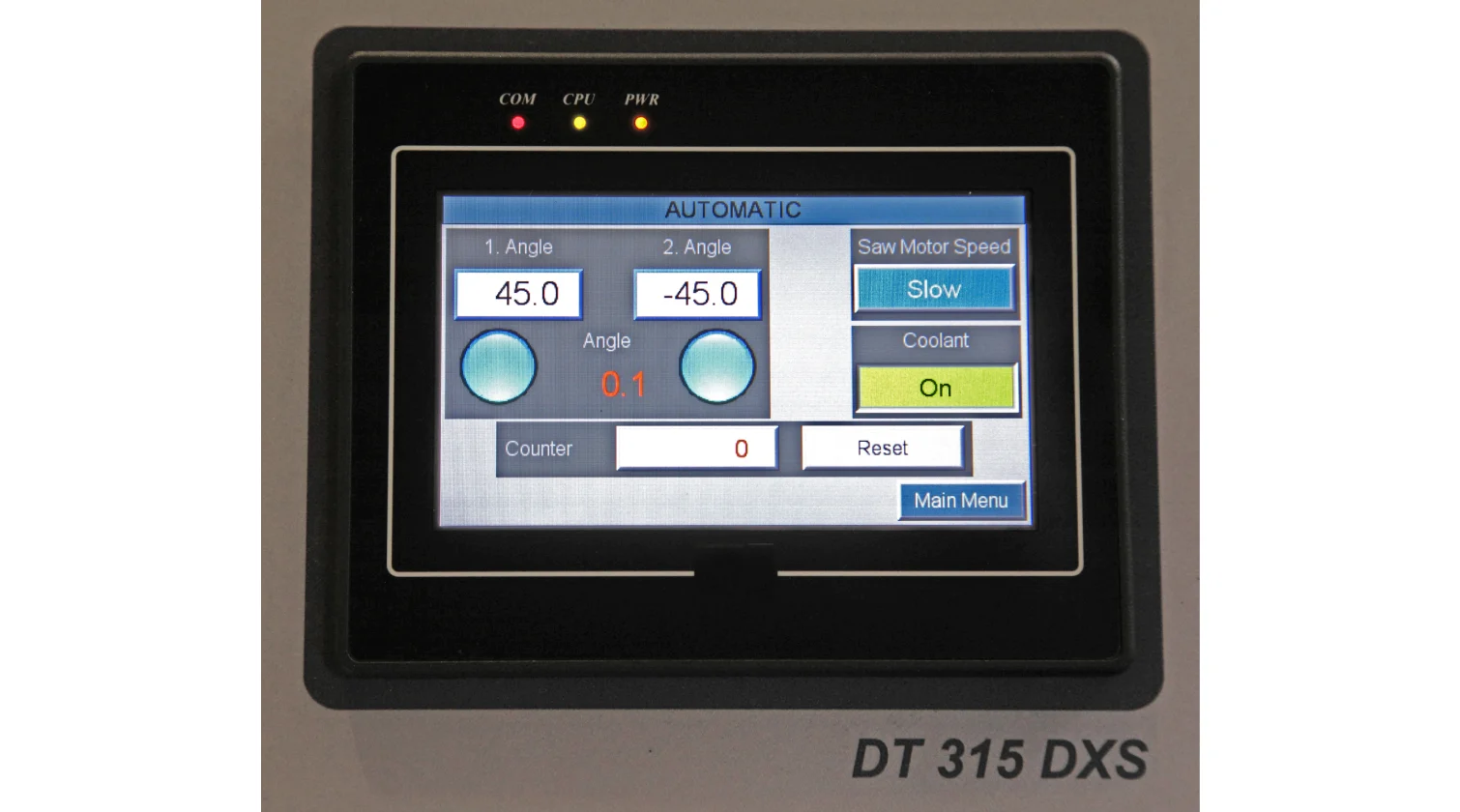

• PLC controlled color type touch screen display with program save and load ability.
• 200 different program capacity.
• Standard micro-spray coolant system.
• Hydro-pneumatic operation of saw head smoothes descent for optimum cut.
• High performance, heavy-duty gearbox design.
• Adjustable head stroke according to the dimensions of the material which has to be cut.
• Foot and button switch actuation with cutting speed regulator.
• 2 speed main motor providing 45° right to 45° left cutting.

Technical Data

• Saw Blade Diameter: 315 mm (12.4"), can accommodate up to 350 mm (13.8").
• Saw Blade Bore: 32 mm (1.26").
• Main Saw Motor: 1.8 – 2.2 kW (2.4 – 3 hp).
• Installed Power: 3 kW (4 hp).
• Blade Speed: 40 / 80 RPM.
• Nominal Current: 9.9 A.
• Air Pressure Required: 6 bars.
• Head Swivel (Horizontal): 90°/±45°.
• Head Swivel (Vertical - DX only): ±15°.
• Machine Dimensions (LxWxH): 121 x 122 x 140 cm (47.6" x 48" x 55.1").
• Net Weight: 480 kg (1,058 lbs).


  Shape	90°	±45°
  Round (Tube)	3.75" (95 mm)	3.35" (85 mm)
  Square (Tube)	3" x 3" (80 x 80 mm)	2.75" x 2.75" (70 x 70 mm)
  Rectangular (Tube)	4.35" x 2.35" (110 x 60 mm)	3" x 2" (80 x 50 mm)
