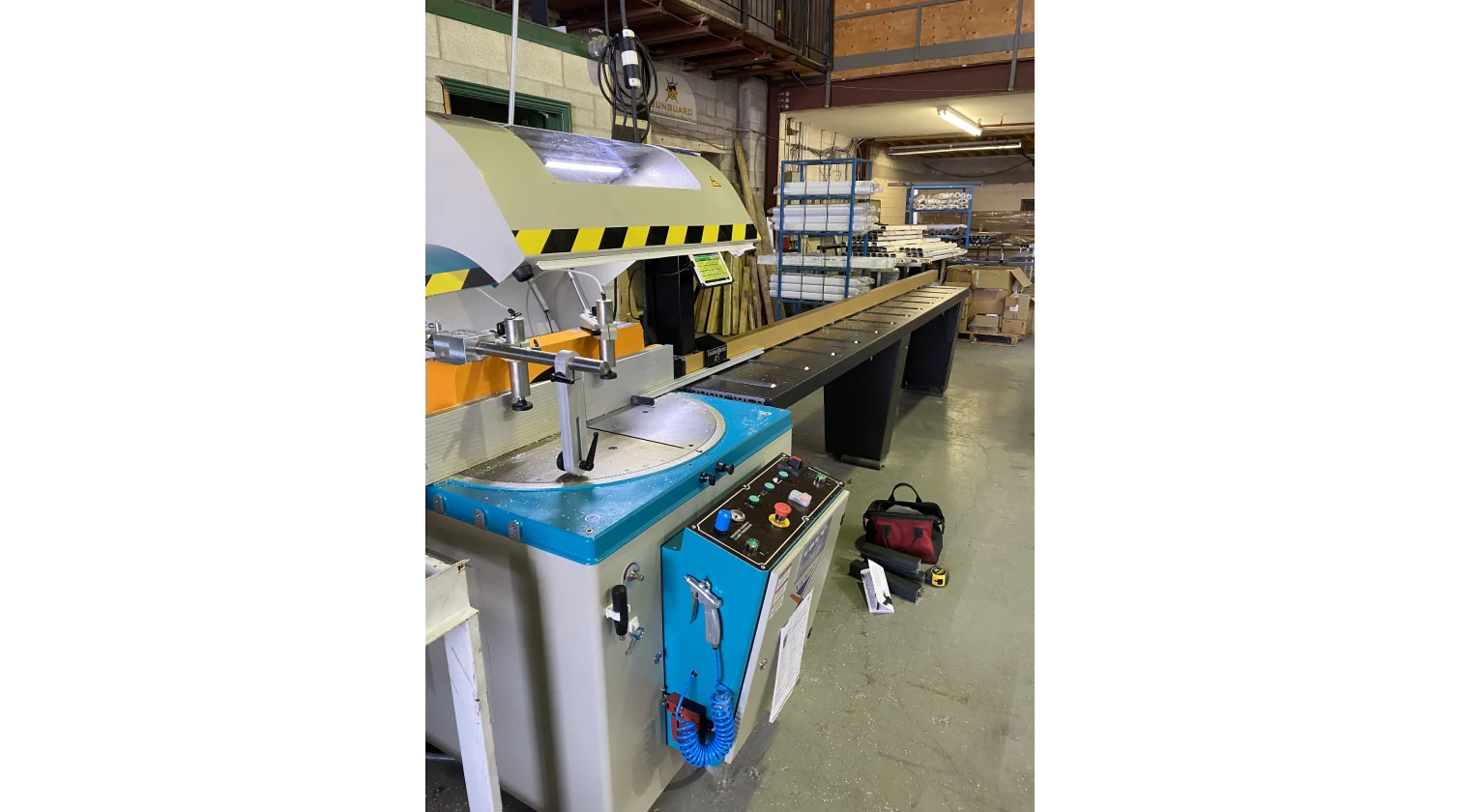

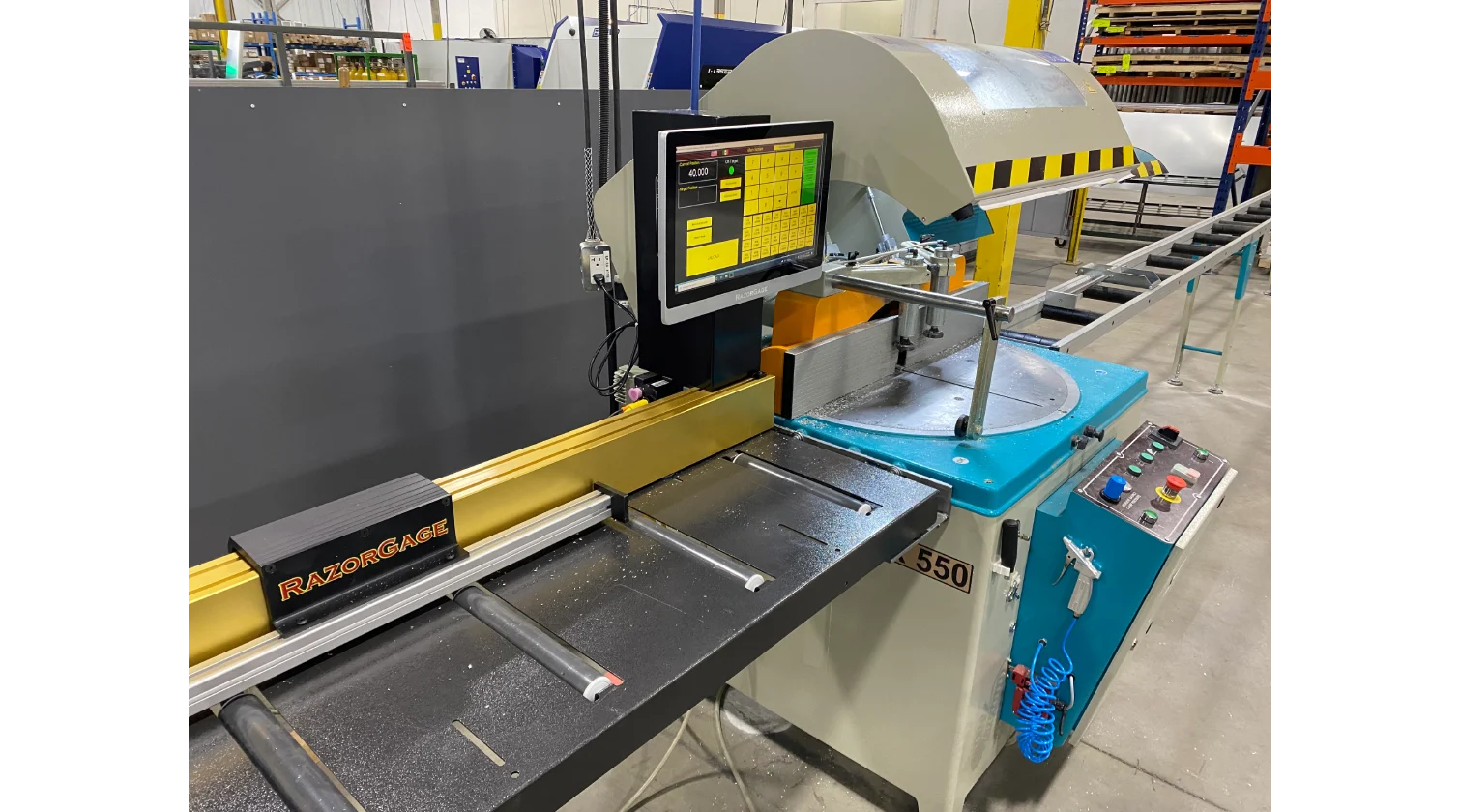

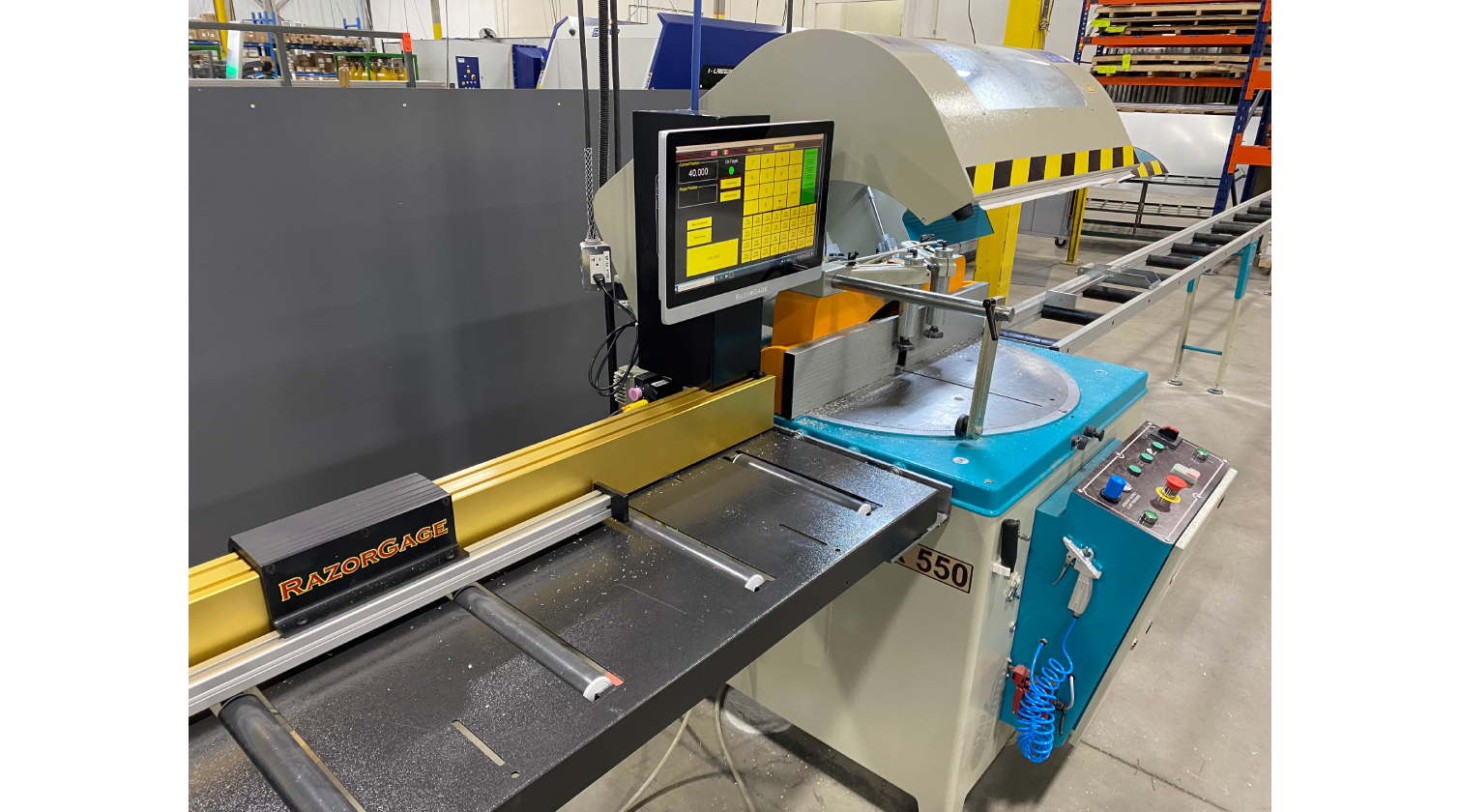

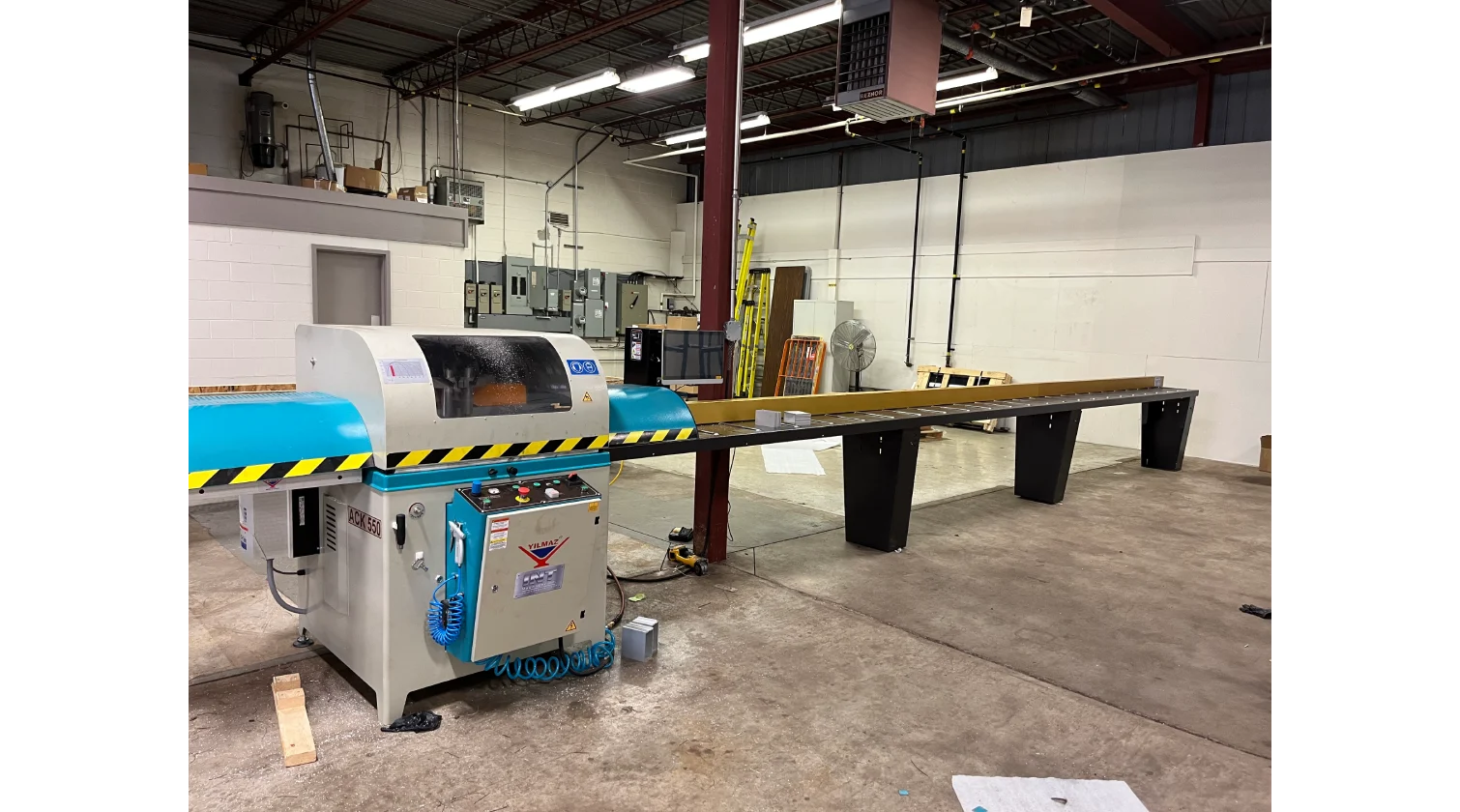

YILMAZ ACK 550

General

The ACK 550 features a hydro-pneumatic up-cut system that raises the blade smoothly through the profile once the operator engages the two safety push buttons. The moment one or both buttons are released, the blade retracts automatically, eliminating uncontrolled movement and ensuring a safe cutting sequence. Profiles are clamped securely, and the safety hood closes before the cutting cycle begins, providing a fully contained working area.

The rotating table allows miter adjustments to both the left and right, supporting a full pivoting range from −75° to +75°. Frequently used miter angles can be selected instantly via mechanical detents, while intermediate angles are precisely positioned using the friction-stop system. Interior LED lighting, dual chip-extraction ports, and convenient front-and-rear service access further enhance usability and operator comfort.

With its large blade capacity, rigid frame, advanced safety features, and CSA approval, the Yilmaz ACK 550 is built for continuous, high-accuracy cutting operations with aluminum and PVC extrusions. Its large blade size makes the ACK 550 the ideal solutions for aluminum window fabricators, commercial aluminum doors, façades and store fronts.

Features

• Ø550 mm (22”) saw blade
• Two-hand control for safe and controlled up-cut operation
• Hydro-pneumatic blade feed with adjustable feed speed
• Pivoting range: −75° left to +75° right
• Quick-set angle detents at 75°, 60°, 45°, 30°, 22.5°, 15°, 0° on both sides
• Pneumatically operated safety hood
• Safety interlock switch on front access door
• Interior LED illumination for improved visibility
• Adjustable infeed and outfeed hood extensions to prevent access during the cut
• Easy blade-change access from both front and rear
• Dual chip-extraction ports (top and bottom)

Technical Data

• Blade diameter: Ø550 mm (21.7")
• Motor power: 4 kW (5.4 HP)
• Voltage: 230 V, 3-phase, 50/60 Hz
• Blade speed: 2400 RPM
• Electrical requirement: 15 A load (30 A fuse recommended)
• Pivoting range: −75° to +75°
• Angle detents: 75°, 60°, 45°, 30°, 22.5°, 15°, 0° (left/right)
• Air consumption: 50 L/min (13.2 gal/min)
• Air pressure: 6–8 bar (87–116 psi)
• Machine weight: 360 kg (794 lbs)

Standard Equipment

• 1 × Ø550 mm (21.7") saw blade
• Spray-type blade lubrication system
• 2 × pneumatic vertical clamps
• 1 × pneumatic horizontal clamp
• Air blower gun

Optionals

• Spare Ø550 mm saw blade
• Extra horizontal clamp
• 20-litre (5.3 gal) pail of cutting fluid
• Roller conveyor with mechanical stop
• Roller conveyor with hand-winding digital stop
• Roller conveyor with motorized stop
• Chip collector (model sized to machine capacity)

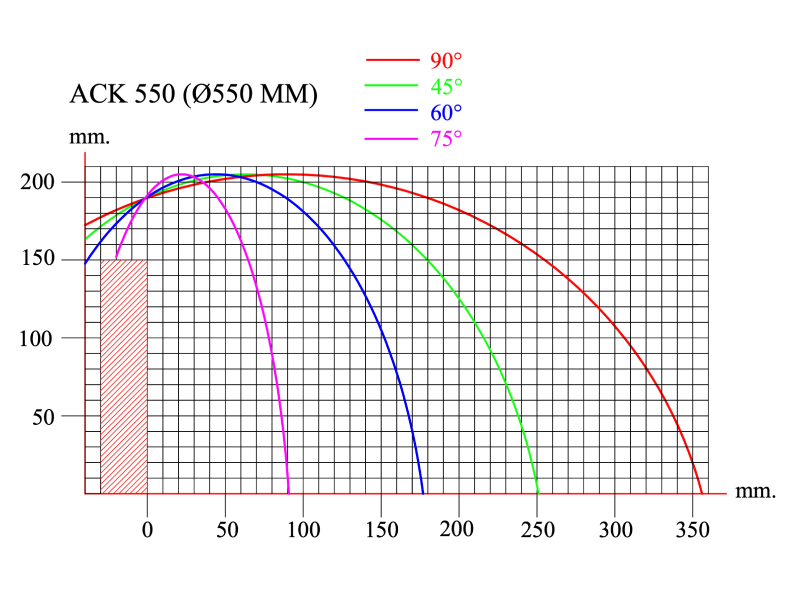

Cutting diagram
