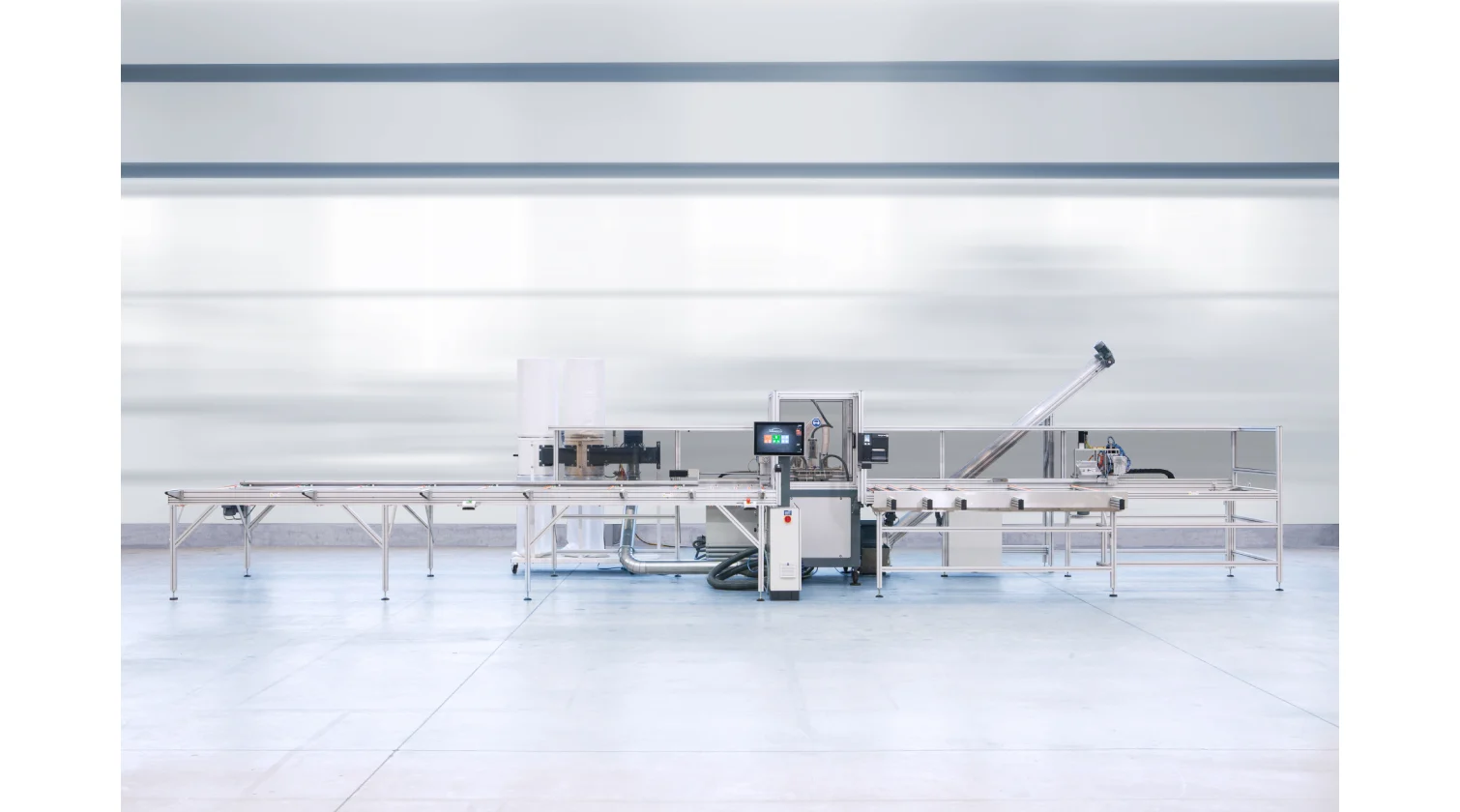

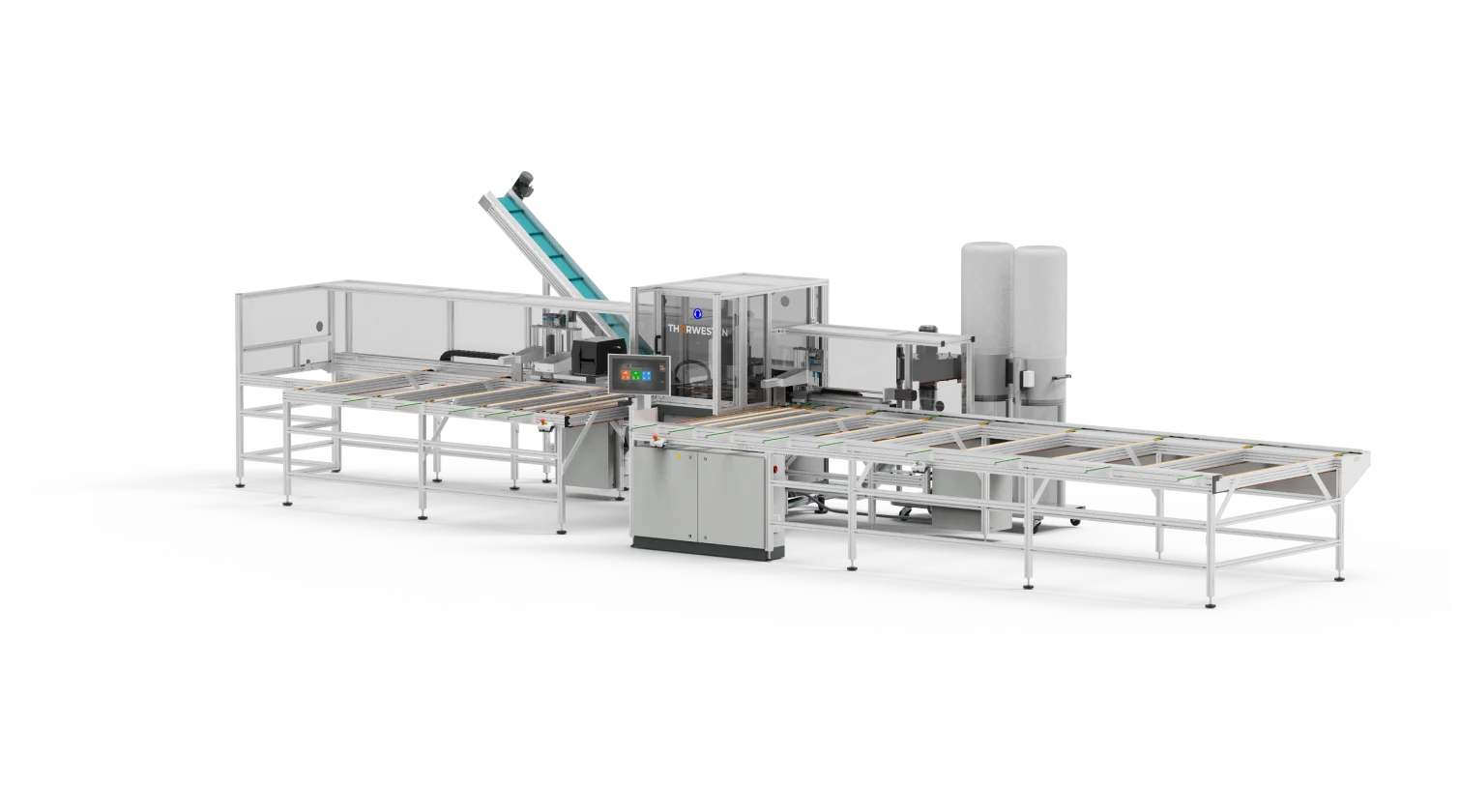

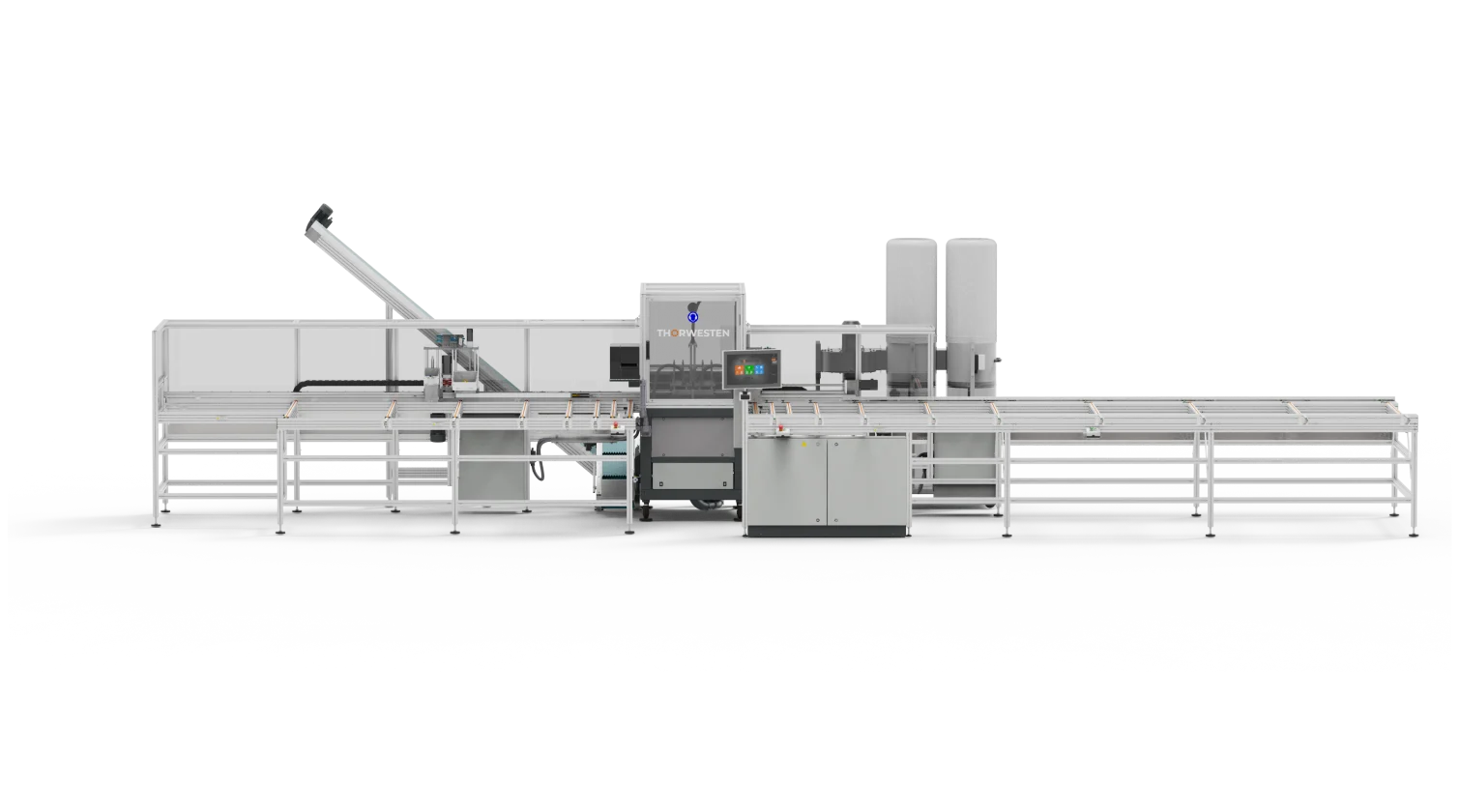

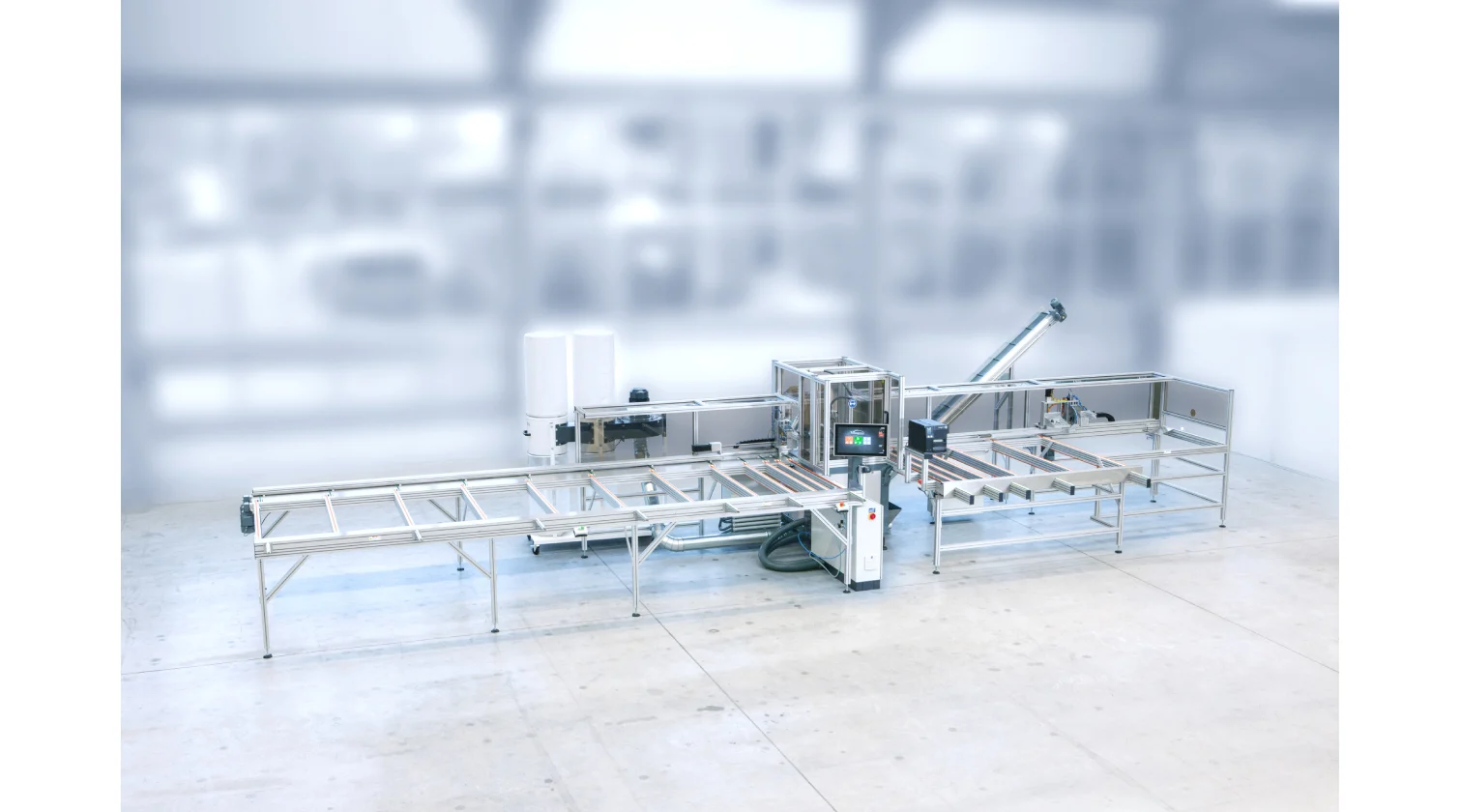

THORWESTEN ASZ

General

The ASZ is engineered to provide uncompromising cutting precision for PVC profiles by pairing a rigid mechanical frame with a patented dynamic clamping system. By positioning the clamp as close as physically possible to the saw blade, the system minimizes vibration and material deflection, resulting in consistently clean and dimensionally accurate cuts—even on complex profile geometries.

The cutting angle is controlled entirely through the CNC system and is infinitely variable from 45° to 135° in its standard configuration. For fabrication environments requiring extreme mitre angles, Thorwesten offers an optional extended range of 22.5° to 157.5°, enabling nearly any contour to be produced without manual repositioning or auxiliary fixtures. This flexibility significantly reduces changeover times and boosts repeatability across varying production runs.

An industrial PC running a Windows-based interface, complete with a 21.5" touchscreen, provides intuitive operation, integrated optimization software, profile programming, and detailed process supervision. Combined with a modular system architecture, compact footprint, and rapid blade-change mechanism, the ASZ is built for high-volume manufacturers seeking reliability, automation, and exceptional cut quality.

Features

• Patented dynamic clamping system for ultra-stable, low-vibration cutting
• Standard CNC angle adjustment: 45°–135°
• Optional extended cutting range: 22.5°–157.5°
• Rigid, torsion-resistant machine frame for sustained accuracy
• Pneumatic saw-blade feed
• Automatic profile infeed and outfeed
• Intuitive control via 21.5" touchscreen
• Integrated cutting optimization software
• Real-time process monitoring and production data visibility
• Maintenance planning with interval notifications
• Visual diagnostics
• Compact, modular machine layout
• Remote service and online connectivity

Technical Data

• Maximum profile size: 165 mm (6.50") × 165 mm (6.50")
• Cutting angle range (standard): 45°–135°
• Cutting angle range (optional): 22.5°–157.5°
• Maximum cutting length: 6500 mm (21.33 ft)
• Minimum internal cut length: 200 mm (7.87")
• Standard infeed magazine size: 6000 mm (19.69 ft) × 1800 mm (5.91 ft)
• Standard outfeed magazine size: 4500 mm (14.76 ft) × 1800 mm (5.91 ft)
• Blade feed: Pneumatic
• Total power / current: 9.5 kW / 25A
• 400V 3Phase + Neutral + PE, 50/60 Hz
• Air requirement: 8 bar (116 psi), 300 L/min (10.6 cfm)
• Noise emission: approx. 92 dB

Standard Equipment

• 6 m infeed magazine
• 4.5 m outfeed magazine
• Saw blade + replacement blade
• 850 mm inclined waste conveyor
• Optimization software
• Maintenance interval planner

Optionals

• Extended angle range: 22.5°–157.5°
• Profile measuring unit

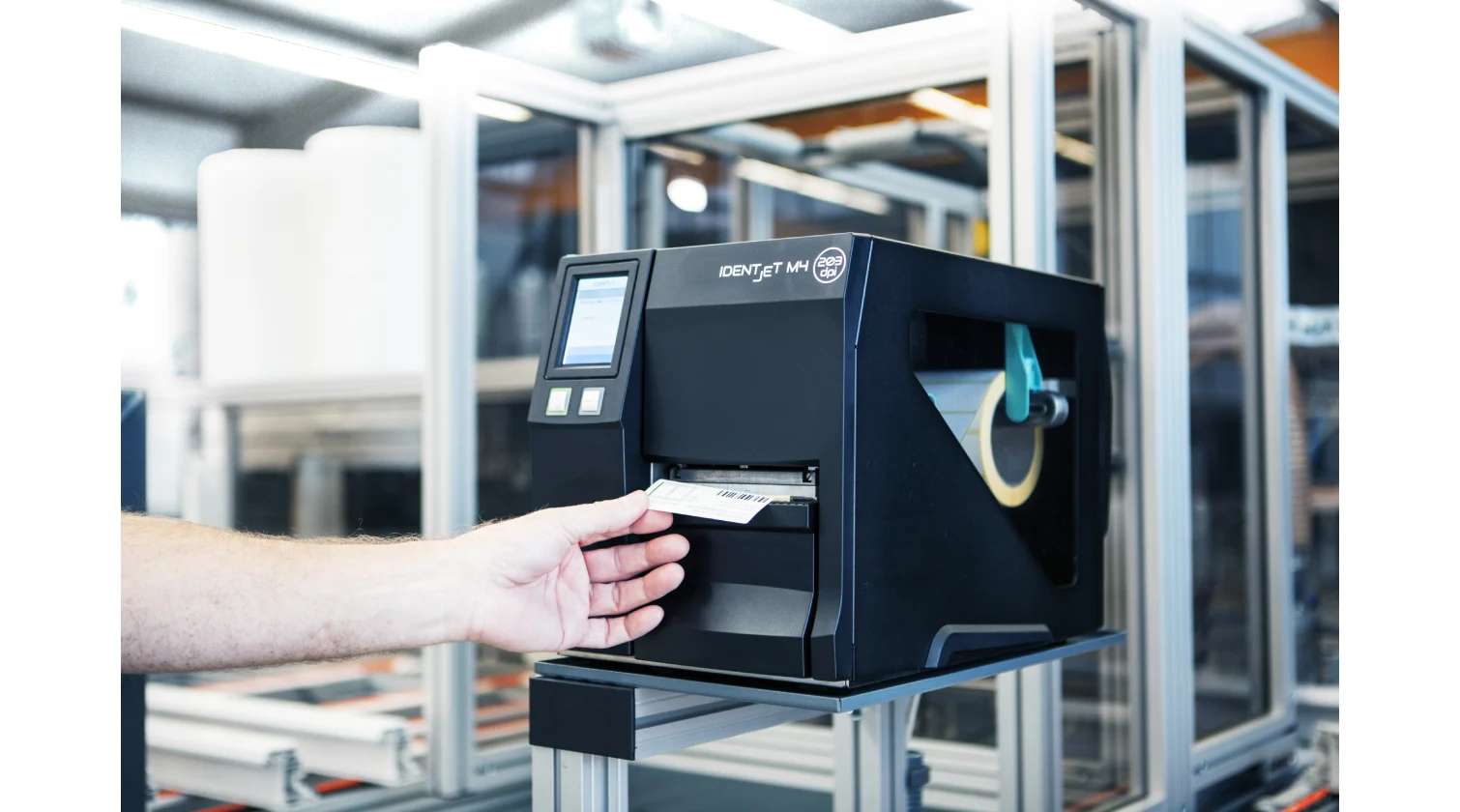

• Automatic label printer
• Off-cut profile processing with barcode scanner
• Two-bag suction/extraction system
• Extended inclined conveyor up to 3000 mm
• Infeed magazine extension
• Outfeed magazine extension
• 3-axis profile rotating device
• Battery unit (2.2 Ah)
