The Yilmaz SK 500 D is an automatic drilling and cutting machine for aluminum profiles, designed for high-volume production. It builds on the SK 500 platform by integrating a servo-controlled drilling unit alongside the 500 mm up-stroke cutting blade. This allows the machine to perform both 90° cutting and vertical drilling operations in a single, automated cycle, making it a highly efficient solution for fabricating components that require both cutting and hole-making

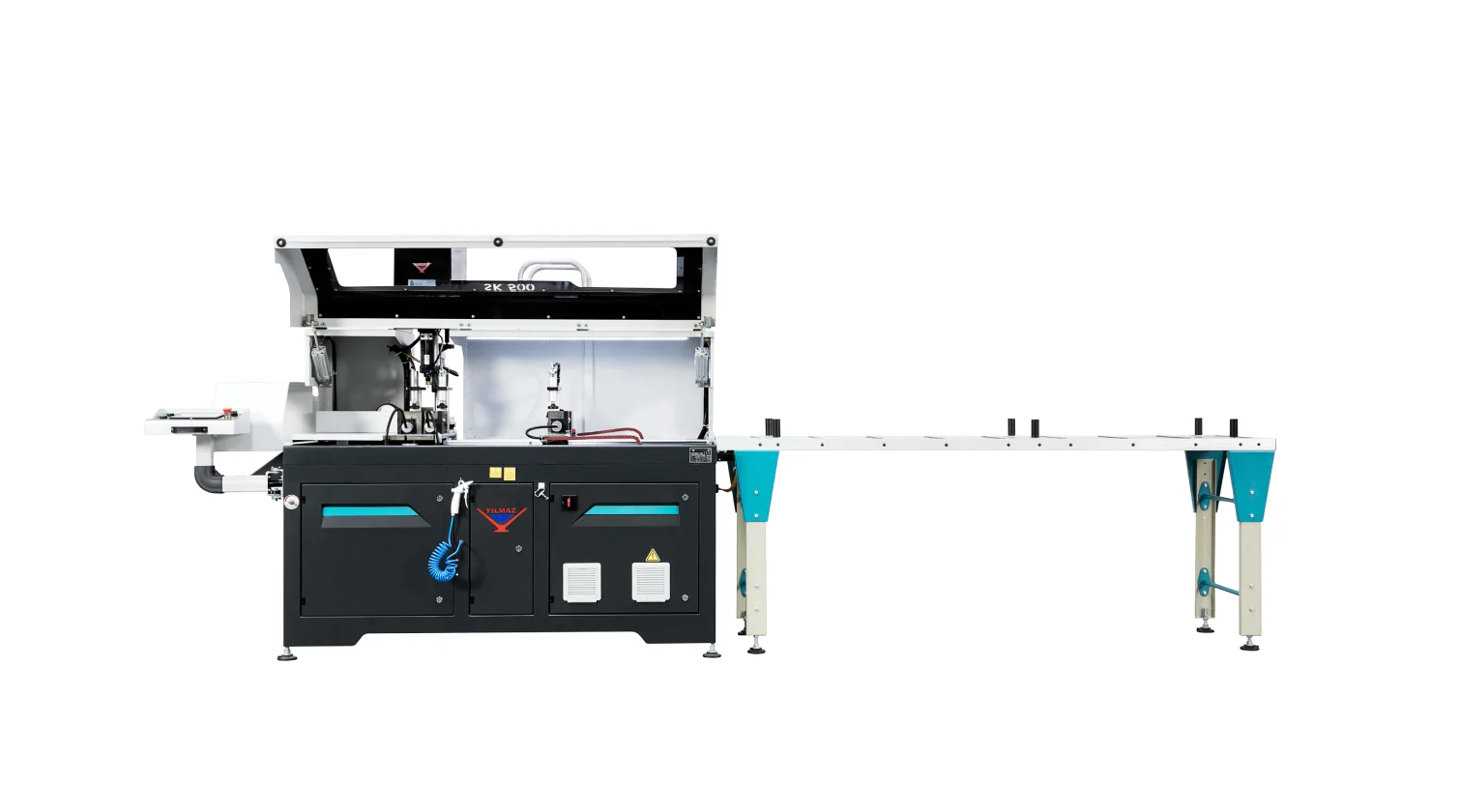

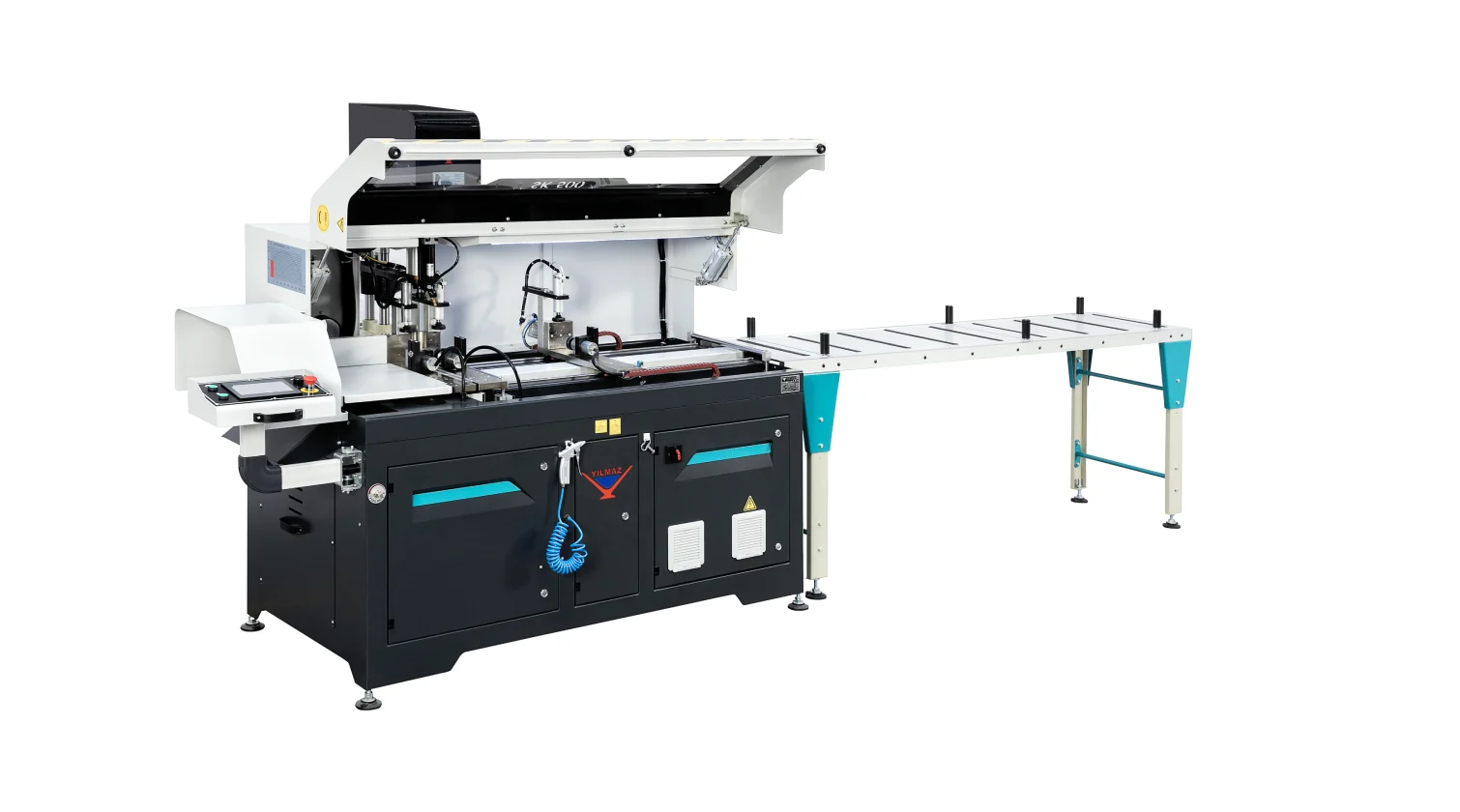

General

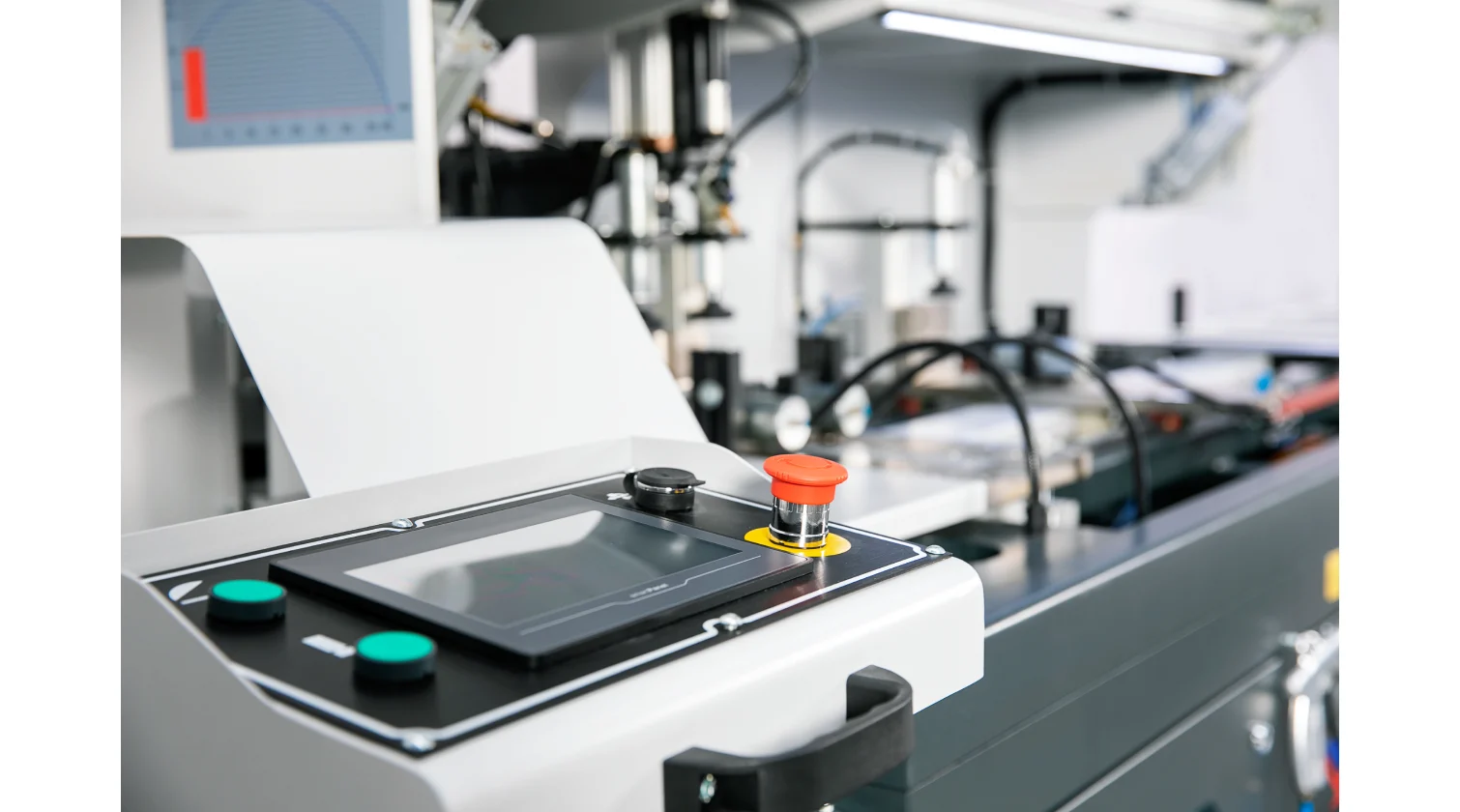

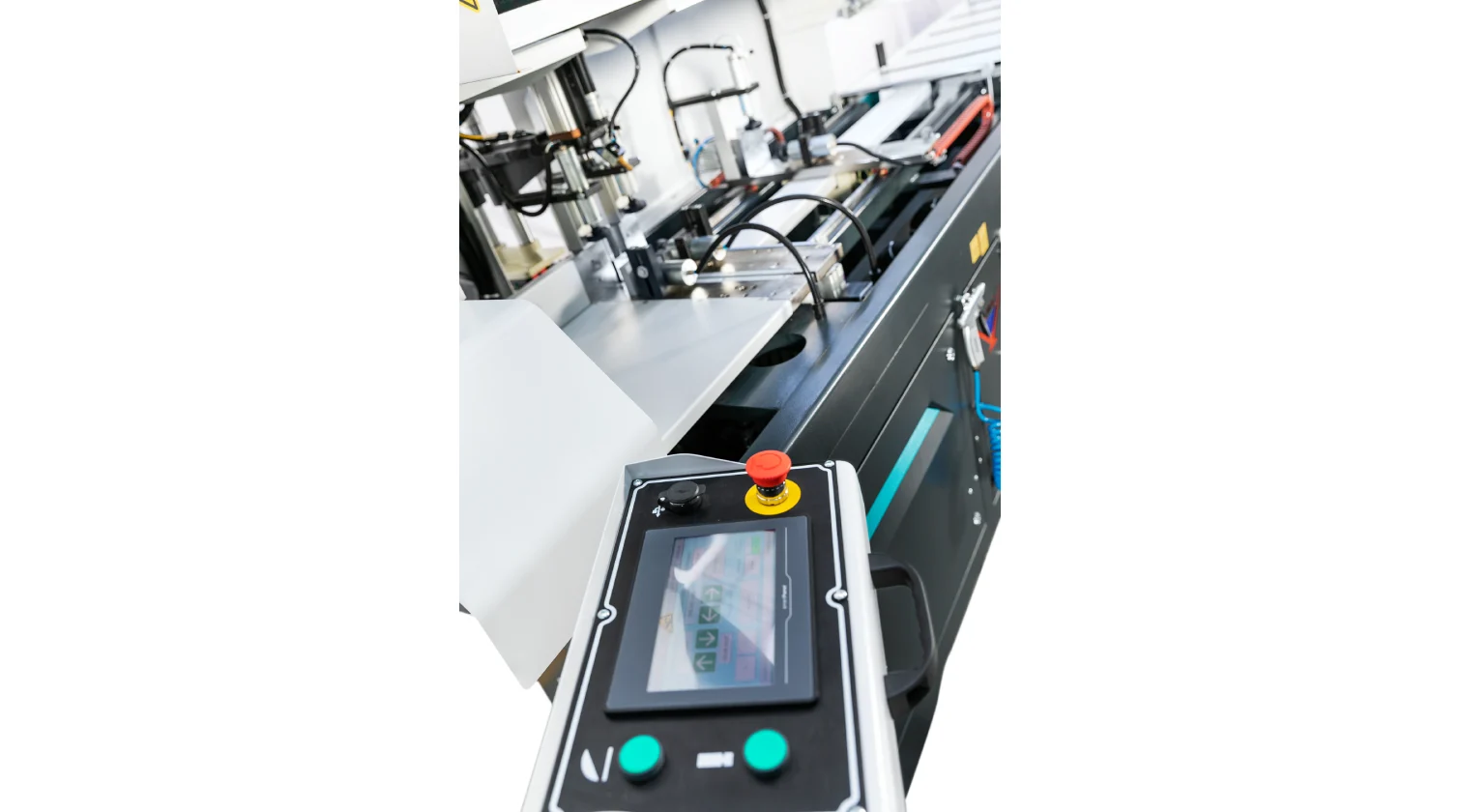

The Yilmaz SK 500 D is an automatic drilling and cutting machine for aluminum profiles that combines 90° cutting with vertical drilling for aluminum extrusions. The machine's process is fully automatic, controlled by a PLC and high-precision servo motors. The operator can manage all parameters and cutting lists via the 7" color touch screen. Transferring a cutting list from a text file (csv format) via a USB memory stick is also available as a standard feature.

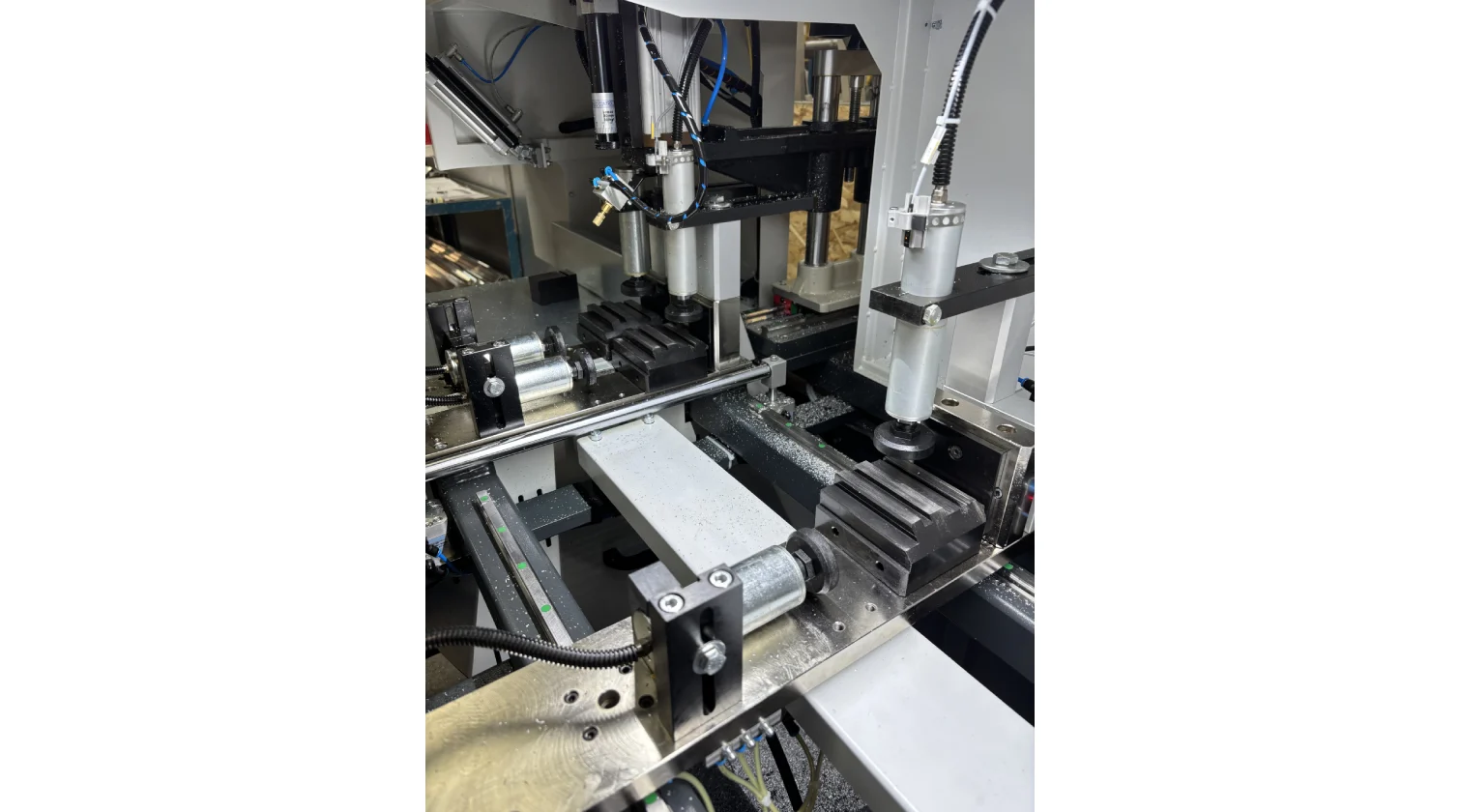

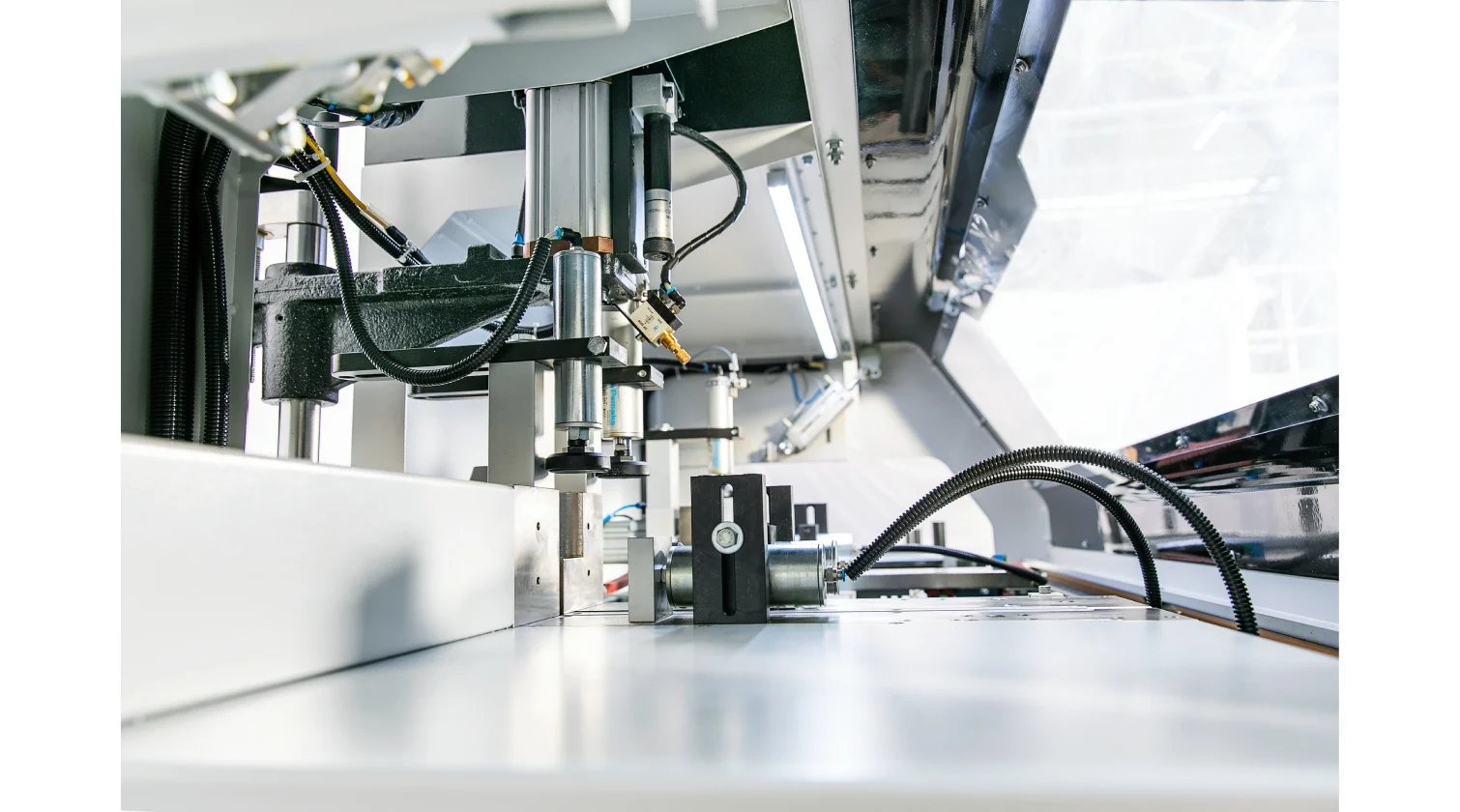

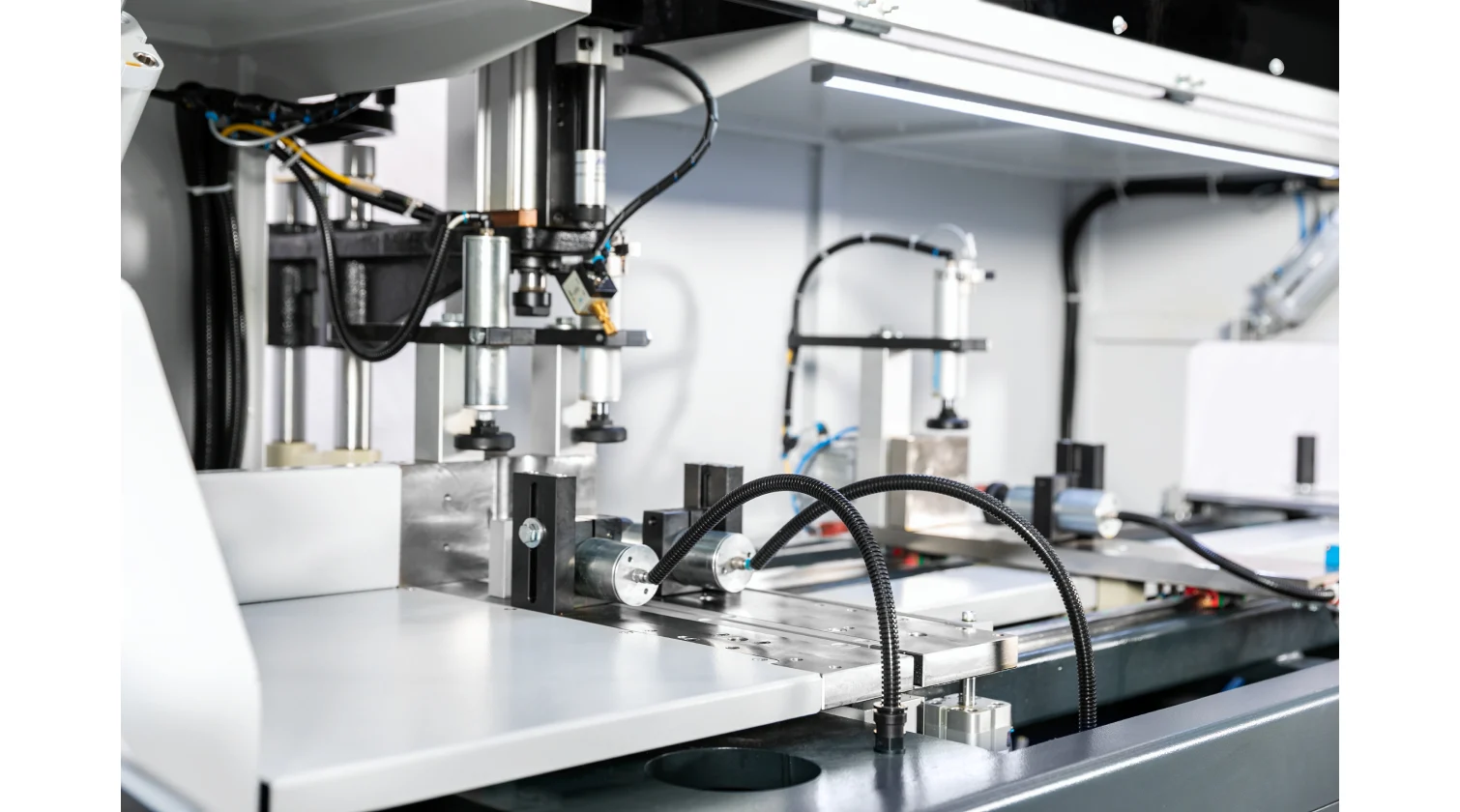

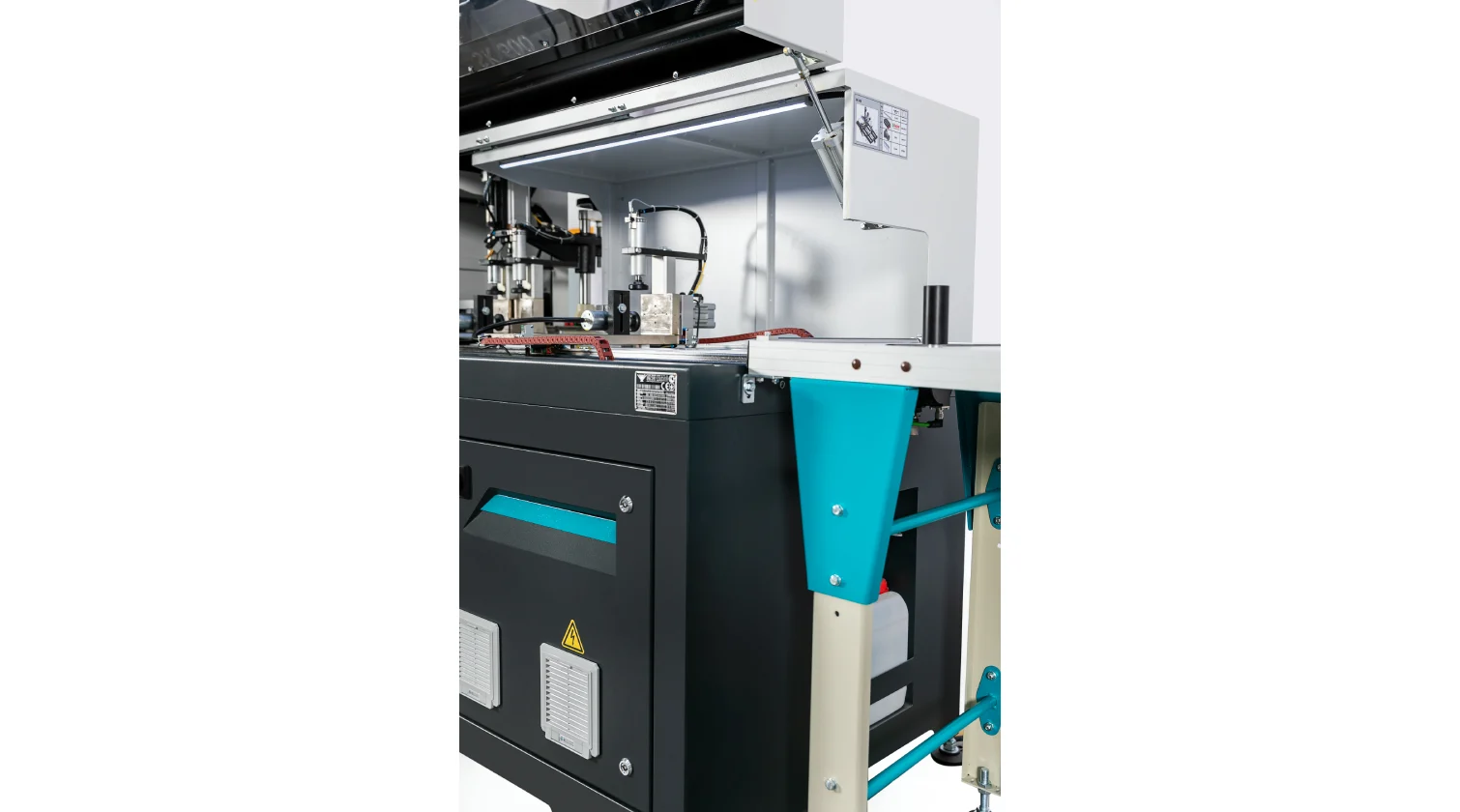

The integrated drilling unit features a servo-controlled Y-axis for precise radial hole positioning, while the material feeder sets the axial (X-axis) position. A hydro-pneumatic dual-speed actuator ensures a rapid and controlled drilling stroke. After drilling, the profile is advanced to the cutting station, where a 500 mm blade performs the final 90° cut.
The SK 500 D also includes features to protect the material, such as an automatically raising roller and a retracting back fence to prevent scratches on profile surfaces.
Features
- Automatic 90° straight cutting and vertical drilling operations.
- Servo-controlled profile feeder for high-precision length positioning.
- Servo-controlled Y-axis on the drilling unit for radial hole positioning.
- Table separates before the blade retracts to prevent back-cutting, ensuring a high-quality surface finish.
- Automatic raising table roller and retractable feeder back fence to prevent scratches on the profile surfaces.
- Dual-speed drill actuator to reduce air-cutting time.
- Separate spray mist cooling systems for both the saw blade and the drill bit.
- Single or multi-bar (bundle) cutting capability.
- Machine automatically shuts down when the job is complete or the material runs out.
Technical Data
- Cutting Angle: 90° (Fixed)
- Blade Size: 500 mm (19.7")
- Motor Power: 4 kW (5.3 HP)
- Blade Speed: 2500 RPM
- Feeding Stroke (Single): 1000 mm (39.4")
- Feeding Stroke (Repeated): No limit
- Positioning Accuracy: +/- 0.1mm (0.004”)
- Operating Air Pressure: 6-8 Bar (87-116 psi)
Optionals
- Spare Ø 500 mm saw blade
- Additional 2.5 m of infeed or outfeed conveyor
- Industrial chip collector.
- Chip collection tray
- Cutting fluid (20-litre pail)
Standard Equipment
- Saw blade Ø 500 mm
- Infeed roller conveyor 2.5 m (8.2')
- 3 x Pneumatic vertical clamps
- 3 x Pneumatic horizontal clamps
- Spray saw blade lubrication system
- Air blower gun

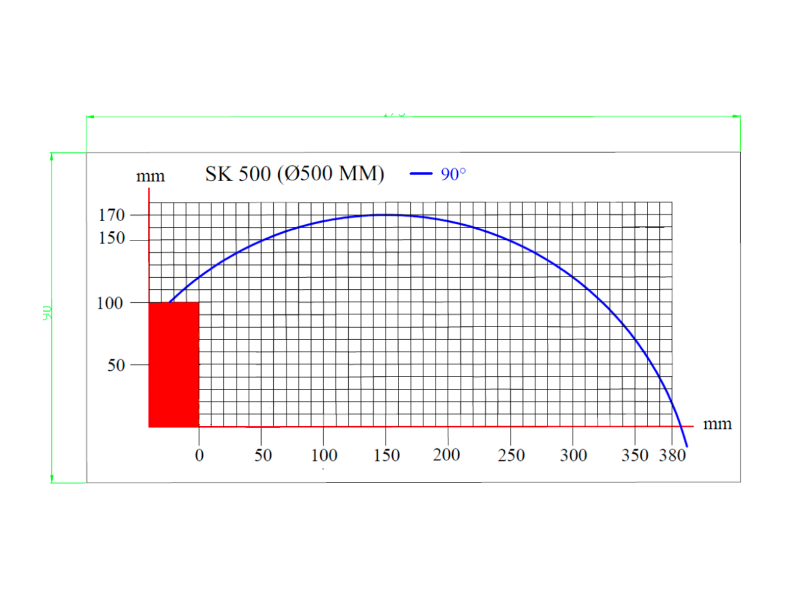

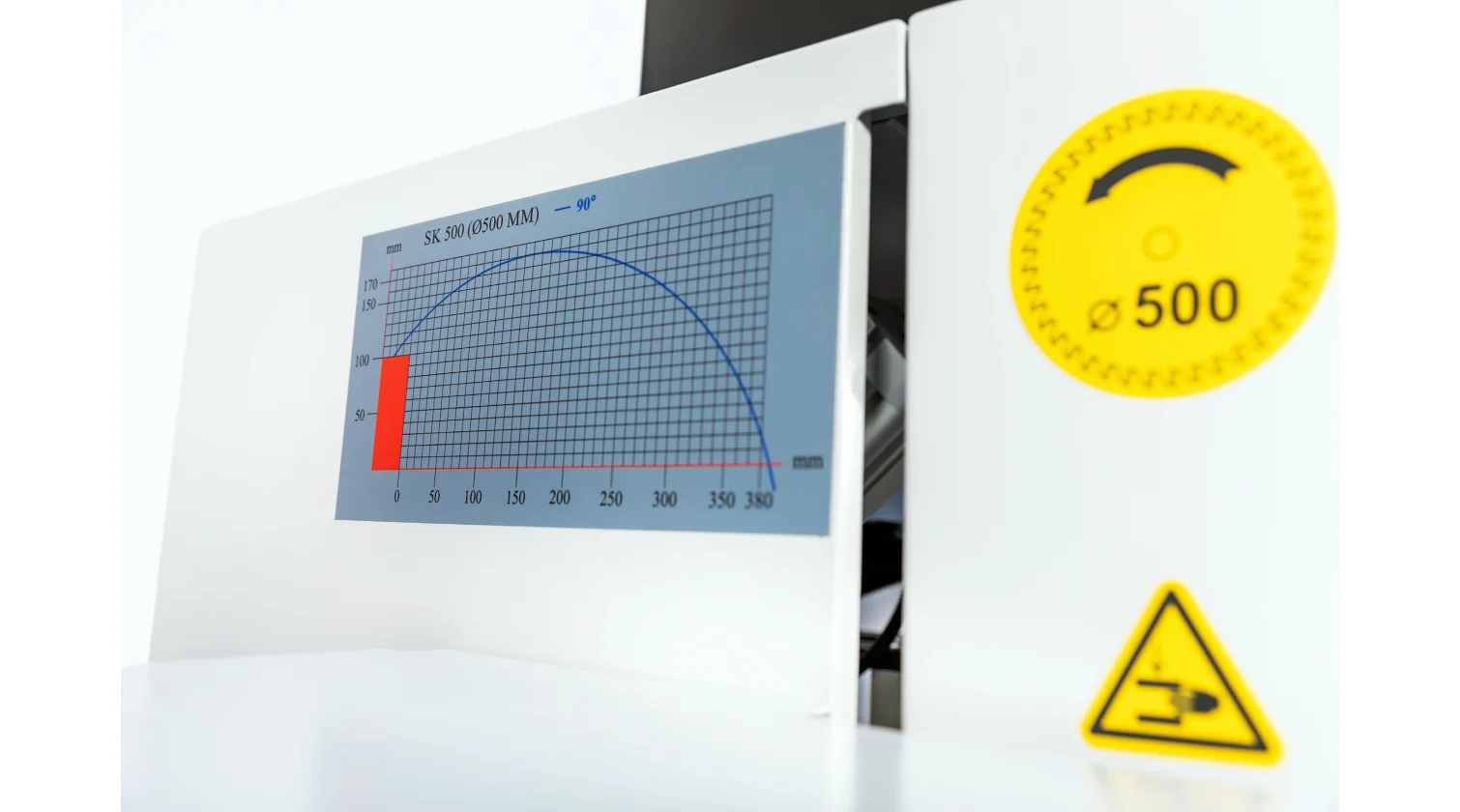

Cutting diagram

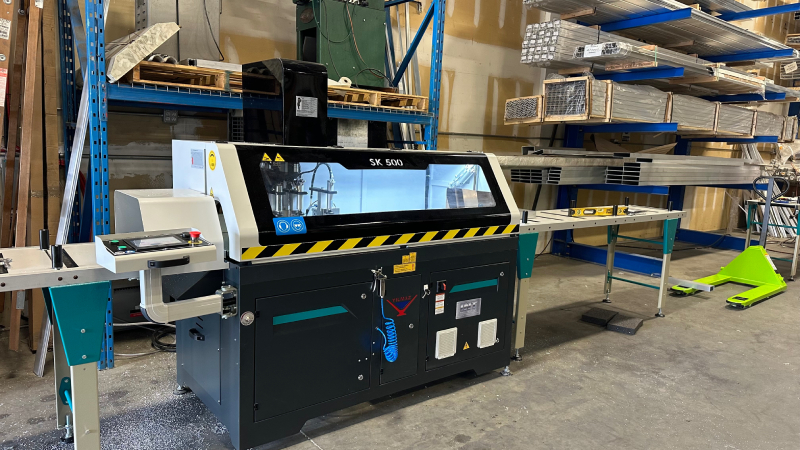

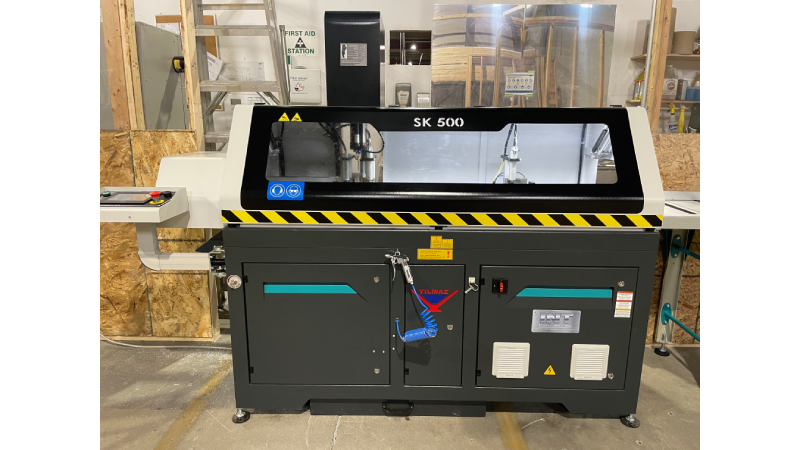

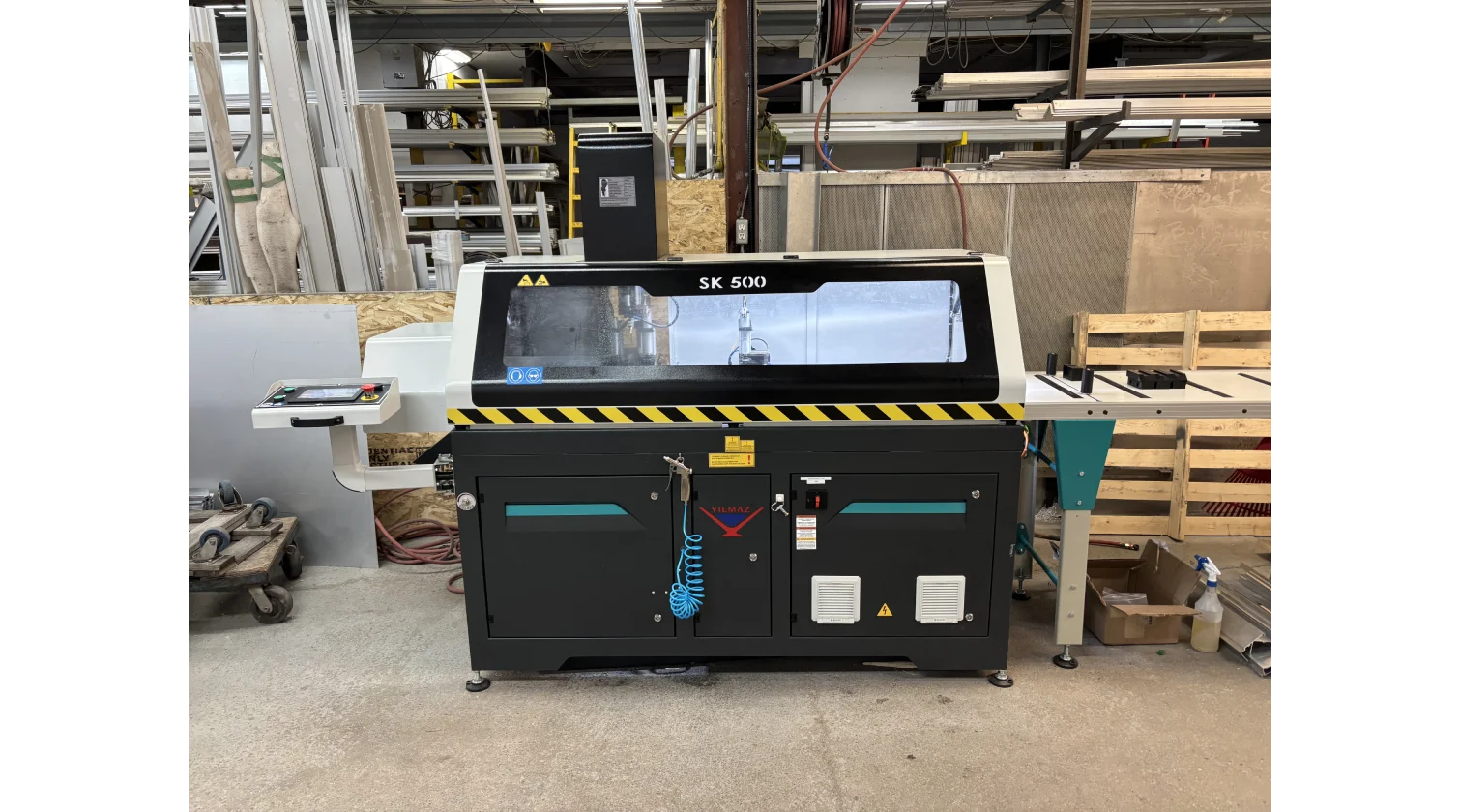

Installations
