The Yilmaz KD 400 PS is a versatile aluminum chop saw featuring a 400 mm blade, powerful industrial motor, and precision-machined cutting table. Designed for repeatable angle cutting with quick detent stops, the KD 400 PS delivers clean, accurate results in aluminum and PVC profile cutting.
General
Purpose-built for demanding aluminum fabrication environments, the KD 400 PS combines a robust mechanical design with simple, intuitive operation. The cutting head is lowered manually by the operator, while the profile is secured automatically by horizontal pneumatic clamps. Throughout the cutting cycle, the integrated lubrication system applies cooling fluid continuously to ensure a smooth cut and extended blade service life.
Its CNC-machined cast-iron table provides exceptional rigidity and repeatability, while preset detent angles allow rapid positioning for the most common miter cuts. With a pivoting range from −45° to +45°, intermediate angle adjustment via friction stop, and a powerful 2.2 kW motor, the KD 400 PS is well suited for cutting larger profile sections with precision. The included stand, storage cabinet, and CSA approval make this a complete, production-ready solution for aluminum and PVC profile workshops.
Features
- Aluminum chop saw with Ø400 mm (15¾") blade

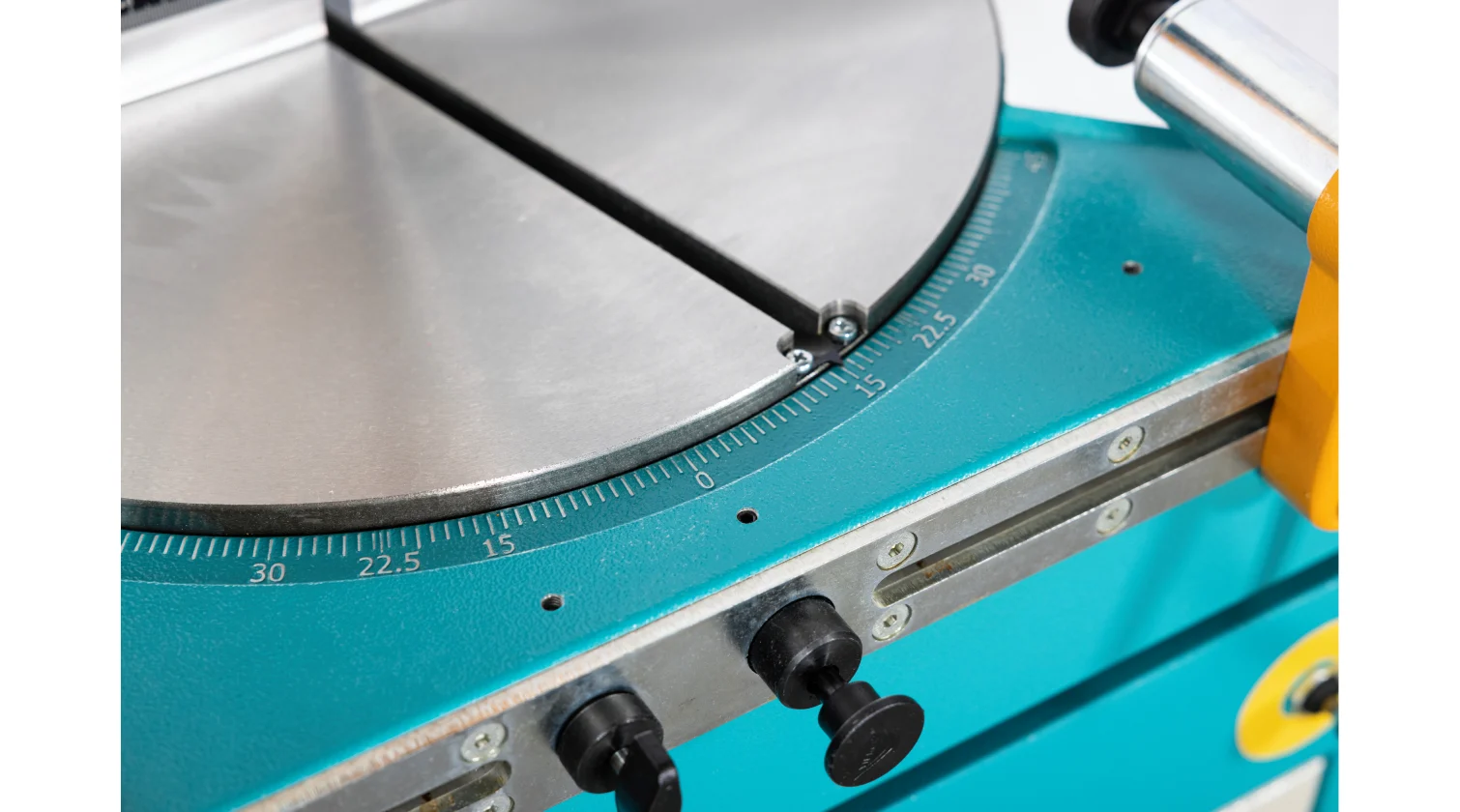

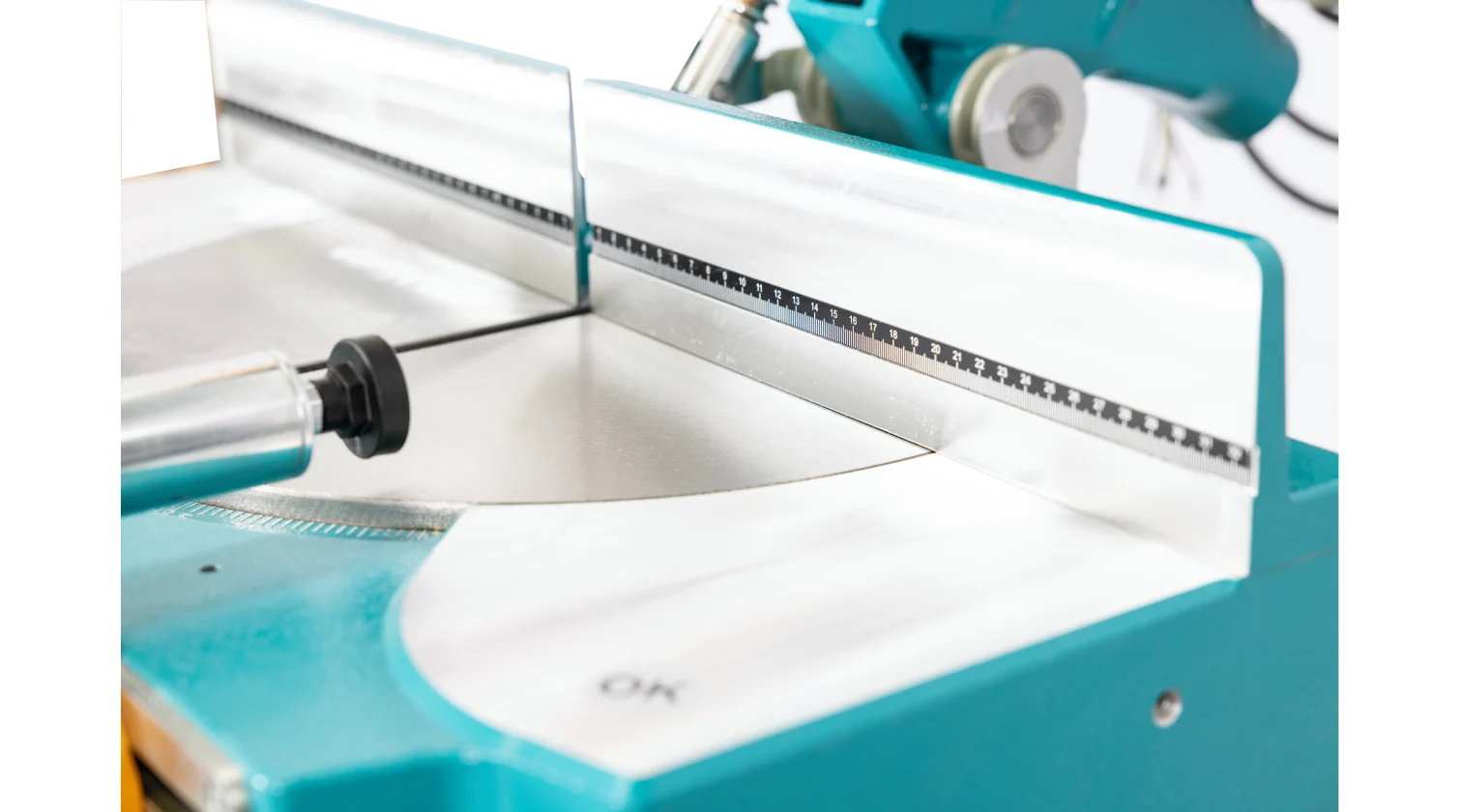

- CNC-machined cast-iron table for precise angle cutting
- Excellent for large aluminum or PVC workpieces

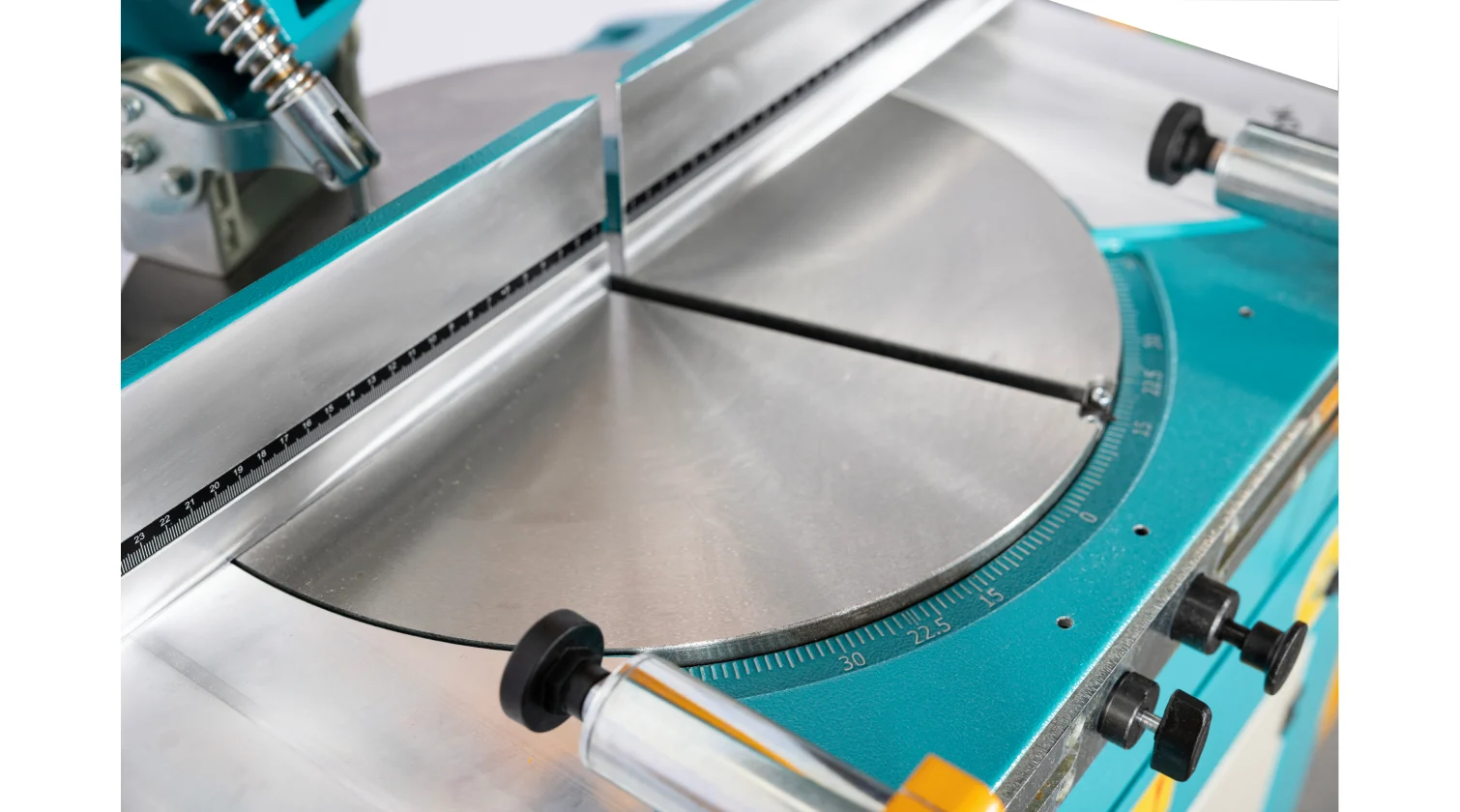

- Preset angle detents at 45°, 30°, 22.5°, 15°, 0° on both sides
- Pivoting range −45° to +45°, infinitely adjustable

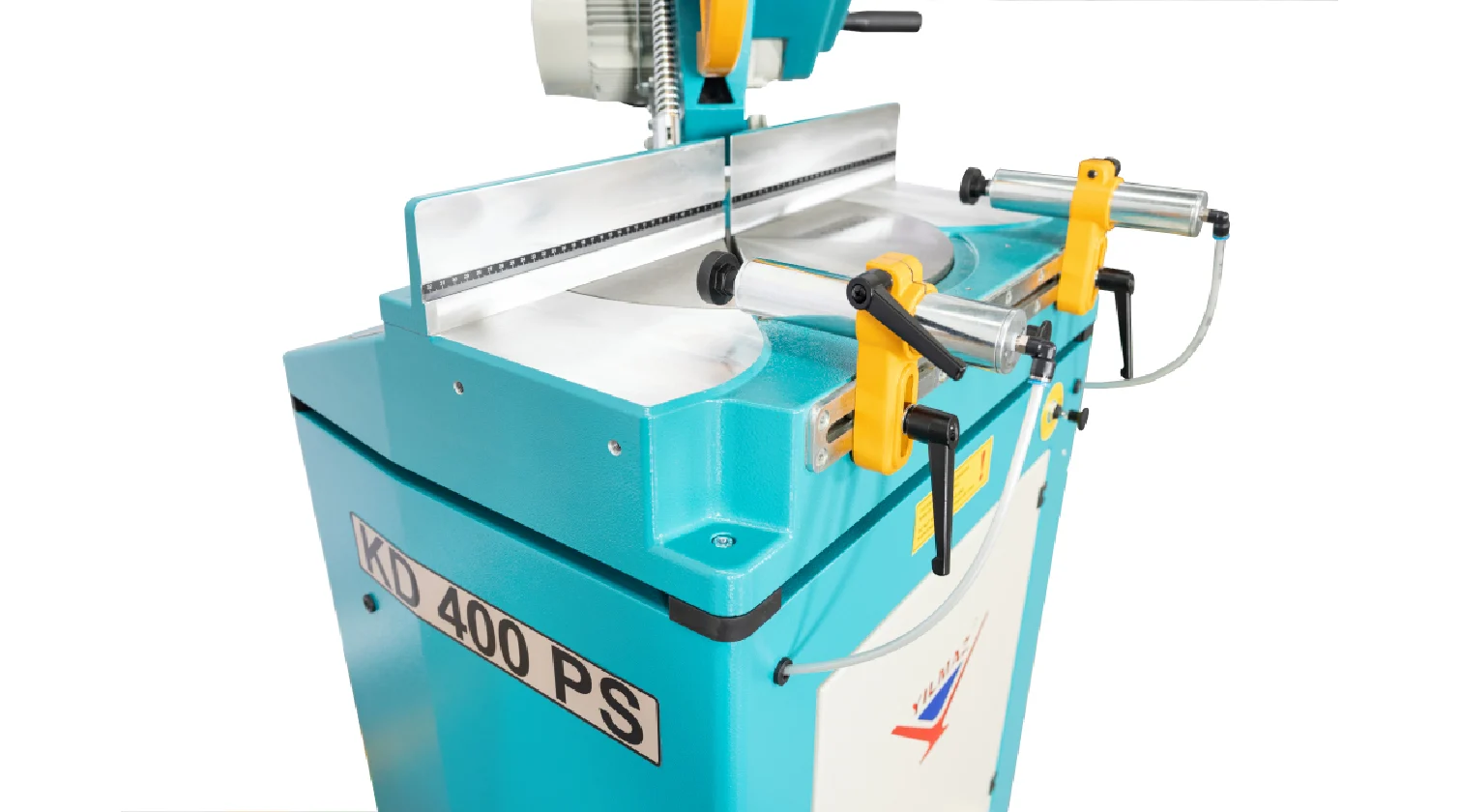

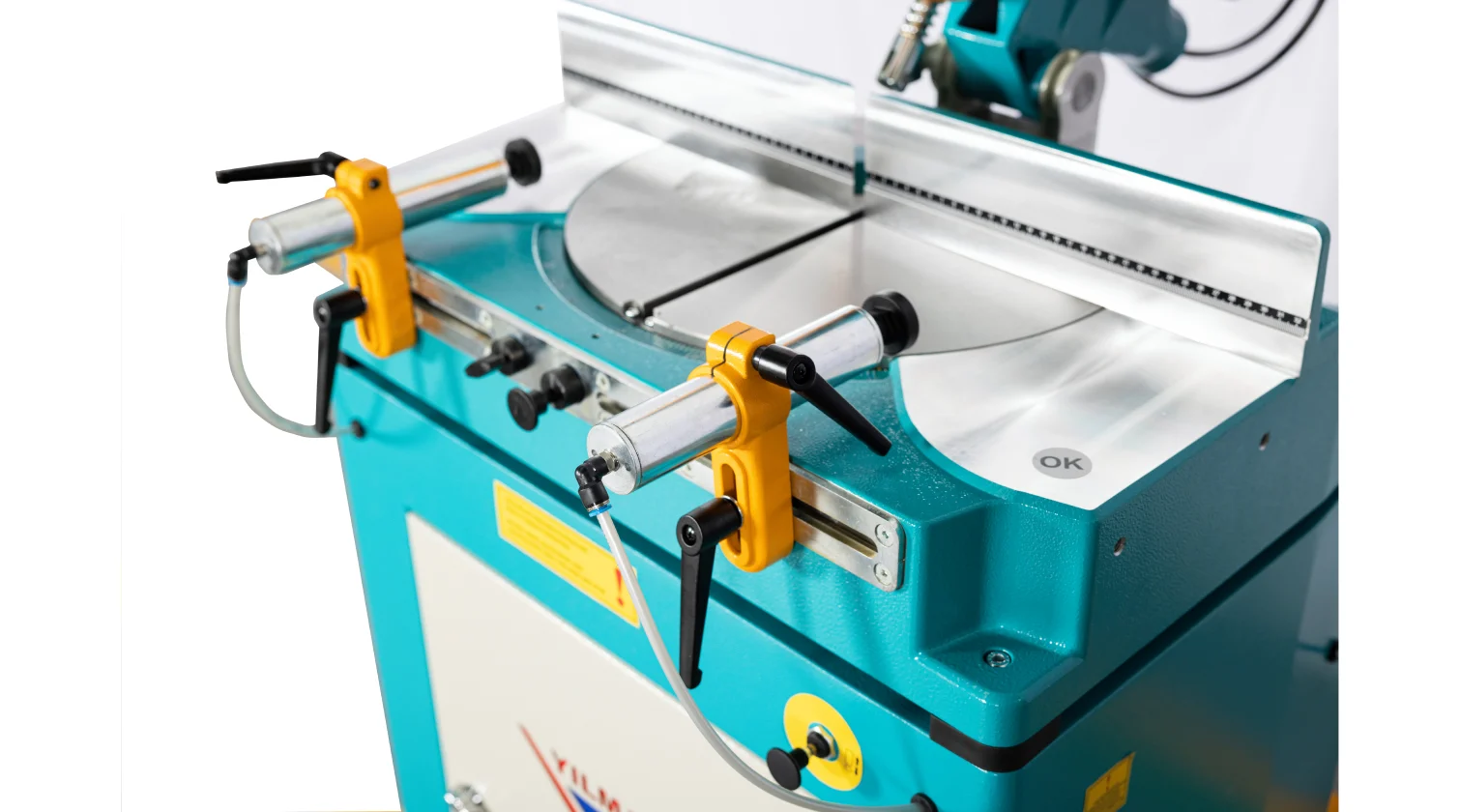

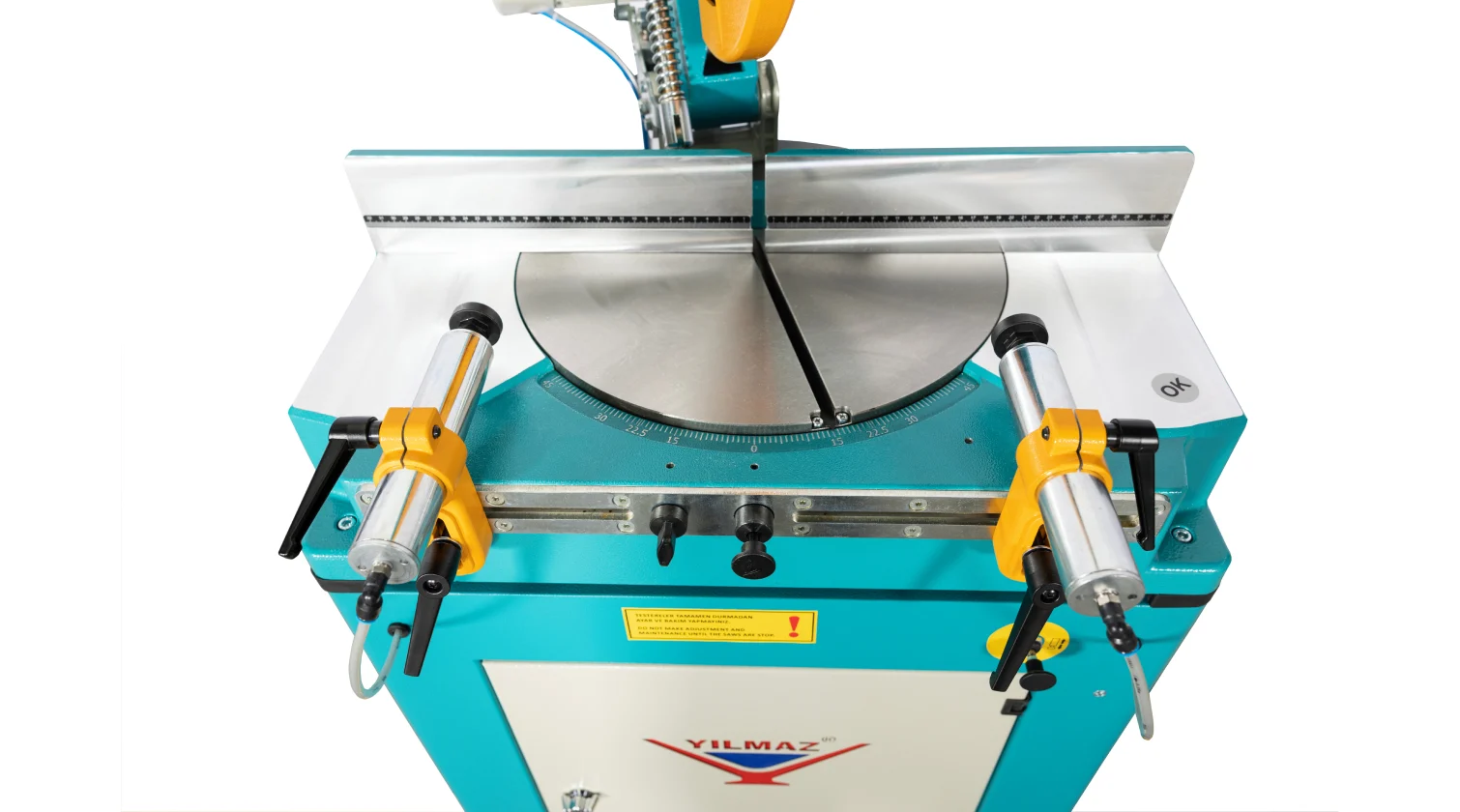

- Two horizontal pneumatic clamps for reliable material hold-down
- Integrated machine stand with enclosed storage
Technical data
- Blade diameter: Ø400 mm (15¾")
- Motor power: 2.2 kW (3 HP)
- Voltage & frequency: 230V, 3-phase, 50/60 Hz
- Blade speed: 3000 RPM
- Pivoting range: −45° to +45°
- Detent angles: 45°, 30°, 22.5°, 15°, 0°
- Air consumption: 7 L/min (1.6 gal/min)
- Air pressure: 6–8 bar (87–116 psi)
- Machine weight: 120 kg (264 lbs)
Équipement standard
- 1 × Ø400 mm (15¾") saw blade
- Spray-type blade lubrication system
- 2 × horizontal pneumatic clamps
- Air gun
Équipements optionnels
- Spare Ø 400mm (15¾") saw blade
- 20 litres (5.3 gal) pail of cutting fluid
- Roller conveyor with mechanical stop
- Roller conveyor with hand-winding digital stop
- Roller conveyor with motorized stop
- Single phase conversion
- Chip collector (model sized to machine capacity)

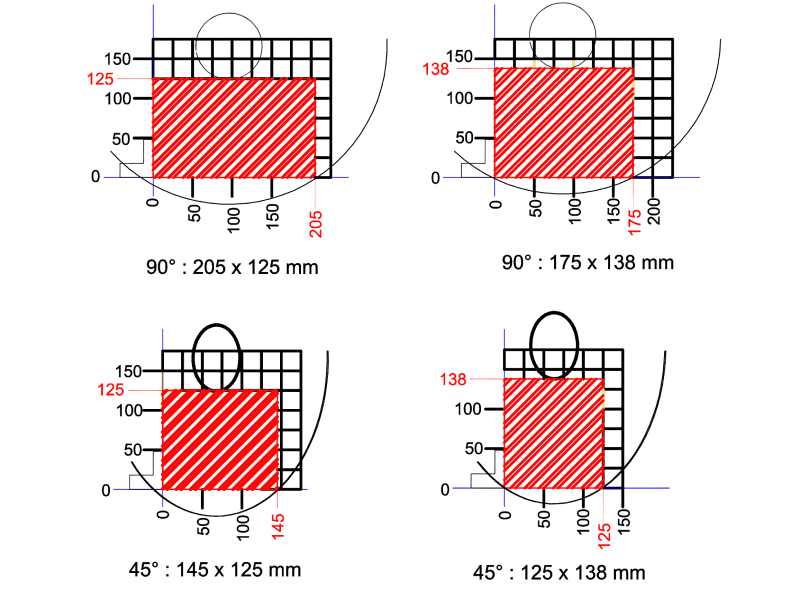

Cutting diagram

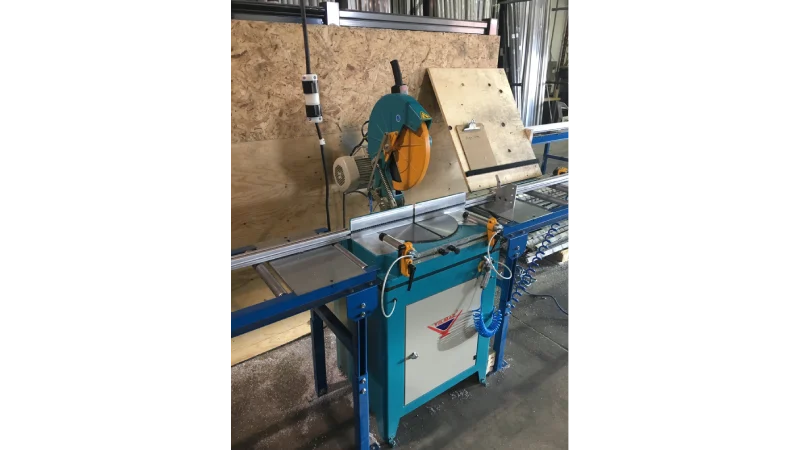

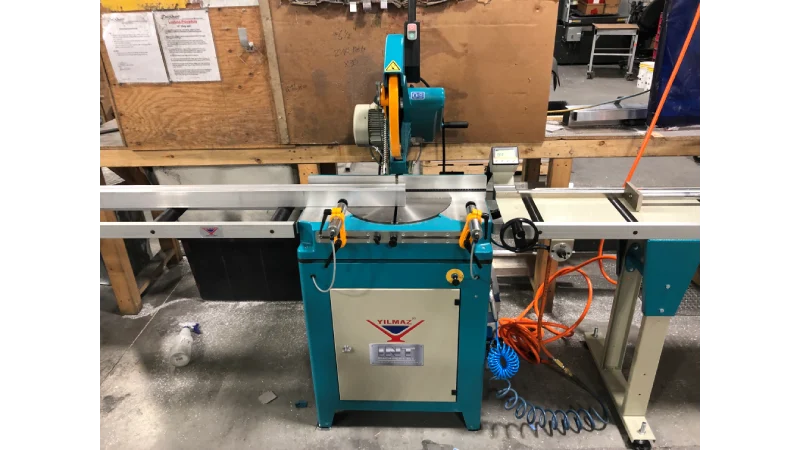

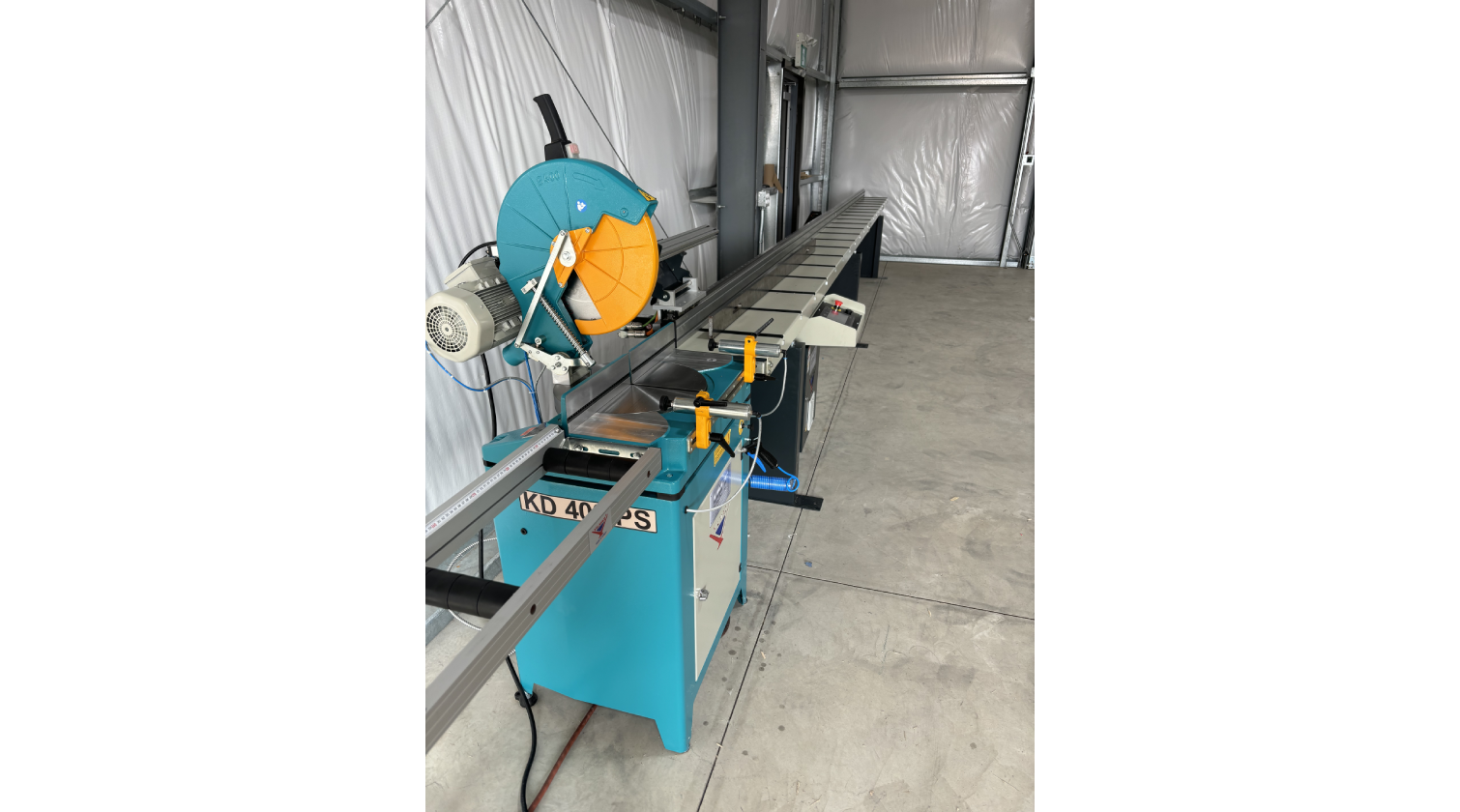

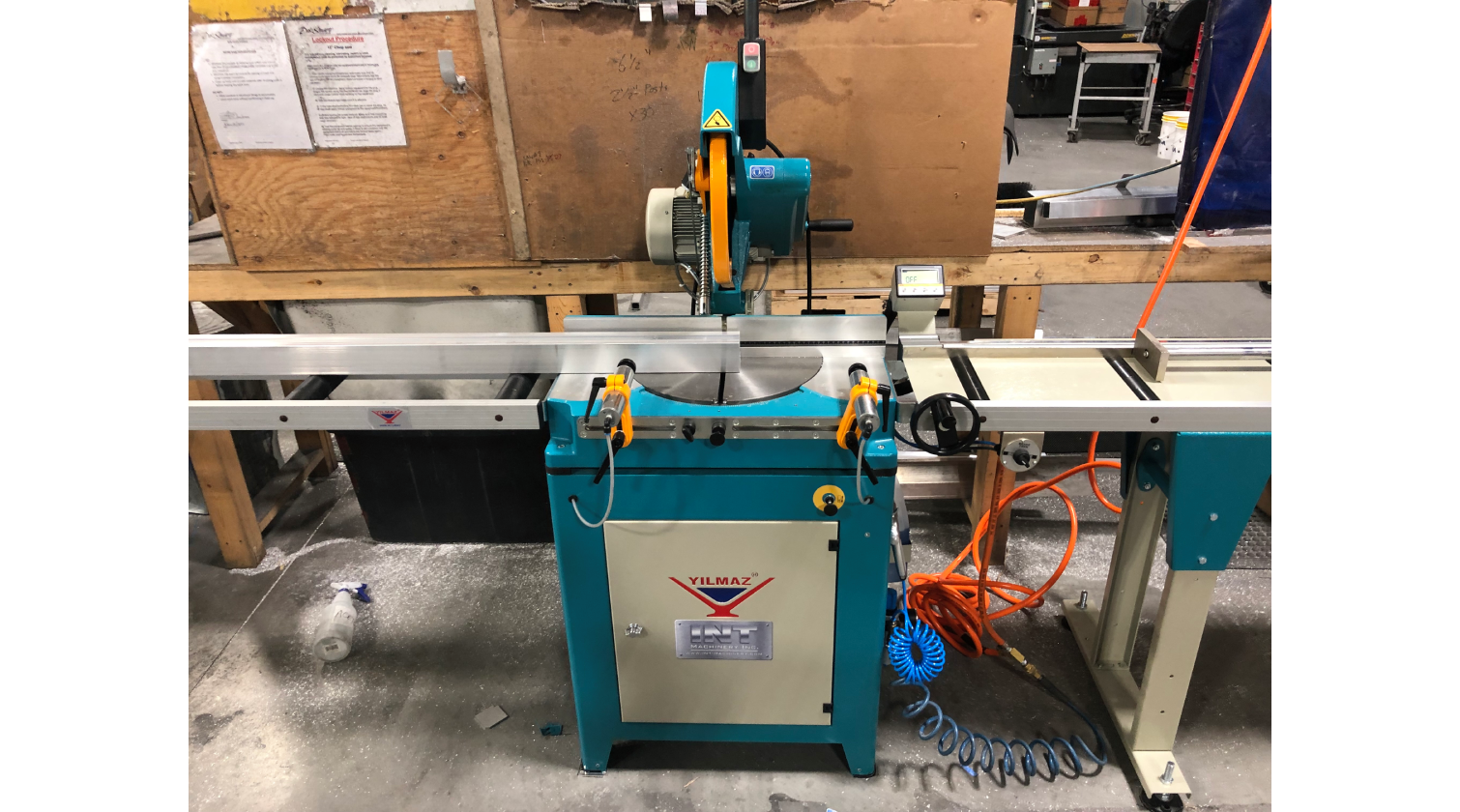

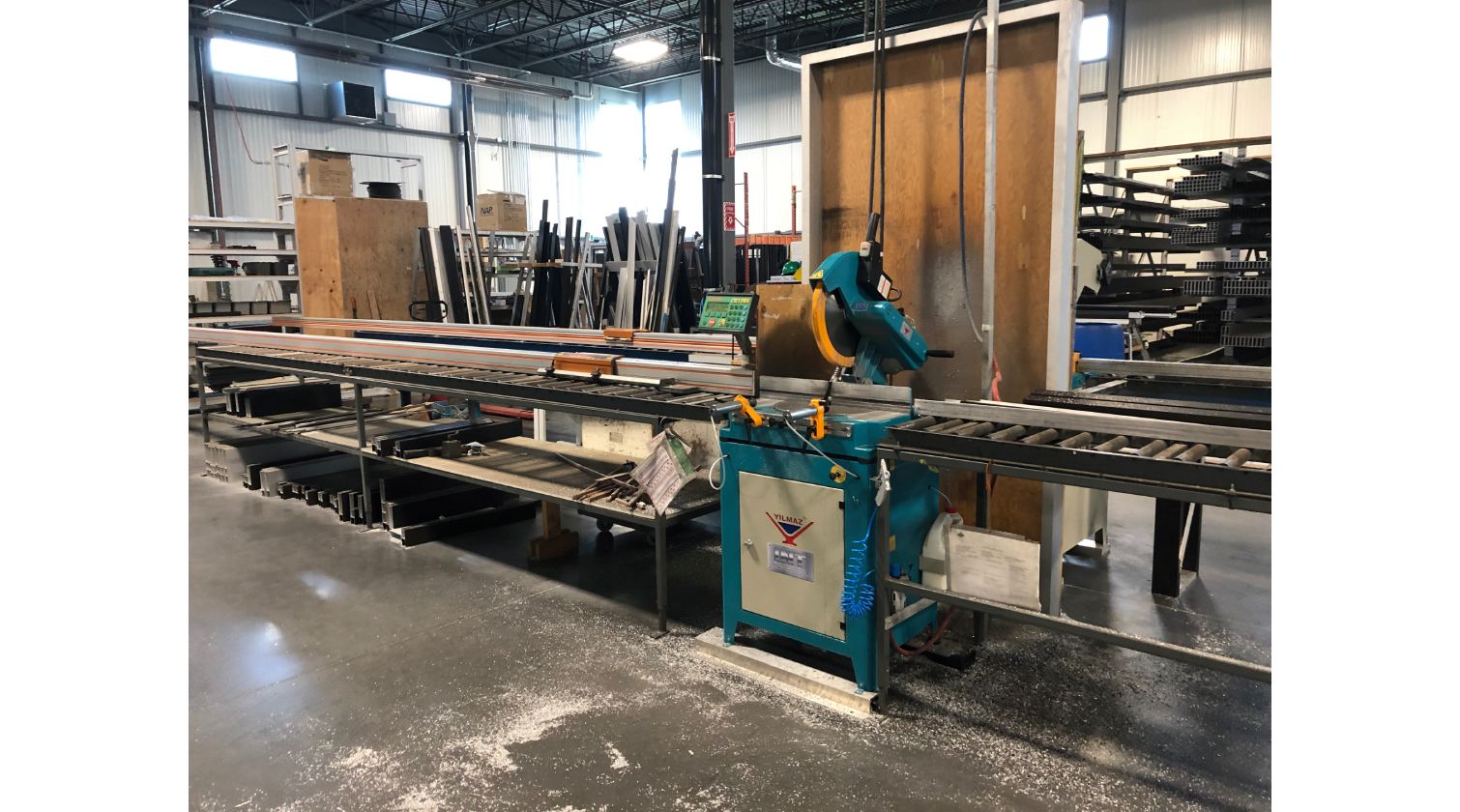

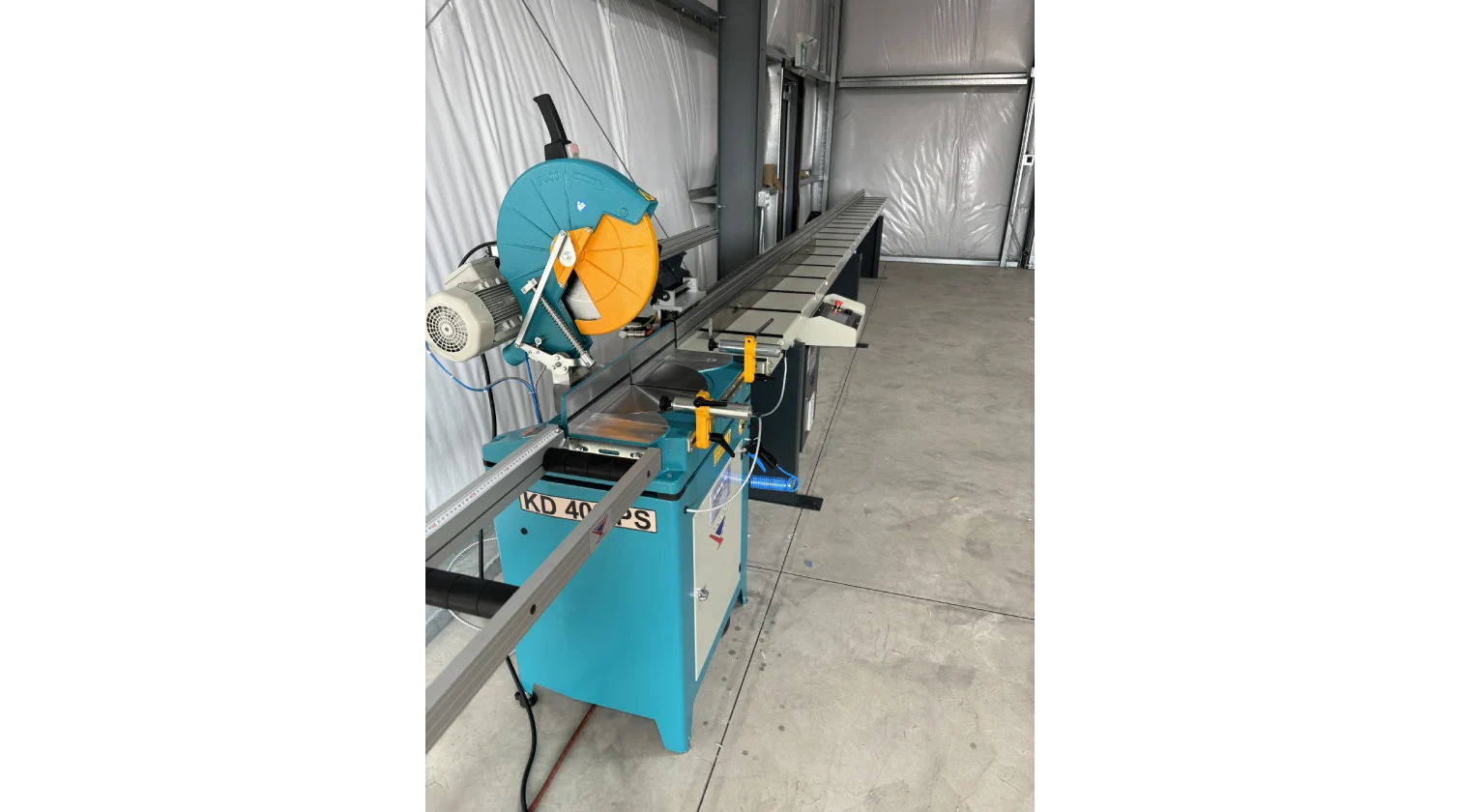

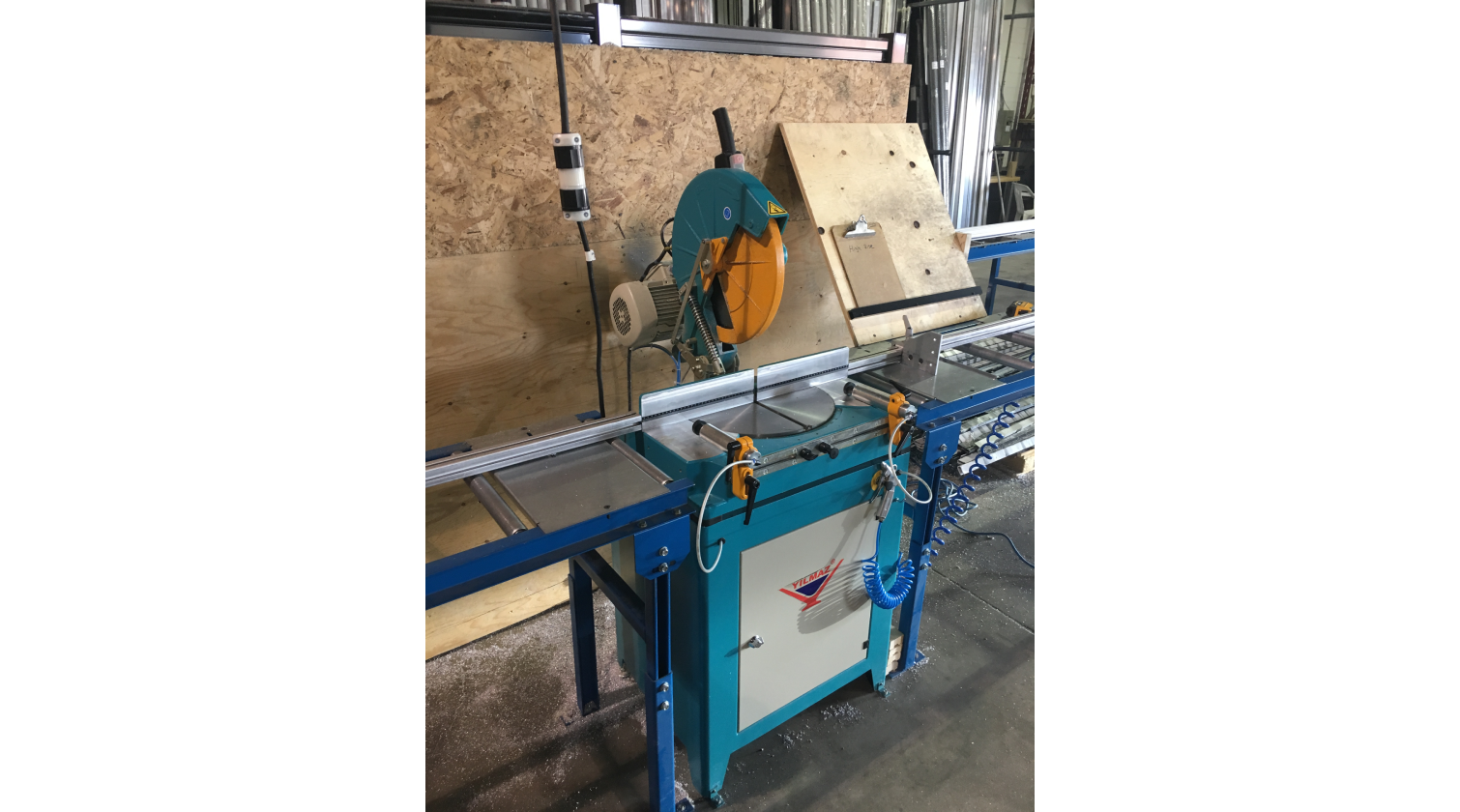

Installations
