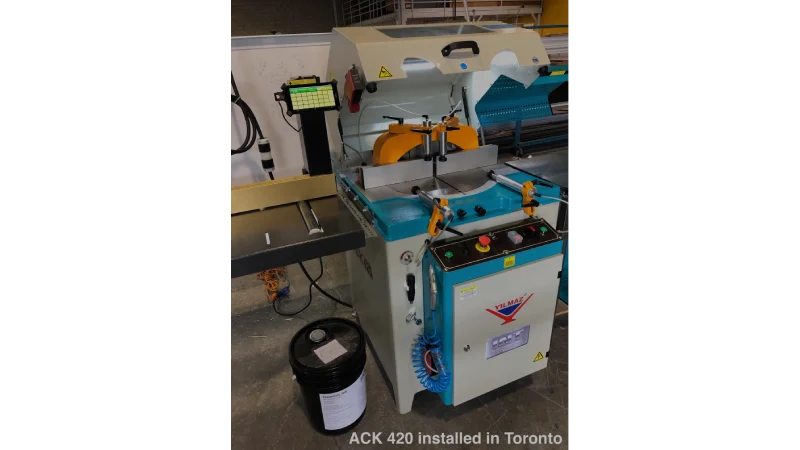

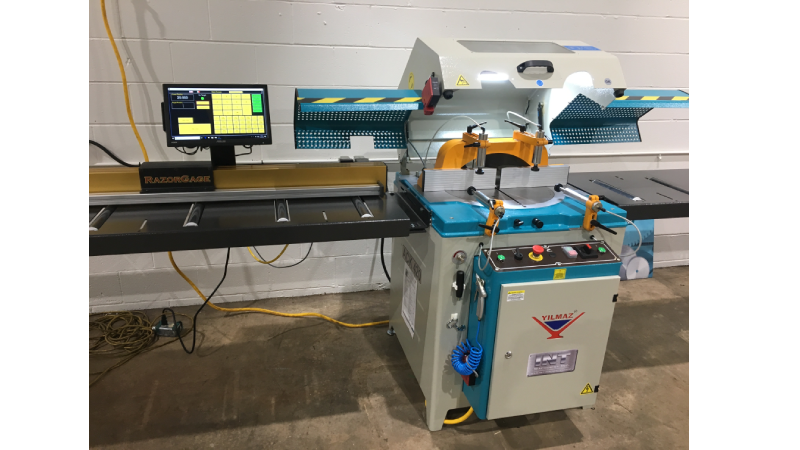

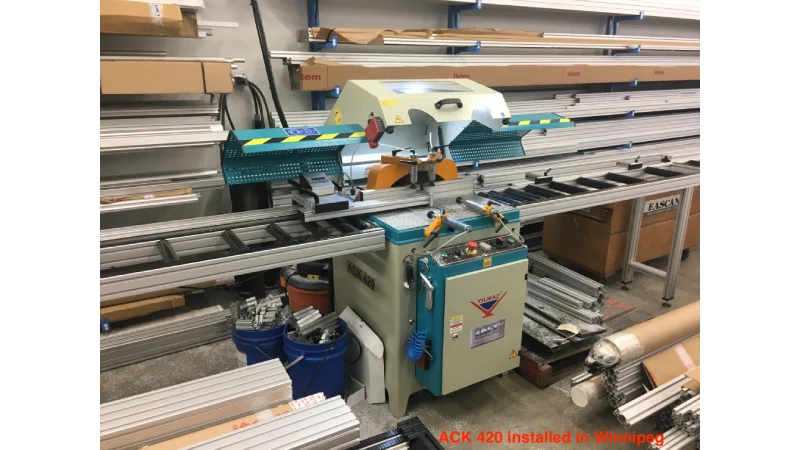

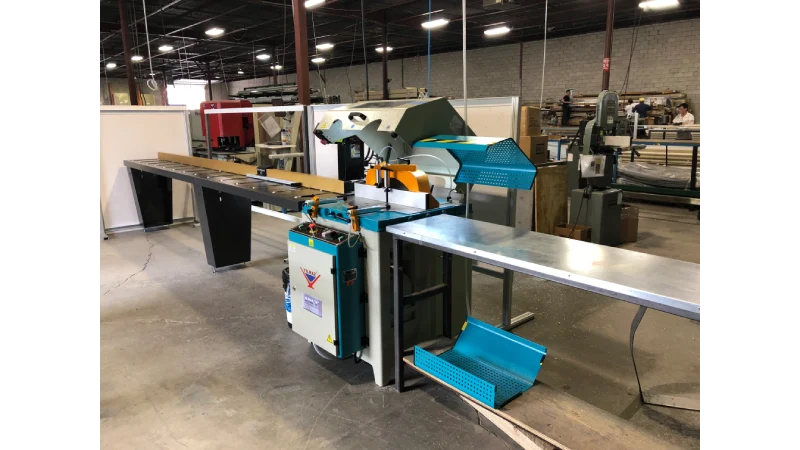

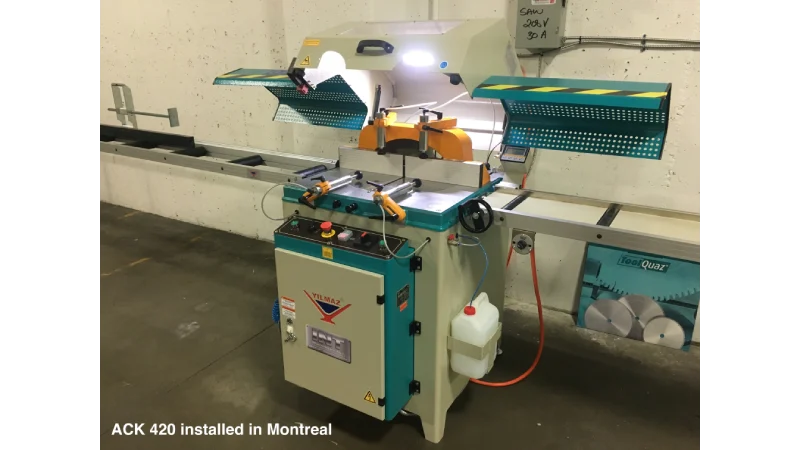

YILMAZ ACK 420

General

The ACK 420 features an up-cut blade design powered by a hydro-pneumatic cylinder. During operation, the operator maintains pressure on two push buttons, allowing the blade to rise smoothly through the profile until the cut is complete. The moment one or both buttons are released, the blade retracts automatically, ensuring a safe, controlled cutting cycle.

For miter applications, the cutting table rotates in both directions, providing a pivoting range from –75° to +75°. Common miter angles are supported by quick-set location points, while intermediate angles can be positioned smoothly using the friction-stop system. An adjustable back fence allows the operator to maximize cutting capacity at 90°.

A fully enclosed safety hood with interlock switch, interior LED lighting, dual-side chip extraction ports, and easy frontal access for blade changes all contribute to a safer, cleaner, and more efficient workflow. With its rigid construction, industrial motor, and CSA approval, the ACK 420 is a proven solution for aluminum and PVC profile fabrication.

Features

• Ø420 mm (16.5”) saw blade
• Two-hand control for safe, controlled up-cut operation
• Hydro-pneumatic saw feed
• Adjustable blade-feed speed
• Pivoting range: –75° left to +75° right
• Quick-set detents at 75°, 60°, 45°, 30°, 22.5°, 15°, 0° in both directions
• Intermediate angles adjusted via friction stop
• Adjustable forward-backward back fence to optimize cutting capacity
• Manual safety hood with interlock switch
• Interlock switch on front access door
• In-feed and out-feed hood extensions to prevent access during cutting
• Interior LED lighting for improved visibility
• Chip-extraction ports located at top and bottom

Technical Data

• Blade diameter: Ø420 mm (16.5")
• Motor power: 2.2 kW (3 HP)
• Voltage & frequency: 230 V, 3-phase, 50/60 Hz
• Blade speed: 3000 RPM
• Pivoting range: –75° to +75°
• Angle detents: 75°, 60°, 45°, 30°, 22.5°, 15°, 0°
• Air consumption: 34 L/min (7.8 gal/min)
• Air pressure: 6–8 bar (87–116 psi)
• Machine weight: 210 kg (463 lbs)

Standard Equipment

• 1 × Ø420 mm (16.5") saw blade
• Spray-type blade lubrication system
• 2 × vertical pneumatic clamps
• 2 × horizontal pneumatic clamps
• Air gun

Optionals

• Spare Ø420 mm (16.5") saw blade
• 20 litres (5.3 gal) pail of cutting fluid
• Roller conveyor with mechanical stop
• Roller conveyor with hand-winding digital stop
• Roller conveyor with motorized stop
• Chip collector (model sized to machine capacity)

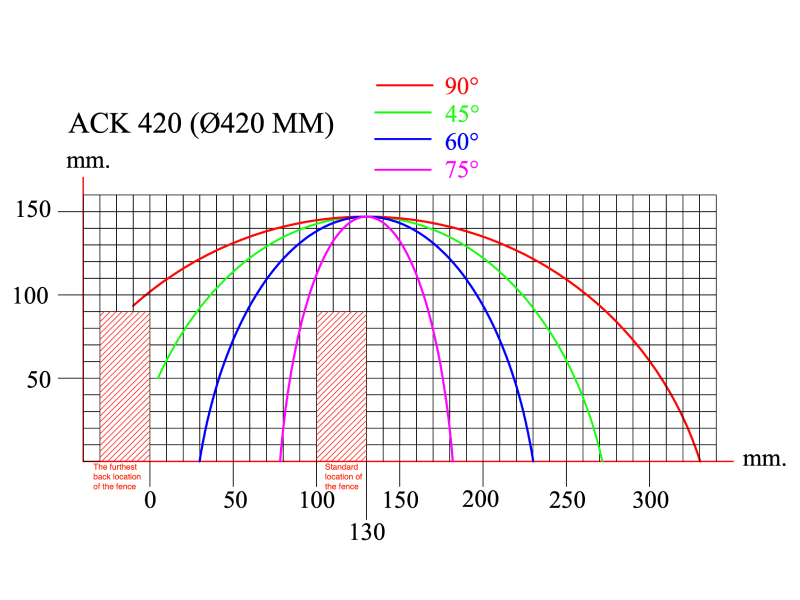

Cutting diagram
