MECAL SW 550 PLUS

General

The SW 550 Plus uses a hydro-pneumatic cylinder to raise the blade from the rear, providing consistent feed speed and excellent cutting stability. During operation, the operator engages two pushbuttons simultaneously; once the cut is completed and either button is released, the blade retracts automatically into its protective housing, ensuring a safe and controlled cutting sequence.

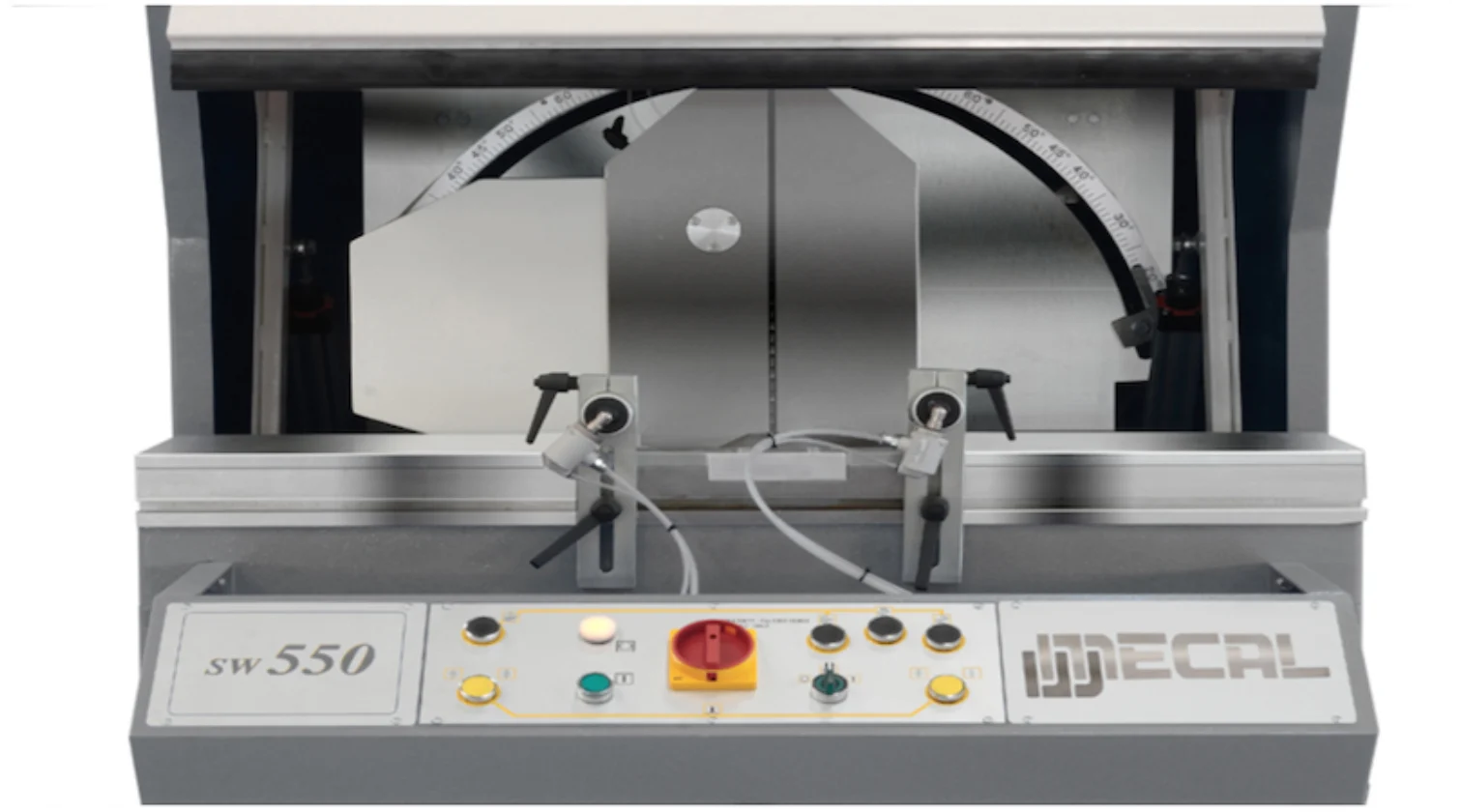

Two horizontal pneumatic clamps secure the extrusion firmly in position, maintaining accurate alignment throughout the cut. The saw head can tilt ±22.5° left and right, enabling the execution of common mitre angles such as 22.5°, 45°, 90°, 135°, and 157.5°. Intermediate angles are achieved through adjustable mechanical stops, allowing flexibility for custom cutting requirements.

A full protective hood, adjustable blade stroke, front access to the blade compartment, and a chip-collection path integrated into the base all contribute to efficient and safe operation. With its large cutting capacity, rigid construction, and reliable hydro-pneumatic control, the SW 550 Plus is built for demanding aluminum fabrication environments.

Features

• Hydro-pneumatic blade feed for consistent cutting
• Ø550 mm (21.6") blade provides large cutting capacity
• Mitre capability at 22.5°, 45°, 90°, 135°, and 157.5°
• Intermediate angles adjustable via mechanical stops
• Tilting saw head ±22.5° (left and right)
• Fully isolating safety guard for enhanced protection and reduced noise
• Adjustable blade stroke and feed speed
• Two-hand safety control system
• Dust and chip evacuation directed to the center of the base
• Venturi misting system for blade lubrication
• Frontal protection hood
• LCD angle display for precise intermediate angle positioning
• Adjustable leveling feet for stable installation

Technical Data

• Motor power: 2.2 kW (3 HP)
• Voltage: 230 V, 60 Hz
• Blade diameter: Ø550 mm (21.6")
• Blade hub diameter: Ø30 mm (1.18")
• Blade speed: 2800 RPM
• Tilting range: ±22.5°
• Machine weight: 760 kg (1675 lbs)
• Air pressure: 6–8 bar (87–116 psi)
• Air consumption: 16 L/min (5 gal/min)

Standard Equipment

• 1 × Ø550 mm (21.6") saw blade
• 2 × pneumatic horizontal clamps
• Venturi-type spray mist lubrication system
• Dust and chip extraction outlet
• Chip-collection tray

Optionals

• Spare Ø550 mm (21.6") saw blade
• 20-litre (5.3 gal) pail of cutting fluid
• Roller conveyor with mechanical stop
• Roller conveyor with hand-winding digital stop
• Roller conveyor with motorized stop
• Chip collector
