YILMAZ ST 264

General

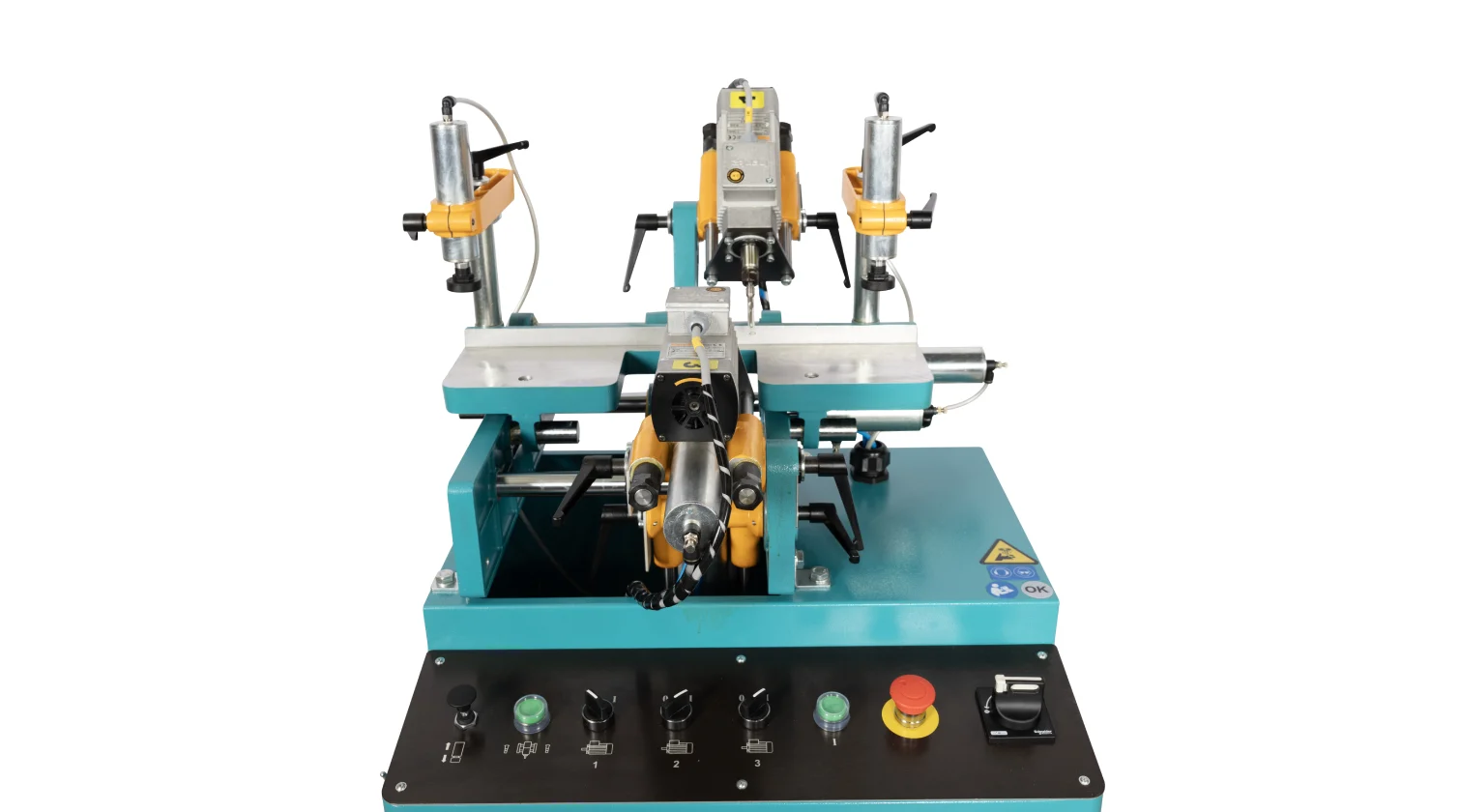

The Yilmaz ST 264 is a professional-grade Water Slot Machine for PVC Profiles and aluminum, built to streamline the process of opening water drain channels with speed and accuracy. Its operation is entirely pneumatic, ensuring consistent and fast results. The machine is equipped with three router spindles that can be operated independently in three separate axes or in pairs, offering exceptional versatility for a variety of profile types. The length and depth of the water slots can be quickly and precisely adjusted with stoppers. The machine features two pneumatic clamps that securely hold the profile in place, while a movable table pneumatically corrects for any profile axis misalignments. The user-friendly PLC control system and simple one-button start make the ST 264 an ideal Water Slot Machine for PVC Profiles for high-volume production.

Features

• A Water Slot Machine for PVC Profiles that also operates on aluminum.
• The water slot opening process is completed pneumatically.

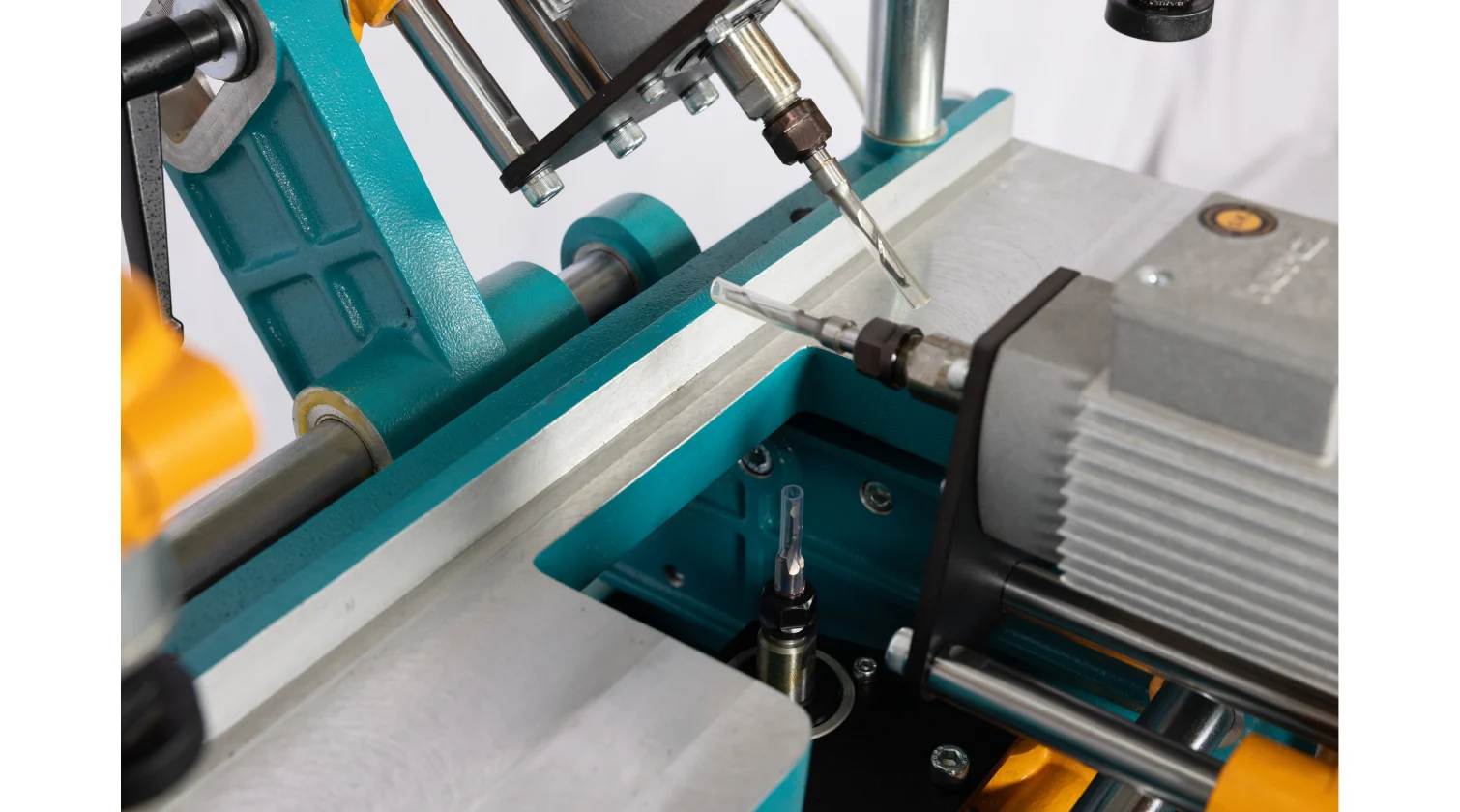

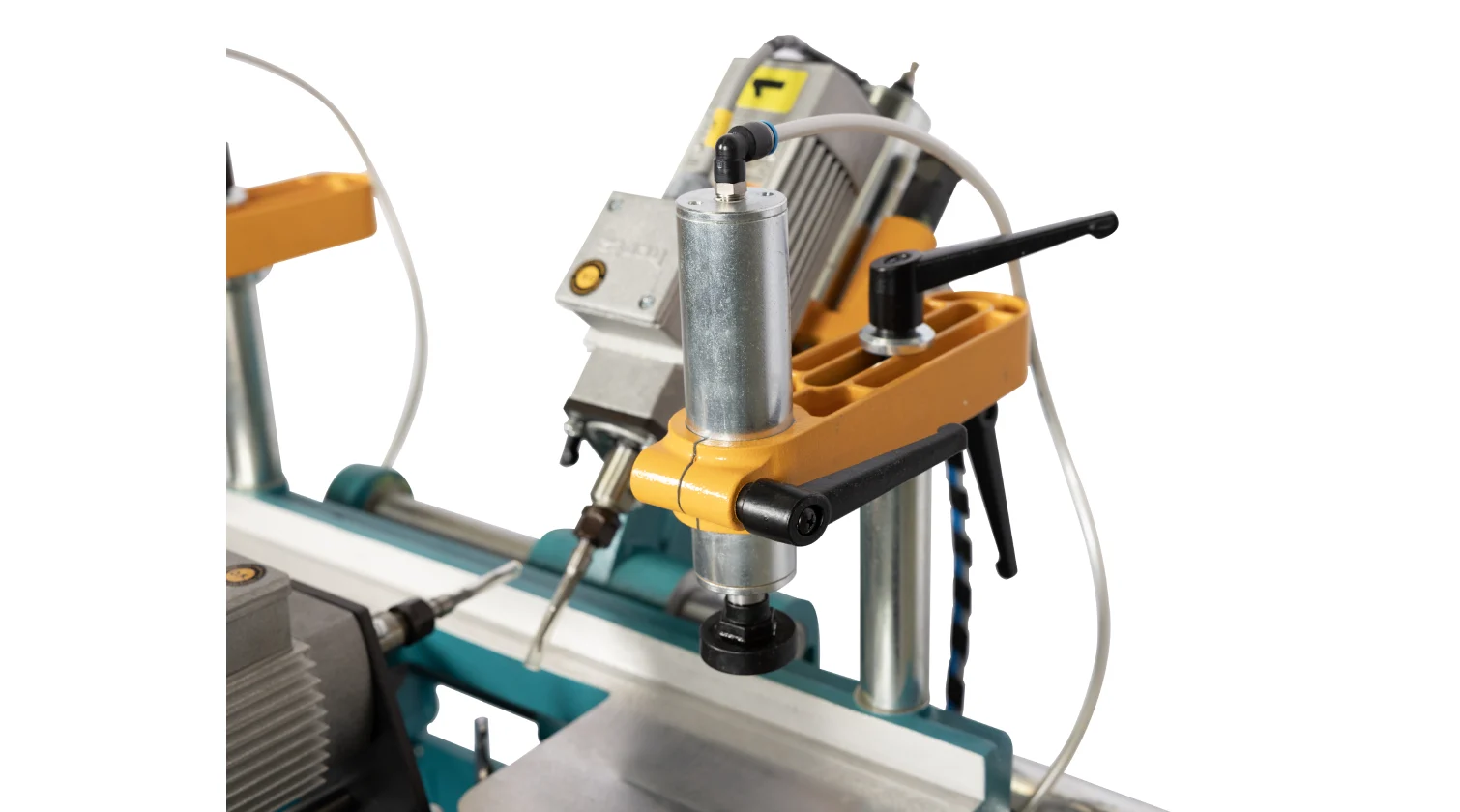

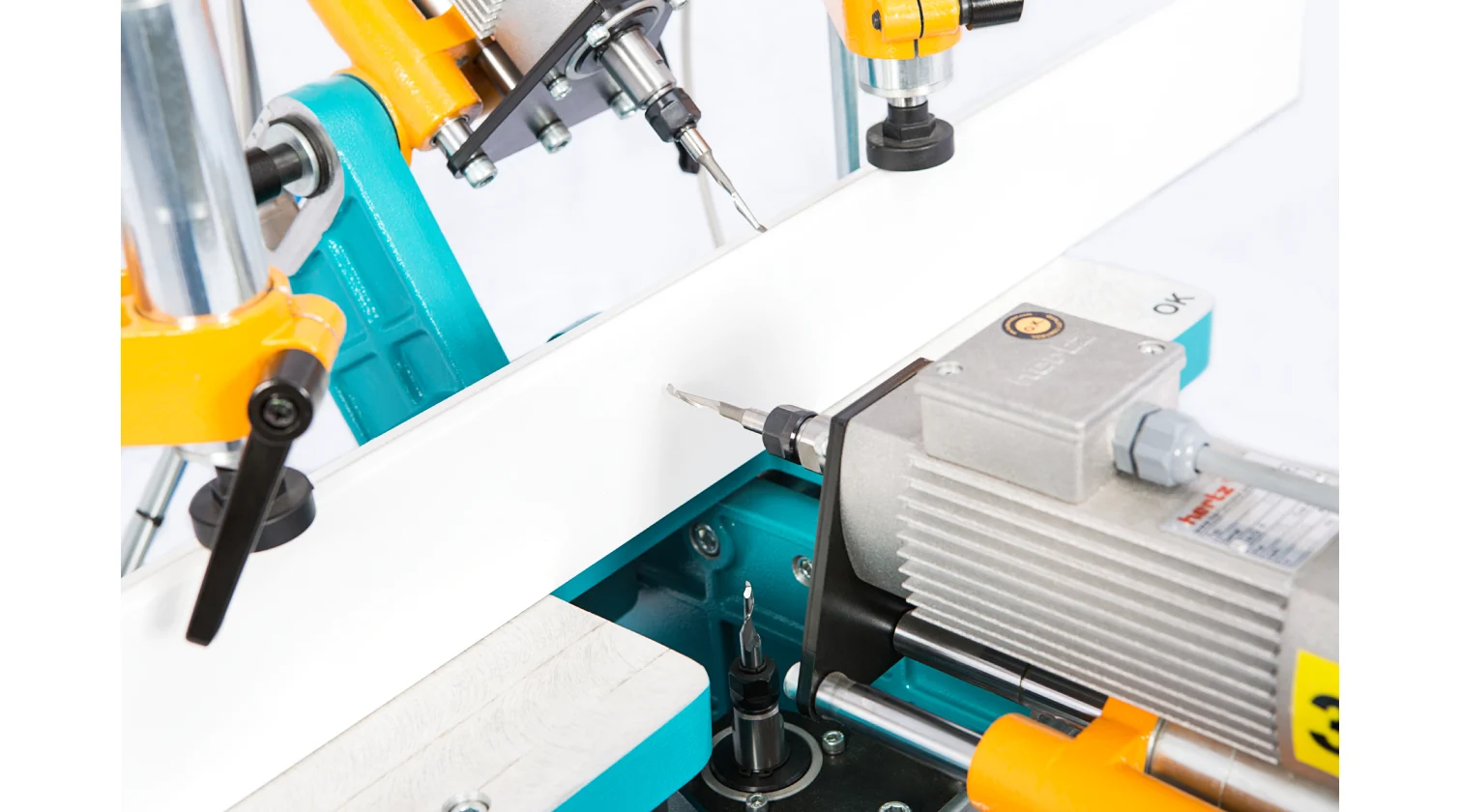

• Three router spindles that can work separately in three axes or two at the same time.

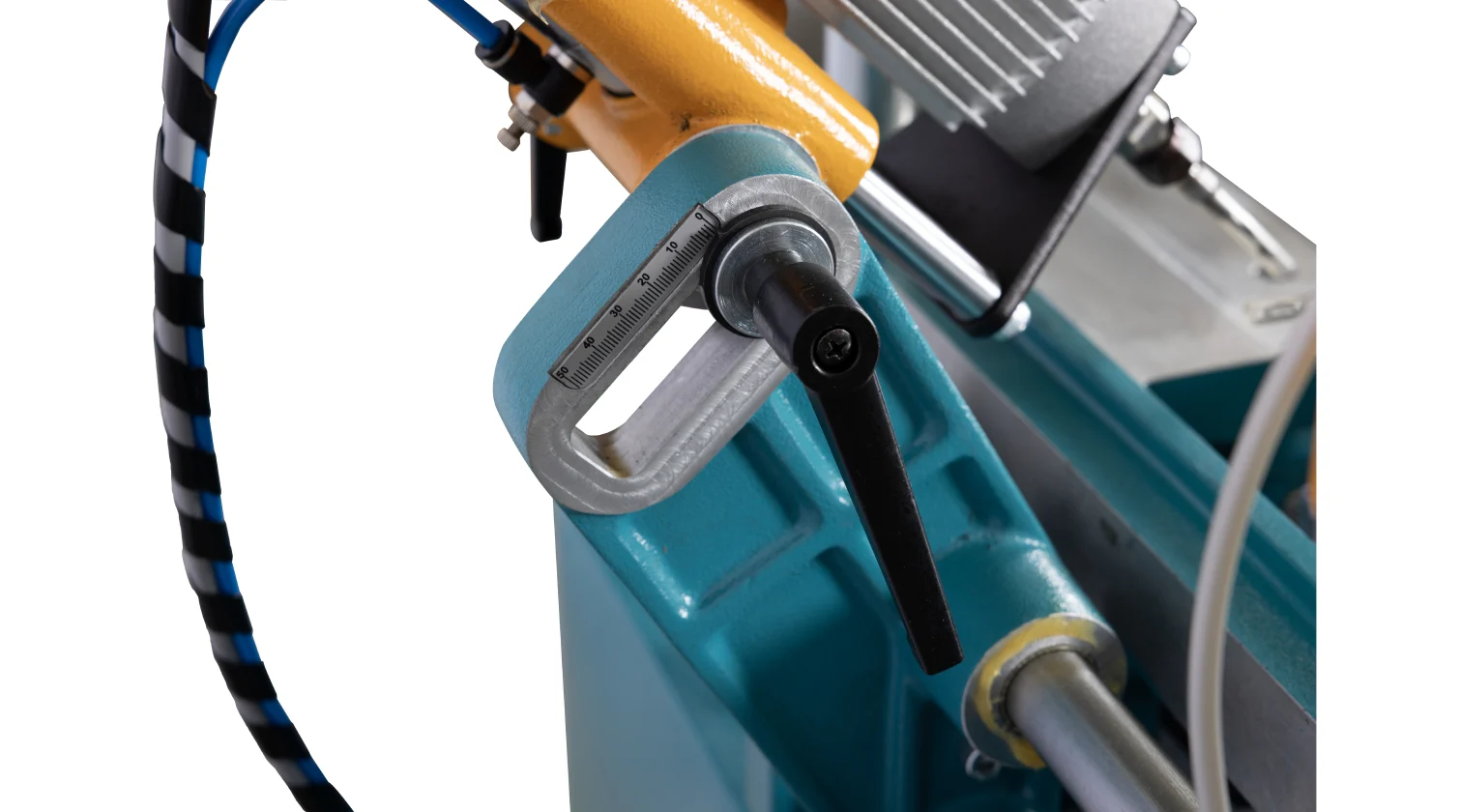

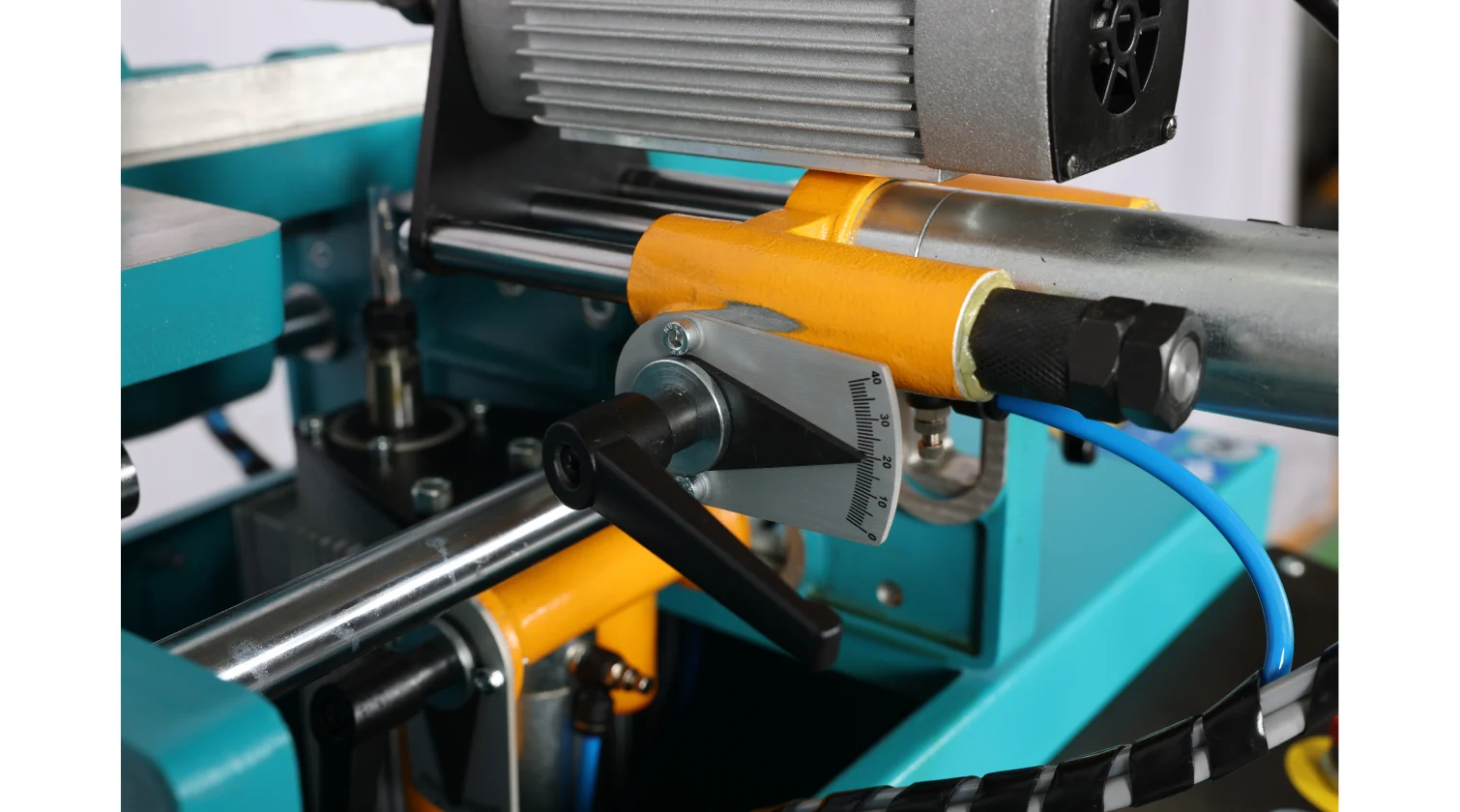

• The length and depth of the water slot are easily and practically adjusted using stoppers.
• The speed of the pneumatically controlled motor movement is adjustable.
• Two pneumatic clamps ensure precise machining of the profile.

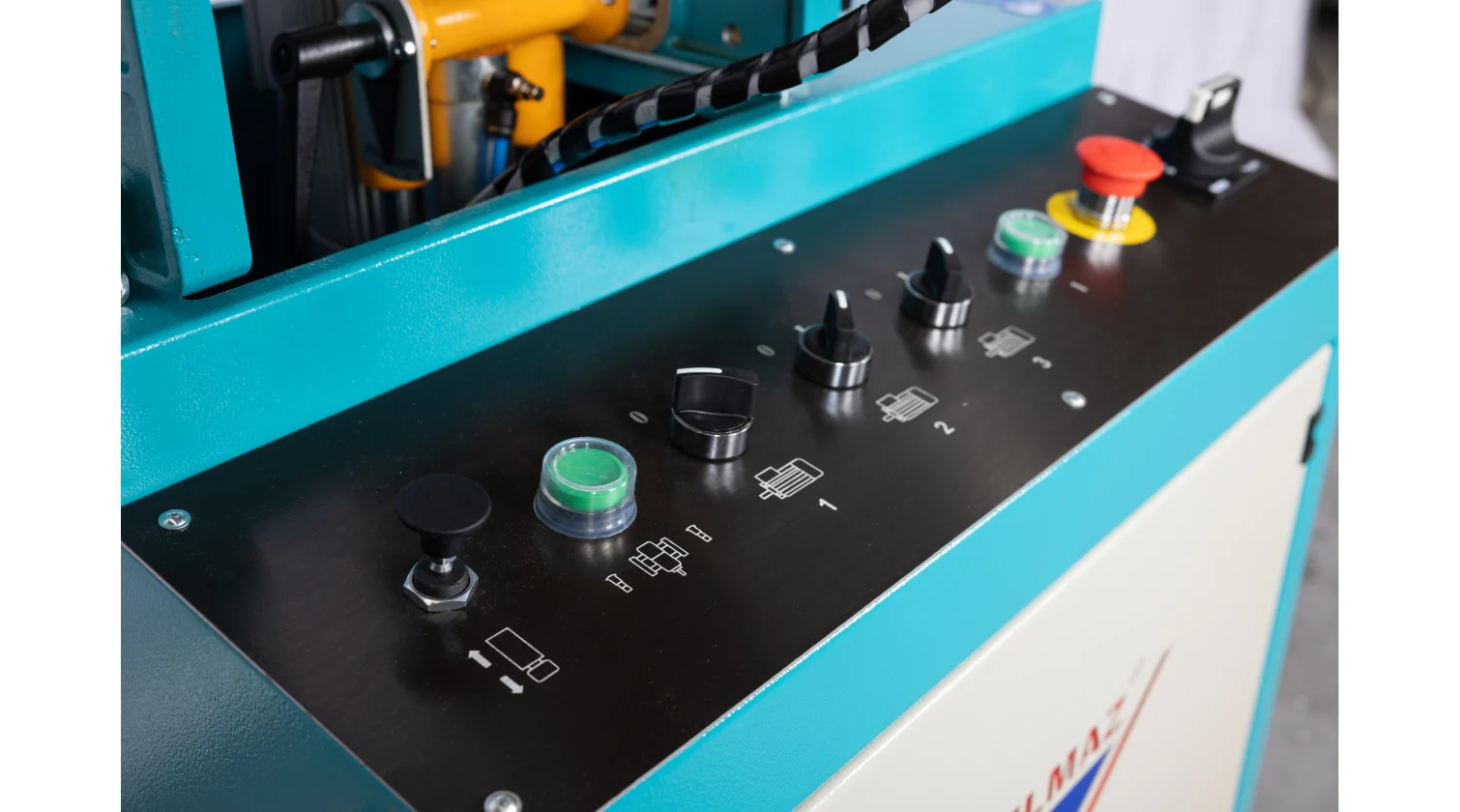

• Milling starts automatically with a single push of a button.
• A movable table pneumatically adjusts for axis misalignments in profiles.
• Motor selection is performed via switches.
• The machine is controlled by a PLC system.

Technical Data

• Motor Power: 0.55 kW (0.74 hp) x 3.
• Spindle Speed: 18,000 RPM.
• Air Pressure: 6-8 bar (87-116 psi).
• Air Consumption: 19 L/min (0.67 CFM).
• Maximum Profile Dimensions: H: 115 mm (4.5") x W: 100 mm (3.9").
• Machine Dimensions (W x L x H): 73 x 61 x 130 cm (28.7" x 24.0" x 51.2").
• Weight: Net: 78 kg (172 lbs). Gross: 116 kg (256 lbs).

Standard Equipment

• 1 x Ø5×L80 mm (3/16" x 3.15") Milling cutter.
• 1 x Ø5×L60 mm (3/16" x 2.36”) Milling cutter.
• Service keys.
• Air gun.

Optionals

• Additional Ø5×L60 mm (3/16" x 2.36") cutter bit.
• Additional Ø5×L80 mm (3/16" x 3.15”) cutter bit.
