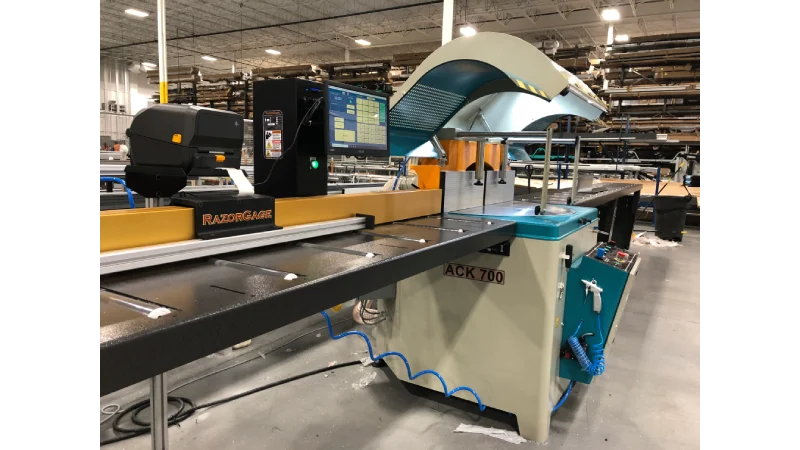

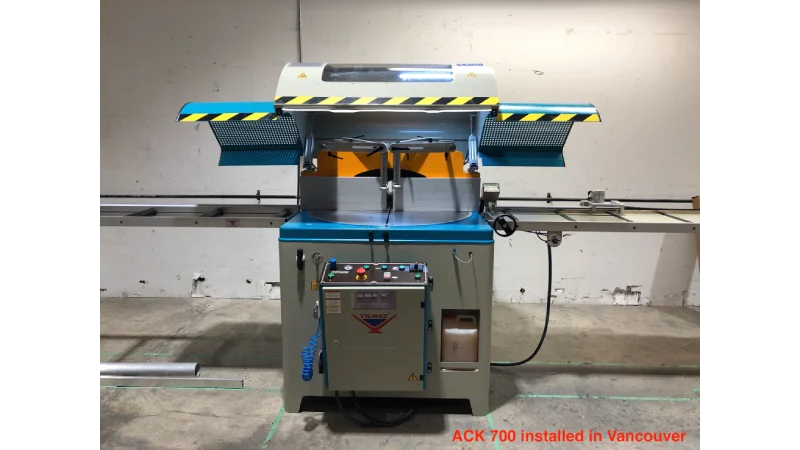

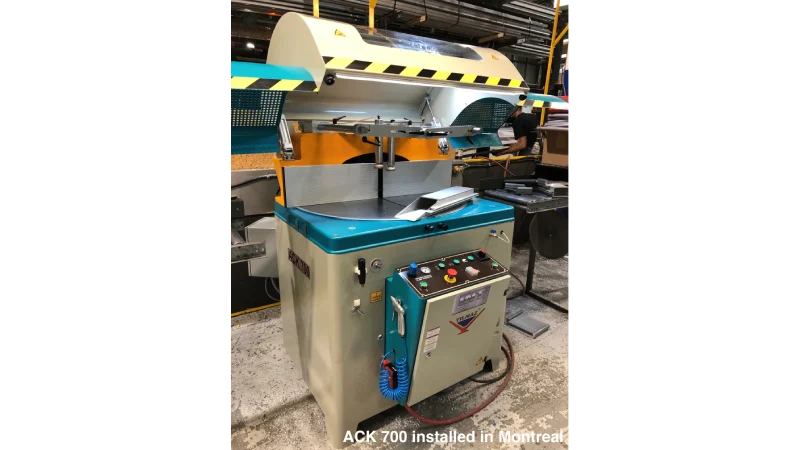

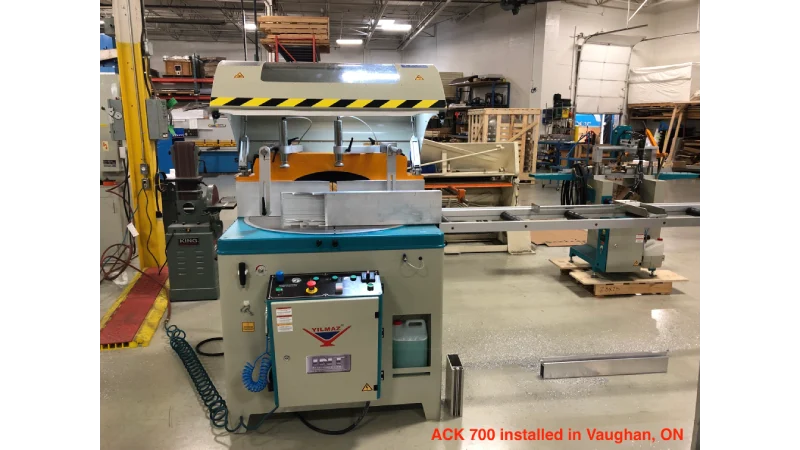

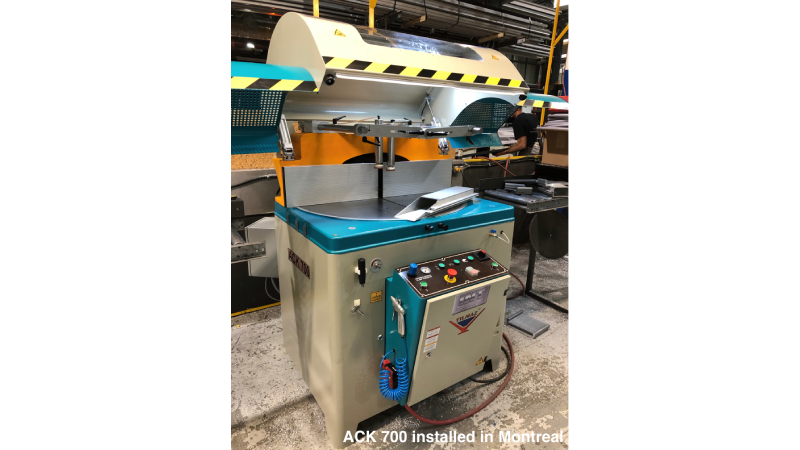

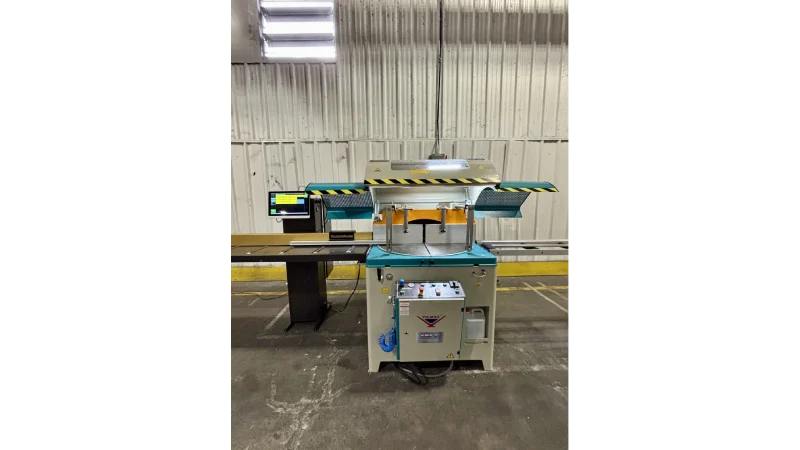

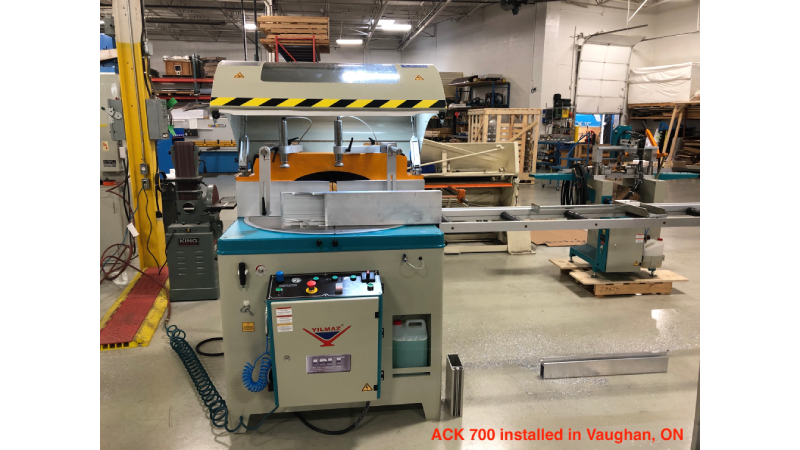

YILMAZ ACK 700

General

The ACK 700 provides powerful and accurate cutting performance through its hydro-pneumatic up-cut blade mechanism. Once the material is clamped and the safety hood is closed, the operator activates the two-hand control system to raise the blade smoothly through the profile. Releasing either button immediately returns the blade to its resting position, offering a highly controlled and safe cutting process.

The rotating table enables miter adjustments to both left and right, supporting cuts from −75° to +75°. Common mitre angles are quickly selected via preset detents, while all intermediate angles are adjusted precisely with the friction-stop system. An adjustable pair of double-acting clamps provides firm hold-down during the cut, and the pneumatically operated safety guard ensures a fully enclosed cutting area.

Interior LED lighting, dual chip-extraction ports, and accessible front-and-rear service points support clean, efficient operation. With its very large blade capacity and rugged construction, the ACK 700 is built for high-duty production environments handling extra-large aluminum extrusions.

Features

• Ø700 mm (27.5”) saw blade
• Two-hand control for safe up-cut operation
• Hydro-pneumatic blade feed with infinitely adjustable feed speed
• Pivoting range: −75° left to +75° right
• Angle detents at 75°, 60°, 45°, 30°, 22.5°, 15°, 0° on both sides
• Intermediate angles set via friction stop
• Pneumatically operated safety guard with interlock switch
• Double-acting clamps for secure profile hold-down
• Safety interlock switch on front access door
• Extended infeed and outfeed hood covers to prevent access during cutting
• LED illumination inside cutting area
• Chip extraction ports positioned at top and bottom
• Easy blade-change access from front or back

Technical Data

• Blade diameter: Ø700 mm (27.5")
• Motor power: 4 kW (5.4 HP)
• Voltage: 230 V, 3-phase, 50/60 Hz
• Blade speed: 2000 RPM
• Electrical load: Requires 30 A fuse
• Pivoting range: −75° to +75°
• Angle detents: 75°, 60°, 45°, 30°, 22.5°, 15°, 0° (left/right)
• Air consumption: 50 L/min (11.4 gal/min)
• Air pressure: 6–8 bar (87–116 psi)
• Machine weight: 500 kg (1102 lbs)

Standard Equipment

• 1 × Ø700 mm (27.5") saw blade
• Spray-type blade lubrication system
• 2 × pneumatic vertical clamps
• 2 × pneumatic horizontal clamps
• Air blower gun

Optionals

• Spare Ø700 mm (27.5") saw blade
• 20-litre (5.3 gal) pail of cutting fluid
• Roller conveyor with mechanical stop
• Roller conveyor with hand-winding digital stop
• Roller conveyor with motorized stop
• Chip collector (capacity sized to machine output)

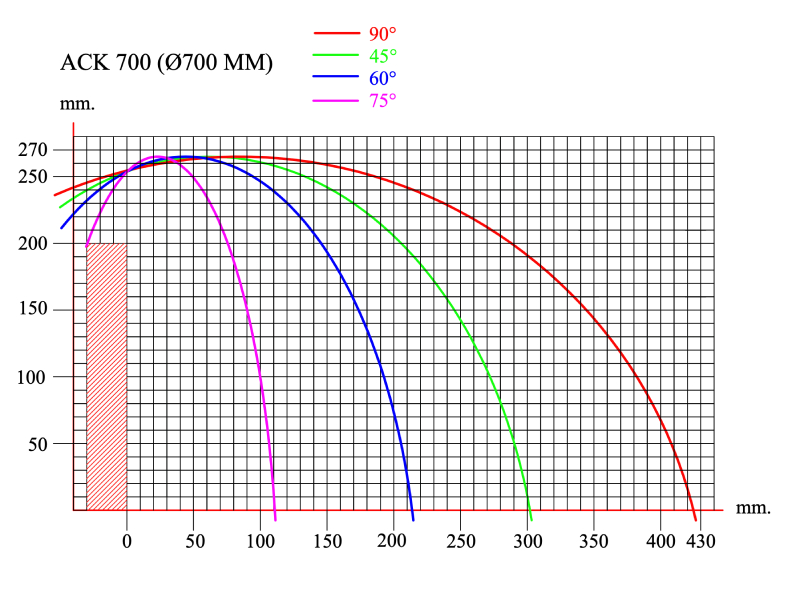

Cutting diagram
