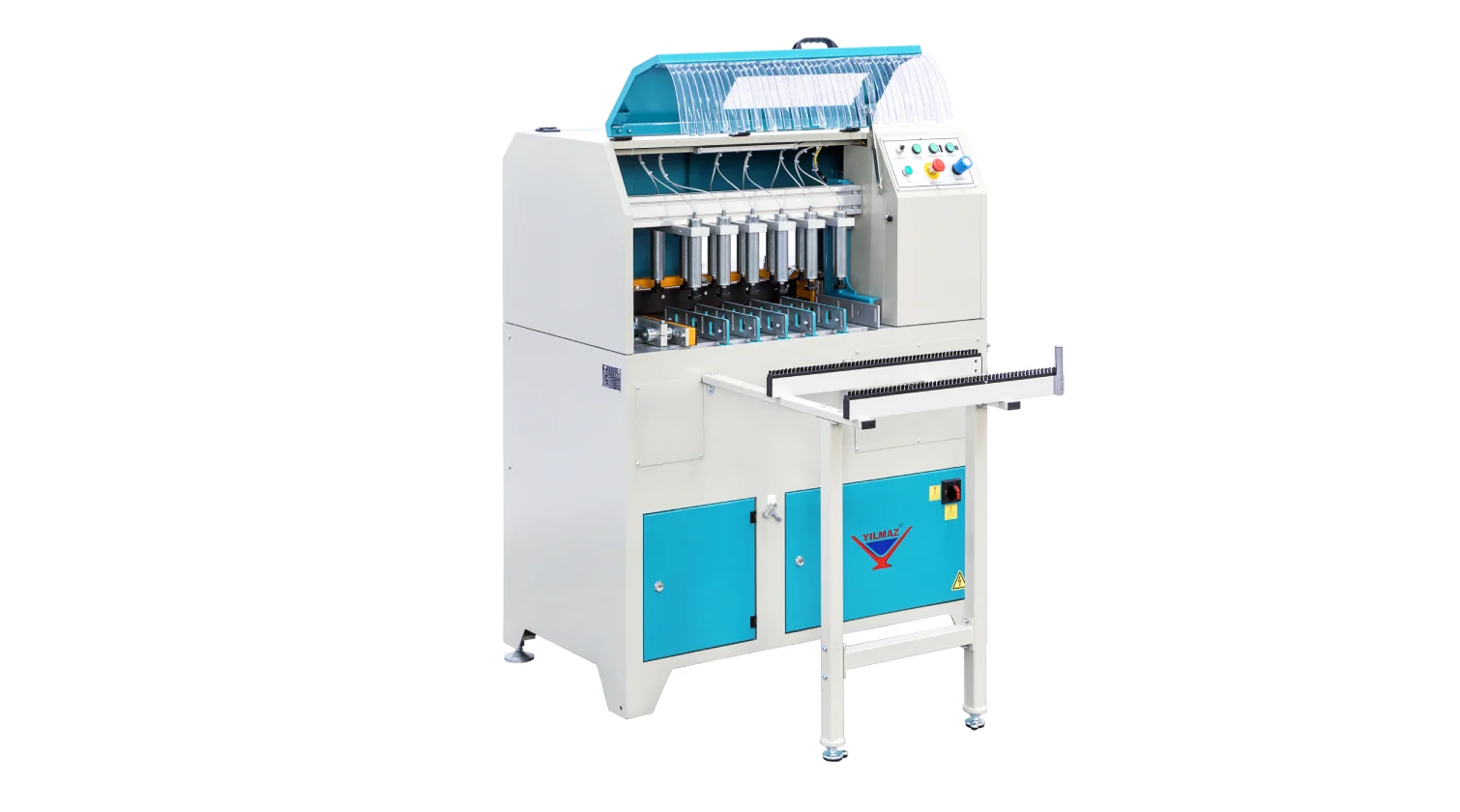

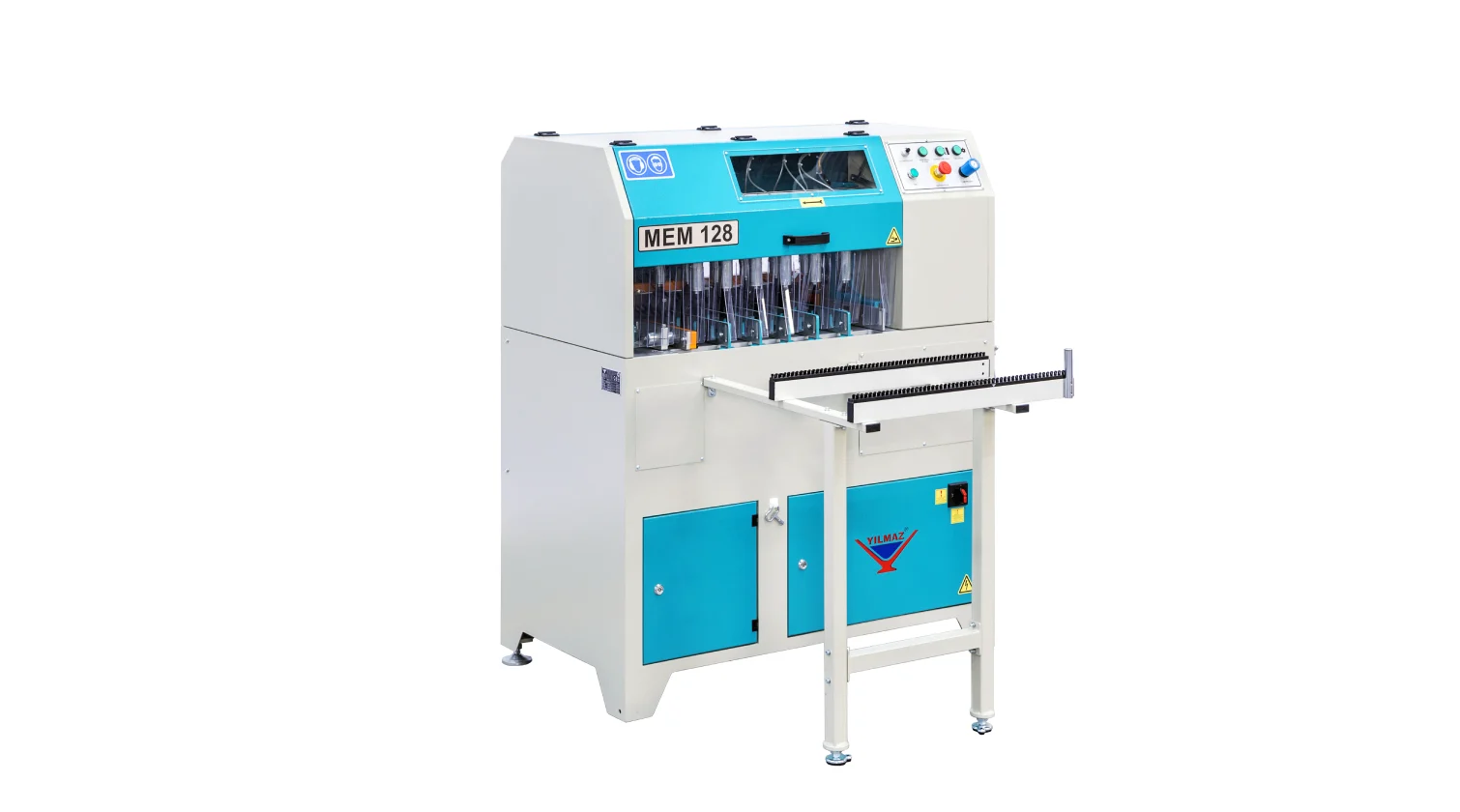

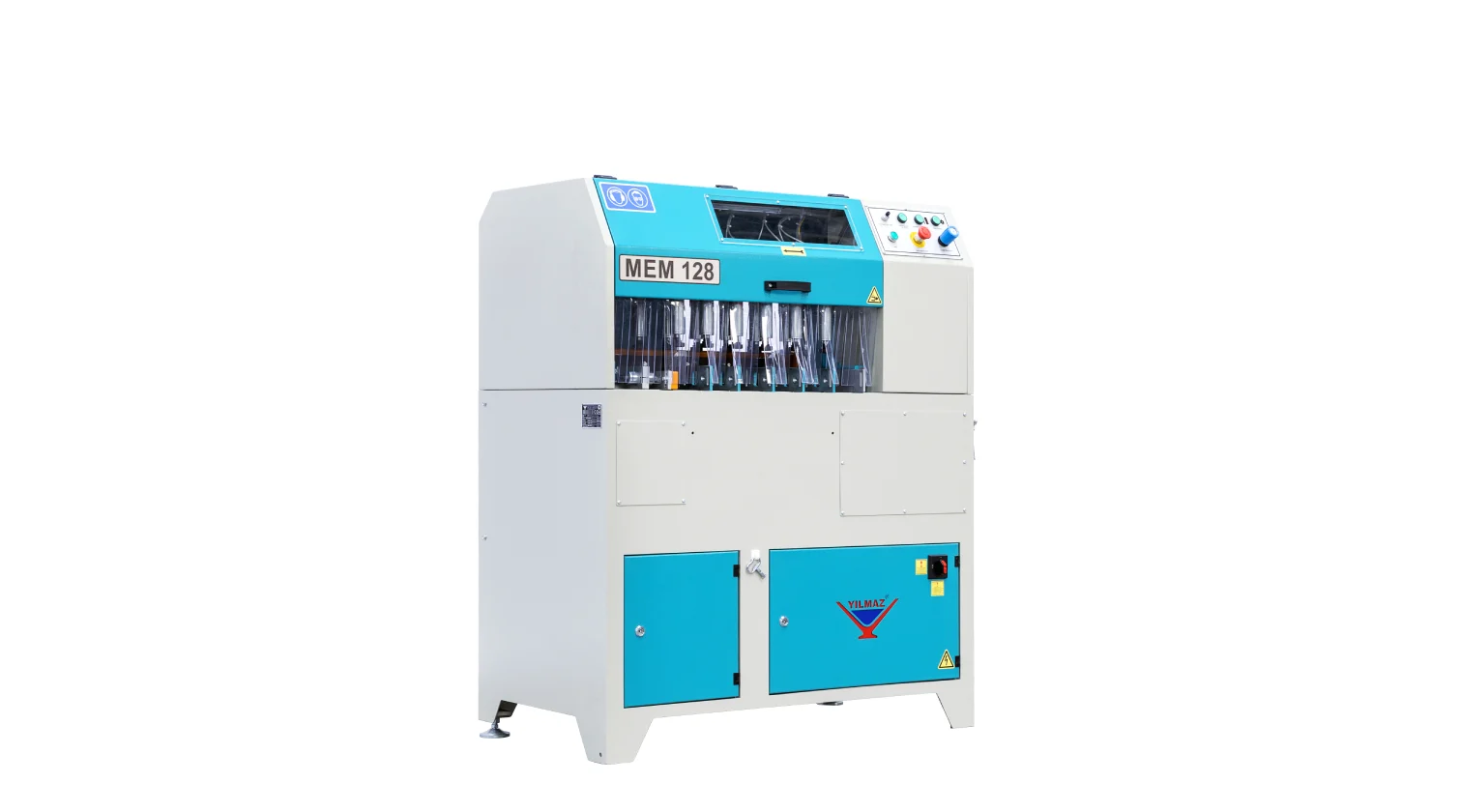

The Yilmaz MEM 128 is a heavy-duty Multiple Profile End Milling Machine developed for simultaneous end-milling of PVC and aluminum window/door profiles. With independently adjustable clamps, high-precision cutter feed, and large profile capacity, it elevates productivity in high-volume fabrication environments.
General
The Yilmaz MEM 128 is engineered to deliver efficient, accurate, and repeatable end-milling on multiple PVC and aluminum profiles at once. Profiles are placed into dedicated slots and securely clamped by 12 pneumatic vertical clamps and a common horizontal clamp, ensuring proper squareness and stable positioning during milling.
The cutter head feed is driven by an electric motor and belt system, providing adjustable feed speed to match material type and cutter size. Through an inverter-controlled motor, operators can precisely optimize cutter RPM for PVC or aluminum.

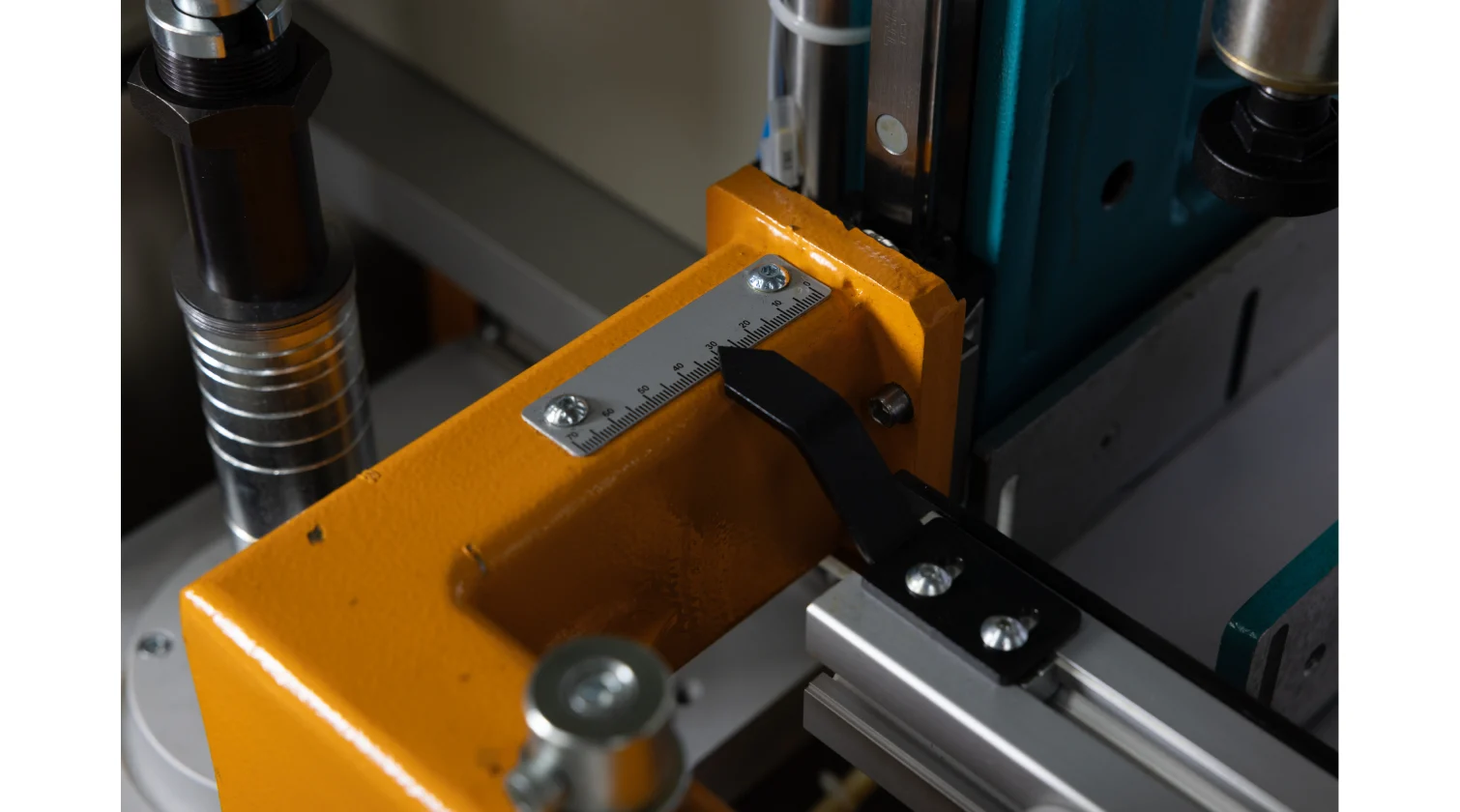

Adjustable separator blocks and sliding clamp assemblies allow quick width adjustments and make the system suitable for a wide variety of profile shapes. The machine’s rigid frame, front-mounted support arms, and enclosed safety guard provide structural stability and safe operation, even when processing long profiles up to 2.5 m (8.2 ft).
A built-in tool storage cabinet, quick-change cutter head, and dual-hand operation further enhance usability and operator safety.
Features
- Motorized cutter feed for consistent milling results

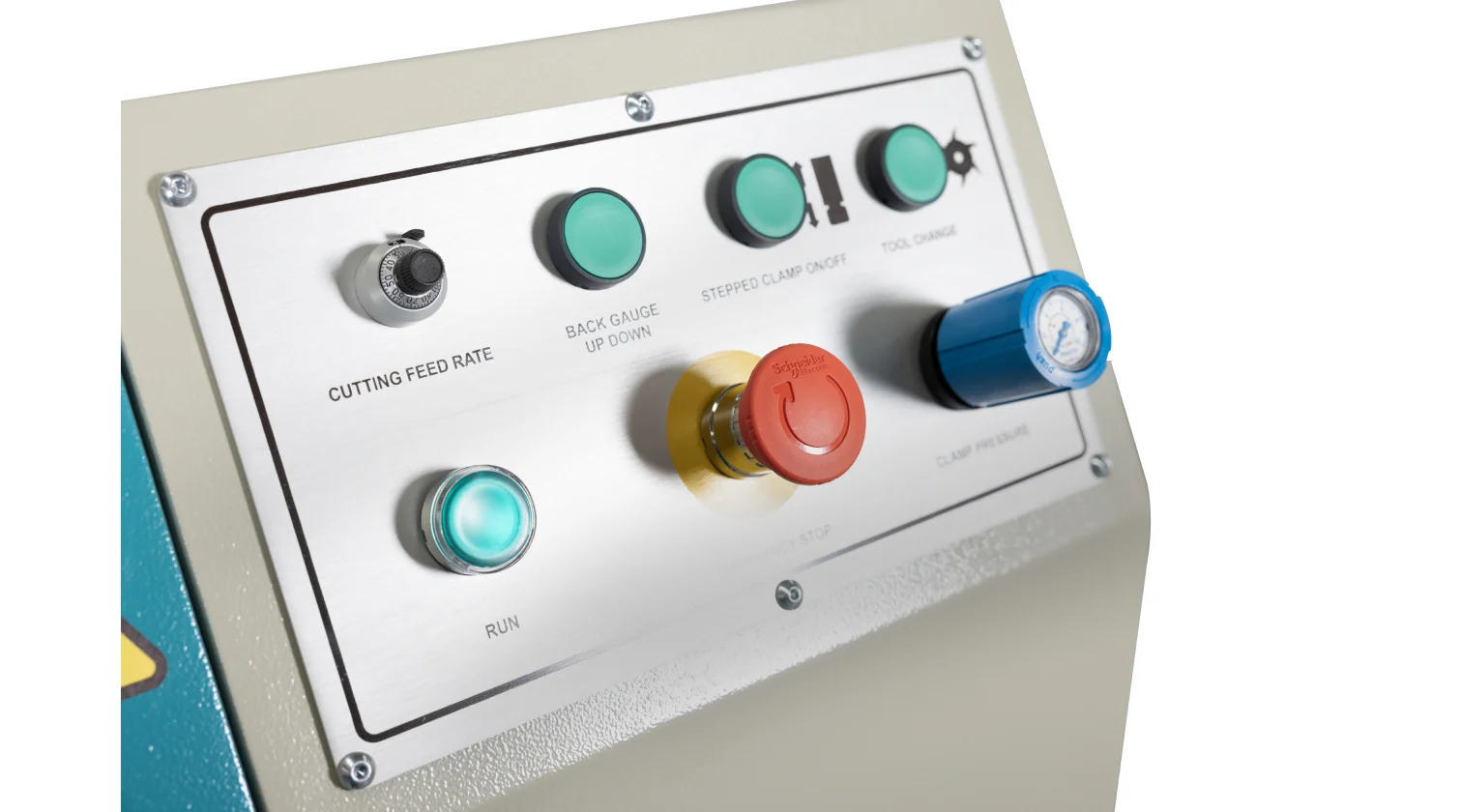

- Adjustable feed speed via potentiometer control on the front panel
- Inverter-controlled cutter motor allows RPM adjustment according to PVC or aluminum profile requirements
- High-quality milling performance supported by adjustable feed characteristics
- Mills 1 to 6 profiles simultaneously, depending on tooling
- Quick-change cutter head for fast setup times

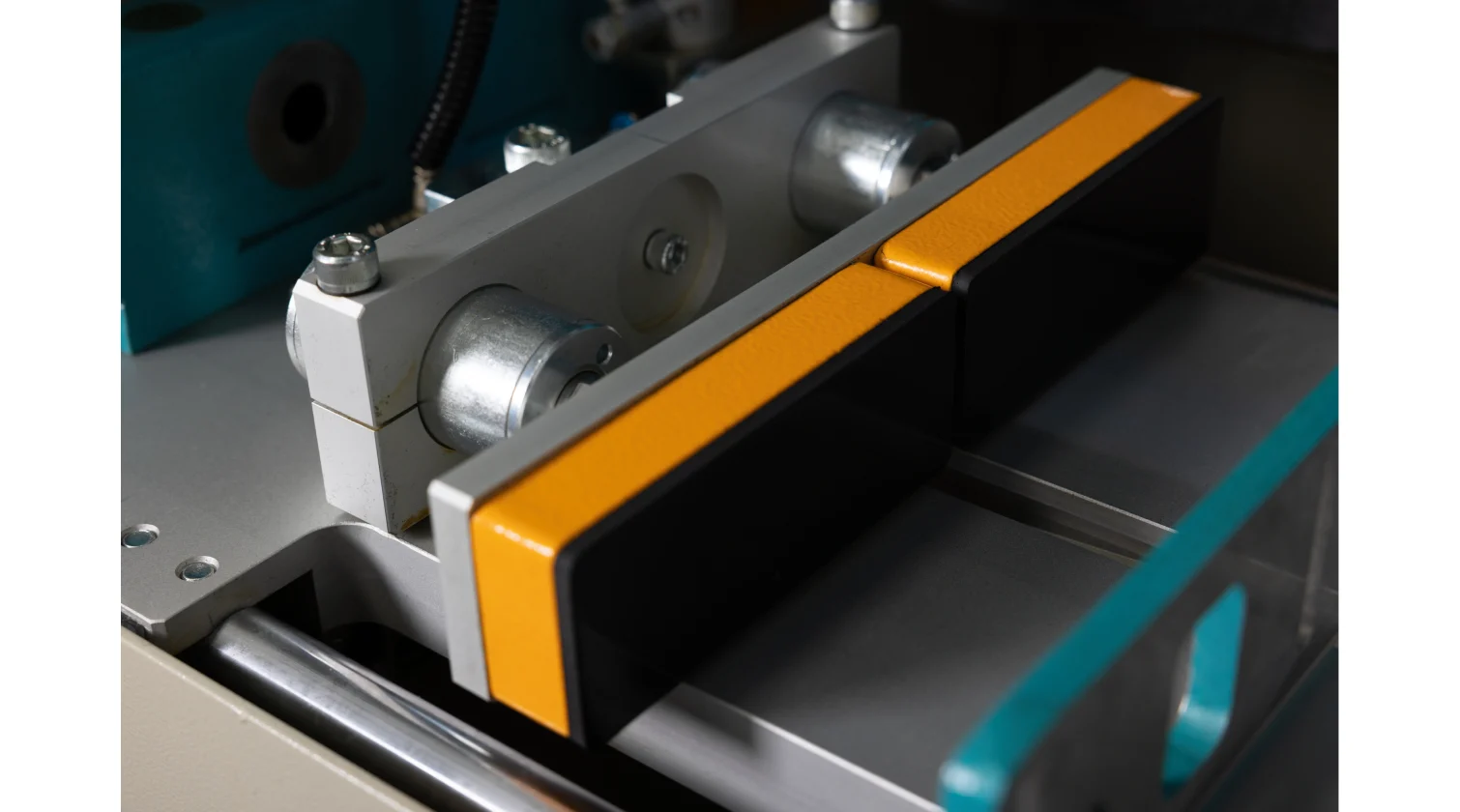

- Secure clamping using:

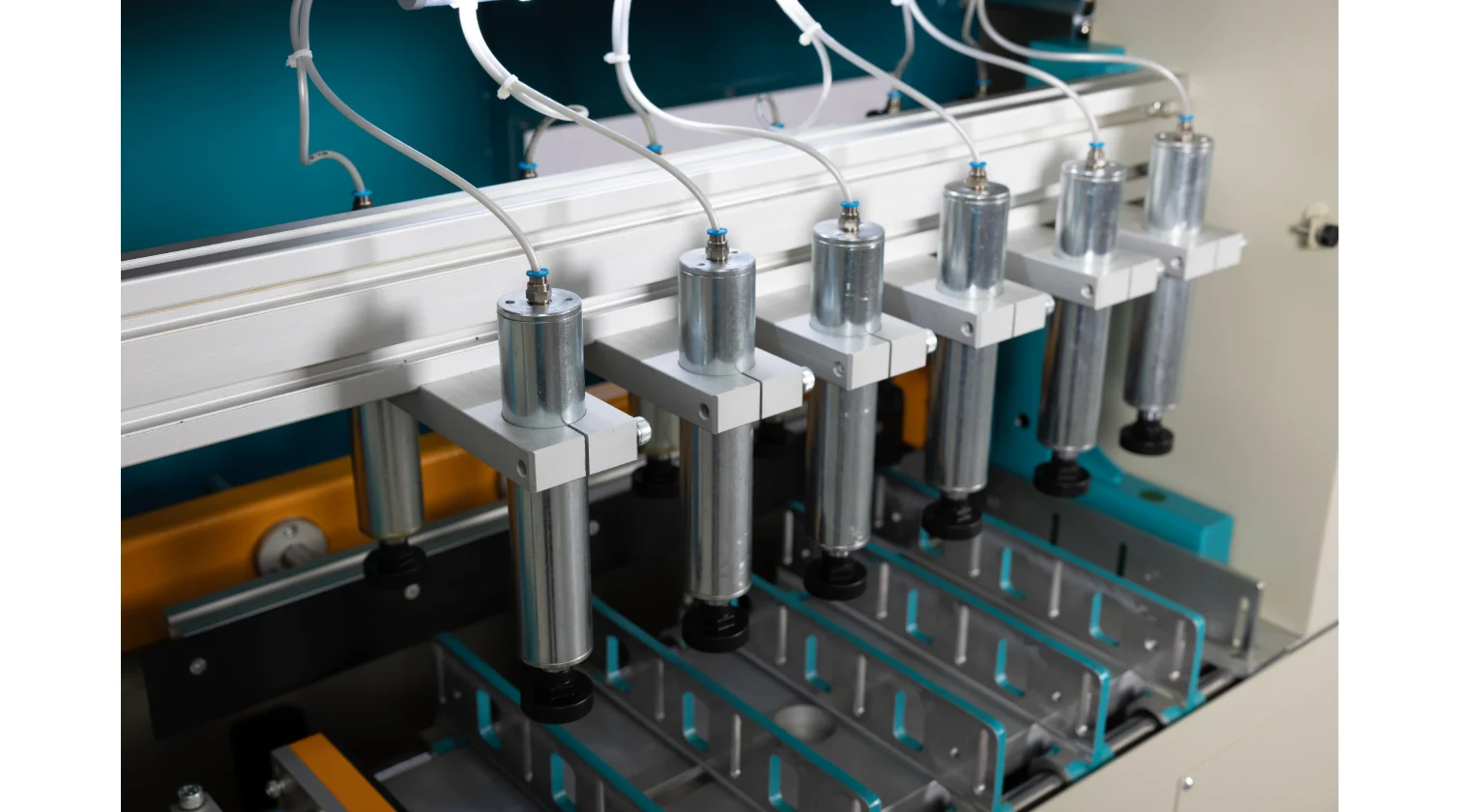

- 12 pneumatic vertical clamps

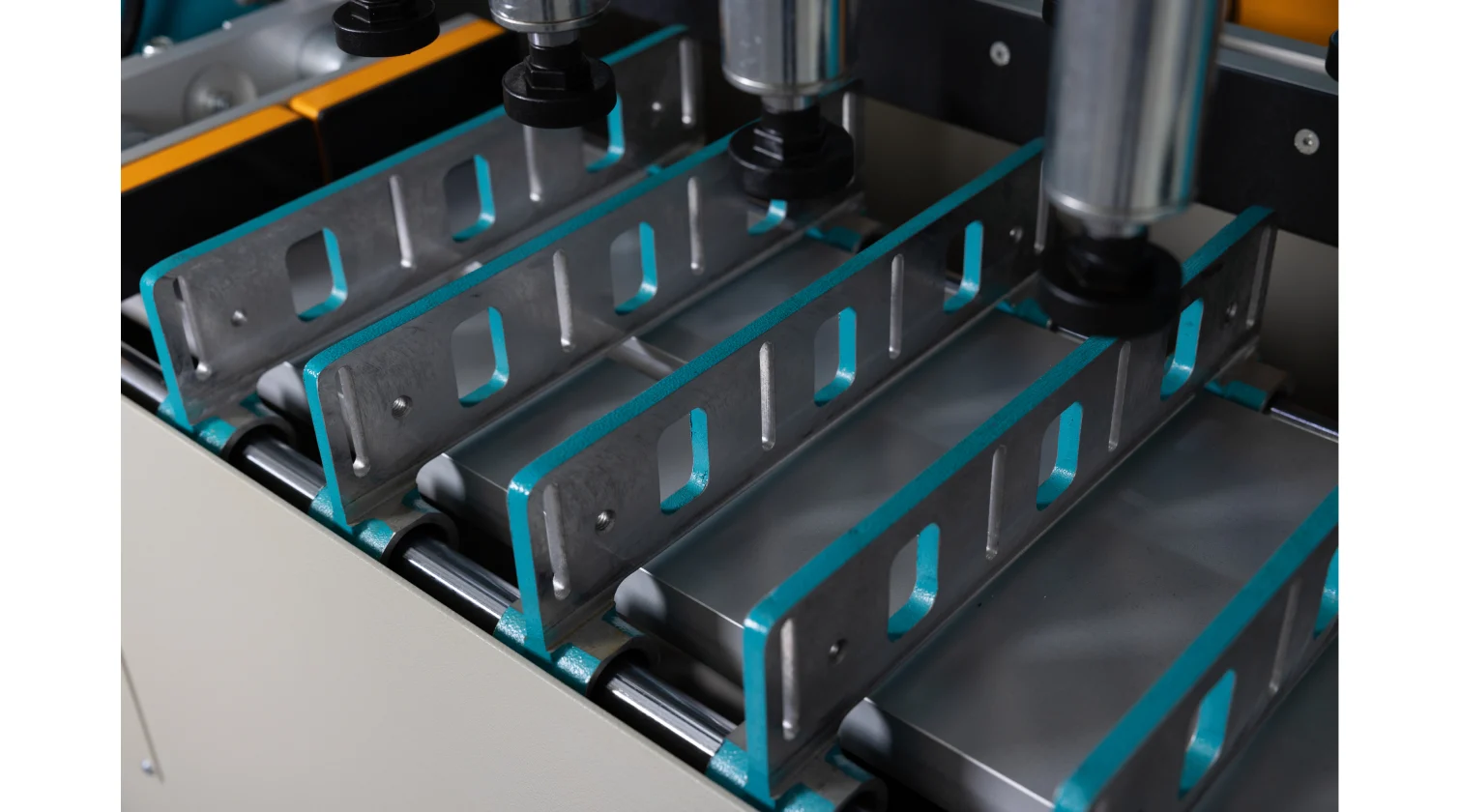

- Adjustable separator blocks
- Horizontal clamp system
- Adjustable clamping pressure
- Safe operation with interlocked safety guard and dual-hand activation

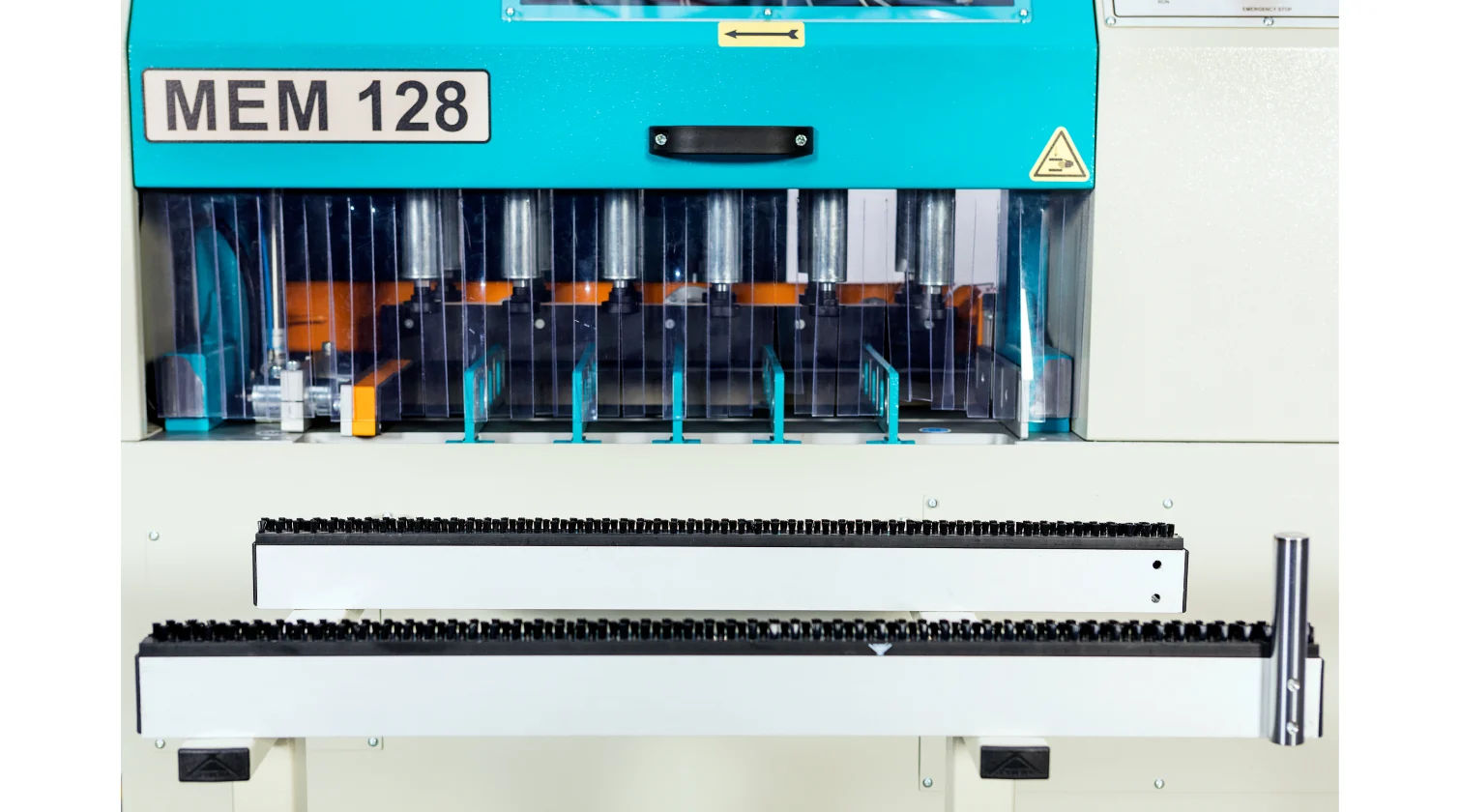

- Large profile capacity, supported by machine-integrated front arms for handling profiles up to 2.5 m (8.2 ft)
- Easy cutter height adjustment using spacer rings and bushings
- Front-mounted tool storage cabinet
- Maximum cutter diameter: Ø185 mm
- Rigid machine structure for long-term industrial use
Technical data
- Maximum milling capacity: H: 150 mm (5.91") × W: 615 mm (24.21")
- Profile clamping capacity: H: 210 mm (8.27") × W: 615 mm (24.21")
- Maximum profile length (with support arms): 2.5 m (8.20 ft)
- Maximum cutter diameter: Ø185 mm (7.28")
- Shaft diameter: Ø30 mm (1.18")
- Motor power: 1.5 kW (2.01 hp)
- Rotation speed: 3000 RPM
- Feed speed: Adjustable via potentiometer
Standard equipment
- 12 × Pneumatic vertical clamps (with adjustable pressure valve)
- Horizontal clamp set for securing profiles
- Spray mist cooling/lubrication system
- Air blower gun
- Adjustable separator blocks
Équipements optionnels
- Fixture sets (profile-specific)
- Additional tooling options depending on profile type
