RAZORGAGE XT

General

The RAZORGAGE RGxT automatic positioner is designed to transform basic saw stations into precise, digital cutting systems. As an upgrade from traditional manual stops, the RGxT eliminates misread tape measures, wasted material, and operator inefficiencies.

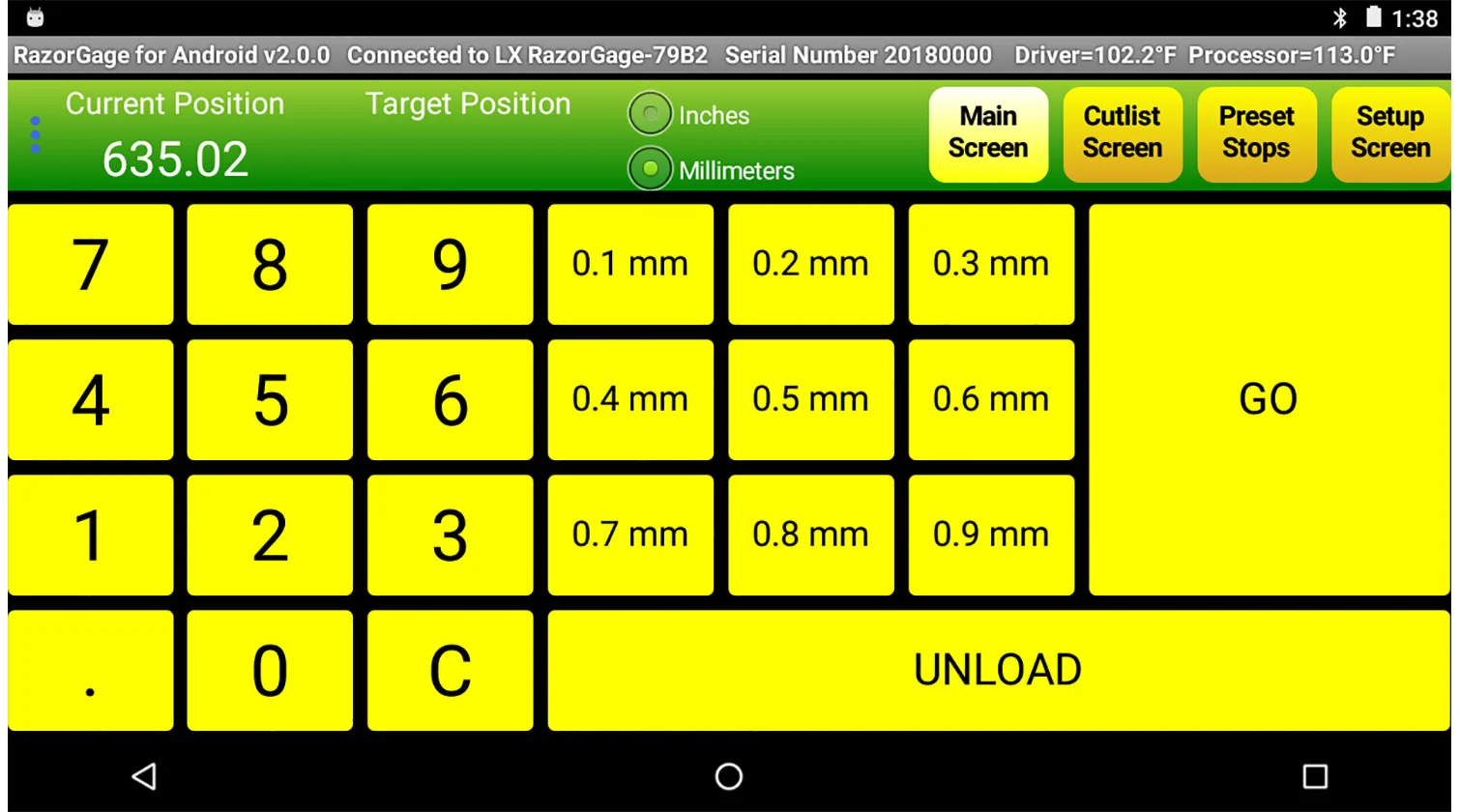

Its Hi-resolution touchscreen interface simplifies operation with intuitive controls, fraction keys, hot keys, decimal and metric input options, and instant access to setup and calibration functions.

Powered by Windows Home OS, the RGxT networks easily through Wi-Fi or Ethernet and includes internal storage capable of housing thousands of cutlists.

Available in 8' and 12' stroke lengths, the RGxT delivers dependable accuracy and repeatability for woodworking, aluminum fabrication, metalworking, and other cutting applications. For operations requiring push-feed capability, RazorGage also offers advanced systems that function as both stop and pusher.

The result:
Less walking. Fewer mistakes. Faster throughput. Every operator becomes your best operator.

Features

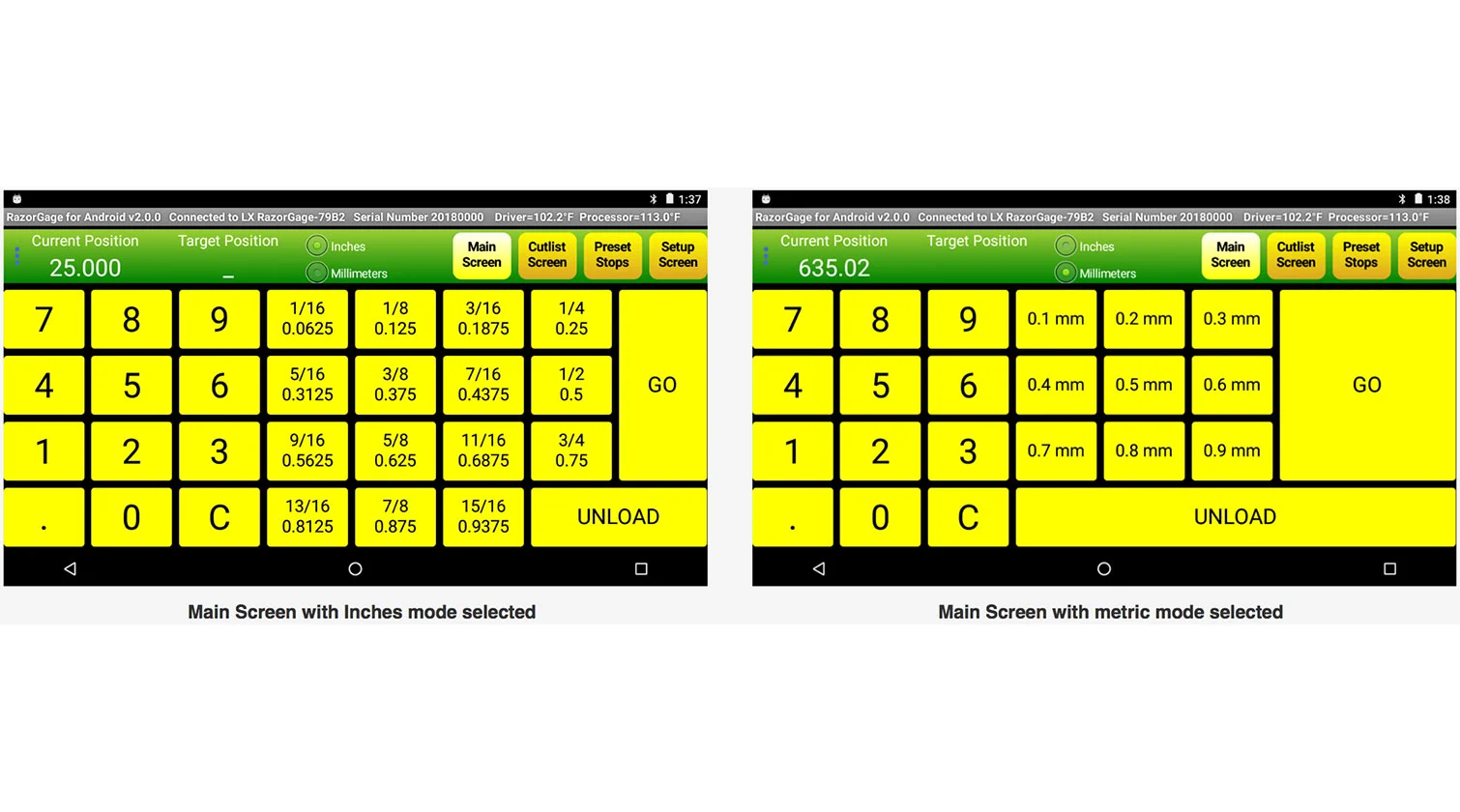

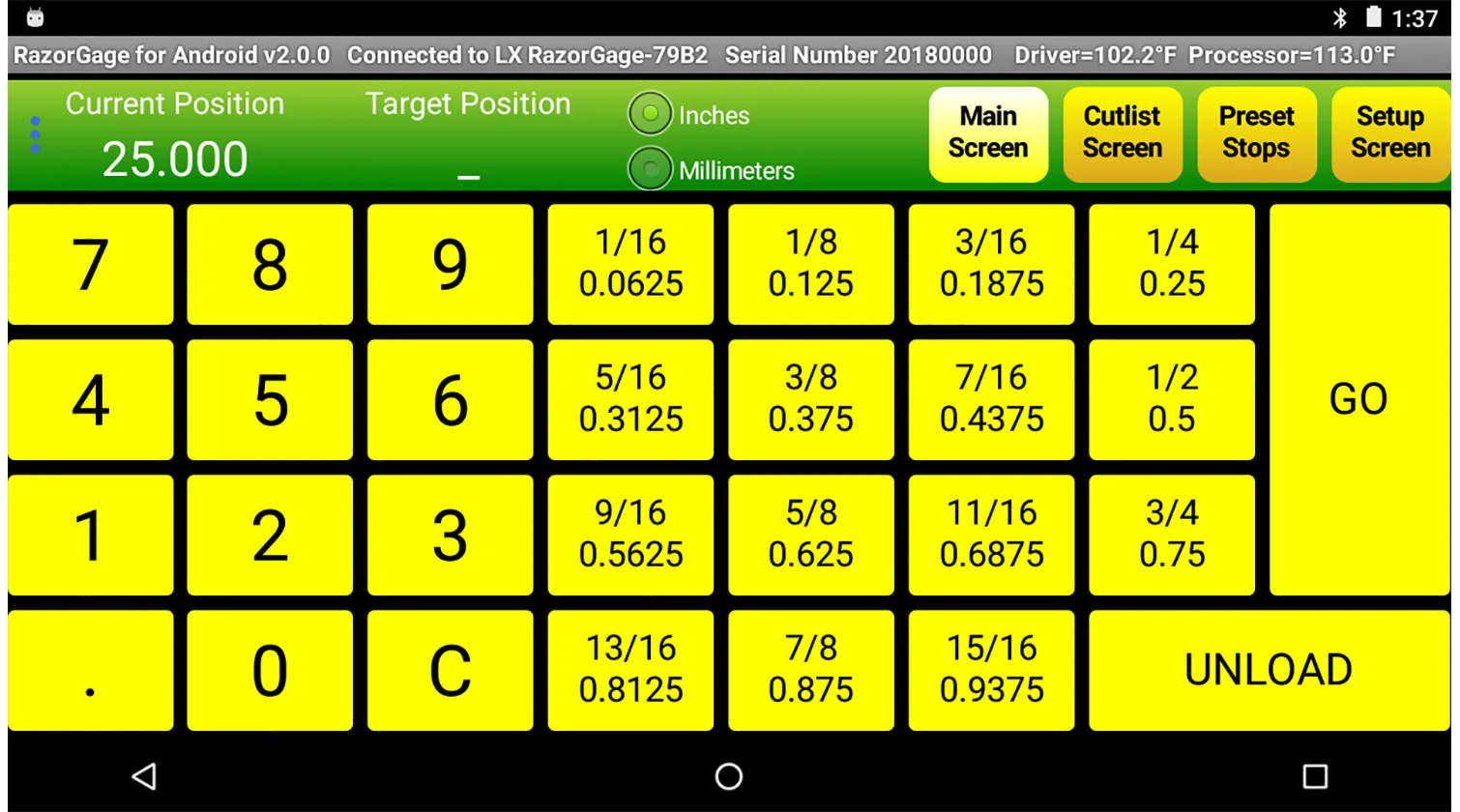

• Intuitive operation with fraction keys, hot keys, and fast touchscreen input
• Windows Home OS for simple networking via Wi-Fi or Ethernet

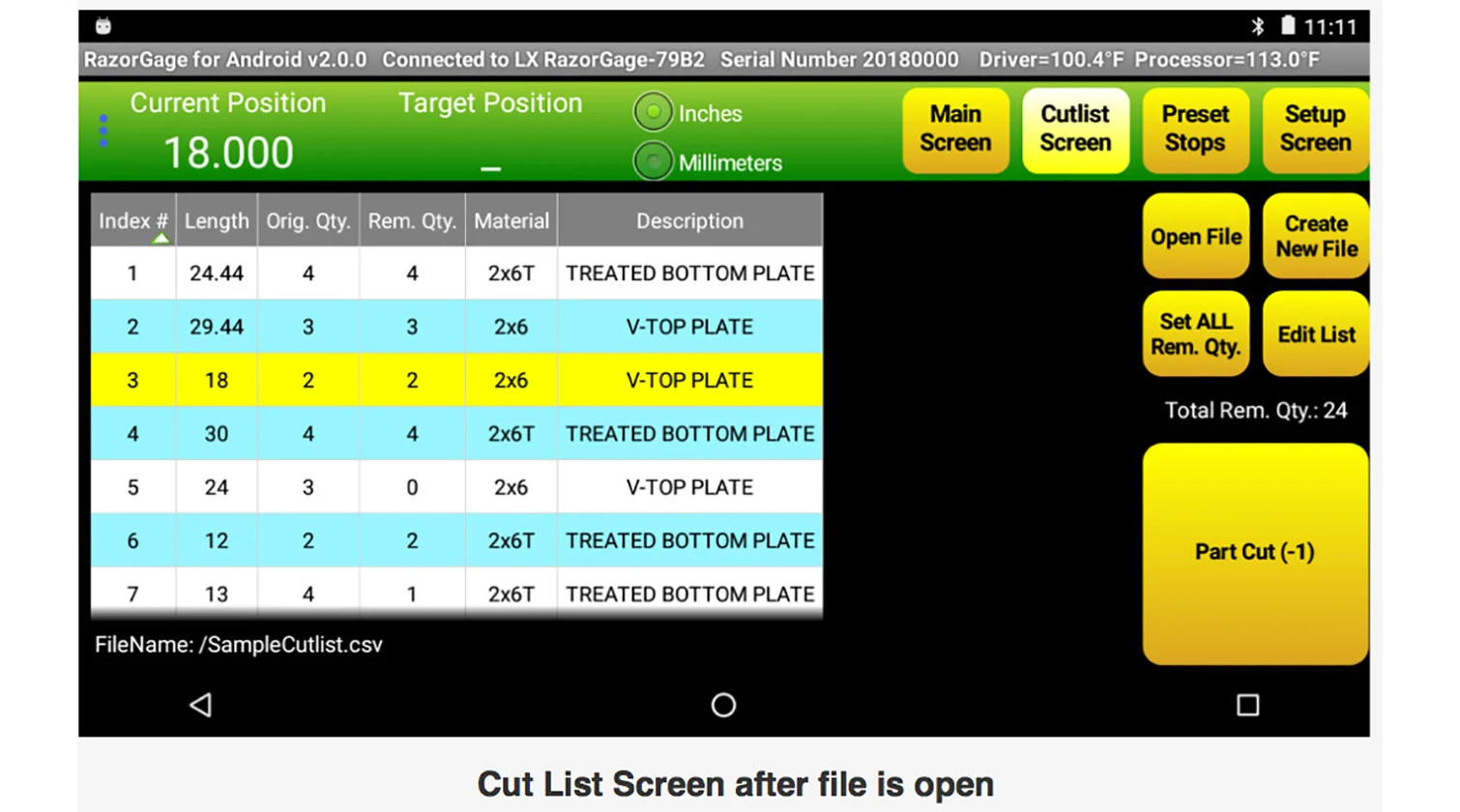

• Create and save thousands of cutlists directly on the device
• Standard flip stop included on every RGxT
• 5-year belt warranty for long-term reliability
• Supports barcode operation
• Clear, large touchscreen user interface
• Instant access to calibration and setup functions

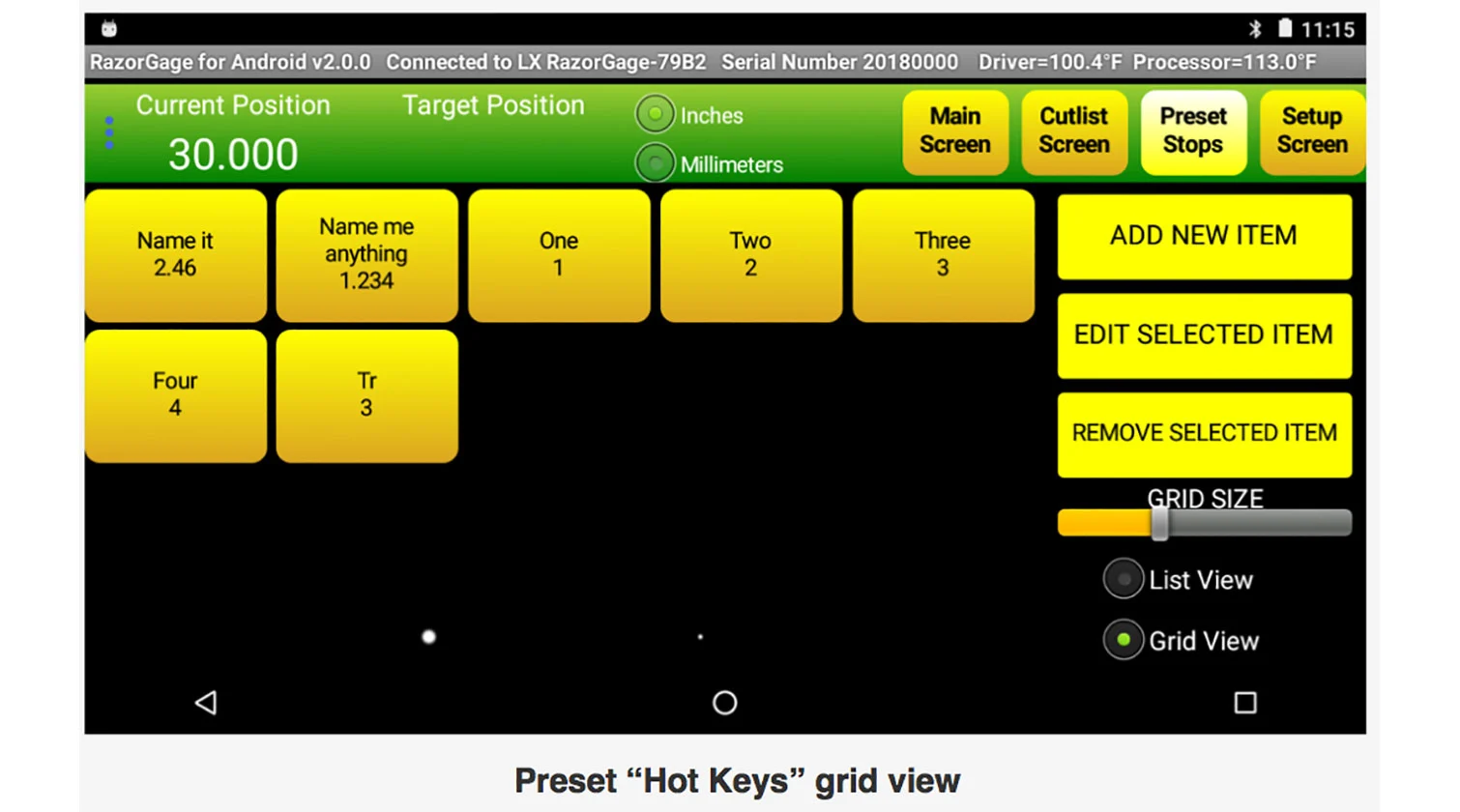

• Programmable presets to minimize keystrokes and reduce human error
• Available in 8' and 12' stroke versions

Technical Data

• Accuracy: ±0.015" over 12 ft
• Repeatability: 0.005"
• Typical speed: 10 ips
• Power requirement: 120 VAC / 10 amps
• Interface: 8" touchscreen
• Networking: Wi-Fi or Ethernet
• Operating system: Windows Home
• Available stroke lengths: 8 ft and 12 ft

Optionals

• AutoList optimizing software
• Steel table (34.5”–44.5” adjustable height; PVC or steel rollers or PVC sheet) – 6', 8', 10’ modules
