RAZORGAGE RG3

General

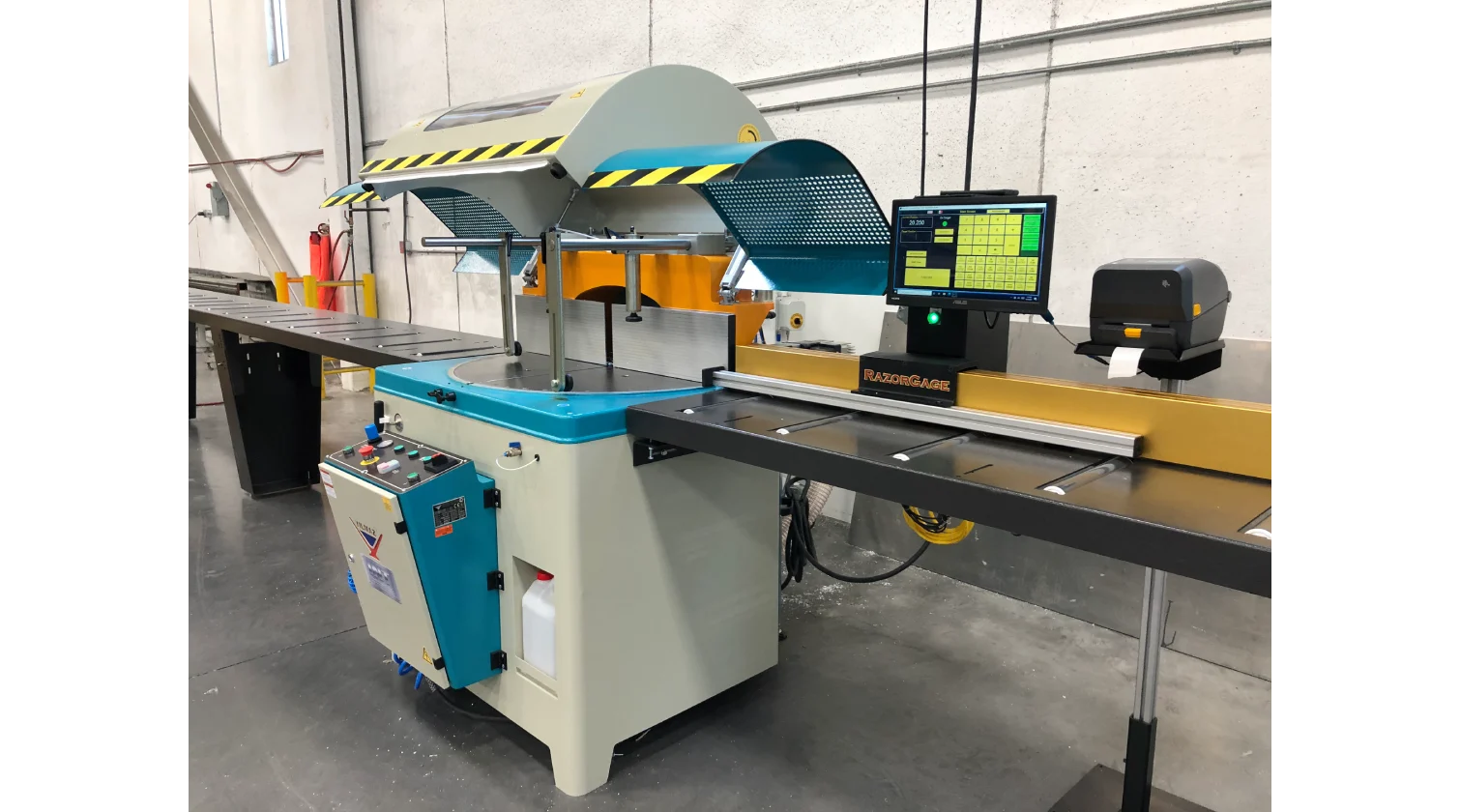

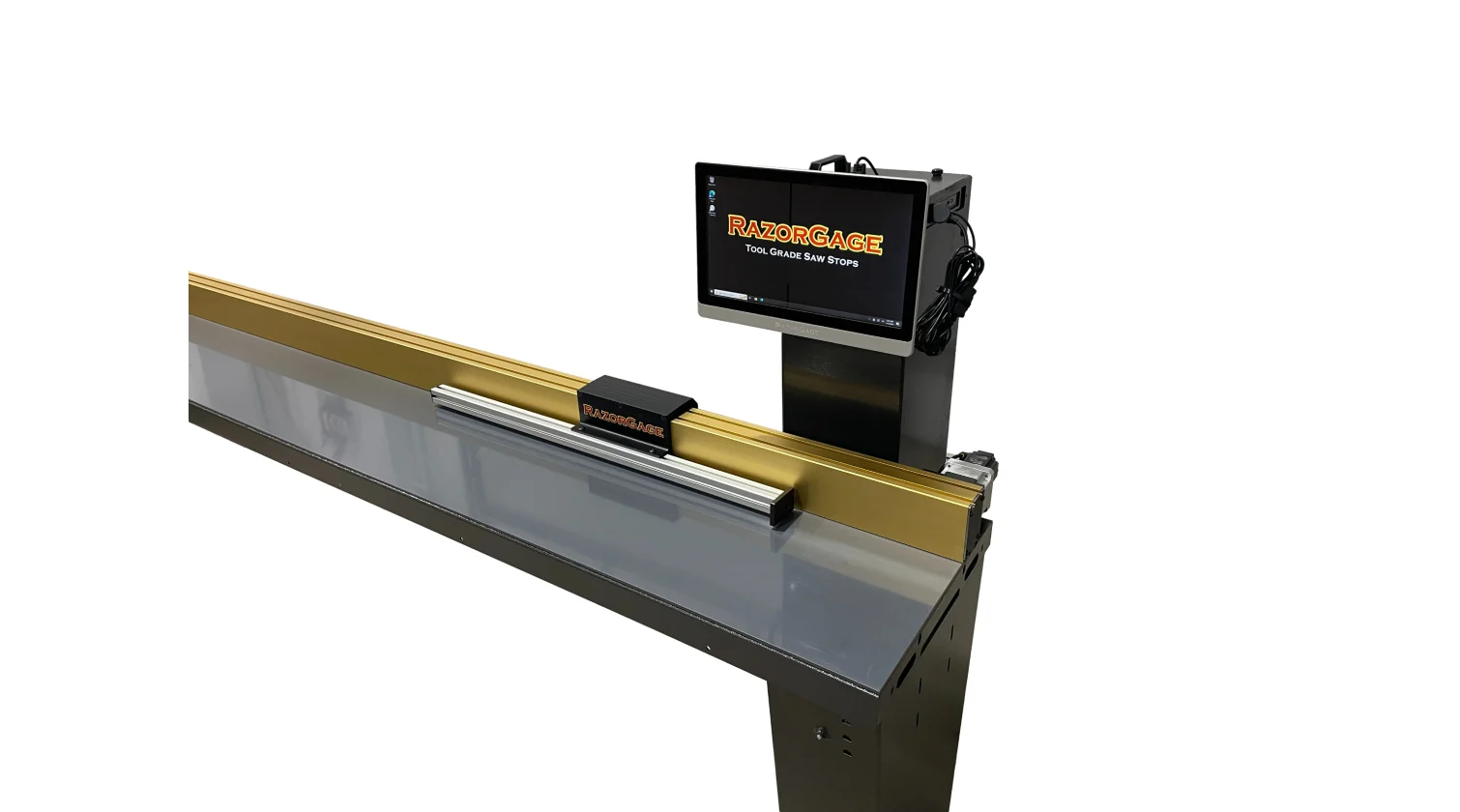

The RazorGauge RG3 Automatic Saw Measuring System sets a benchmark in digital material positioning. Engineered for operators who demand precision and reliability, the RG3 features a servo-driven carriage traveling on a Hiwin hardened and ground linear bearing rail with dual recirculating ball bearing blocks—the same technology used in CNC machining centers. This construction ensures near-frictionless motion, maximum rigidity, and consistent accuracy throughout its lifespan.

Its advanced motion controller instantly reacts to jams, preventing belt stretching and enabling a 5-year belt warranty. The RG3 integrates seamlessly with various industrial cutting and drilling machines, functioning either as a dependable material stop or a powerful automatic pusher.

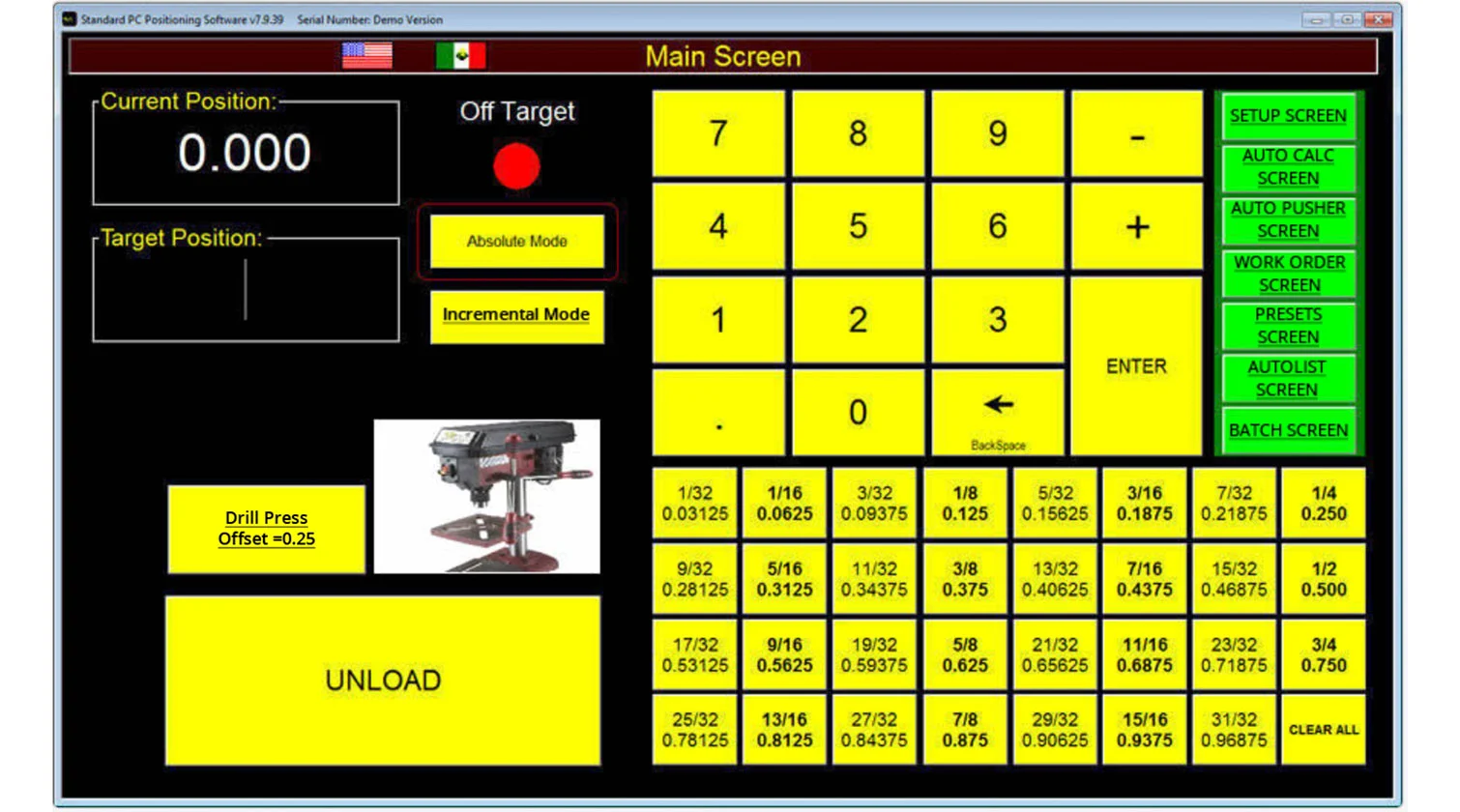

The system is powered by a Windows-based touchscreen software suite, offering an intuitive interface, extensive cutlist storage, fraction keys, presets, and simple calibration. Optional AutoList optimization software maximizes material yield, groups cut lists, and supports secondary operations, making it ideal for high-volume production facilities.

With stroke lengths available up to 60 feet, the RG3 is engineered for operations requiring uncompromising speed, accuracy, repeatability, and efficiency.

Features

• High-resolution Windows PC touchscreen interface
• Easy networking via Ethernet or Wi-Fi
• Stores thousands of preset cutting lengths
• Optional AutoList optimizing software for superior material yield
• Fast positioning using fraction keys and preset pages
• CNC-grade linear bearings for long-term straight-line accuracy
• Near-zero backlash planetary gearhead & drive pulley
• 5-year belt warranty
• Available in strokes up to 60 ft
• Intuitive software with rapid setup, calibration, and an UPDATE button for instant version upgrades
• Equipped with a Yaskawa servo drive
• Dust-protected PC tower with multiple USB, Ethernet, Wi-Fi, and Bluetooth options

Technical Data

• Accuracy: ±0.005" over 12 ft (with proper calibration)
• Repeatability: 0.001"
• Push Force: 200 lbs at 40 ips
• Max Speed: 50 ips
• Power Requirement: 120 VAC / 10 amps
• Interface: Hi-resolution touchscreen with tower PC
• Networking: Wi-Fi and Ethernet
• Operating System: Windows Pro
• Available Stroke Lengths: 4 to 60 ft

Optionals

• AutoList optimizing software
• Steel table (34.5”–44.5” adjustable height; PVC or steel rollers or PVC sheet) – 6', 8', 10’ modules
• Basic Stop Extension – 2', 4', 6'
• Gang stop for side-by-side or stacked materials
• Adjustable stop extension bracket
• Gripper and Heavy-Duty Gripper
• Miter stop for capturing mitered ends accurately
• Custom label designer for printing barcodes, QR codes, and images
