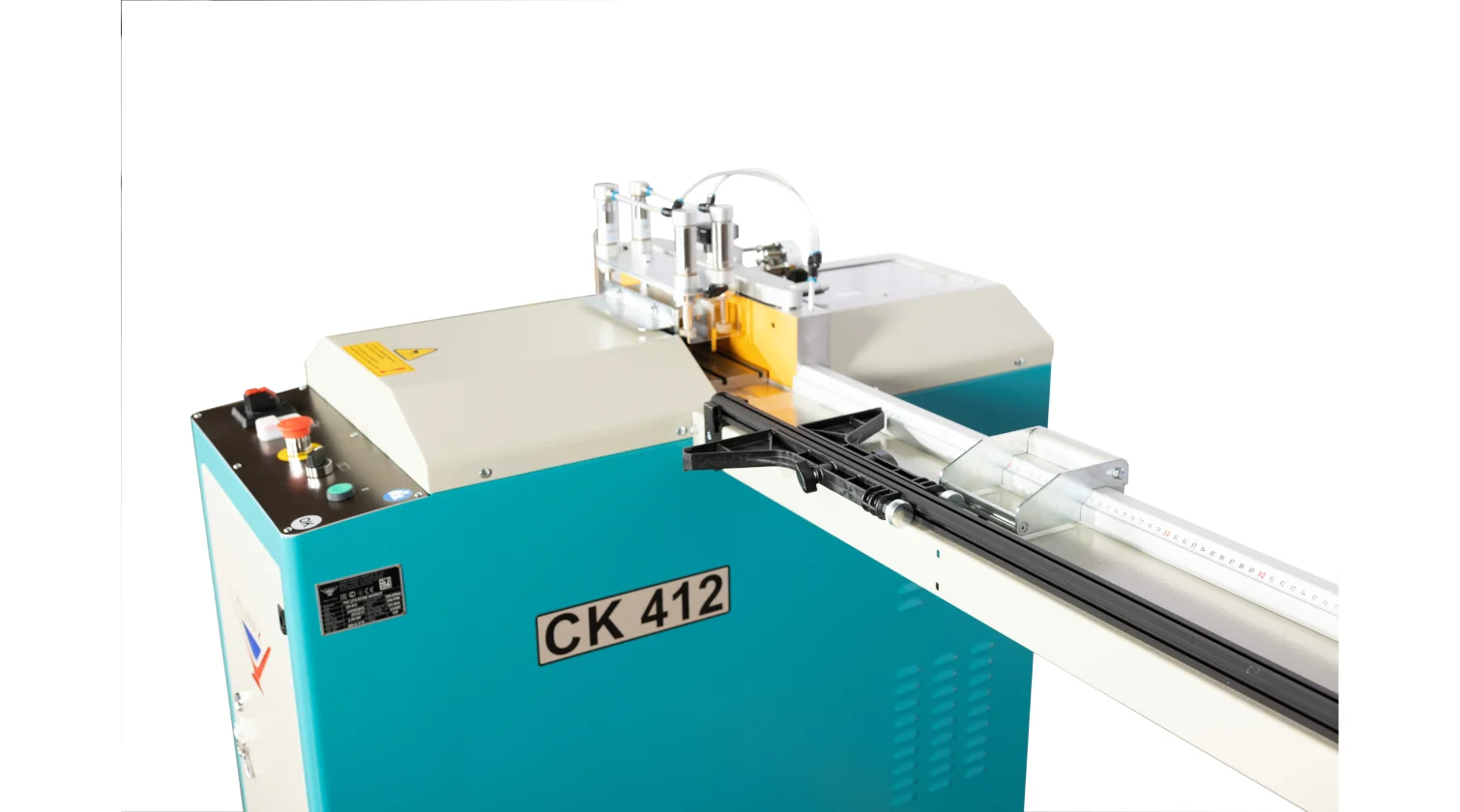

The Yilmaz CK 412 is a glazing bead saw engineered for fast, accurate, and consistent 45° miter cuts on PVC glazing beads and similar small profiles. Its twin-blade configuration, pneumatic feed, and adjustable guides make it ideal for window, door, furniture, and accessory fabrication lines requiring clean, repeatable results.
General

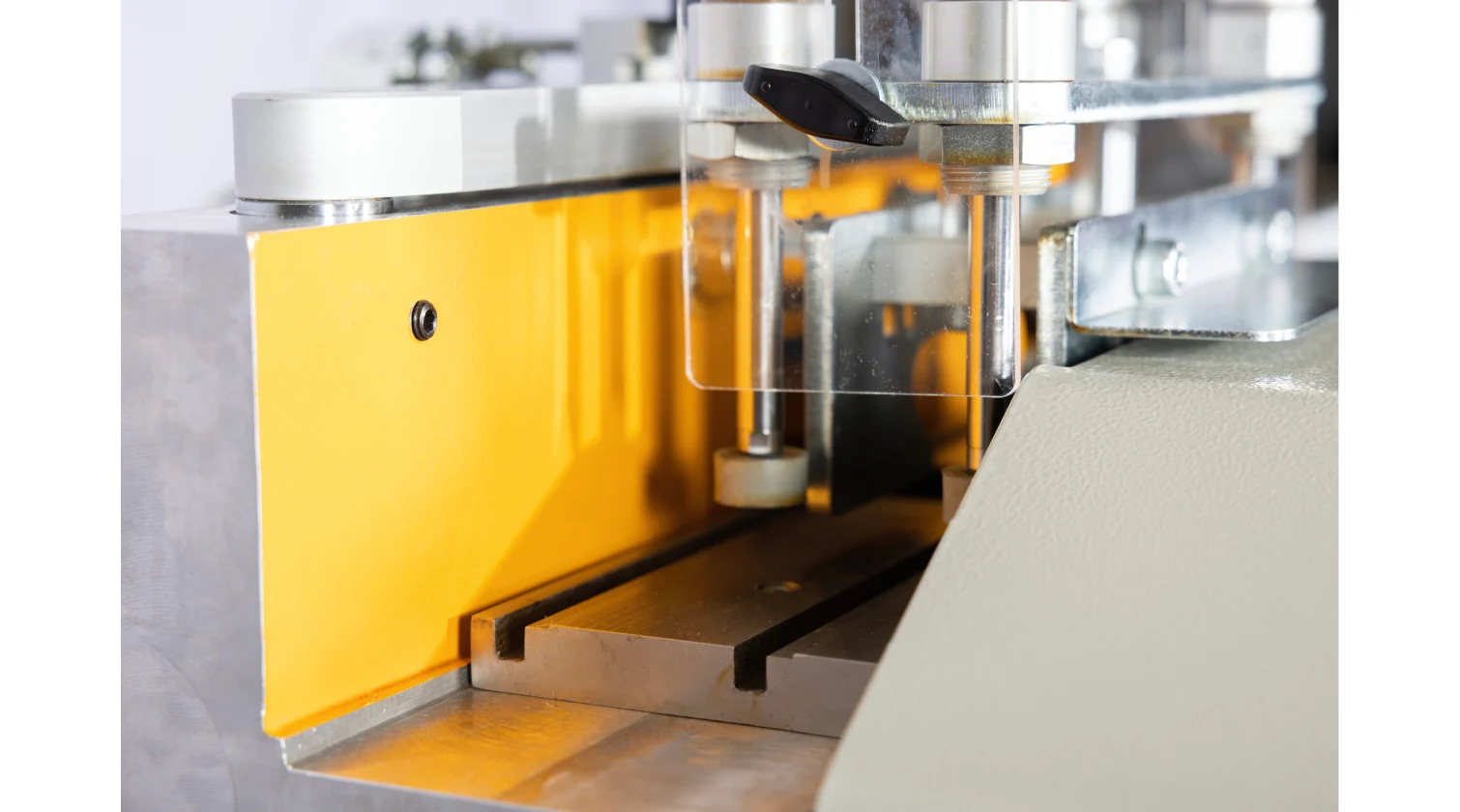

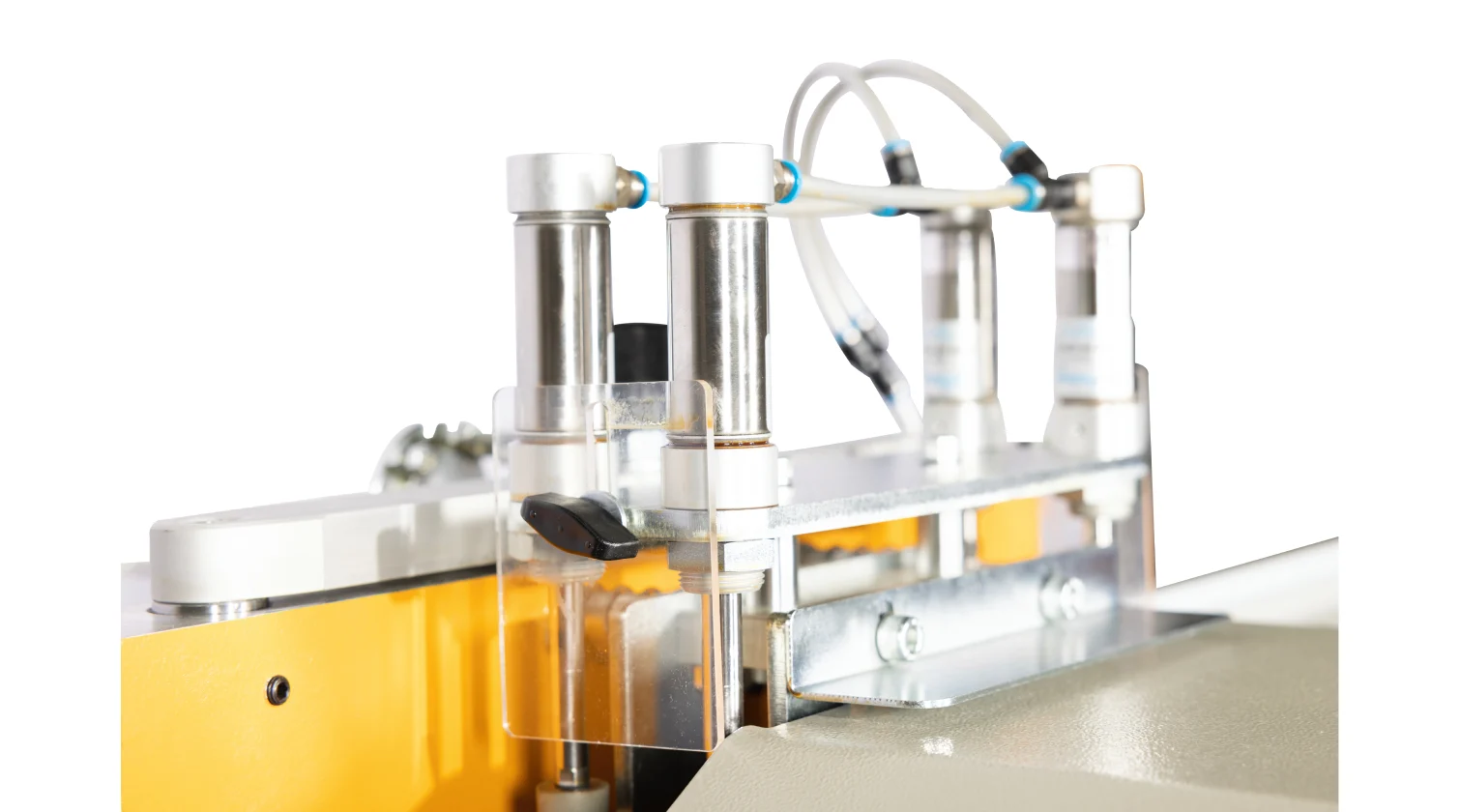

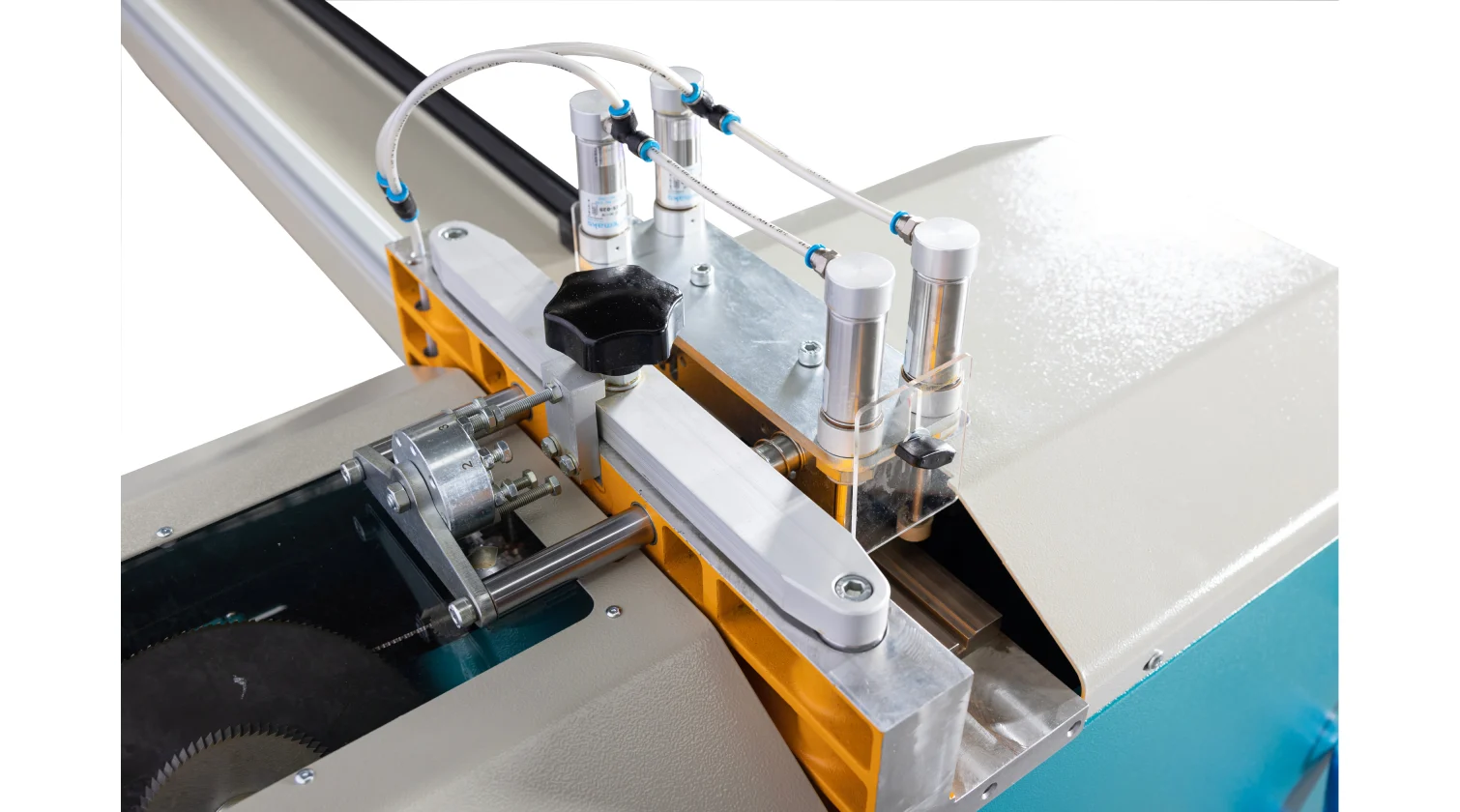

The CK 412 features a dual-blade horizontal design that allows users to cut glazing beads and similar PVC profiles with consistency. Thanks to the pneumatic blade feed and adjustable feed speed, the machine delivers a smooth cutting motion. Profiles are held securely in place by four pneumatic vertical clamps, ensuring stable cutting even when processing two profiles at once.
The universal guide system, capable of handling up to eight different profile shapes, makes the CK 412 particularly suitable for manufacturers working with multiple bead designs. The automatic cutting cycle returns the blades to their home position after each operation. With its compact footprint and versatile optional automated stops, the CK 412 can be integrated into manual or fully automated glazing bead production workflows.
Features
- Twin-blade cutting system
- Pneumatic blade feed
- Adjustable blade-feed speed
- Automatic cutting cycle with automatic return

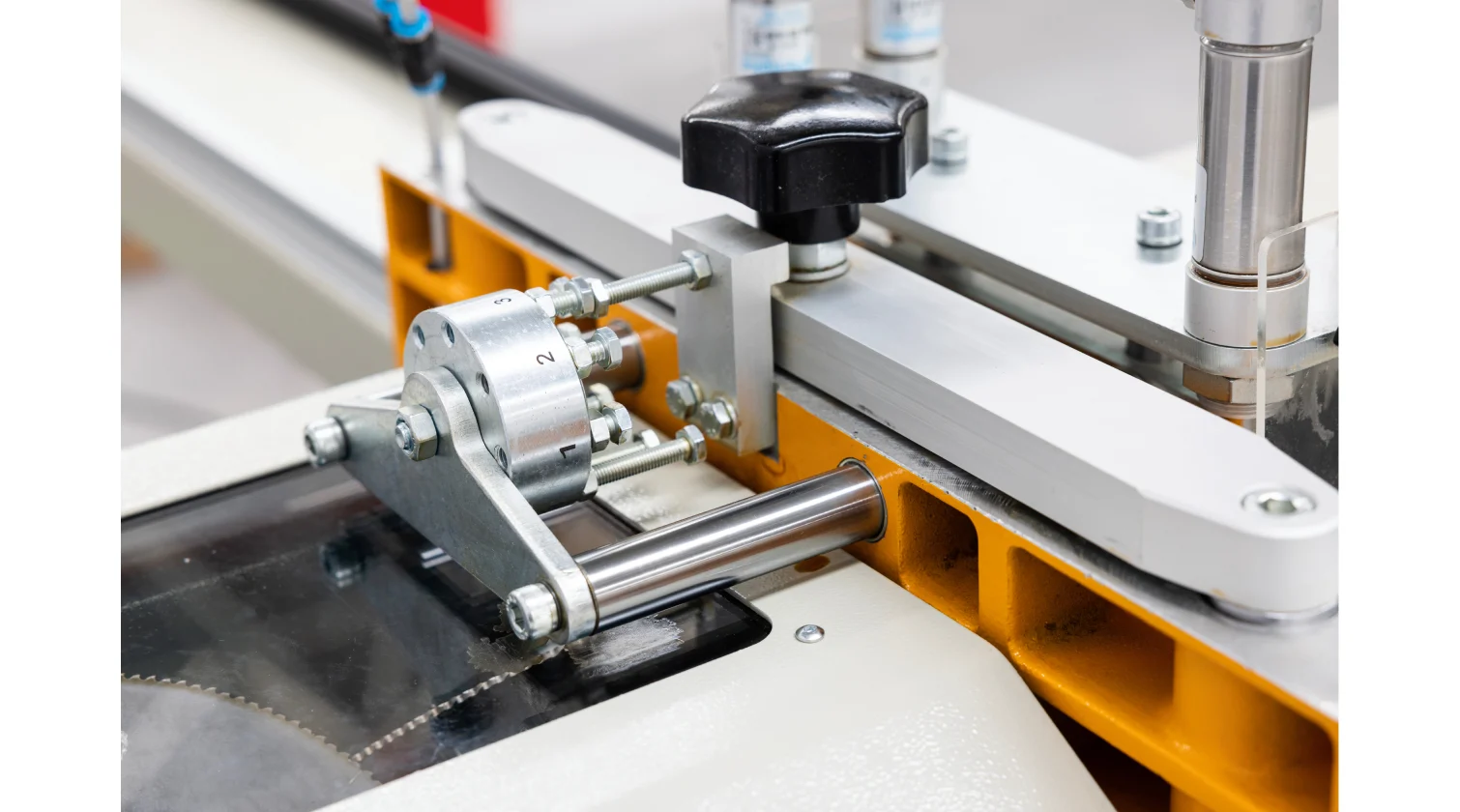

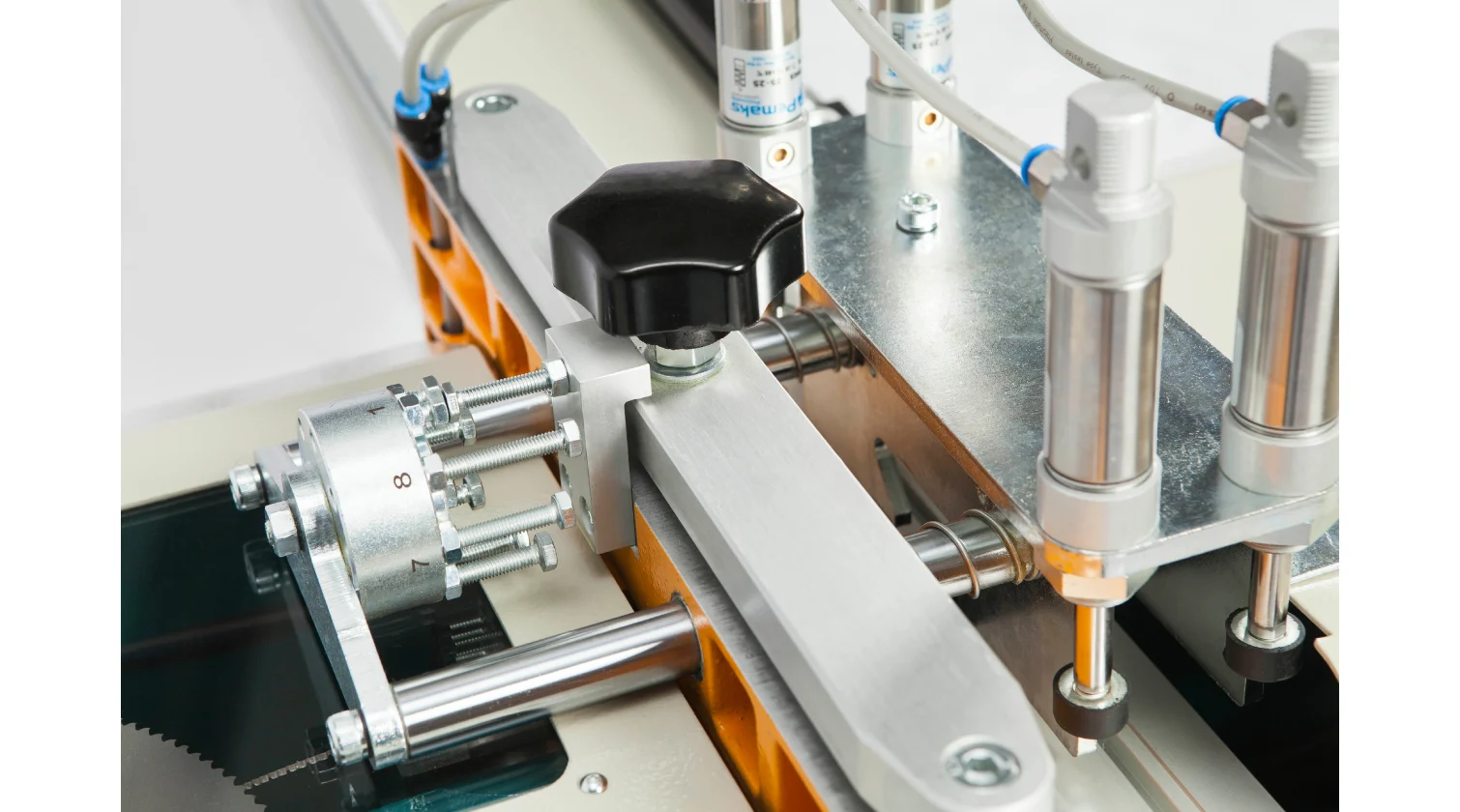

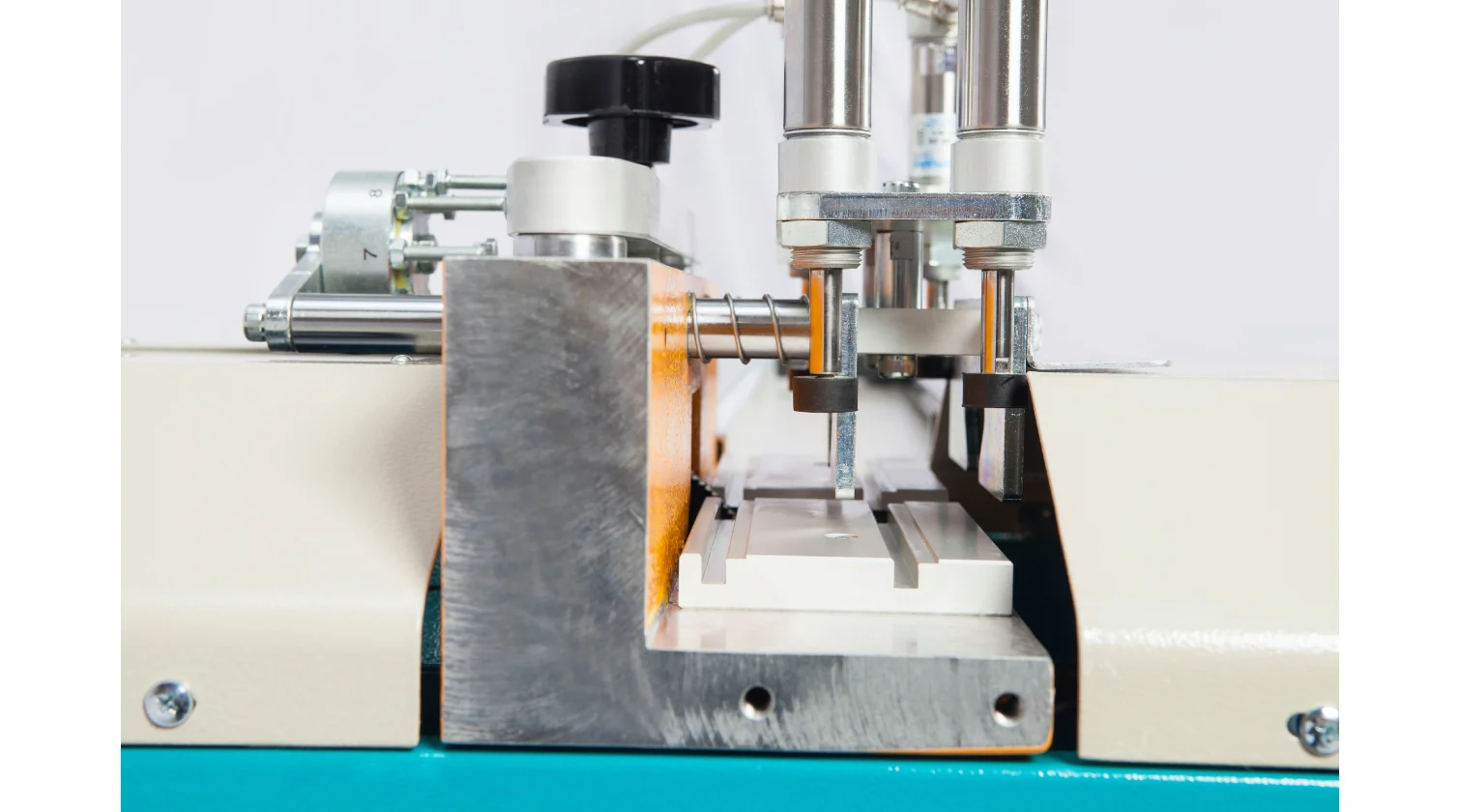

- Adjustable guides and clamps to process up to 8 profile types using the same jig
- Designed for 45° miter cutting of glazing beads, door lites, frame profiles, and similar small PVC components
Technical Data
- Motor power: 2 × 1.2 kW (1.6 HP)
- Voltage: 230 V, 3-phase, 50 Hz
- Blade speed: 3000 RPM
- Blade diameters: Ø110 mm (4.3") and Ø200 mm (7.9")
- Blade hub diameter: Ø30 mm
- Operating air pressure: 6–8 bar (87–116 psi)
- Air consumption: 35 L/min (8 gal/min)
Standard Equipment
- 1 × Ø200 mm (7.9") saw blade
- 1 × Ø110 mm (4.3") saw blade
- 4 × pneumatic vertical clamps
- Air gun
Optionals
- 1 × Ø200 mm (7.9") saw blade
- 1 × Ø110 mm (4.3") saw blade
- 4 × pneumatic vertical clamps
- Air gun
