The Yilmaz KP 110 is a robust Pneumatic Corner Crimping Machine engineered for precise and stable crimping of aluminum frame corners. With synchronized crimping heads, adjustable positioning scales, pneumatic support systems, and a safe operating design, it provides consistent performance for professional aluminum fabrication.
General
The Yilmaz KP 110 is built around a heavy-duty cast-iron structure, ensuring long-term rigidity and durability for continuous industrial use. Its pneumatic operating principle delivers smooth, controlled crimping, while synchronized crimping heads ensure uniform deformation on both sides of the corner.

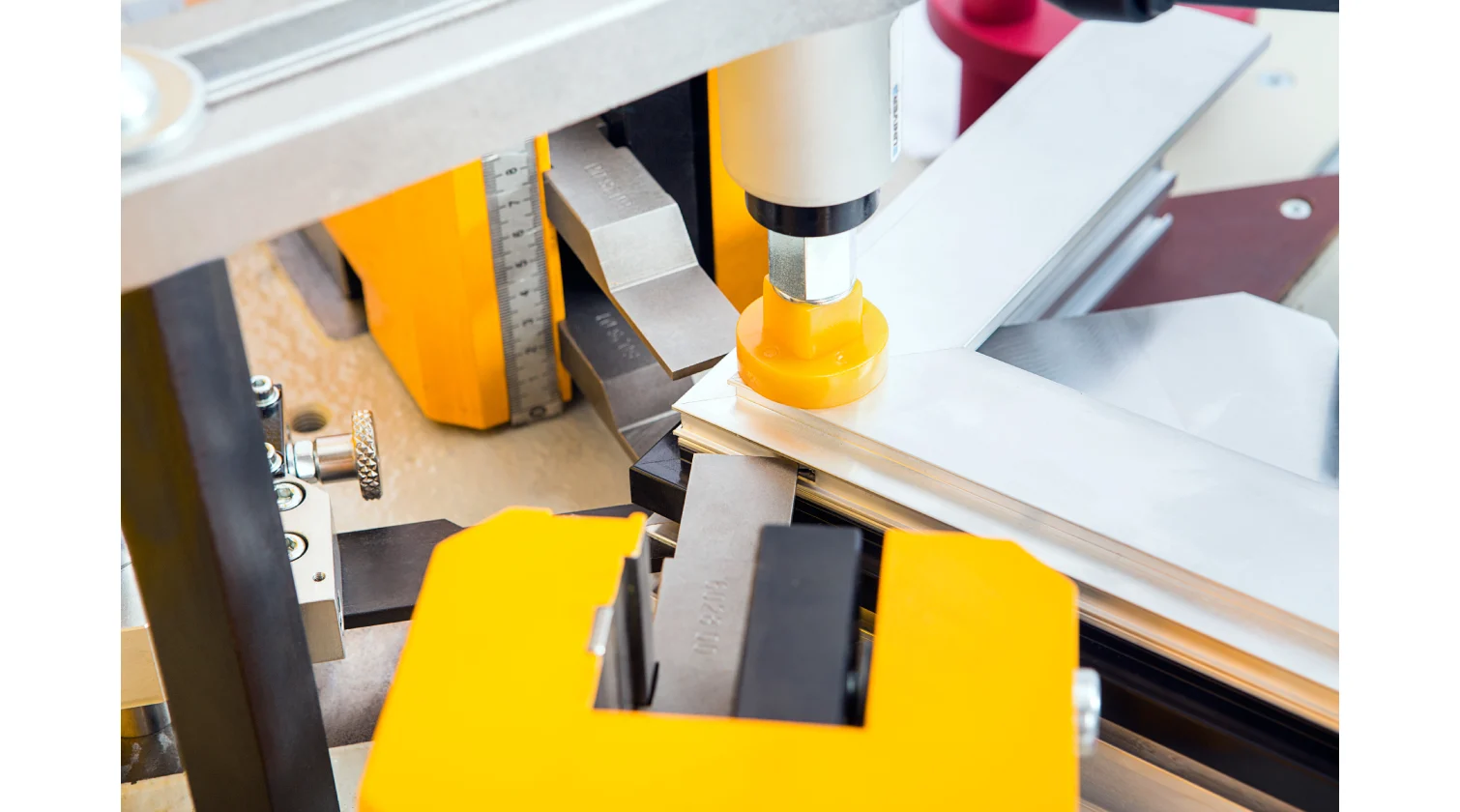

Profiles of various shapes and heights can be secured quickly using the machine’s adjustable magnetic knife support and pneumatic vertical clamps. A double-acting bracing clamp rises from beneath the table to center the profile squarely, ensuring perfect alignment before crimping begins. Positioning values are read easily using metric scales for fast setup and repeatability.
Operator safety is ensured through a protective guard and dual-hand activation system, while foot-pedal control completes the working cycle with convenience and precision. With its adjustable stroke, support arms, and compatibility with profile-specific blades, the KP 110 is a reliable solution for aluminum corner assembly.
Features
- Fully pneumatic crimping machine
- Durable cast-iron machine top
- Magnetic knife support system adjustable to various profile shapes and heights
- Synchronized movement of crimping heads for uniform corner crimping
- Position reading via metric scales
- Centering square rises from below the table
- Left and right profile support arms included
- Foot pedal for controlling the crimping cycle
- Operator safety guard
- Knife stroke: 10.5 mm
- Bracing clamp stroke: 80 mm
- Adjustable knife stroke: 30–60 mm
- Maximum crimping height: 120 mm
- Strong and reliable pneumatic system
Technical Data
- Maximum crimping force: 3500 kgf (7,716 lbf)
- Operating knife stroke: 10.5 mm (0.41")
- Bracing clamp stroke: 80 mm (3.15")
- Adjustable knife stroke: 30–60 mm (1.18"–2.36")
- Maximum crimping height: 120 mm (4.72")
- Maximum profile width: 150 mm (5.91")
- Counter-pressure nozzle diameter: 30 mm (1.18")
- Nominal pressure: 7 bar (102 psi)
- Maximum pressure: 10 bar (145 psi)
- Profile support arms (left + right): 1 pair
Standard Equipment
- 1 × 3 mm crimping knife set
- 1 × 5 mm crimping knife set
- 1 × 7 mm crimping knife set
- 2 × Pneumatic vertical clamps
- 2 × Profile support arms
- 2 × Allen keys (4 and 5 mm)
Optionals
- Custom crimping knife sets
