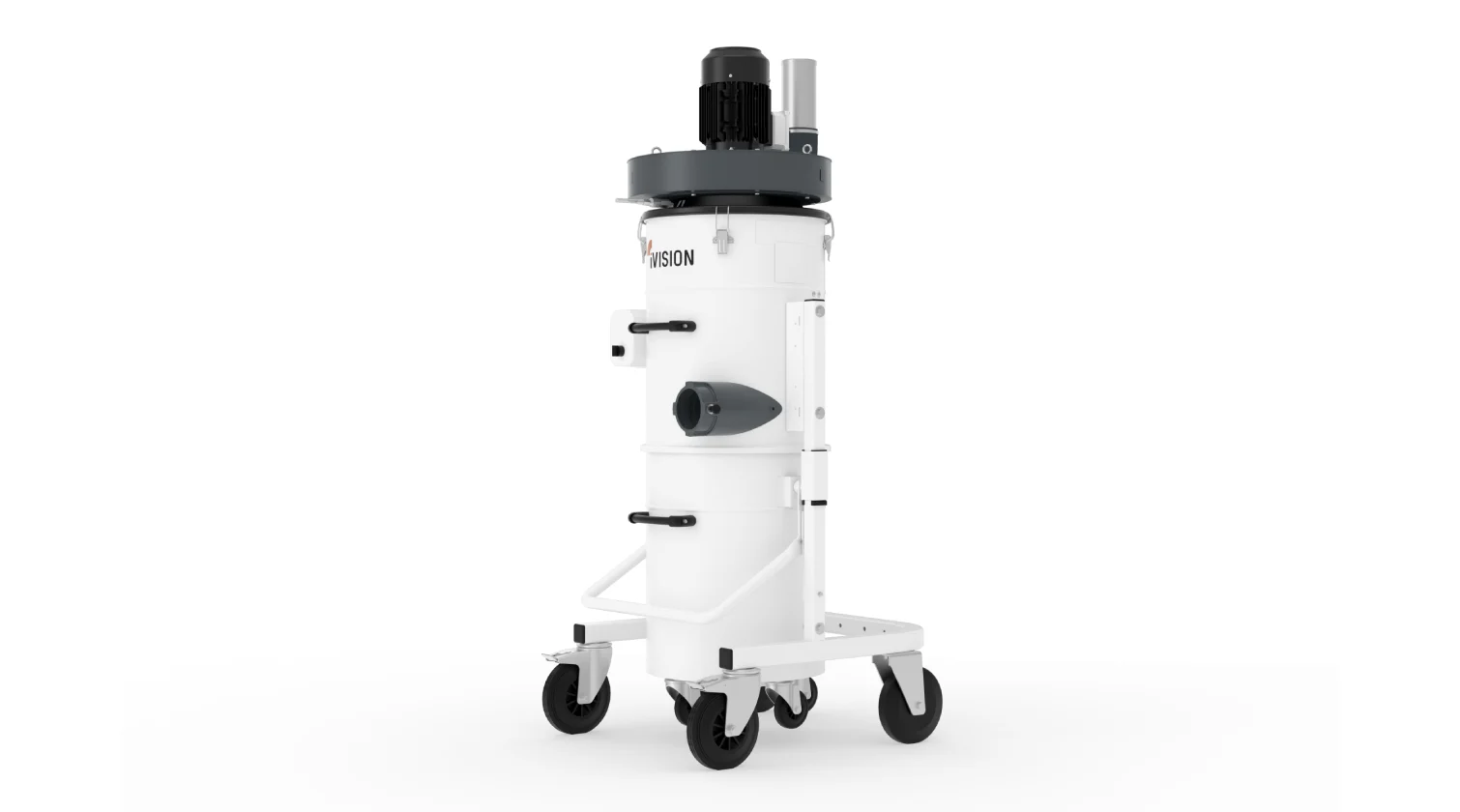

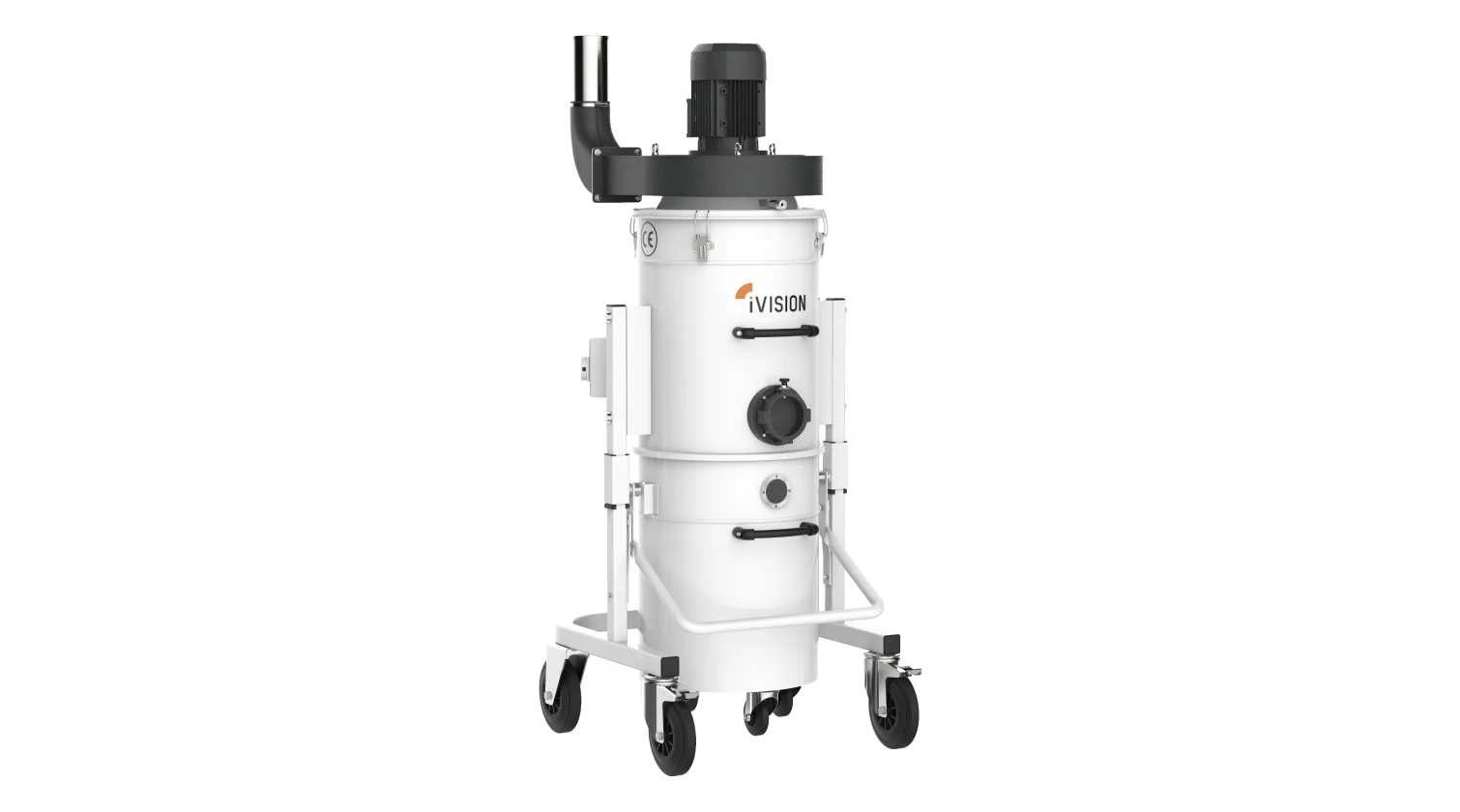

The iVision IV2 is a powerful chip collector for aluminum chips, engineered for any shop working with profiles like window manufacturers that require reliable, high-capacity chip removal. Its robust steel frame, centrifugal fan technology, and large-volume collection system provide consistent performance on cutting lines equipped with single- or small double-head saws.
General
The IV2 belongs to the iVision Extrusion line, a series created specifically for aluminum and PVC machining operations where continuous, high-volume chip extraction is essential. Equipped with a high-flow centrifugal fan capable of up to 1400 m³/h (824 CFM), the IV2 efficiently removes chips at the source, reducing machine downtime and improving cut quality.
A sturdy steel chassis, industrial-grade M-class polyester filter, and pneumatic filter shaker work together to ensure long-term reliability, even in demanding production cycles. The detachable 100-liter container offers quick emptying, assisted by swivel wheels, while the external silenced exhaust helps maintain a quieter working environment.
Designed with operator convenience in mind, the IV2 includes a motor overload protection, an 8-meter power cable, and optional automation packages such as remote start/stop, antistatic components, and automatic filter cleaning. This combination of performance, durability, and configurability makes the IV2 a trusted solution for extrusion plants and window manufacturers.
Features
- High-flow centrifugal fan delivering up to 1400 m³/h (824 CFM)
- Suitable for continuous, heavy-duty industrial cycles
- Fully steel construction
- Swivel wheels with parking brake
- M-class polyester filter
- 100-liter (26 gal) container capacity
- Quick-release collection container
- External exhaust equipped with silencer
- Pneumatic filter shaker for efficient cleaning
- Motor overload protection
- 8-meter power cable
Technical data
- Airflow capacity: 1400 m³/h (824 CFM)
- Container volume: 100 L (26 gal)
- Filter class: M-class polyester
- Structure: Full steel construction
- Mobility: Swivel wheels with brake
- Filter cleaning: Pneumatic shaker
- Port: Ø100 mm (4”)
- Power cable length: 8 m (26.2 ft)
Standard equipment
- 1 x Y connector Ø100-Ø100-Ø100 mm (4”-4”-4”)
- 5m x Ø100 mm (4”) Clear flex hose
- 4 x Gear clamp
- 1 x Muffler
Optionals
- Remote start & stop kit
- Cleaning kit (Ø50 mm)
- Antistatic kit for eliminating electrostatic charges
- Automatic filter-shaking system
- Lift kit to avoid manual effort during container emptying

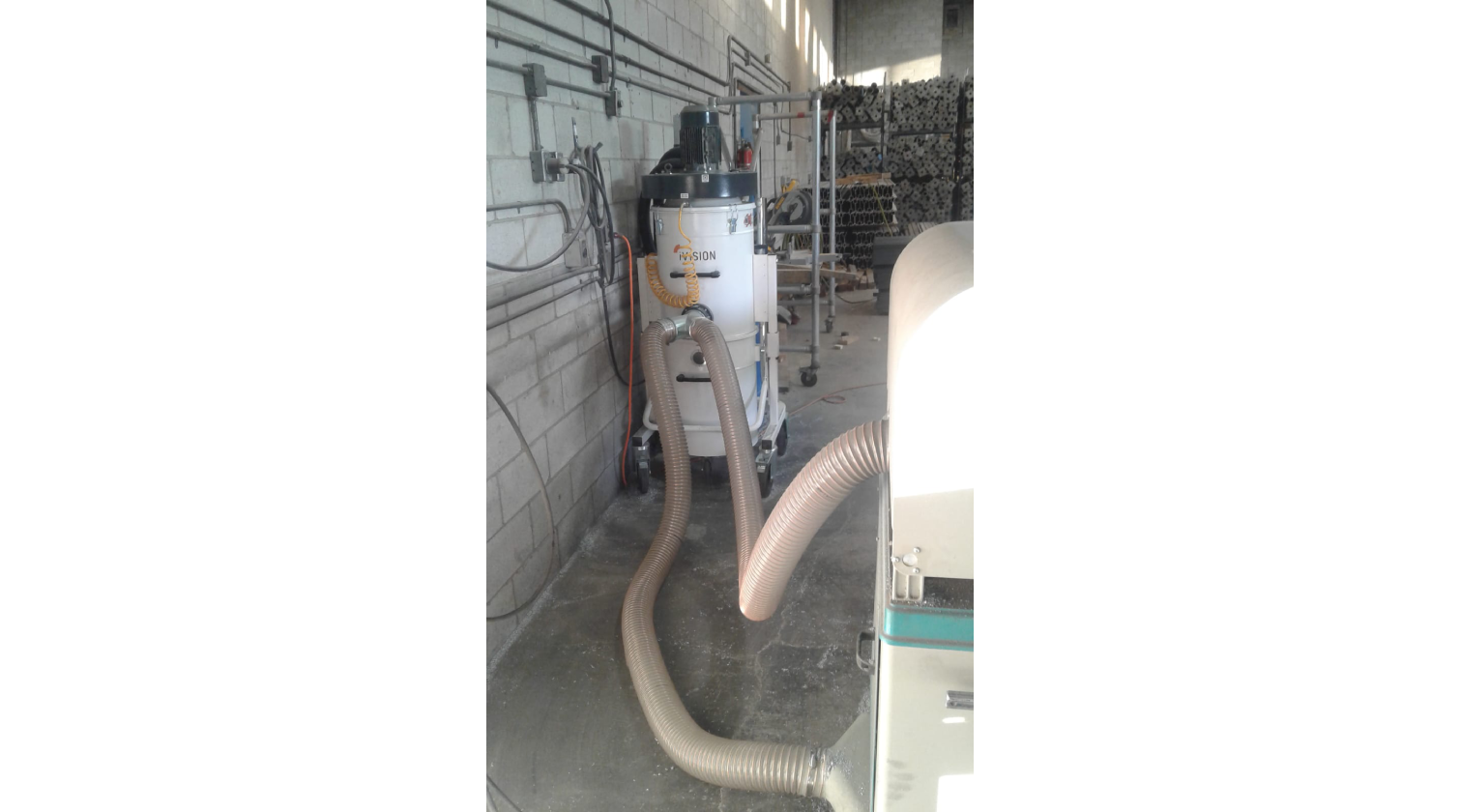

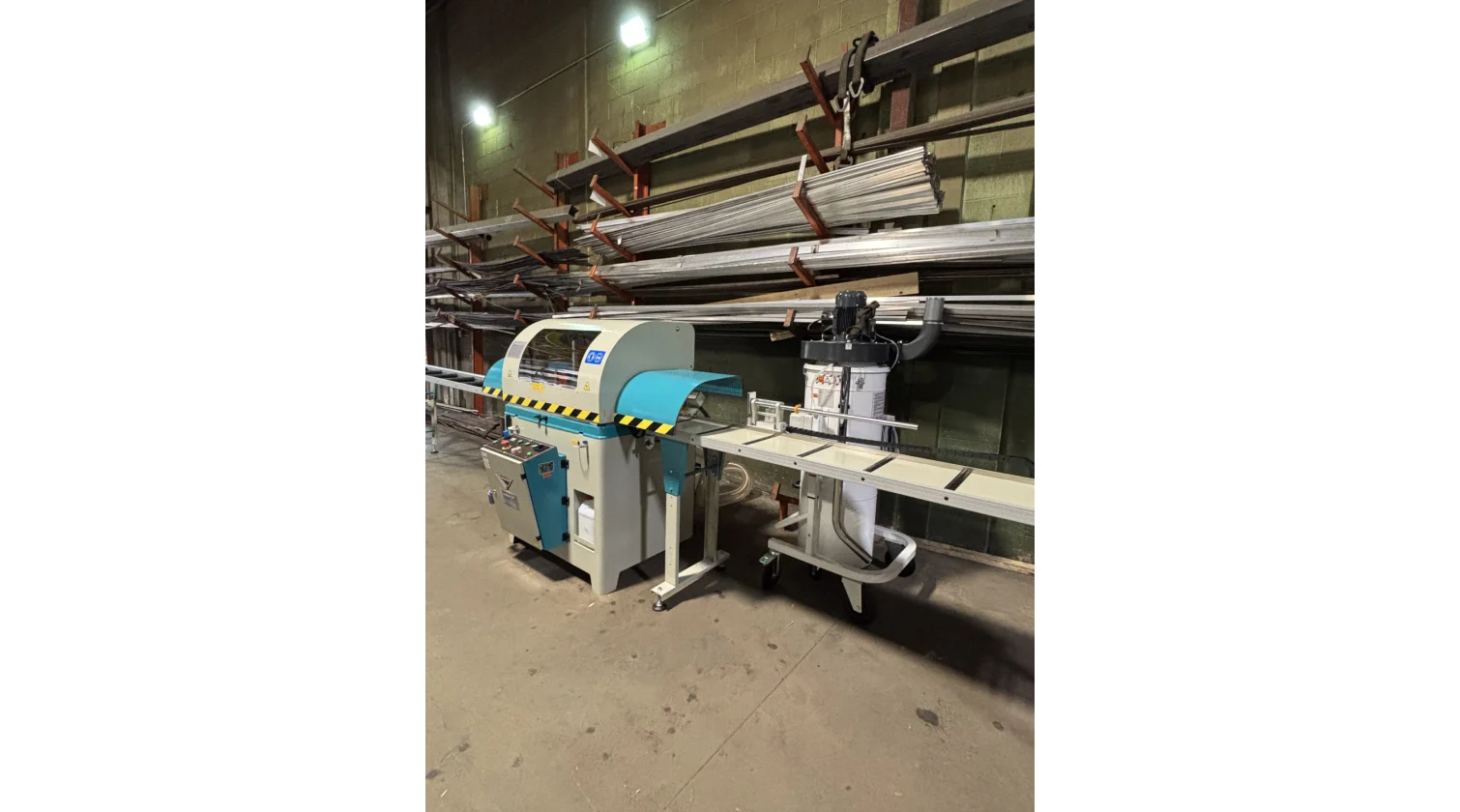

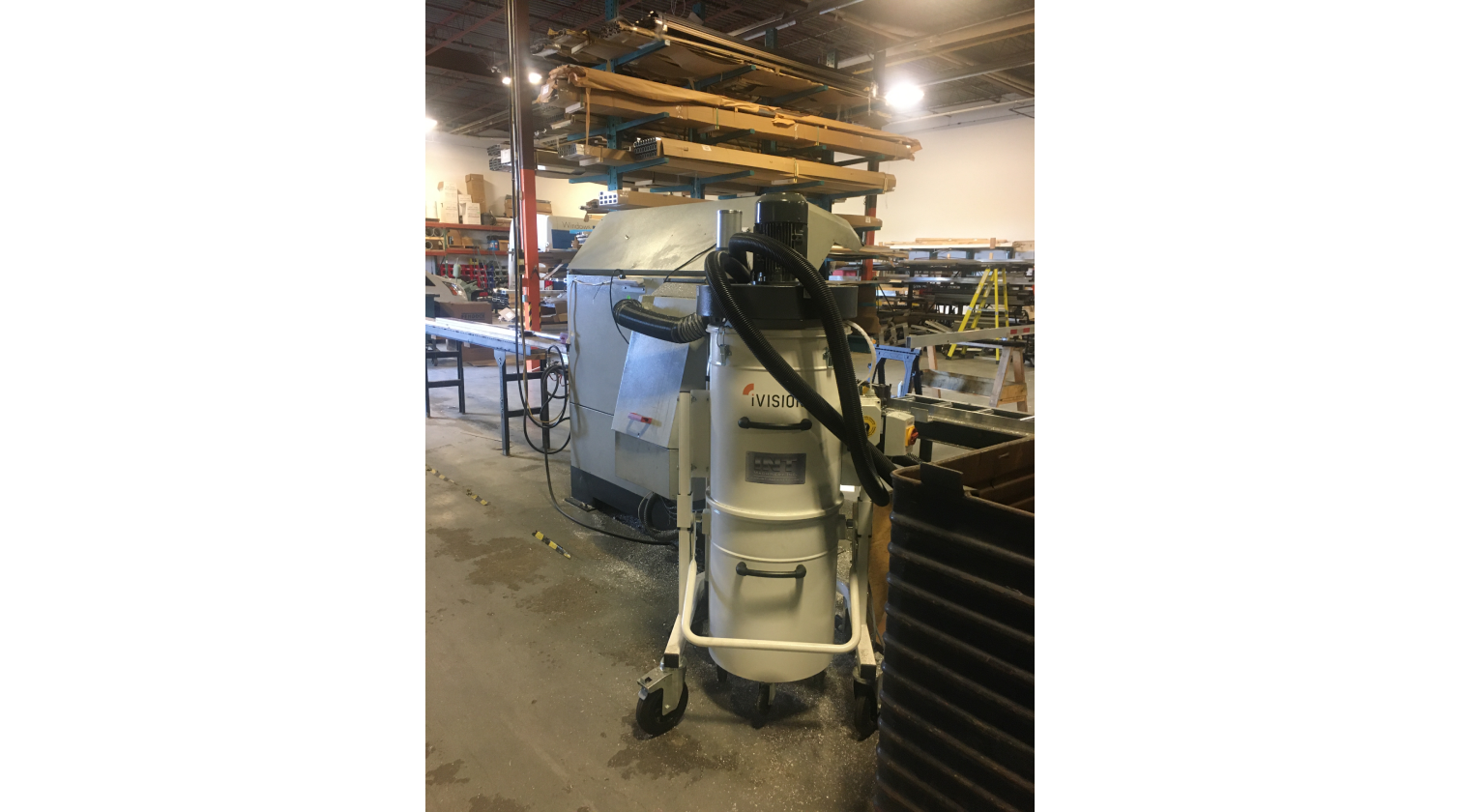

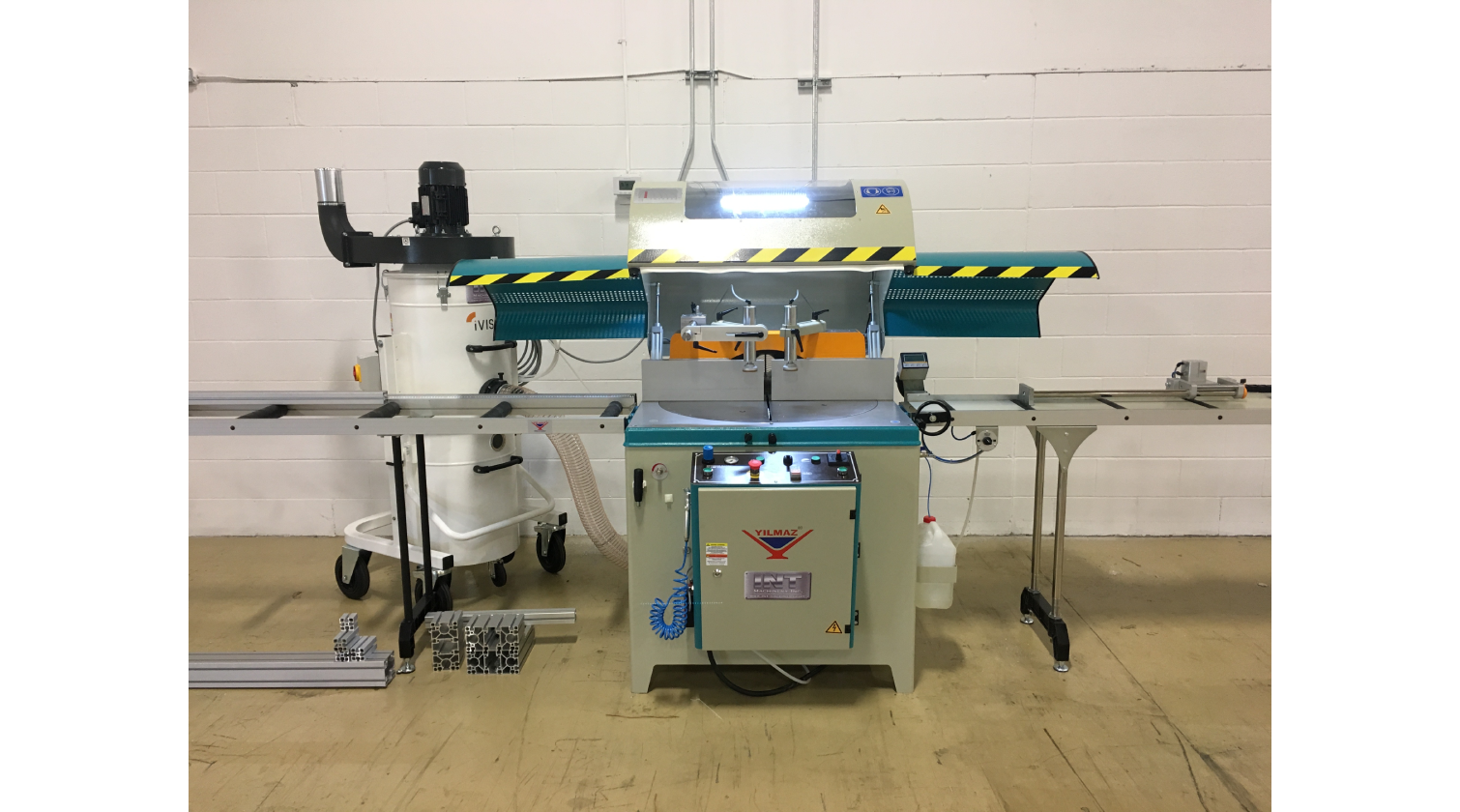

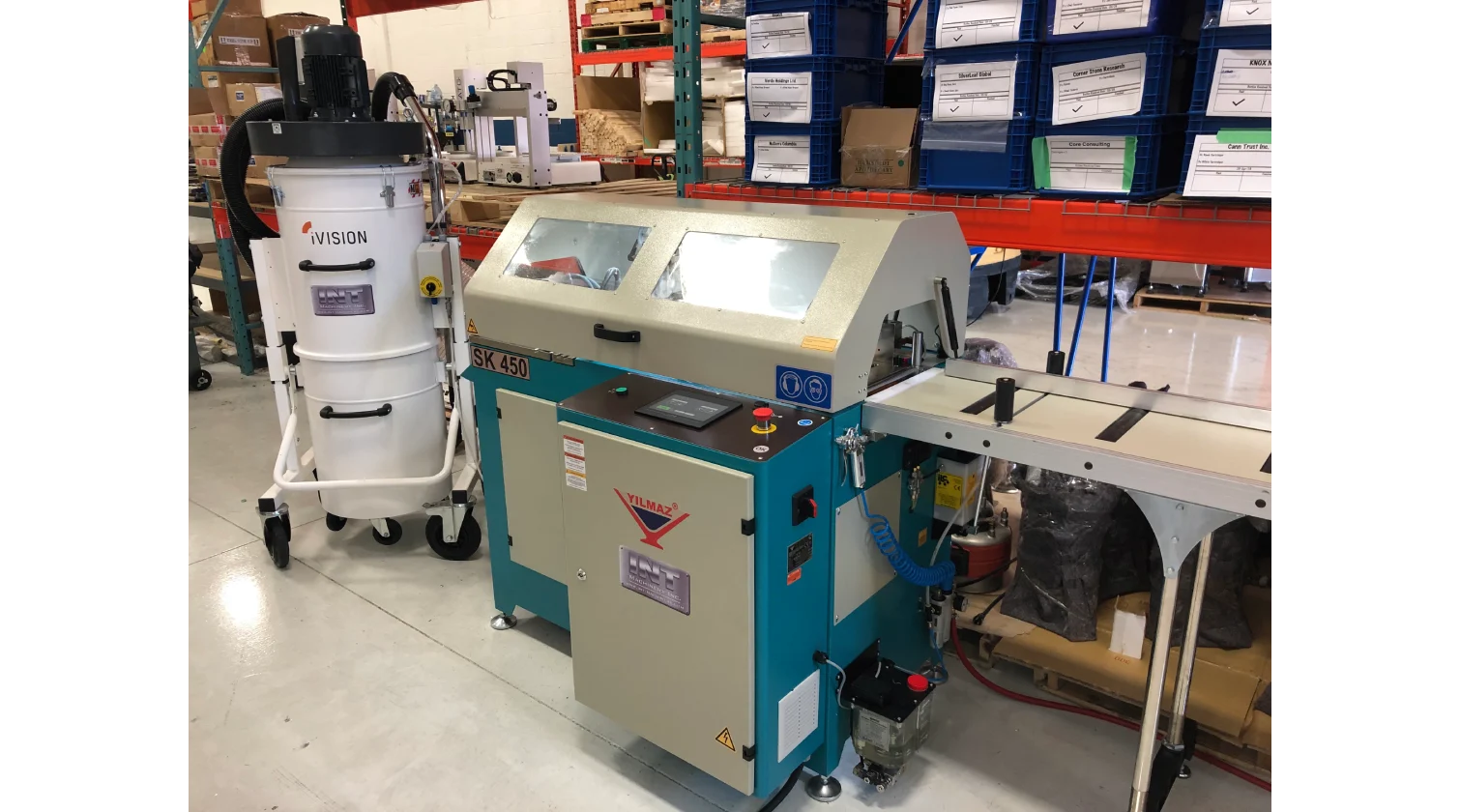

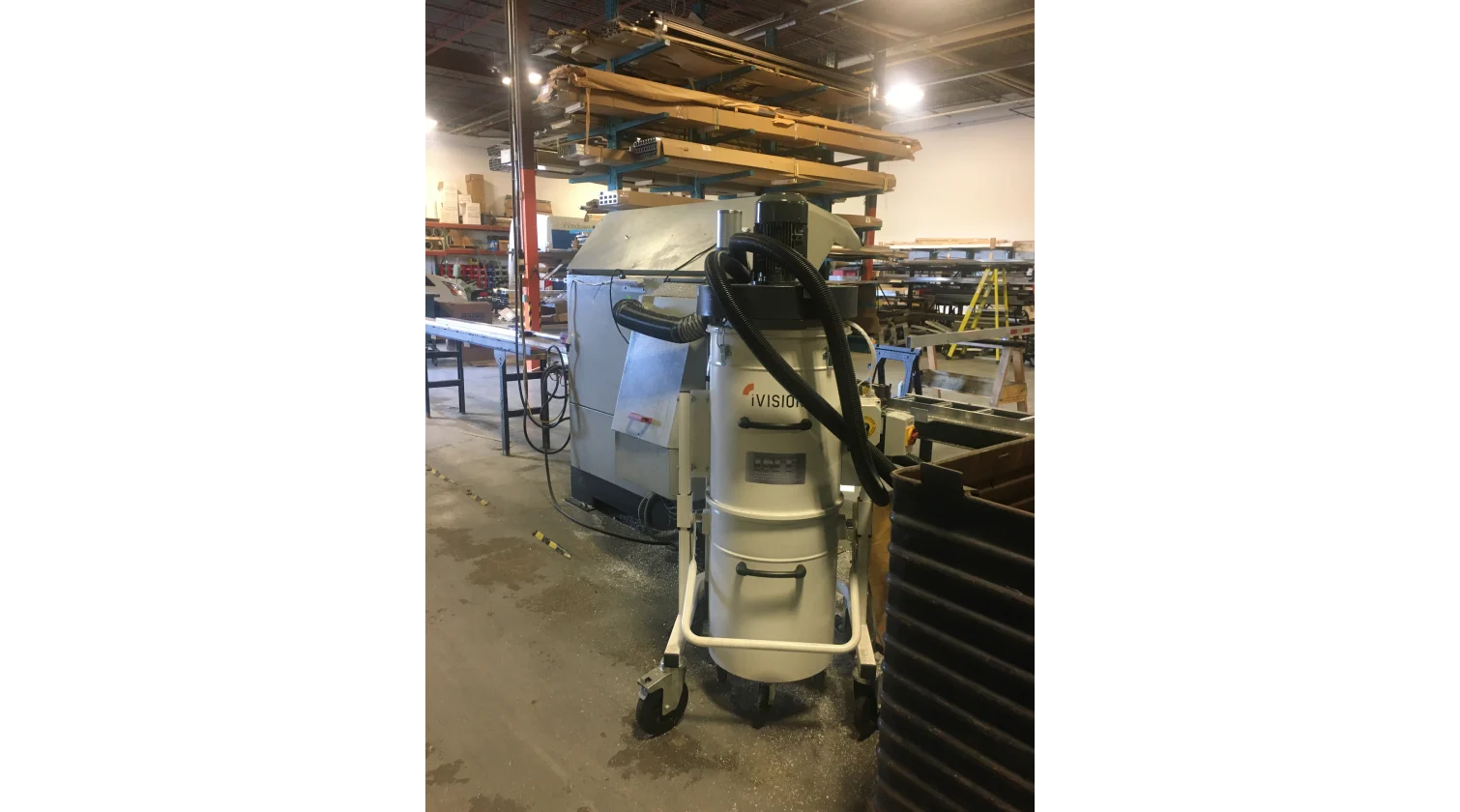

Installations
