Yilmaz DC 421

General

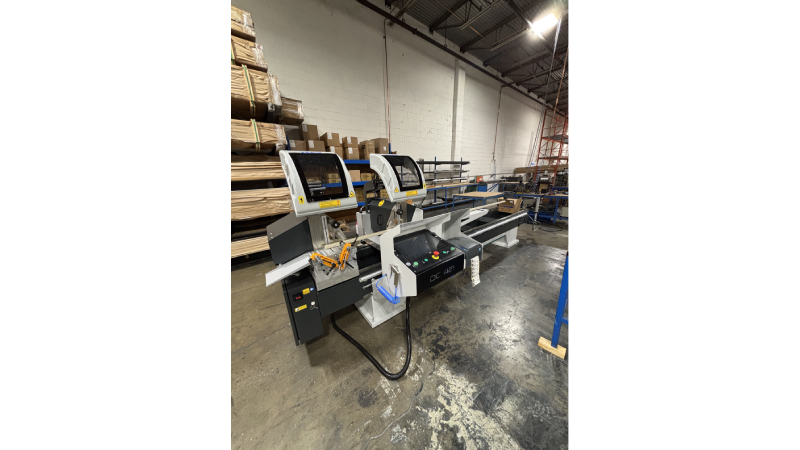

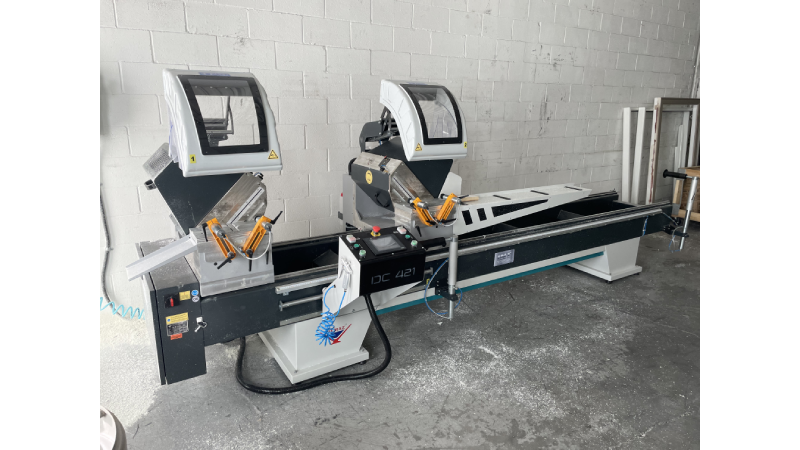

The Yilmaz DC 421 is a double head sawing machine designed for straight and miter cutting of aluminum and PVC profiles. The machine is built on a solid steel base and features a stationary left cutting head and a mobile right head. Both the PSD and PBS models feature servo-driven positioning of the mobile head for fast and accurate length setting.

The cutting heads are equipped with 420 mm saw blades that tilt pneumatically to fixed inward angles of 90° and 45°, with manual adjustment for intermediate angles. This setup is ideal for common fabrication needs in applications like windows, doors, and screens. The machine includes an automatic bar-feeding feature at 90° and 45°, and the hydro-pneumatic blade feed ensures a smooth, controlled cutting stroke for a high-quality finish.

The primary difference of the two versions lies in the control and connectivity:

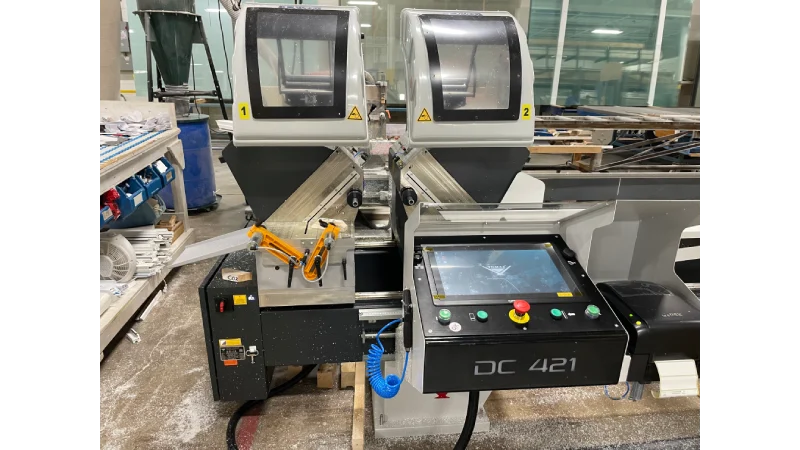

• • The DC 421 PSD is controlled via a 9" touch screen panel and accepts cutting lists in .csv format via a USB port.
  • The DC 421 PBS is upgraded with a Windows-based industrial PC and a 15" touch screen, allowing it to be fully networked for seamless data transfer.

Features

• Tilting of cutting heads automatically to 90° and 45° inwards.
• Manual adjustment for intermediate angles between 90° and 45°.
• Servo-driven positioning of the mobile cutting head.
• Hydro-pneumatic saw blade feed for a smooth cutting stroke.
• Automatic bar-feeding feature at 90° and 45°.
• Cutting accuracy of +/- 0.2 mm.
• Two-hand safety operation with automatically closing safety guards.
• PSD Model: Cutting list transfer via USB.
• PBS Model: Cutting list transfer via USB and Network.

Technical Data

• Tilting Range: Inward to 45°
• Saw Blade Diameter: 2 x 420 mm (16.5")
• Motor Power: 2.2 kW (3.0 HP)
• Blade Speed: 2900 RPM
• Max Cutting Length: 4m (13.1’), 5 m (16.4') and 6 m (19.7')
• Min. Cut at 90°: 200 mm 7.9”)
• Min. Cut at 45°: 430 mm (16.9”)
• Air Pressure: 6-8 Bar (87-116 psi)

Standard Equipment

• 2 x TCT Saw blades Ø 420 mm.
• 4 x horizontal pneumatic clamps.
• Roller conveyor
• 2x pneumatic profile supports.
• Spray saw blade lubrication system.
• Air gun.
• PSD Model: Barcode printer.

Optionals

• Spare Ø 420 mm saw blade.
• 2 x vertical pneumatic clamps.
• Short part cutting device (DKN 71).
• Arrow cut device (DKN 80).
• Industrial chip collector.
• PBS Model: Barcode printer.

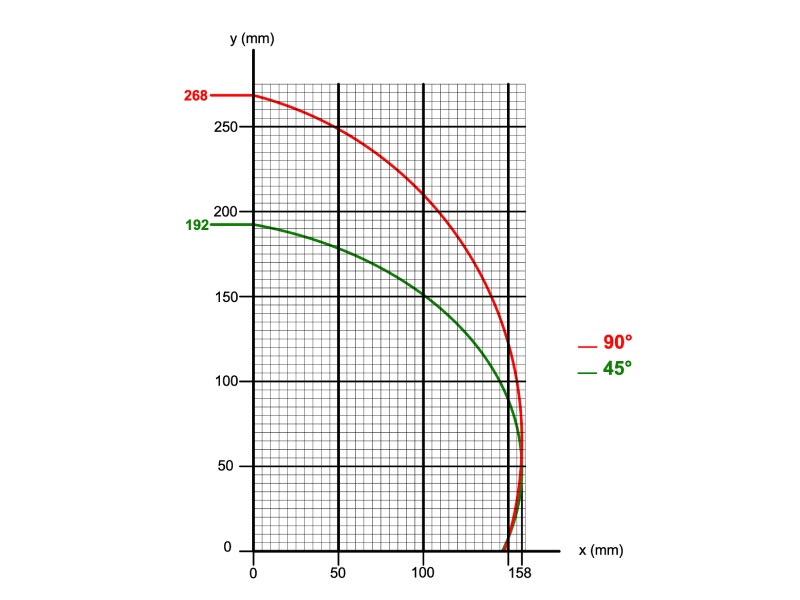

Cutting diagram
